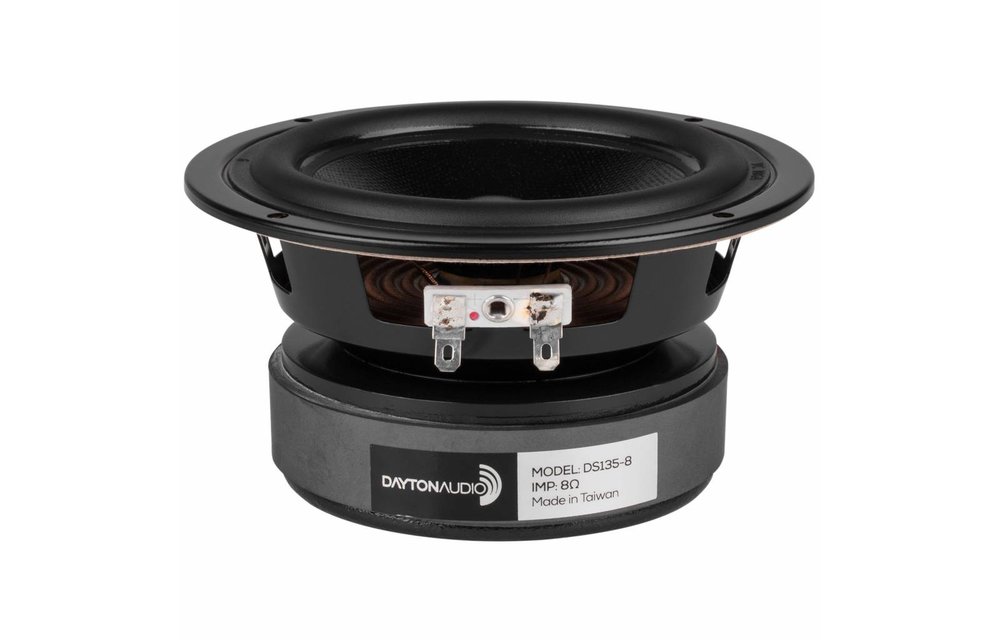

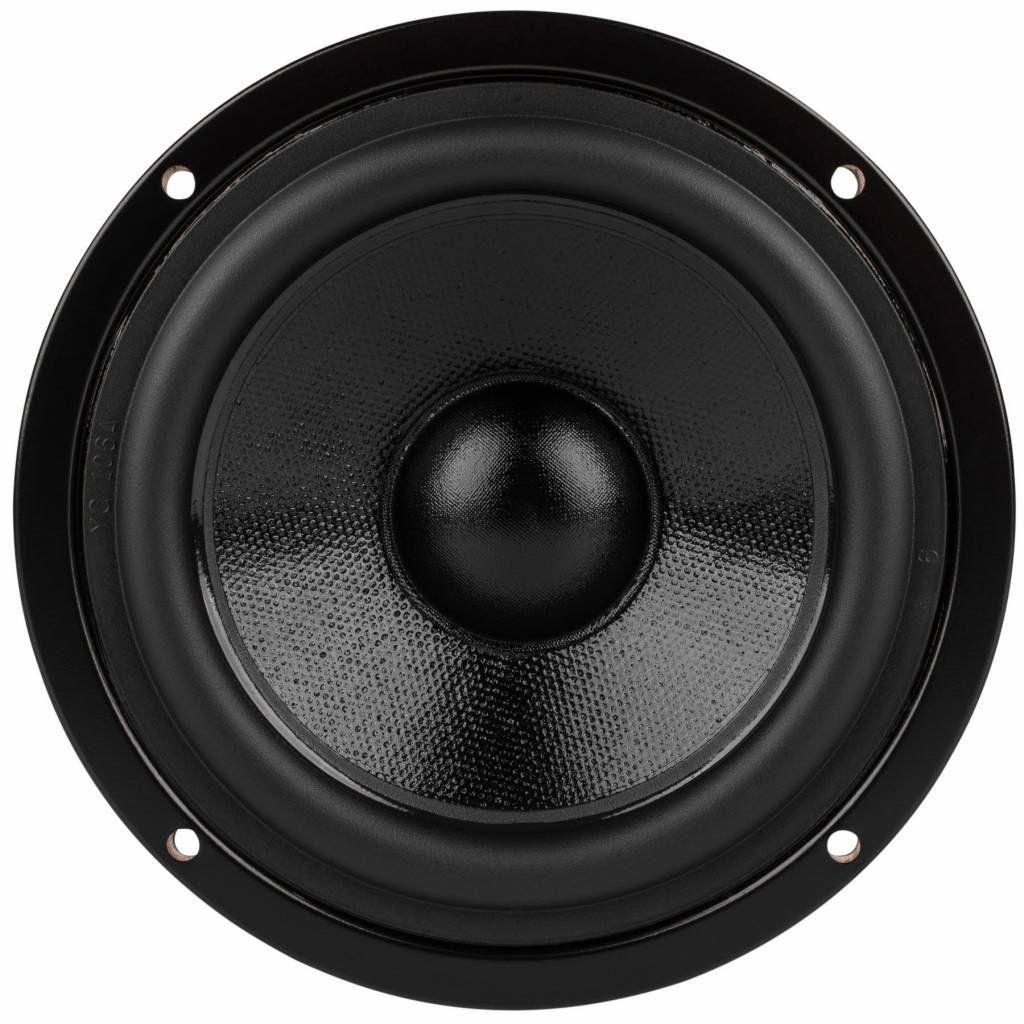

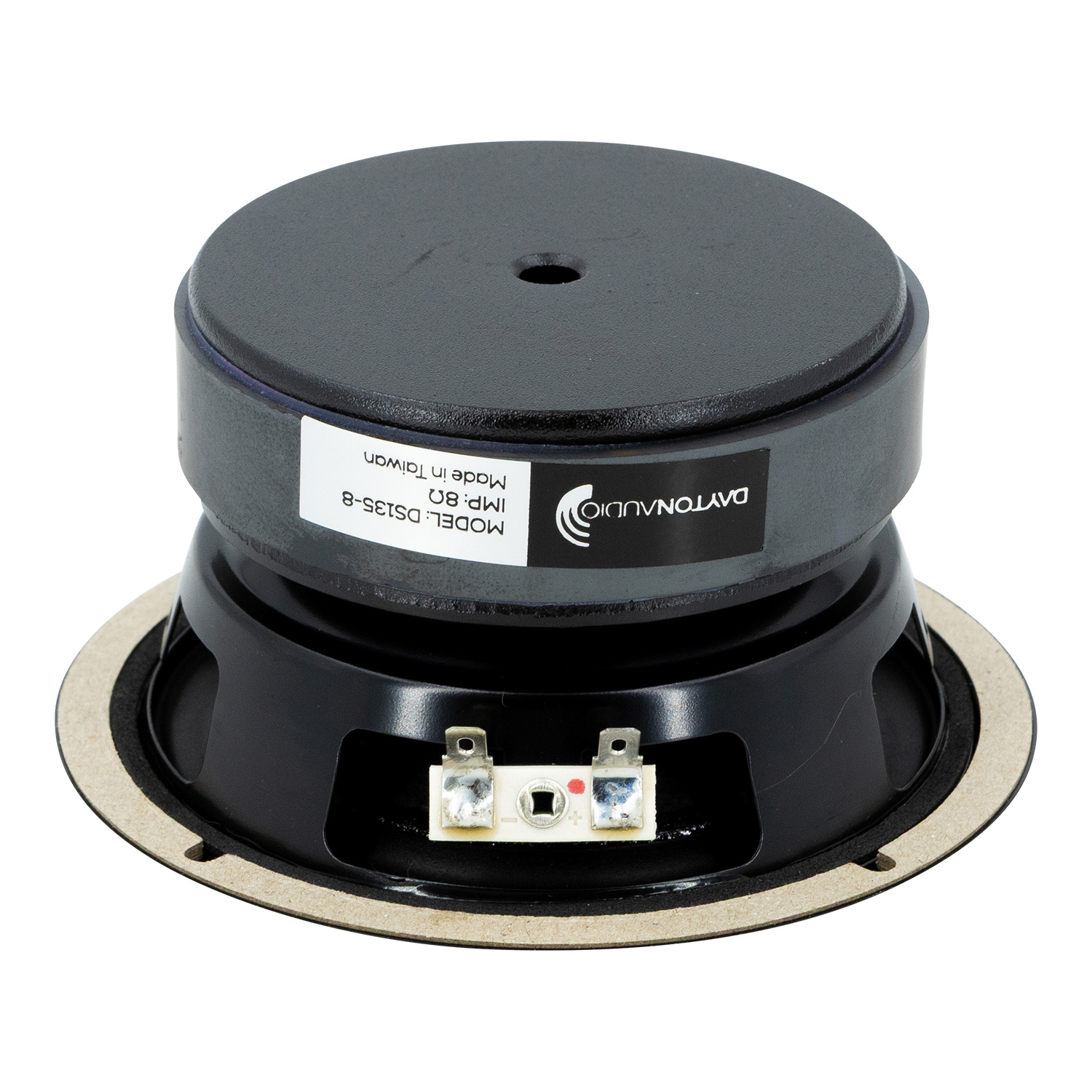

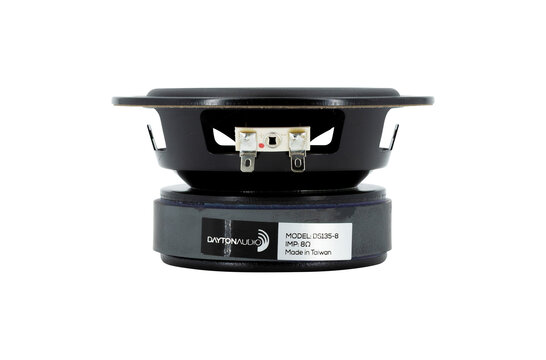

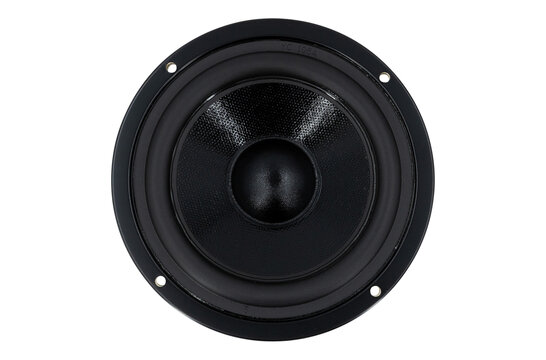

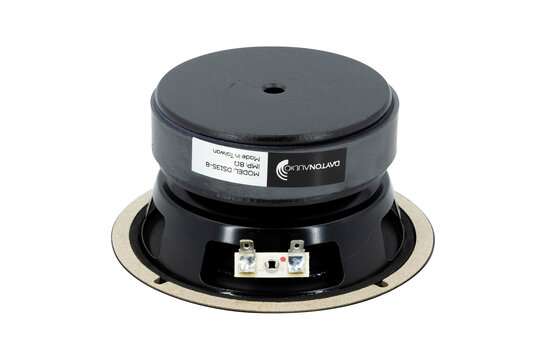

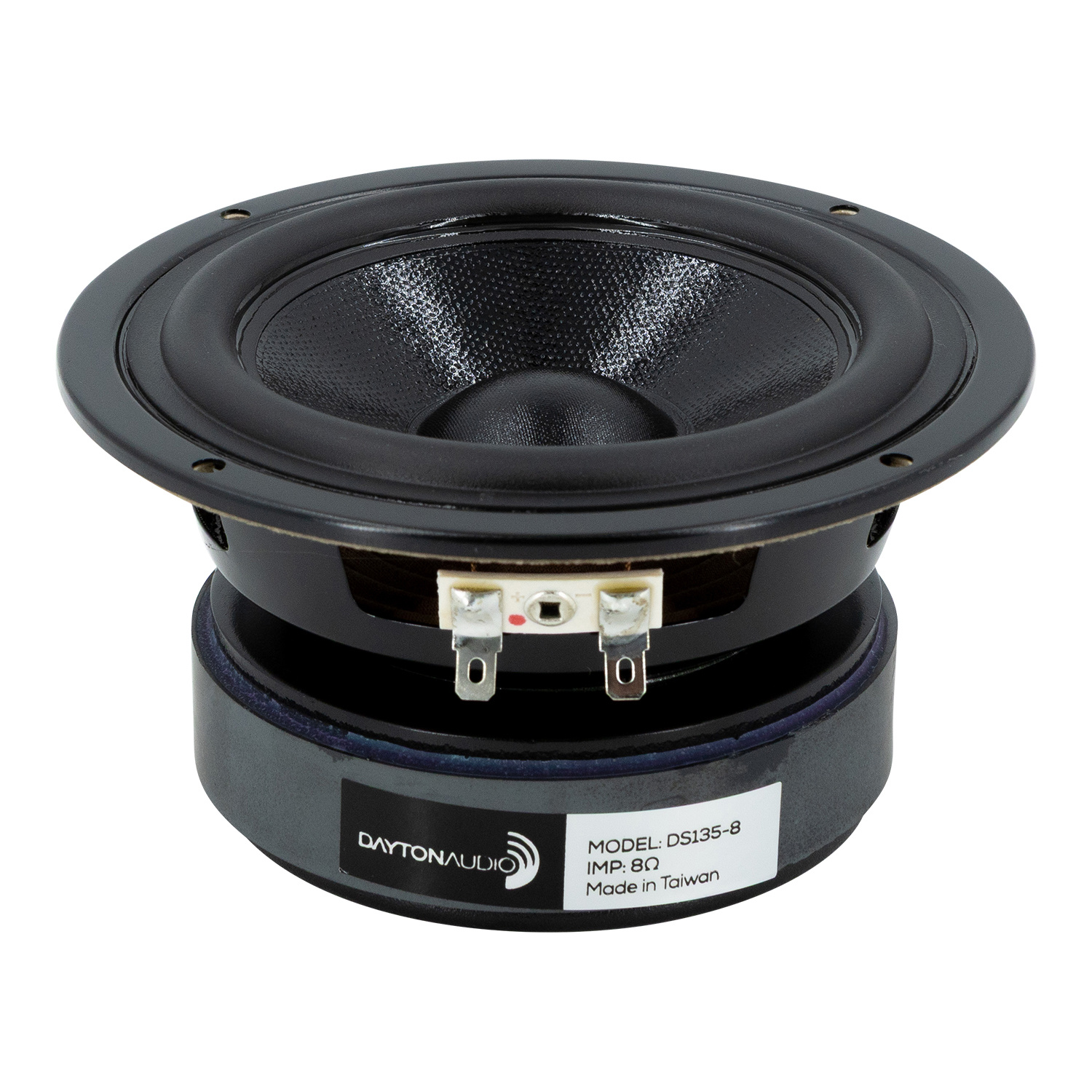

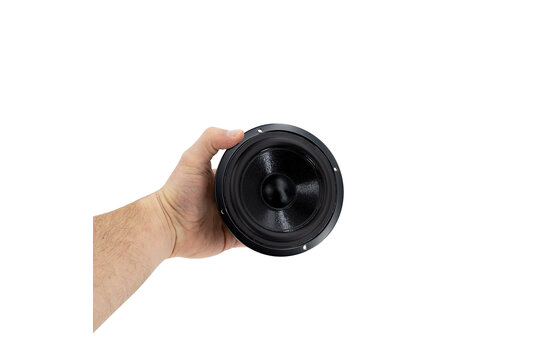

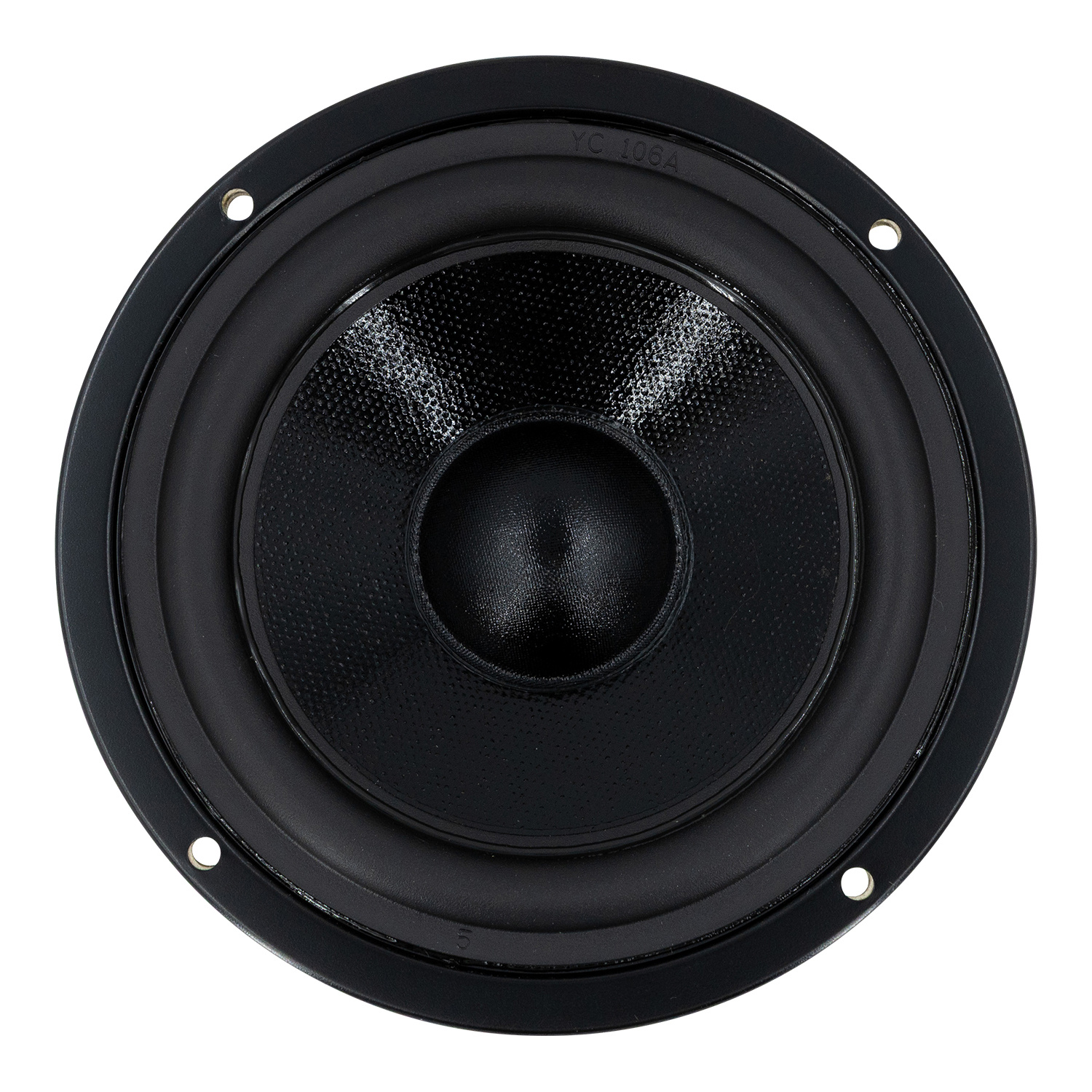

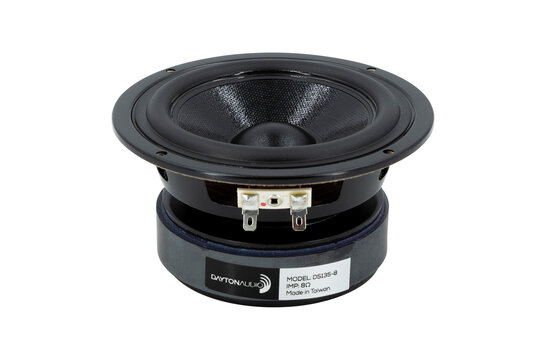

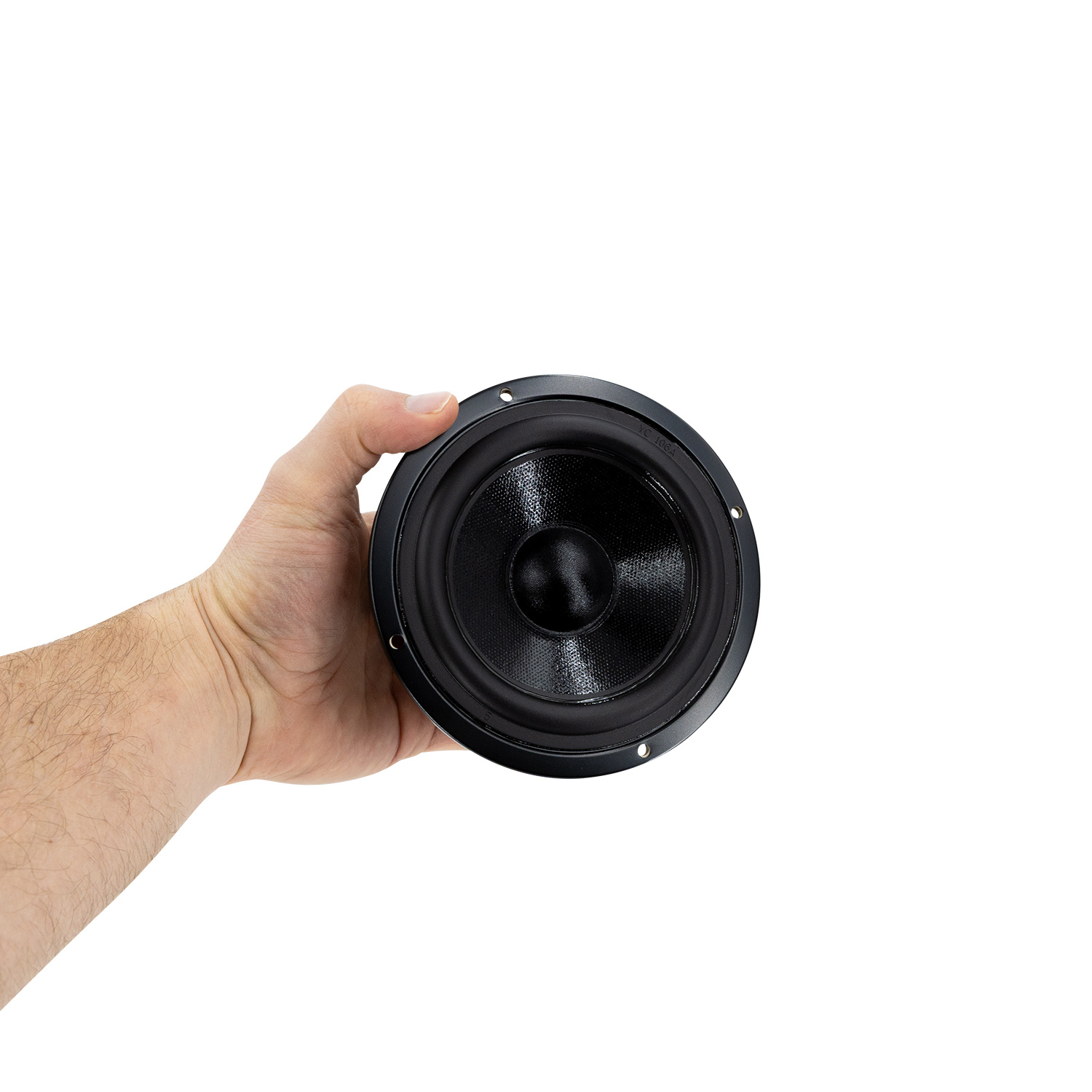

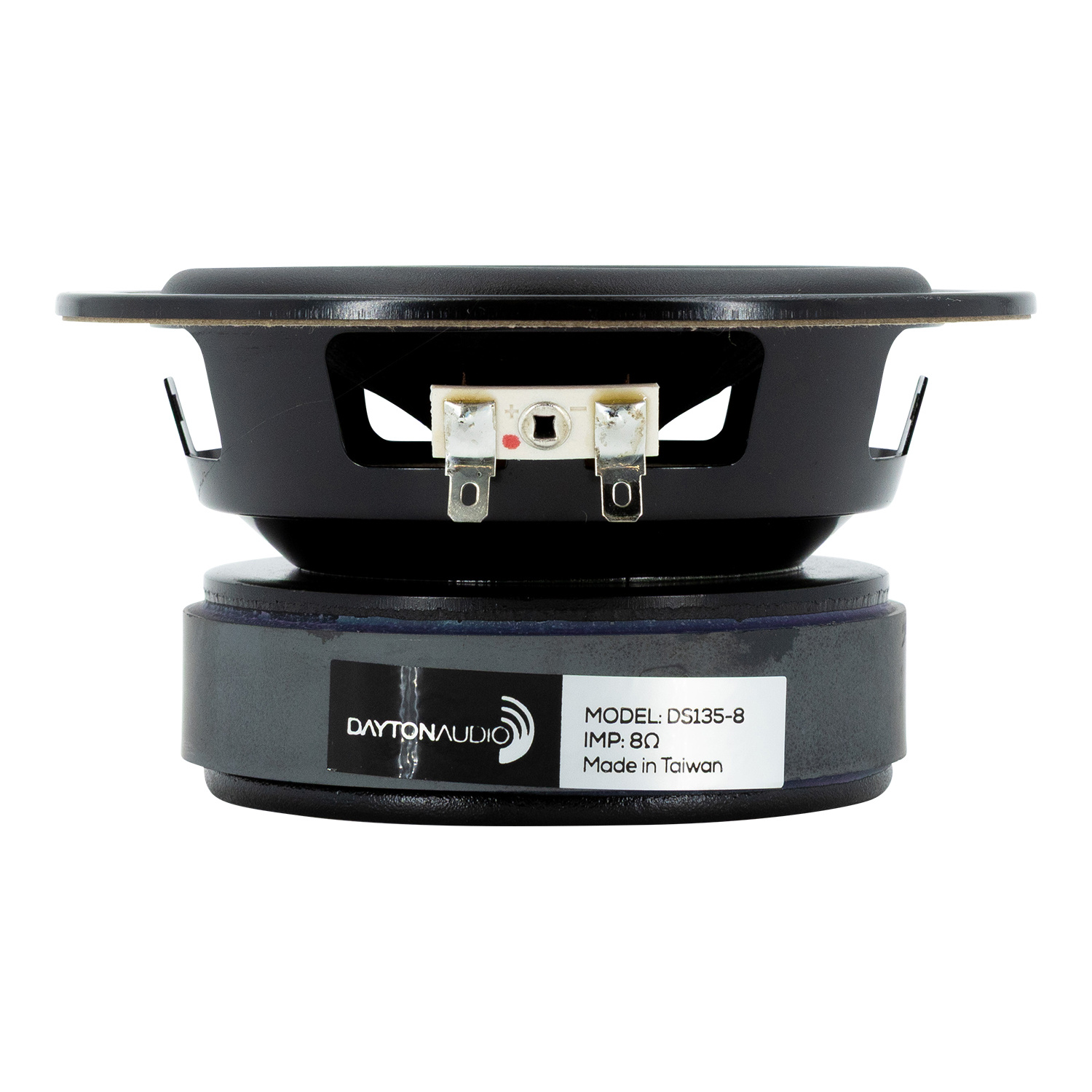

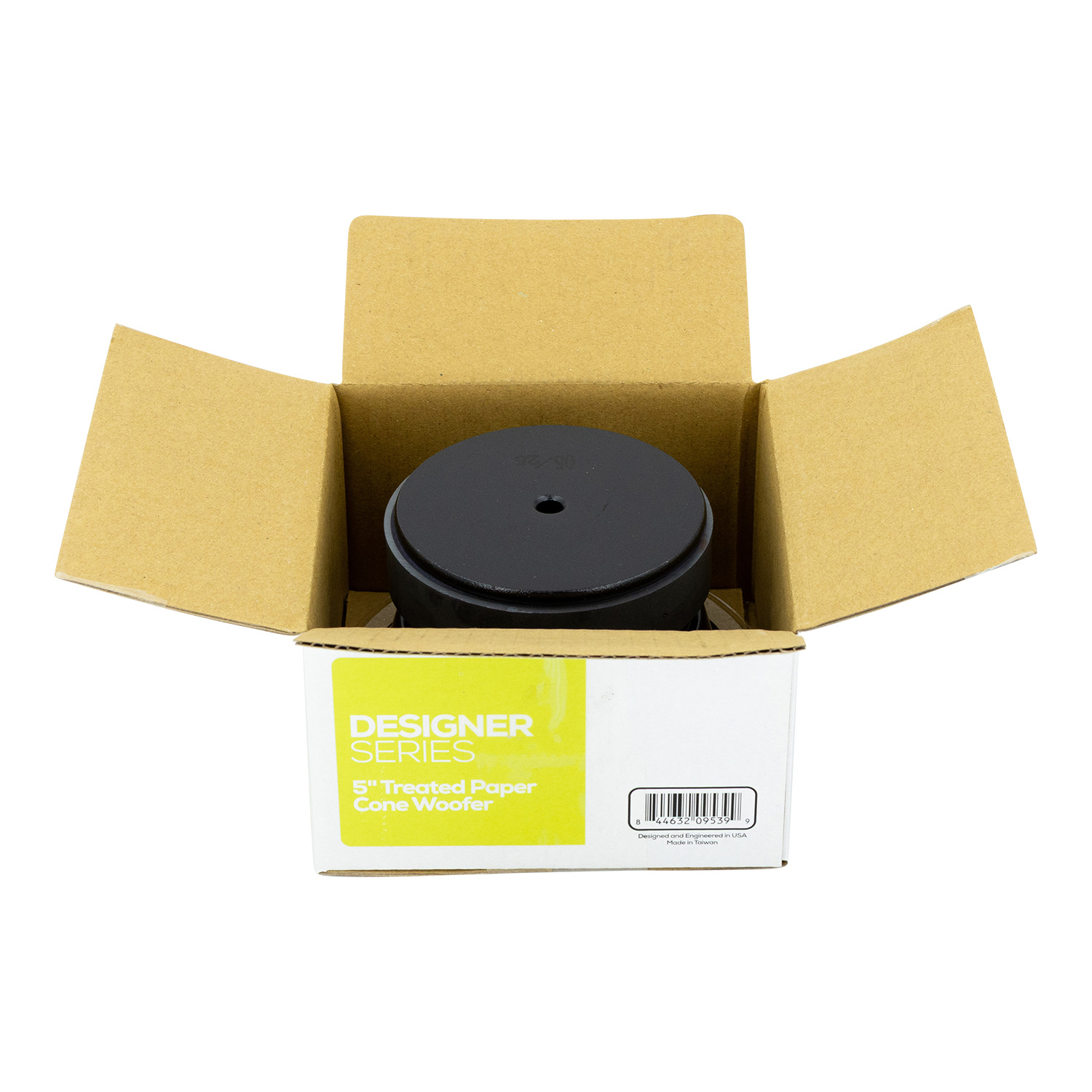

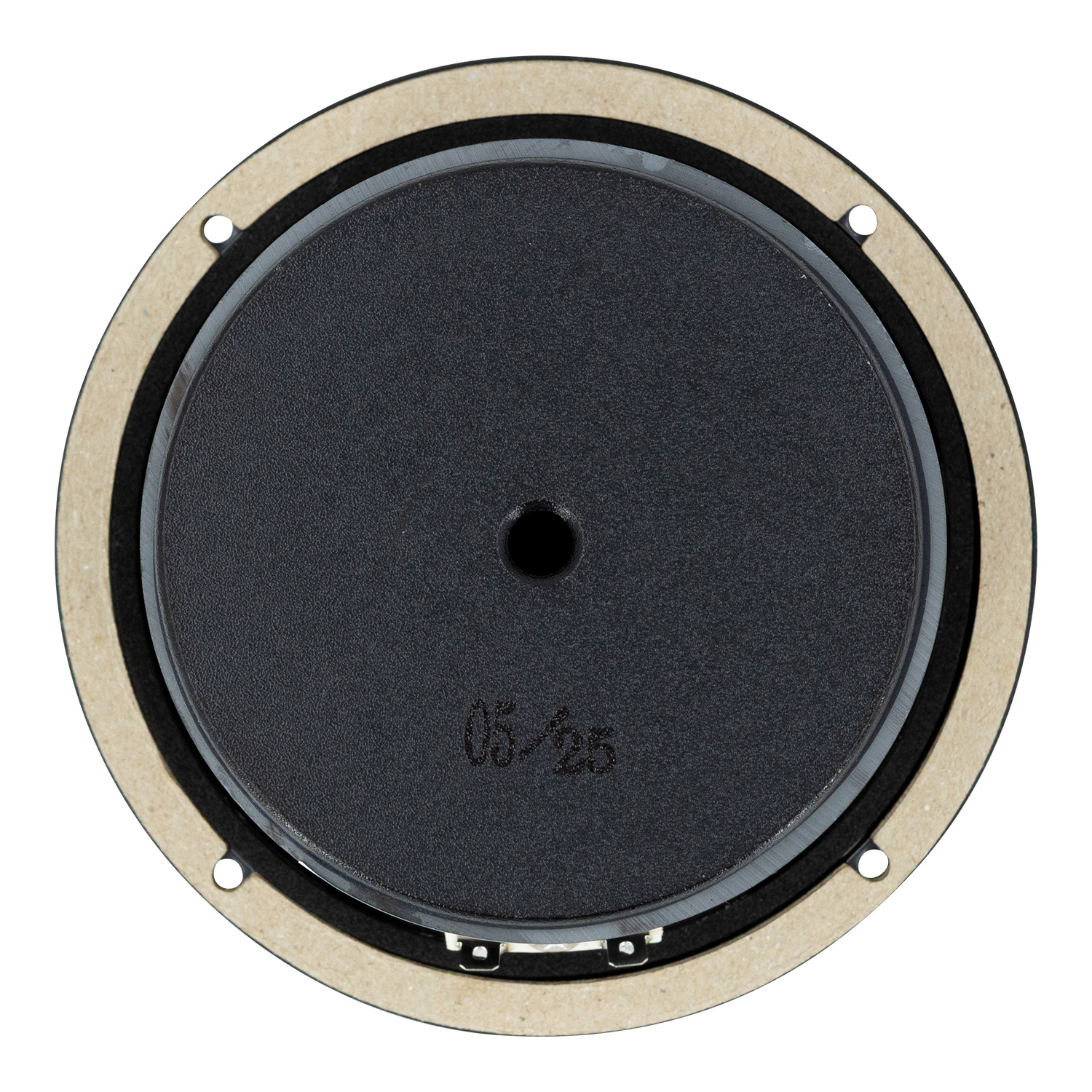

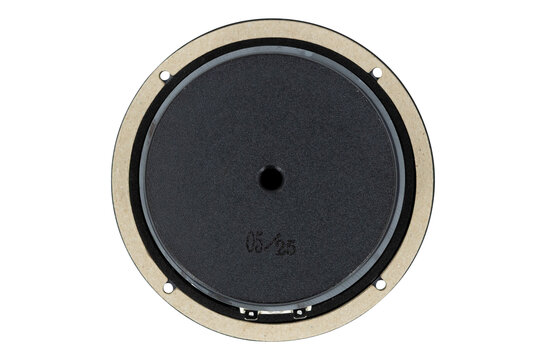

Dayton Audio DS135-8 5" Designer Series Woofer Speaker

Lieferzeit: 1-3 Werktage

  • Artikelnummer: DS135-8
  • Vorrat: >10 Auf Lager

The Designer Series DS135-8 from Dayton Audio brings great audio fidelity and superior cosmetics to the 5" woofer category.

€ 29,95 Inkl. MwSt.

  • Kaufen Sie 4 für je €28,45 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio DS135-8 5" Designer Series Woofer Speaker

The Designer Series DS135-8 from Dayton Audio brings great audio fidelity and superior cosmetics to the 5" woofer category.



Highlights

  • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
  • Coated paper cone, half roll rubber surround for durability and accurate reproduction
  • Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet
  • Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers
  • Vented pole piece for minimized power compression and maximized reliability
  • Generous Xmax capability encourages use of moderate bass boost to tailor the response
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators



Product details

Dayton Audio DS135-8 5" Designer Series Woofer Speaker



The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.



These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.



  • Suggested enclosures:

Sealed cabinet: Type: Acoustic suspension (alpha 3.0), Qtc 0.60; Size (internal) including volume displaced by driver: 0.1 ft³; Internal cabinet dimensions (golden ratio): 9-1/8"H x 5-5/8"W x 3-1/2"D. Typical results: 3 dB down-point (f3): 118 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 50 Hz.



Vented cabinet: Type: Bass reflex; Size (internal) including volume displaced by driver and port: 0.17 ft³; Internal cabinet dimensions (golden ratio): 10-3/4"H x 6-5/8"W x 4-1/8"D; Port dimensions (with flared exit): 1" dia. x 4"L. Typical results: 3 dB down-point (f3): 66 Hz; Tuning frequency (fb): 62 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 48 Hz.



Frequency response (FRD) and Impedance (ZMA) data files available to assist in crossover and enclosure modeling.



Eigenschaften

Spezifikationen für: DS135-8 5" Designer Series Woofer Speaker

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers. Designer Series
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Midwoofer
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 3.50"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 50 watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 100 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 86.6 dB @ 2.83V/1m
  • Frequency Response 50 - 7,000 Hz
  • Voice Coil Diameter 25.4 mm
  • Magnet Weight 21 oz.
  • DC Resistance (Re) 5.9 ohms
  • Voice Coil Inductance (Le) 0.84 mH @ 1 kHz
  • Resonant Frequency (Fs) 52.5 Hz
  • Mechanical Q (Qms) 2.02
  • Electromagnetic Q (Qes) 0.48
  • Total Q (Qts) 0.39
  • Diaphragm Mass Inc. Airload (Mms) 9.7g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.95 mm/N
  • Surface Area of Cone (Sd) 75.4 cm²
  • Volume of Displacement (Vd) 36.6 cm³
  • BL Product (BL) 6.23 Tm
  • Compliance Equivalent Volume (Vas) 7.27 liters
  • Maximum Linear Excursion (Xmax) 4.85 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Coated Paper
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 135 mm
  • Overall Depth 68.6 mm
  • Baffle Cutout Diameter 111.5 mm
  • Bolt Circle Diameter
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume 0.07 ft.³
  • Sealed F3 113 Hz
  • Vented Volume 0.15 ft.³
  • Vented F3 66 Hz

Documenten

Bewertungen

Erfahrungsberichte 5 / 5 Bewertungen: (4)

  • DR Durch Dave R. an 28-06-2020 13:42

    5 / 5

    Ordered on friday turned up sunday morning. Speakers sound great and can really handle the bass. Have to keep my amp on a pretty low bass setting.

  • SF Durch Sunny fernandes an 30-09-2018 15:38

    5 / 5

    I bought a pair of these woofers for my diy project. delivery by soundimports was quick .The quality of these woofers is amazing.you can hook these up with Dayton mini air motion tweeter for amazing high frequency response you won't be disappointed with the purchase .On the website you will even find suggested enclosure size for vented or sealed cabinet .The bass from these woofers is awesome.thanks to sound imports for selling such high quality audio equipment.

  • MB Durch mark B. an 12-06-2018 18:42

    5 / 5

    You really can't go wrong for the price, They sound so much bigger than its 5"size. I used these Dayton Audio Designer Series Woofers for my desk speakers with a nice set of new tweeters paired up with a crossover in each speaker from Edifier S730 speakers just makes the Dayton Audio sound even sweeter. The rear magnets has some real girth and weight to them which explains the quality of good sound they deliver.. Max these puppies out they can take it all.

  • SN Durch Stan an 12-12-2016 12:27

    5 / 5

    Top speakers voor mijn diy bluetooth speaker.
    Ik gebruik 2 van deze en 2 tweeters.

    Levertijd was uitermate goed, super snel geleverd. Top!
    Als ik ooit weer speaker spul nodig heb weet ik waar ik moet zijn!
    Een echte aanrader deze shop!
