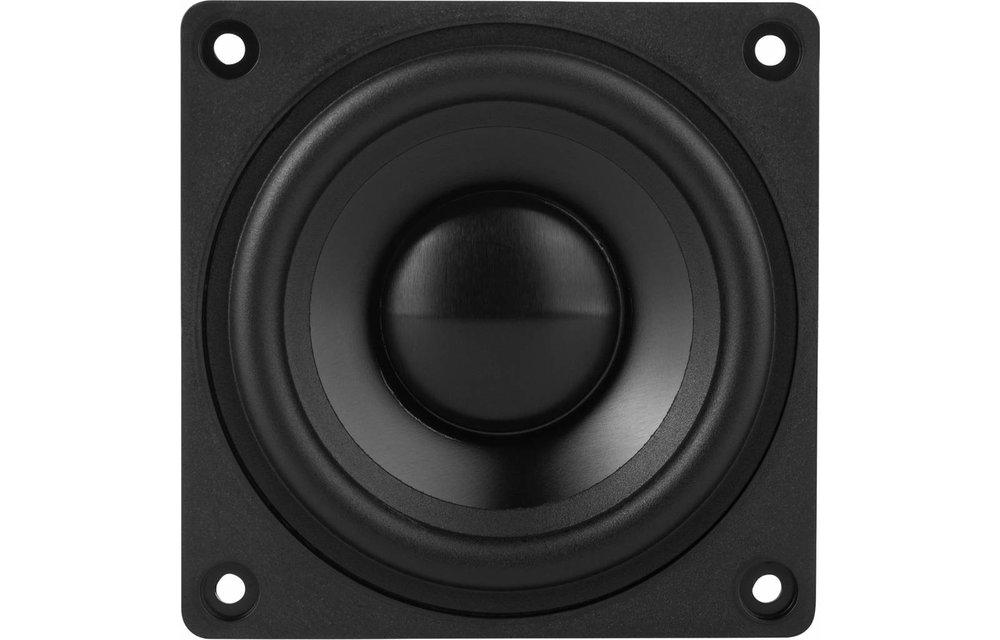

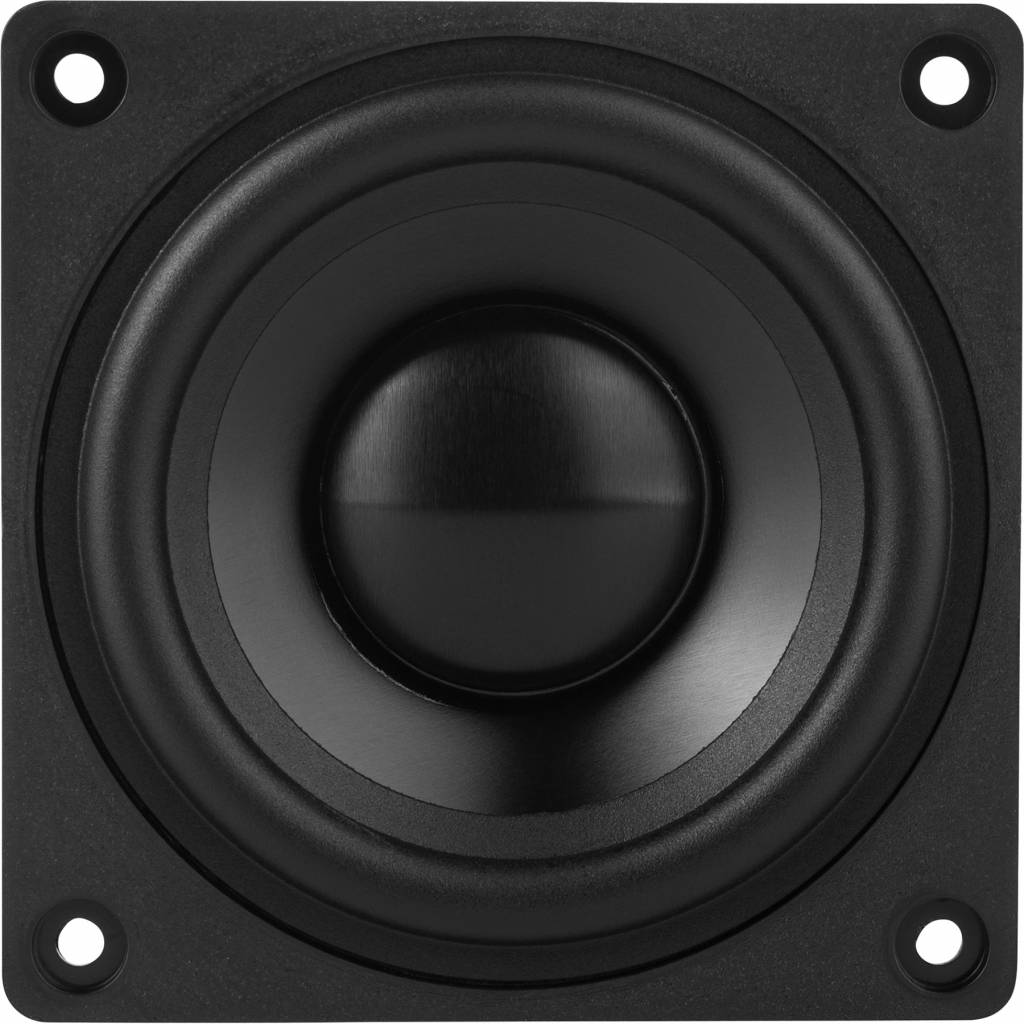

Dayton Audio DMA80-PR 3" Aluminum Cone Passive Radiator

€ 10,95 5 Auf Lager: Lieferzeit 1-3 Werktage
Dayton Audio's DMA80-PR 3" aluminum cone passive radiator allows you to tune small enclosures lower than possible using conventional ports. Matching the DMA series of drivers drivers perfectly, this passive radiator is perfect for use in ultra-small desig... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €10,40 pro stück
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Bezahlung mit PayPal, Kreditkarte und mehr
  • Hausinterner technischer Support

Produktbeschreibung

Dayton Audio's DMA80-PR 3" aluminum cone passive radiator allows you to tune small enclosures lower than possible using conventional ports. Matching the DMA series of drivers drivers perfectly, this passive radiator is perfect for use in ultra-small designs like smart speakers, sound bars, and portable Bluetooth speakers.



Highlights

  • Perfect match for the Dayton Audio DMA series drivers
  • Allows tuning small enclosures lower than using conventional ports

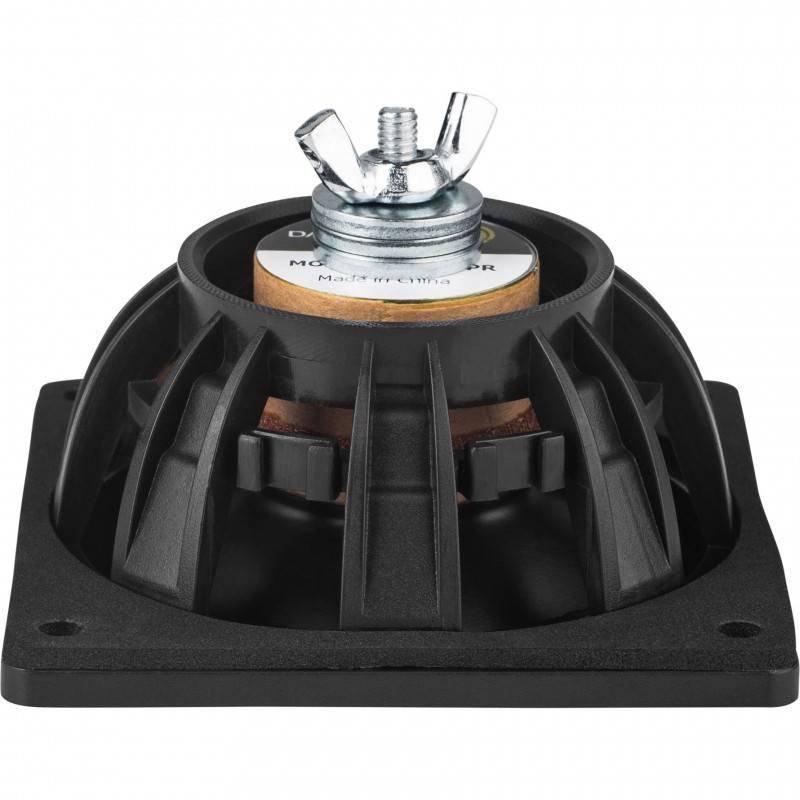

  • Rear mounted threaded post allows easy mass adjustment for custom tuning
  • DIY friendly, oversized mounting flange makes installation simple



Product details

Dayton Audio DMA80-PR 3" DMA Series Passive Radiator

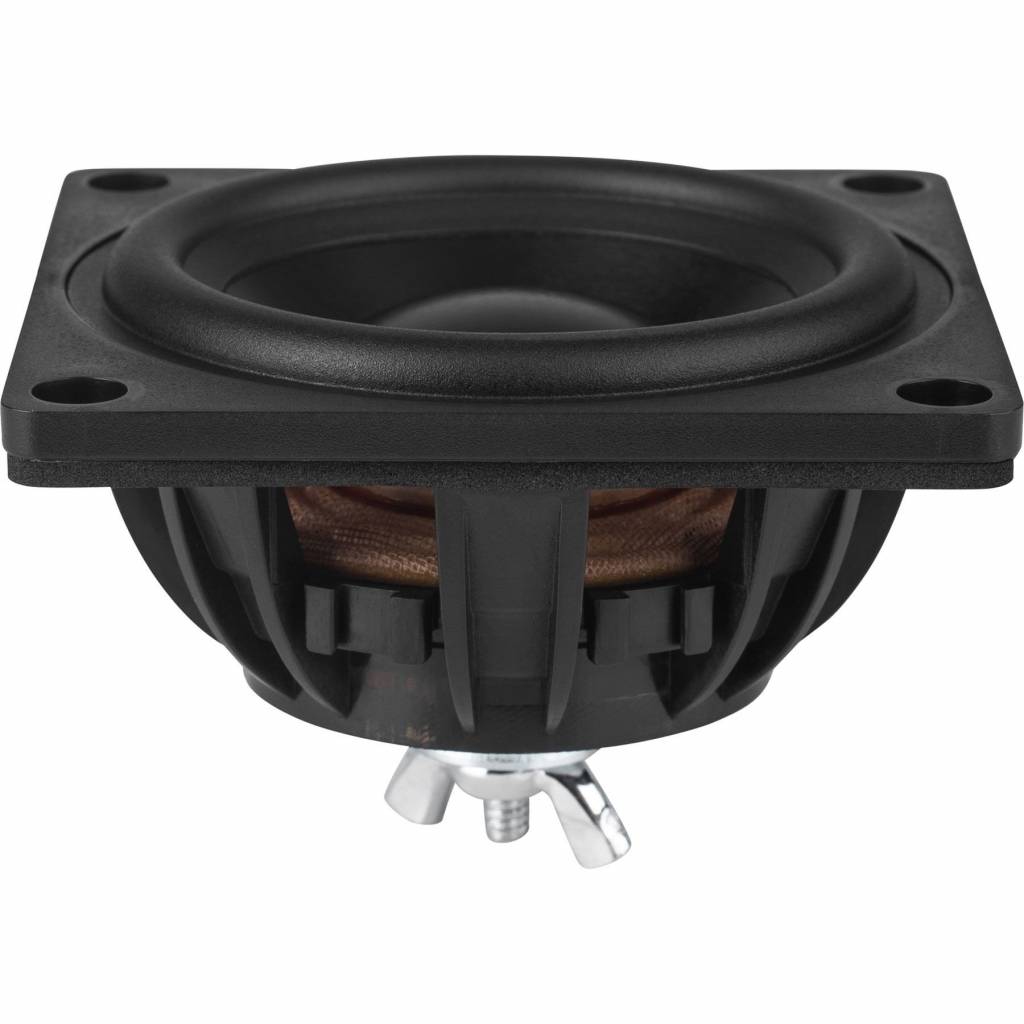

The DMA80-PR 3" passive radiator from Dayton Audio is the perfect option for achieving low tuning frequencies from the smallest enclosure designs. This incredibly small passive radiator has all the features you would expect lager units including adjustable mass, aluminum cone, and rubber surround. Visually identical to Dayton Audio's full-range DMA series drivers, the DMA80-PR can also be used with any small driver that requires a low tuning frequency. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a smart speaker, sound bar, or portable Bluetooth speaker, the Dayton Audio DMA80-PR introduces a new range of possibilities.



Specifications: • Fs: 34.6 Hz • Vas: 0.071 cu. ft. (1.9 liters) • Qms: 8.91 • Cms: 1.41 mm/N • Mms: 13.7 g • Rms: 0.35 kg/s • Sd: 31.2 sq. cm. • Xmech: 7 mm • Dimensions: Overall diameter: 3.17" x 3.17", Cutout diameter: 2.93", Depth: 1.76".



Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.
To calculate Vd: Sd x Xmax = Vd

Eigenschaften

Artikelnummer:
DMA80-PR
Woofer Series
DMA series
Woofer Type
1.85"
Resonant Frequency (Fs)
34.6 Hz
Mechanical Q (Qms)
8.91
Diaphragm Mass Inc. Airload (Mms)
13.7 g
Mechanical Compliance of Suspension (Cms)
1.41 mm/N
Surface Area of Cone (Sd)
31.2 sq. cm.
Compliance Equivalent Volume (Vas)
0.071 cu. ft. (1.9 liters)
Maximum Linear Excursion (Xmax)
7 mm
Driver's Mechanical Losses (Rms)
0.35 kg/s
Cone / Diaphragm Material
Aluminum
Basket / Frame Material
Polymer
Overall Depth
1.76"
Baffle Cutout Diameter
2.93"
Bolt Circle Diameter
3.75"
# Mounting Holes
4

Bewertungen

5 from 5Based on 1 reviews
Produkt bewerten
5 van 5
Perfect for two 2-2,5” speakers. Adjustable weight to get the tune just right.
Durch Truls E. on 18 März 2020
