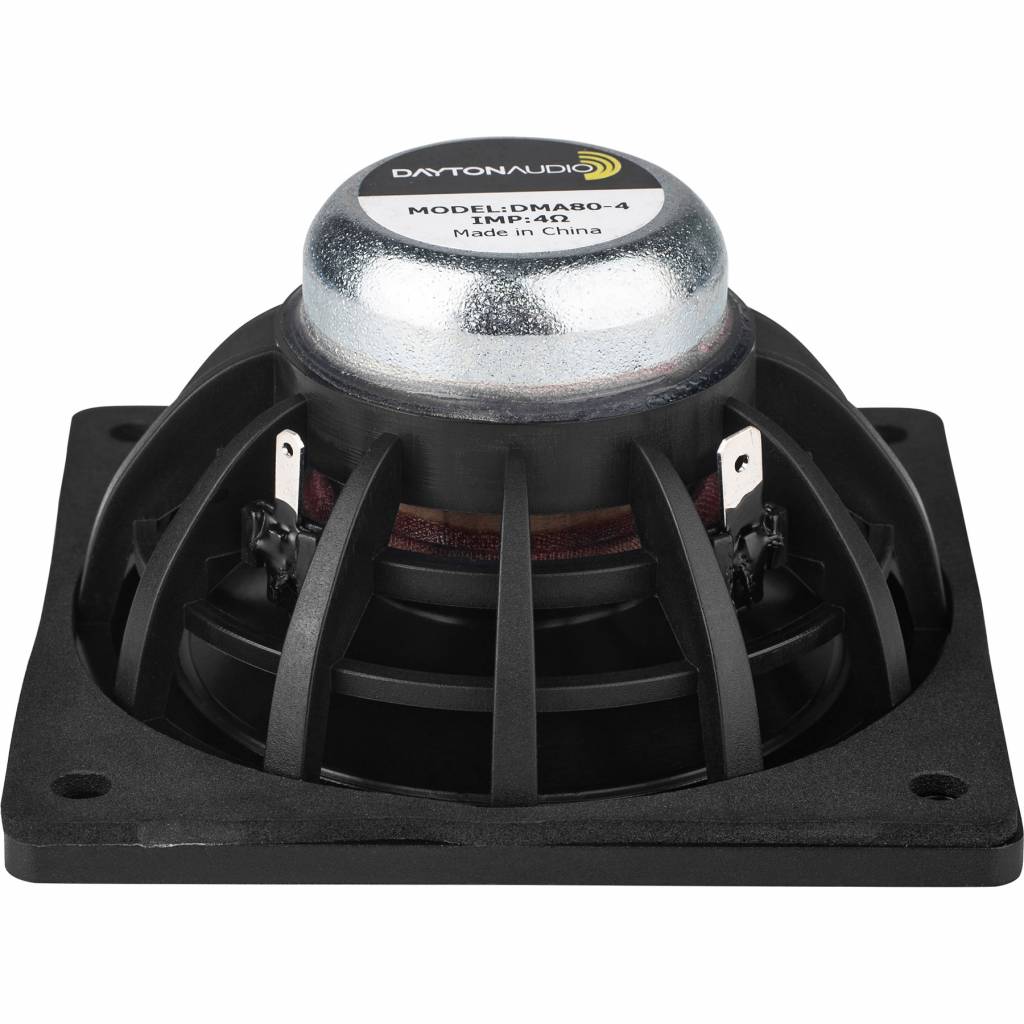

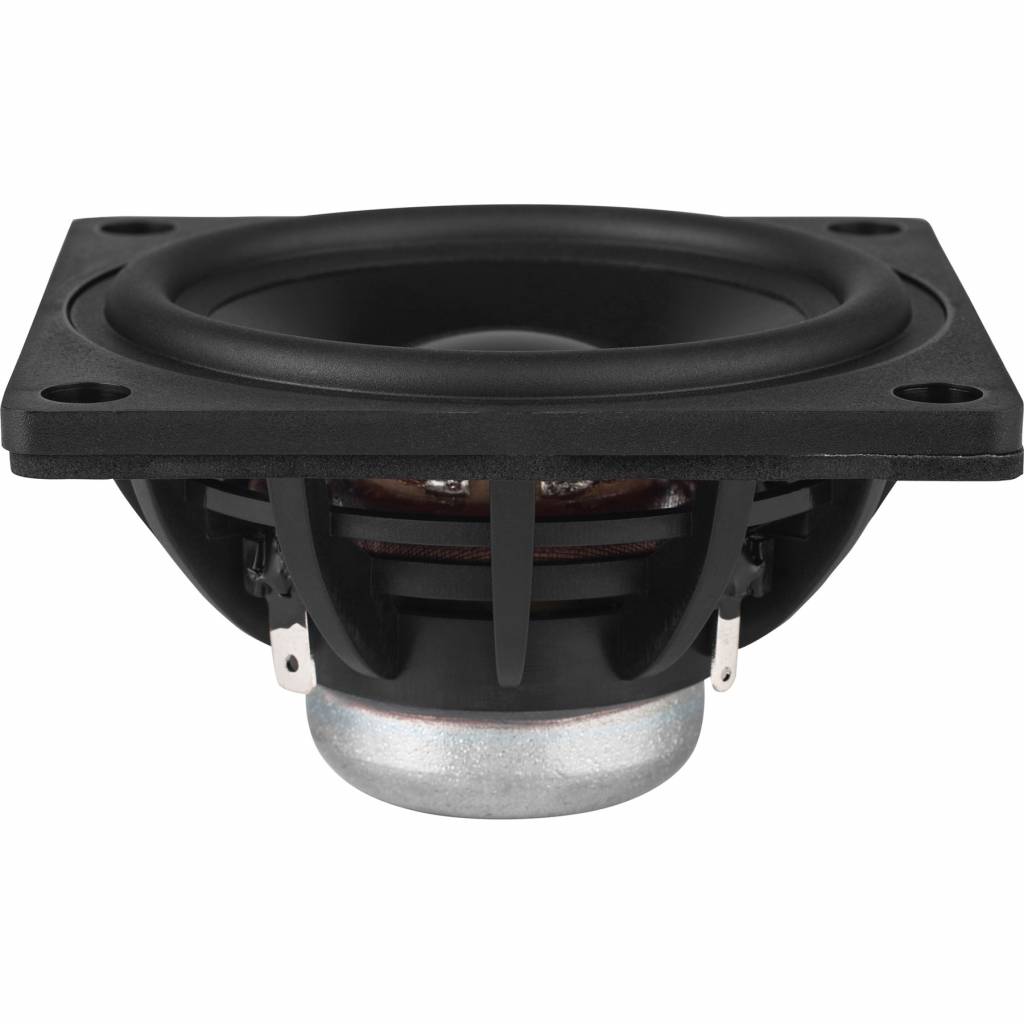

Dayton Audio DMA80-4 3" Aluminum Cone Full-Range Driver

€ 13,18€ 15,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
Dayton Audio's DMA80-4 3” high performance full-range driver combines a rigid aluminum cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazin... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €15,15 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support


Dayton Audio's DMA80-4 3” high performance full-range driver combines a rigid aluminum cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazing high frequency capability. Make the DMA80-4 the first choice for your next smart speaker, portable Bluetooth speaker, or even high output line array design.



  • Excellent high frequency response for true full-range applications
  • Dual neodymium motor to create a symmetrical magnetic field for superb control
  • Large copper cap lowers distortion while improving high frequency response
  • Vented aluminum voice coil former with exceptional heat dissipation for high power handling
  • Exclusive 8-spoke open frame design provides extensive venting and minimal reflection
  • DIY friendly, oversized mounting flange makes installation simple
  • Matching tunable passive radiators also available!


Product details

Dayton Audio DMA80-4 3” Dual Magnet Aluminum Cone Full-Range Driver 8 Ohm


Providing high efficiency with low distortion, Dayton Audio's DMA80-4 3” aluminum cone full-range is an ideal driver for use in many of today's modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA80-4 is the perfect full-range for the job.

Designed for the highest performance while delivering maximum value, the no compromise design of the DMA80-4 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 1" voice coil is wound on an extensively vented aluminum former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 8-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion.

Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8" radius, meaning that for flush mounting you can get a perfect fit using any standard 1/8" straight cut router bit.


Woofer Series
WMA series
Woofer Type
Nominal Diameter
Power Handling (RMS)
25 Watts
Power Handling (max)
50 Watts
4 ohms
88.1 dB 2.83V/1m
Frequency Response
90 to 20,000 Hz
Voice Coil Diameter
DC Resistance (Re)
4 ohms
Voice Coil Inductance (Le)
0.2 mH
Resonant Frequency (Fs)
93.5 Hz
Mechanical Q (Qms)
Electromagnetic Q (Qes)
Total Q (Qts)
Diaphragm Mass Inc. Airload (Mms)
Mechanical Compliance of Suspension (Cms)
0.96 mm/N
Surface Area of Cone (Sd)
31.2 cm²
BL Product (BL)
3.74 Tm
Compliance Equivalent Volume (Vas)
0.05 ft.³
Maximum Linear Excursion (Xmax)
2.5 mm
Cone / Diaphragm Material
Surround Material
Voice Coil Wire Material
Voice Coil Former
Basket / Frame Material
Magnet Material
Overall Outside Diameter
3.16" x 3.16"
Overall Depth
Baffle Cutout Diameter
# Mounting Holes
Sealed Volume
Sealed F3
196 Hz
Vented Volume
0.04 ft.³
Vented F3
109 Hz


5 from 5Based on 3 reviews
Produkt bewerten
5 van 5
Used DSP FIR filter and this unit gives VERY clean sound in the 200 - 3kHz range that I used it for.

Tried 500-3kHz and could hear nasties from bass unit.
Durch Gareth J. on 29 April 2021
5 van 5
No description was given
Durch Balazs B. on 19 Juni 2020
