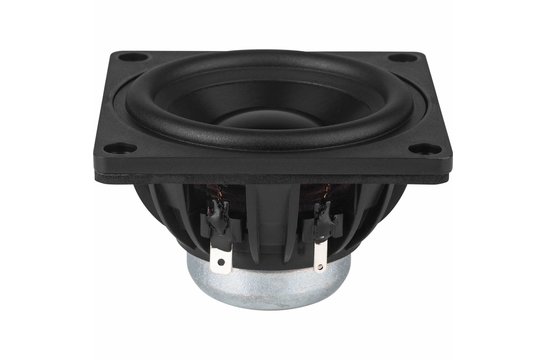

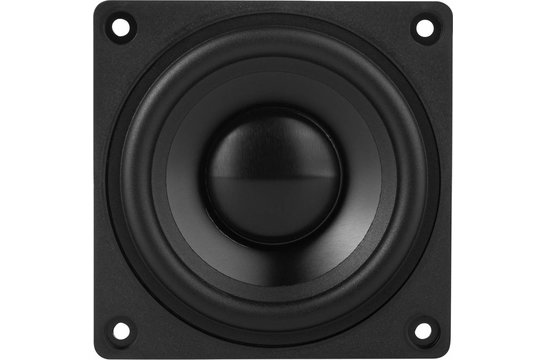

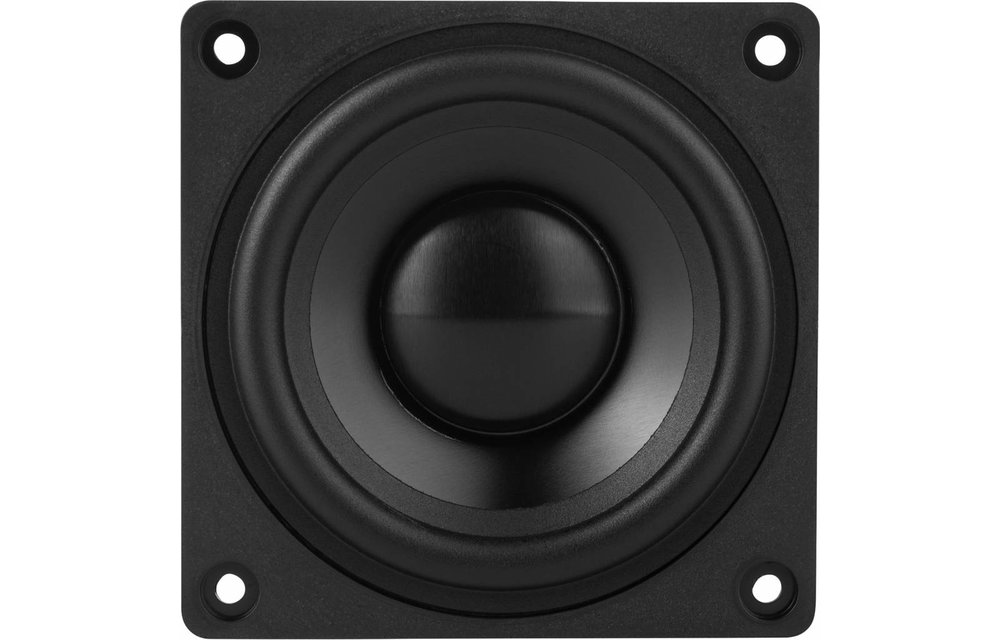

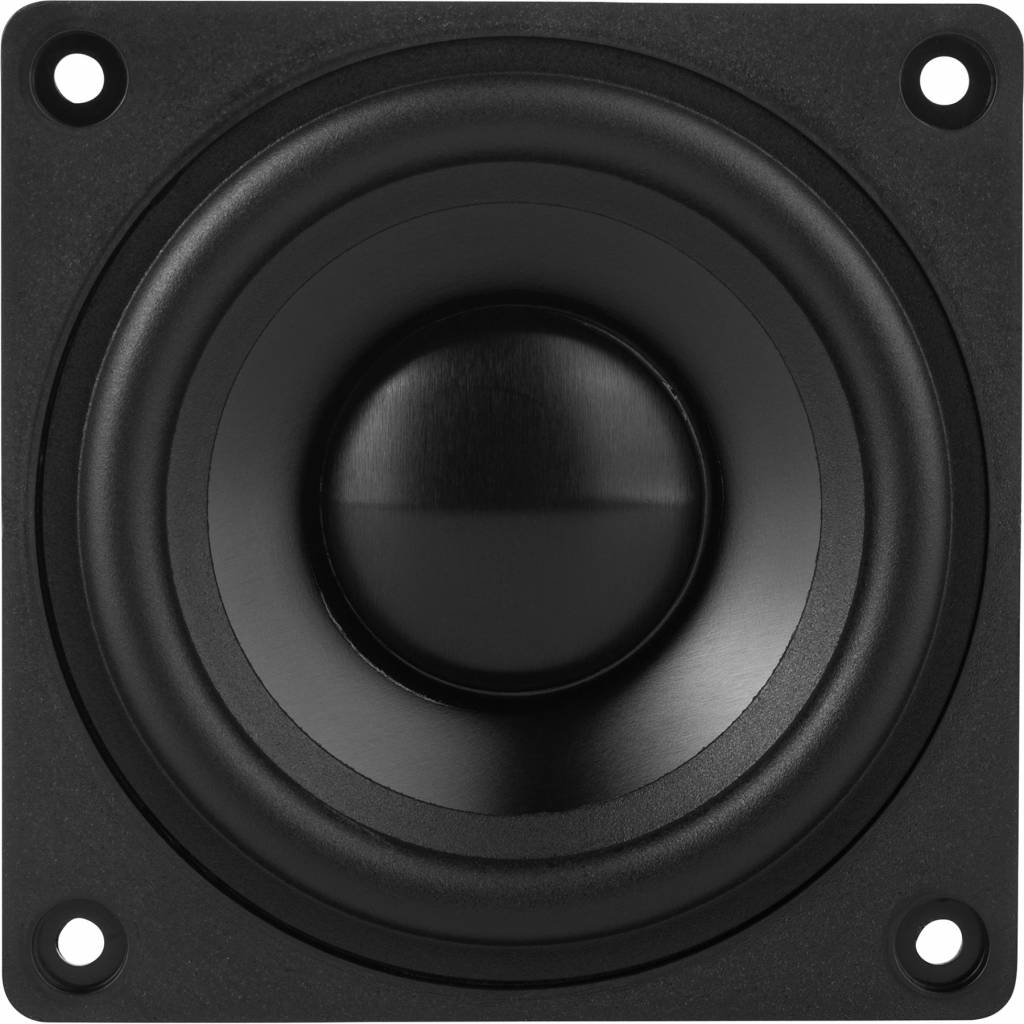

    Dayton Audio DMA70-8 Breitbandlautsprecher

    € 16,49€ 19,95 Nicht auf Lager: bitte kontaktieren Sie uns für die aktuelle Lieferzeit

    Bulk discount Genießen Sie diese tollen Rabattangebote
    • -5% Bestellung 4 für nur €18,95 pro stück
    • Versicherter Versand mit Sendungsverfolgung
    • Kostenloser Versand ab 149€ (DE, A)
    • Versand am selben Tag
    • Hausinterner technischer Support
    Haben Sie eine Frage zu diesem Produkt?

    Haben Sie eine Frage zu diesem Produkt?

    Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

    Produktbeschreibung

    Dayton Audio's DMA70-8 2-1/2” high performance full-range driver combines a rigid aluminum cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazing high frequency capability. Make the DMA70-8 the first choice for your next smart speaker, portable Bluetooth speaker, or even high output line array design.



    Highlights

    • Excellent high frequency response for true full-range applications
    • Dual neodymium motor to create a symmetrical magnetic field for superb control
    • Large copper cap lowers distortion while improving high frequency response
    • Vented aluminum voice coil former with exceptional heat dissipation for high power handling
    • Exclusive 8-spoke open frame design provides extensive venting and minimal reflection
    • DIY friendly, oversized mounting flange makes installation simple
    • Matching tunable passive radiators also available!



    Product details

    Dayton Audio DMA70-8 2-1/2” Dual Magnet Aluminum Cone Full-Range Driver 8 Ohm



    Providing high efficiency with low distortion, Dayton Audio's DMA70-8 2-1/2” aluminum cone full-range is an ideal driver for use in many of today's modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA70-8 is the perfect full-range for the job.

    Designed for the highest performance while delivering maximum value, the no compromise design of the DMA70-8 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 1" voice coil is wound on an extensively vented aluminum former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 8-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion.

    Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8" radius, meaning that for flush mounting you can get a perfect fit using any standard 1/8" straight cut router bit.

    Eigenschaften

    Artikelnummer:
    DMA70-8
    Tieftöner-Serie
    DMA series
    Tieftönertyp
    Full-range
    Nenndurchmesser
    2-1/2”
    Belastbarkeit (QMW)
    20 Watts
    Belastbarkeit (max)
    30 Watts
    Impedanz (Z)
    8 ohms
    Empfindlichkeit
    82.9 dB 2.83V/1m
    Frequenzgang
    110 to 20,000 Hz
    Schwingspulendurchmesser
    1"
    Gleichstromwiderstand (Re)
    7.5 ohms
    Schwingspuleninduktion (Le)
    0.47 mH
    Resonanzfrequenz (Fs)
    113 Hz
    Mechanische Güte (Qms)
    2.06
    Elektrische Güte (Qes)
    0.66
    Gesamtgüte (Qts)
    0.50
    Bewegliche Masse (Mms)
    2.6g
    Nachgiebigkeit der Aufhängung (Cms)
    0.73 mm/N
    Membranfläche (Sd)
    22.9 cm²
    Kraftfaktor (BL)
    4.7 Tm
    Äquivalentvolumen (Vas)
    0.02 ft.³
    Maximale Auslenkung (Xmax)
    2.0 mm
    Cone / Diaphragm Material
    Aluminum
    Sicke-Material
    Rubber
    Schwingspulendrahtmaterial
    Copper
    Schwingspulenformmaterial
    Aluminum
    Korb- / Rahmenmaterial
    Polymer
    Magnetmaterial
    Neodymium
    Außendurchmesser
    2.75" x 2.75"
    Gesamttiefe
    1.51"
    Ausschnittdurchmesser
    2.51"
    # Befestigungsbohrungen
    8
    Geschlossenes Volumen
    0.013ft.³
    Geschlossenes F3
    179 Hz
    Bassreflex Volumen
    0.036 ft.³
    Bassreflex F3
    88 Hz

    Mehr anzeigen

    Bewertungen

    5 from 5Based on 5 reviews
    Produkt bewerten
    4 von 5
    I also used them to repair a set of Logitech Z-2300. They fit great, you only need to elongate the screw holes a bit, and use longer screws. I feel that the highest notes are a bit muffled, i think the original Logitech had a better range - But this is just from memory, no measurements or A-B tests.
    Durch Carsten Lorenzen on 16 Februar 2022
    5 von 5
    Koper heeft geen omschrijving achtergelaten.
    Durch Joep F. on 22 Dezember 2020
    Mehr anzeigen
