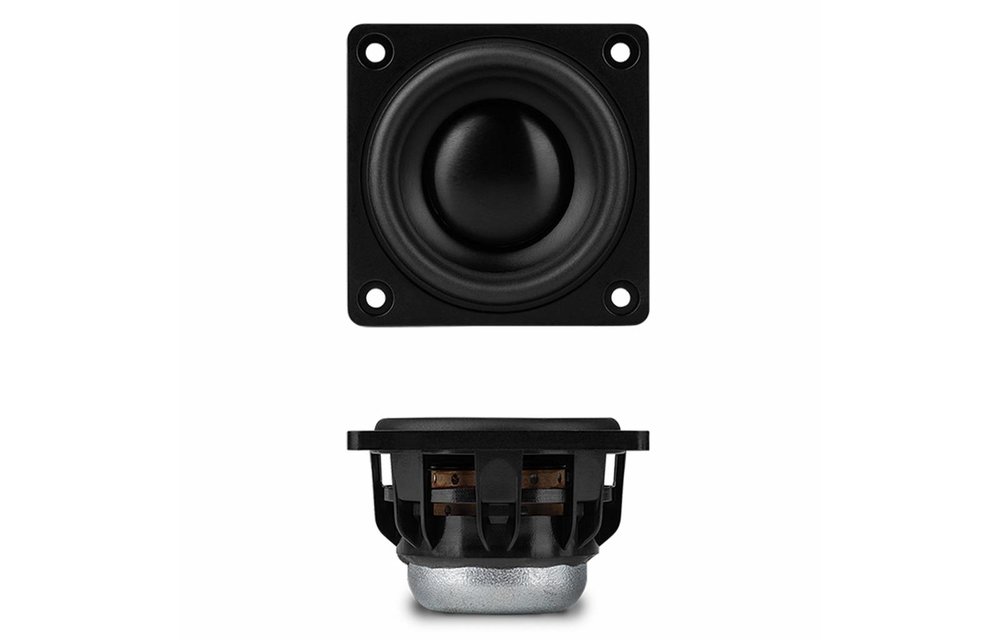

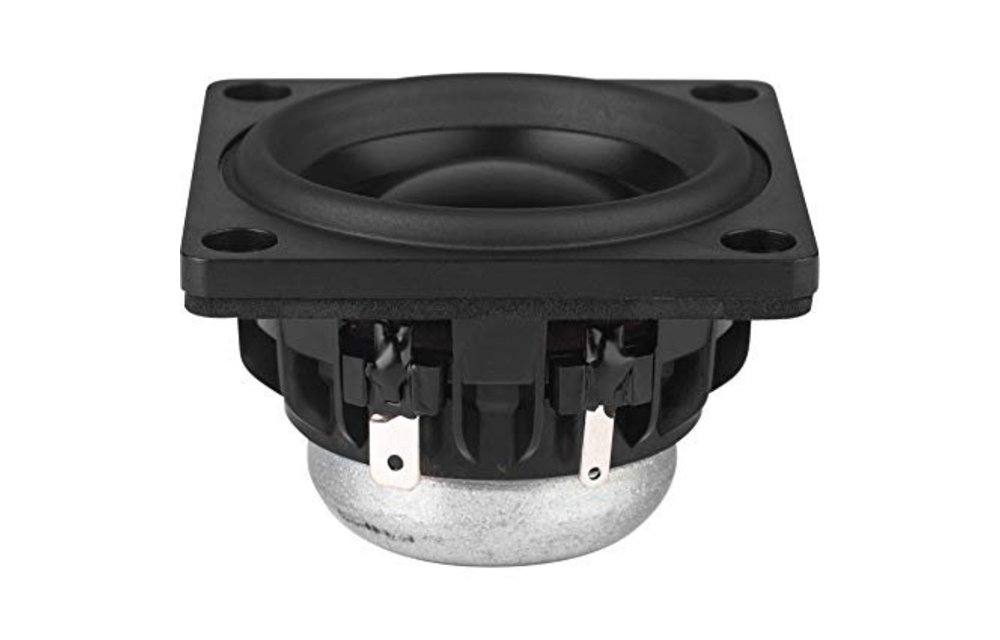

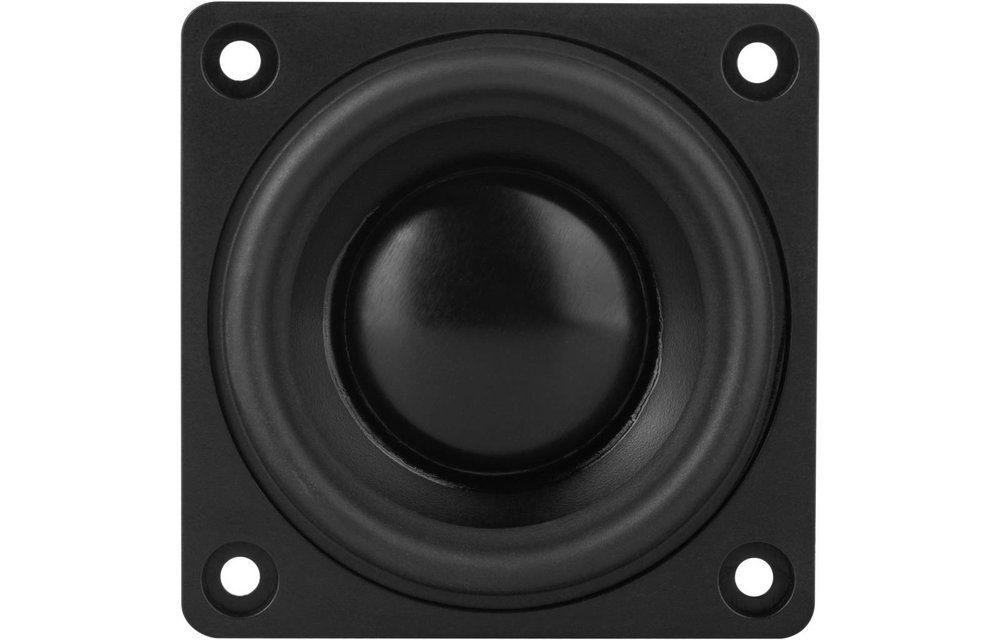

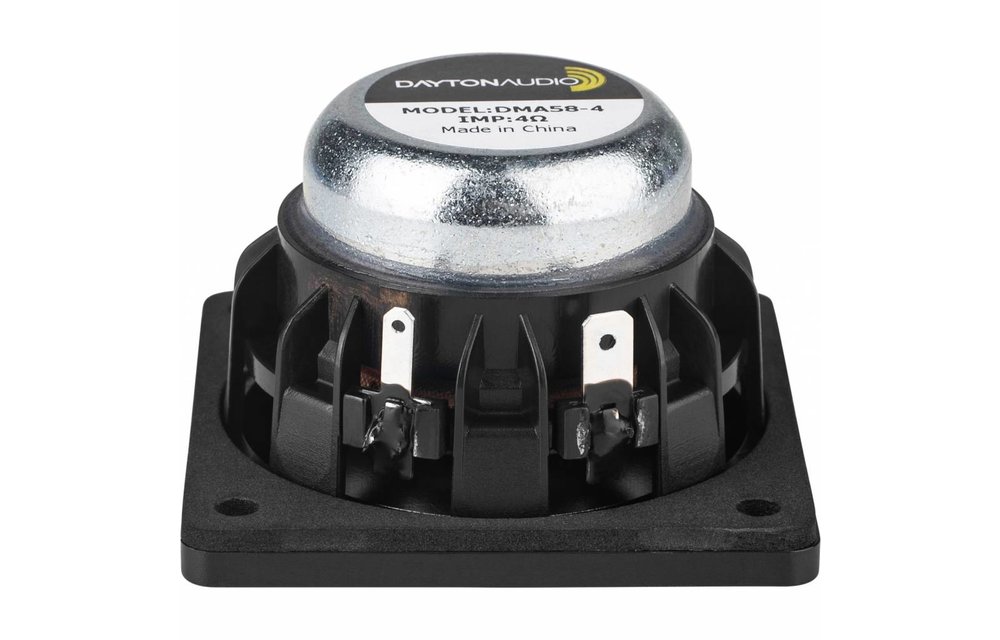

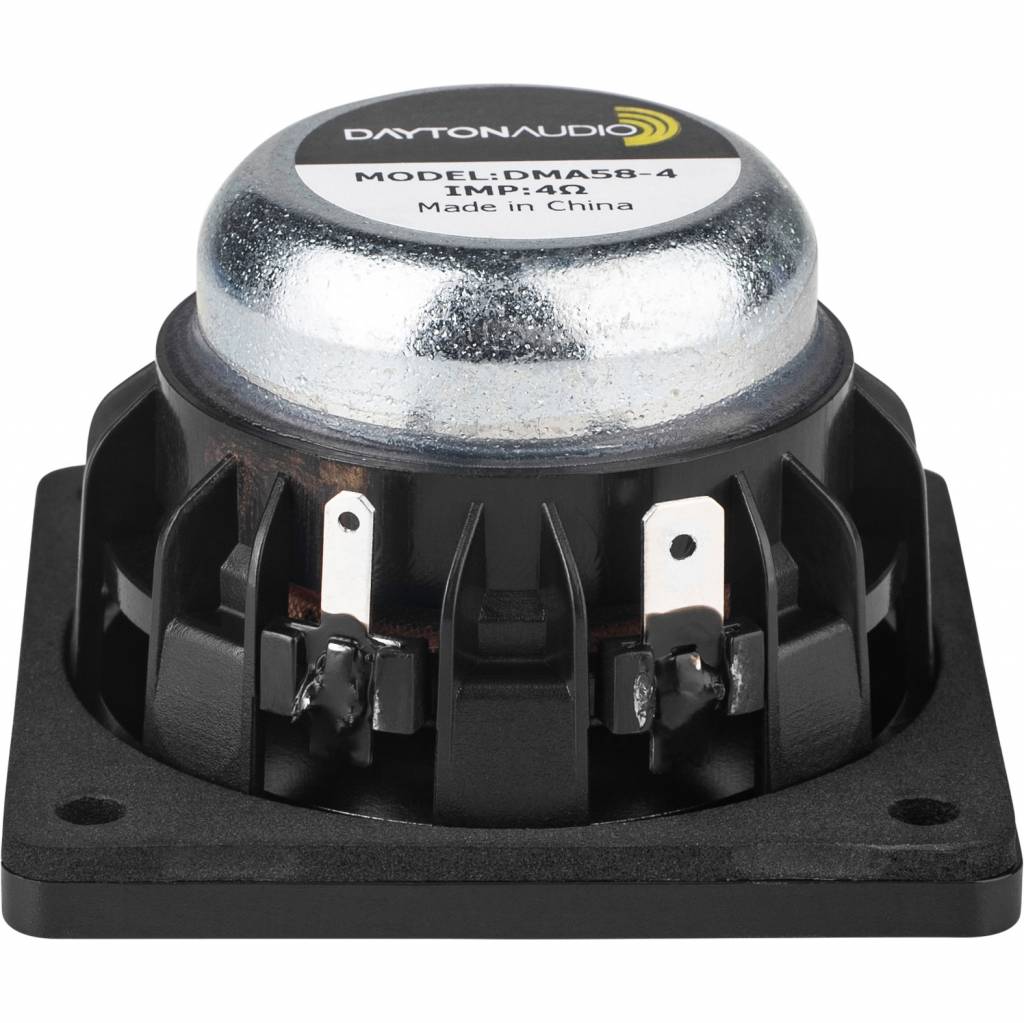

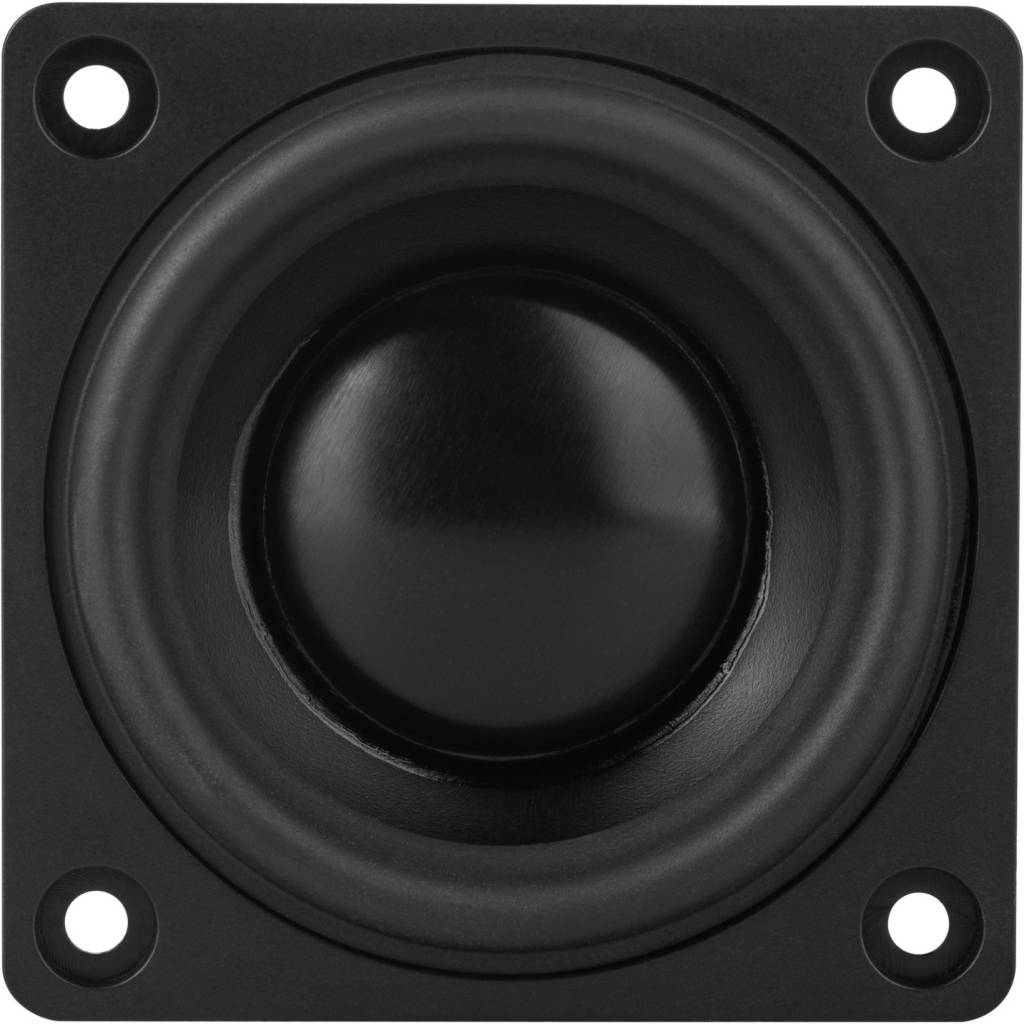

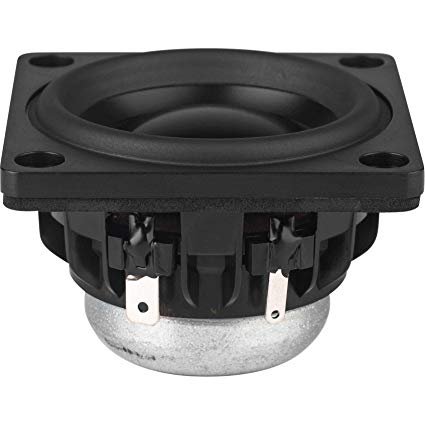

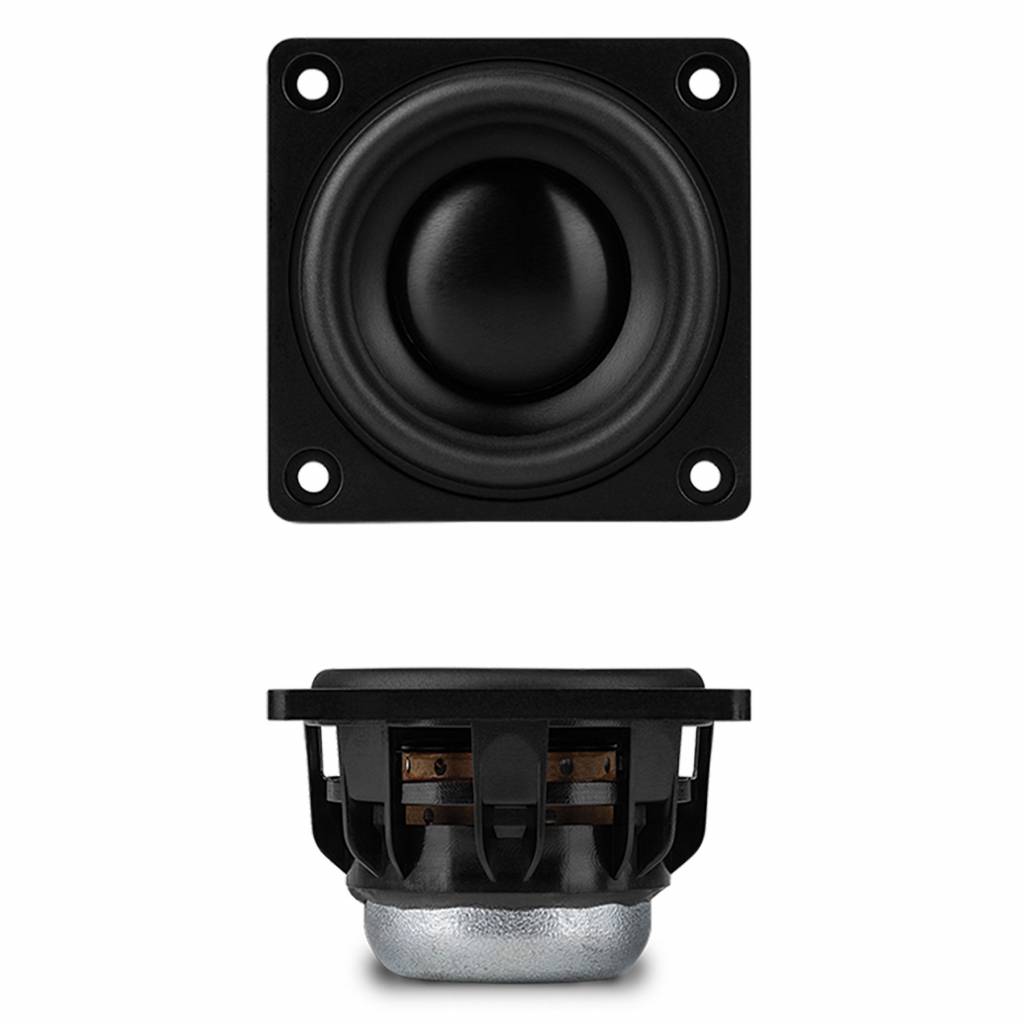

Dayton Audio DMA58-4 2" Aluminum Cone Full-Range Driver

Lieferzeit: 1-3 Werktage

  • Artikelnummer: DMA58-4
  • Vorrat: >10 Auf Lager

Dayton Audio's DMA58-4 2" high performance full-range driver combines a rigid aluminum cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazin

€ 13,95 Inkl. MwSt.

  • Kaufen Sie 4 für je €13,25 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio DMA58-4 2" Aluminum Cone Full-Range Driver

Dayton Audio's DMA58-4 2" high performance full-range driver combines a rigid aluminum cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazing high frequency capability. Make the DMA58-4 the first choice for your next smart speaker, portable Bluetooth speaker, or even high output line array design.



Highlights

  • Excellent high frequency response for true full-range applications
  • Dual neodymium motor to create a symmetrical magnetic field for superb control
  • Large copper cap lowers distortion while improving high frequency response
  • Vented aluminum voice coil former with exceptional heat dissipation for high power handling
  • Exclusive 8-spoke open frame design provides extensive venting and minimal reflection
  • DIY friendly, oversized mounting flange makes installation simple
  • Matching tunable passive radiators also available!



Product details

Dayton Audio DMA58-4 2" Dual Magnet Aluminum Cone Full-Range Driver 4 Ohm



Providing high efficiency with low distortion, Dayton Audio's DMA58-4 2" aluminum cone full-range is an ideal driver for use in many of today's modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA58-4 is the perfect full-range for the job.

Designed for the highest performance while delivering maximum value, the no compromise design of the DMA58-4 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 1" voice coil is wound on an extensively vented aluminum former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 8-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion.

Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8" radius, meaning that for flush mounting you can get a perfect fit using any standard 1/4" straight cut router bit.

Eigenschaften

Spezifikationen für: DMA58-4 2" Aluminum Cone Full-Range Driver

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers. DMA series
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Full-range
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 2"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 15 Watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 30 Watts
  • View all specifications
  • Continuous Program Power
  • Impedance 4 ohms
  • Sensitivity 86.2 dB 2.83V/1m
  • Frequency Response 160 to 20,000 Hz
  • Voice Coil Diameter 1"
  • Magnet Weight
  • DC Resistance (Re) 3.55 ohms
  • Voice Coil Inductance (Le) 0.2 mH
  • Resonant Frequency (Fs) 165.5 Hz
  • Mechanical Q (Qms) 2.4
  • Electromagnetic Q (Qes) 0.56
  • Total Q (Qts) 0.45
  • Diaphragm Mass Inc. Airload (Mms) 2.05g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.45 mm/N
  • Surface Area of Cone (Sd) 14.5 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 3.67 Tm
  • Compliance Equivalent Volume (Vas) 0.005 ft.³
  • Maximum Linear Excursion (Xmax) 2.0 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Aluminum
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Polymer
  • Magnet Material Neodymium
  • Shielded
  • Overall Outside Diameter 2.20" x 2.20"
  • Overall Depth 1.25"
  • Baffle Cutout Diameter 1.96"
  • Bolt Circle Diameter
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume 0.0019 ft.³
  • Sealed F3 310 Hz
  • Vented Volume 0.019 ft.³
  • Vented F3 110 Hz

Documenten

Bewertungen

Erfahrungsberichte 4.5 / 5 Bewertungen: (2)

  • FP Durch Fabio P. an 11-02-2020 14:45

    4 / 5

    No description was given

  • JD Durch Jemand an 10-11-2019 16:49

    5 / 5

    Sehr hochwertig verarbeitetes Chassis
    Die anschlüsse lassen sich gut löten und der sound in den mitten und höhen wirklich sehr gut
    Der bass ist wie von der Größe zu erwarten oder ? Nein stellt man den bass am Verstärker hoch kann man von diesen Chassis schon ein bisschen bass erwarten so kommen die Chassis aber schneller an ihre hohe 15 watt Leistung
    [ ich habe je 2 chassis in ein geschlossenes Gehäuse gebaut (form wie die bose 3-2-1 Satellitenlautsprecher)]
