Dayton Audio DMA45-PR 1-1/2" Aluminum Cone Passive Radiator

Lieferzeit: 1-3 Werktage

  • Artikelnummer: DMA45-PR
  • Vorrat: >10 Auf Lager

Dayton Audio's DMA45-PR 1-1/2" aluminum cone passive radiator allows you to tune small enclosures lower than using conventional ports. Matching the DMA45 drivers perfectly, this passive radiator is perfect for use in ultra-small designs like smart speaker

€ 7,95 Inkl. MwSt.

  • Kaufen Sie 4 für je €7,55 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

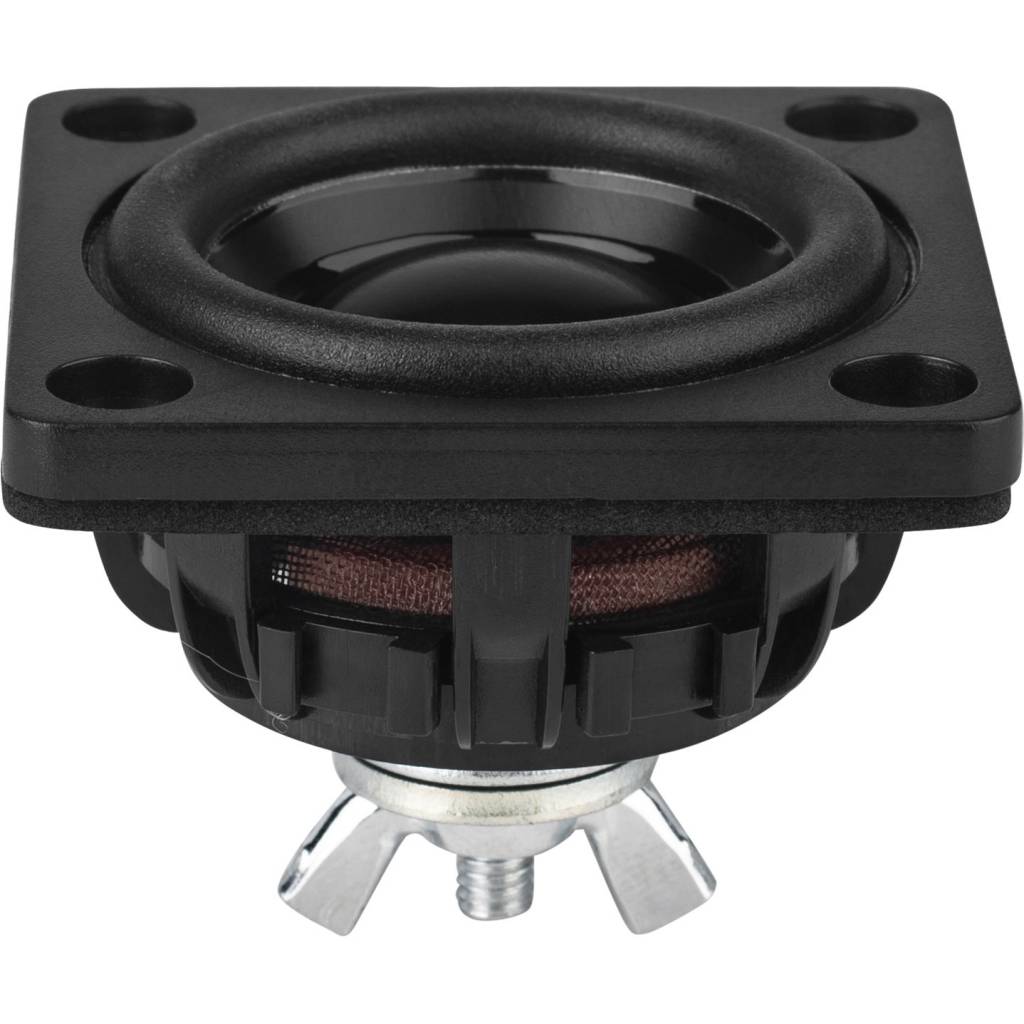

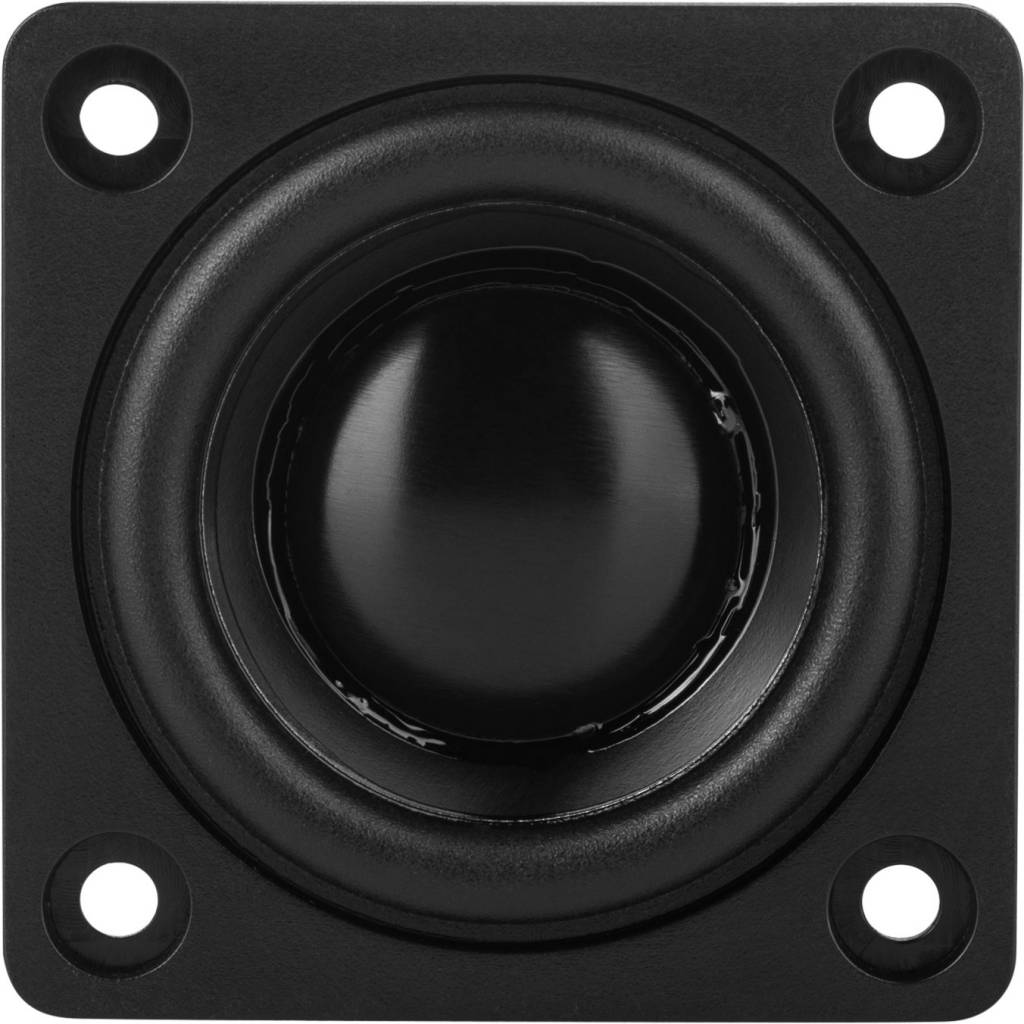

Dayton Audio DMA45-PR 1-1/2" Aluminum Cone Passive Radiator

Dayton Audio's DMA45-PR 1-1/2" aluminum cone passive radiator allows you to tune small enclosures lower than using conventional ports. Matching the DMA45 drivers perfectly, this passive radiator is perfect for use in ultra-small designs like smart speakers, sound bars, and portable Bluetooth speakers.



Highlights

  • Perfect match for the Dayton Audio DMA series drivers
  • Allows tuning small enclosures lower than using conventional ports
  • Rear mounted threaded post allows easy mass adjustment for custom tuning
  • DIY friendly, oversized mounting flange makes installation simple



Product details

Dayton Audio DMA45-PR 1-1/2" DMA Series Passive Radiator

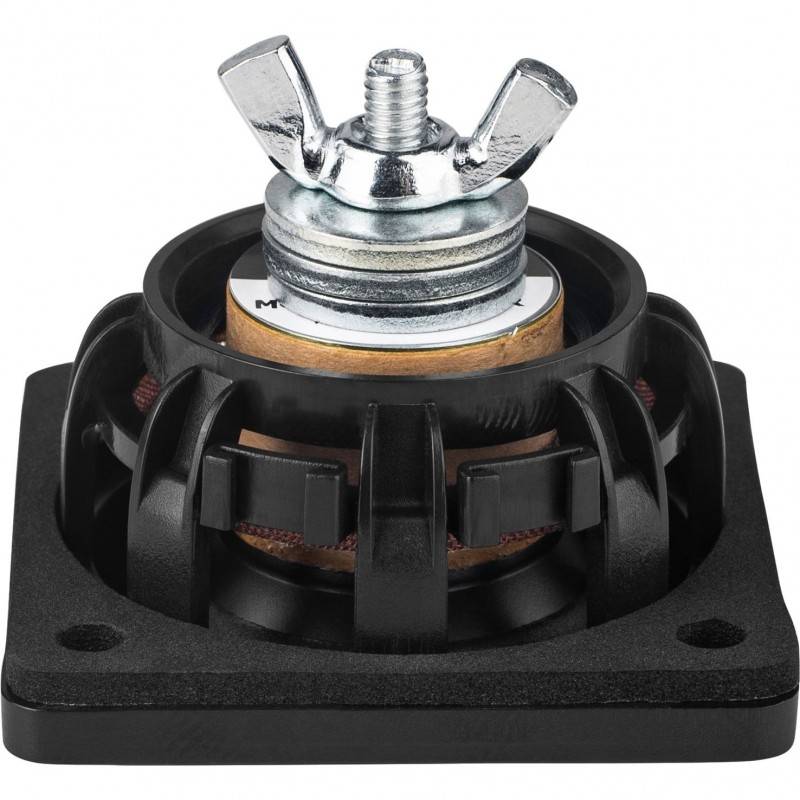

The DMA45-PR 1-1/2" passive radiator from Dayton Audio is the perfect option for achieving low tuning frequencies from the smallest enclosure designs. This incredibly small passive radiator has all the features you would expect lager units including adjustable mass, aluminum cone, and rubber surround. Visually identical to Dayton Audio's full-range DMA series drivers, the DMA45-PR can be used with any mini-speaker. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a smart speaker, sound bar, or portable Bluetooth speaker, the Dayton Audio DMA45-PR introduces a new range of possibilities.



Specifications: • Fs: 60 Hz • Vas: 0.0092 cu. ft. (0.26 liters) • Qms: 2.75 • Cms: 2.12 mm/N • Mms: 2.8 g • Rms: 0.38 kg/s • Sd: 8.6 sq. cm. • Xmech: 5 mm • Dimensions: Overall diameter: 1.8" x 1.8", Cutout diameter: 1.56", Depth: 1.35".



Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.
To calculate Vd: Sd x Xmax = Vd



Eigenschaften

Spezifikationen für: DMA45-PR 1-1/2" Aluminum Cone Passive Radiator

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers. DMA series
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Passiver radiator
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 2-1/2"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square.
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt.
  • View all specifications
  • Continuous Program Power
  • Impedance
  • Sensitivity
  • Frequency Response
  • Voice Coil Diameter
  • Magnet Weight
  • DC Resistance (Re)
  • Voice Coil Inductance (Le)
  • Resonant Frequency (Fs) 60 Hz
  • Mechanical Q (Qms) 2.75
  • Electromagnetic Q (Qes)
  • Total Q (Qts)
  • Diaphragm Mass Inc. Airload (Mms) 2.8 g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 2.12 mm/N
  • Surface Area of Cone (Sd) 8.6 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL)
  • Compliance Equivalent Volume (Vas) 0.0092 cu. ft. (0.26 liters)
  • Maximum Linear Excursion (Xmax) 5 mm
  • Driver's Mechanical Losses (Rms) 0.38 kg/s
  • Cone / Diaphragm Material Aluminum
  • Surround Material Rubber
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material Polymer
  • Magnet Material
  • Shielded
  • Overall Outside Diameter 1.8" x 1.8"
  • Overall Depth 1.35"
  • Baffle Cutout Diameter 1.56"
  • Bolt Circle Diameter 2"
  • # Mounting Holes
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
