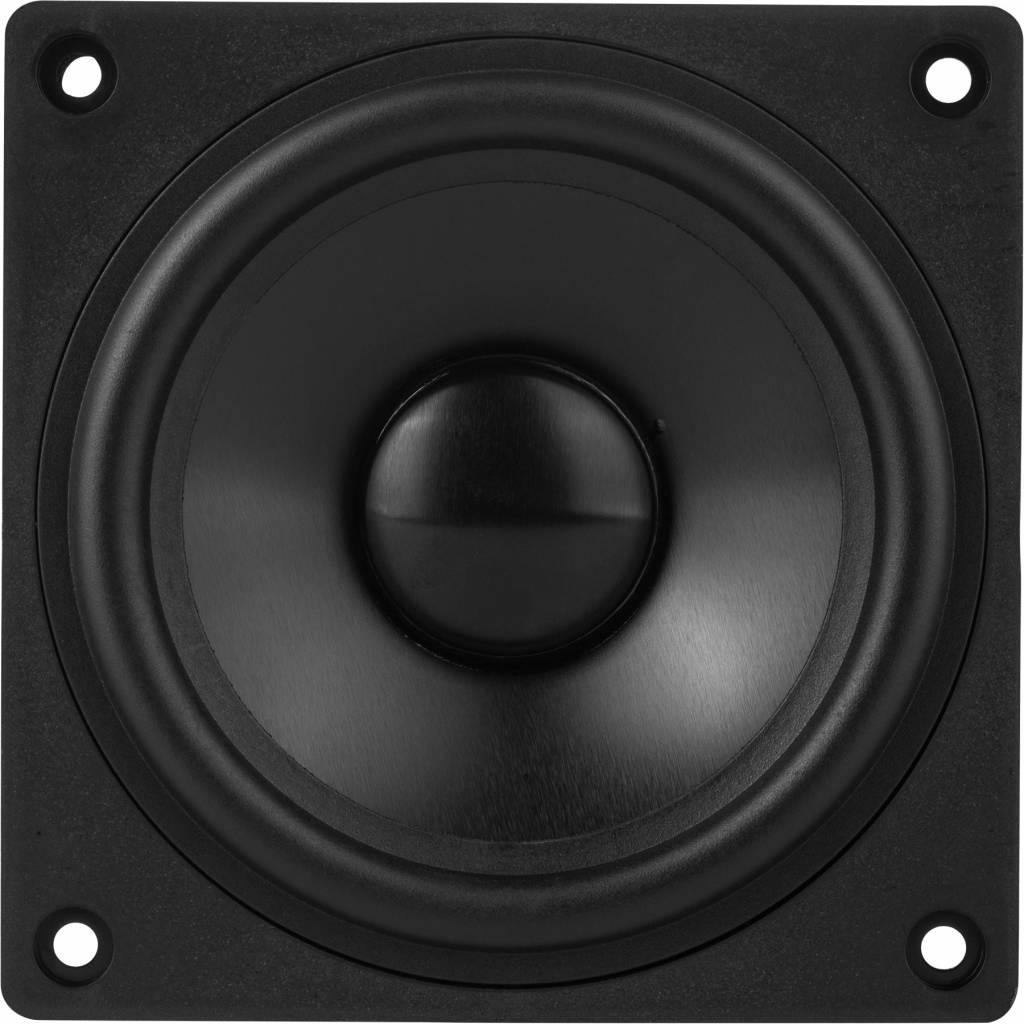

      DMA105-8 Tiefmitteltöner

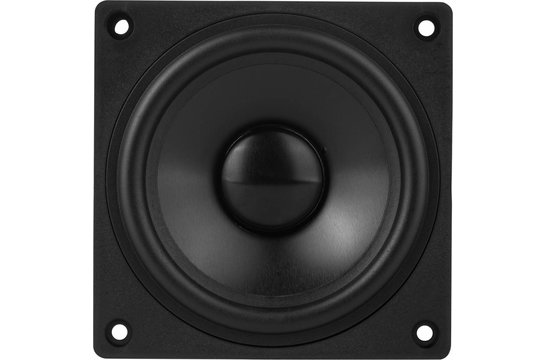

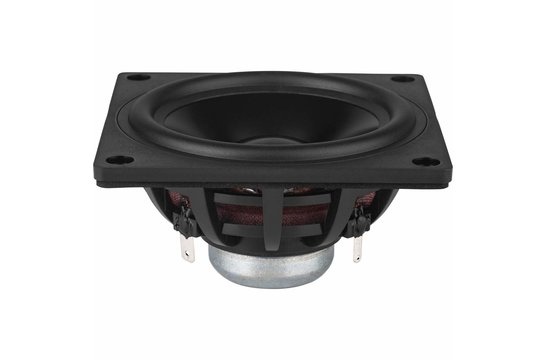

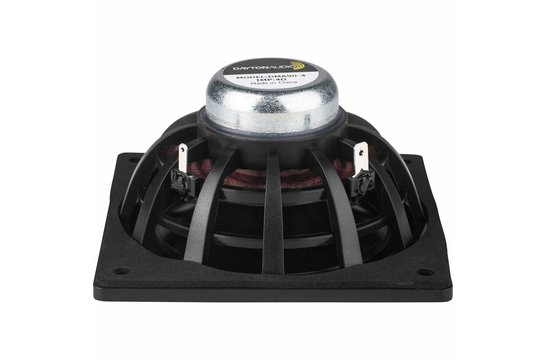

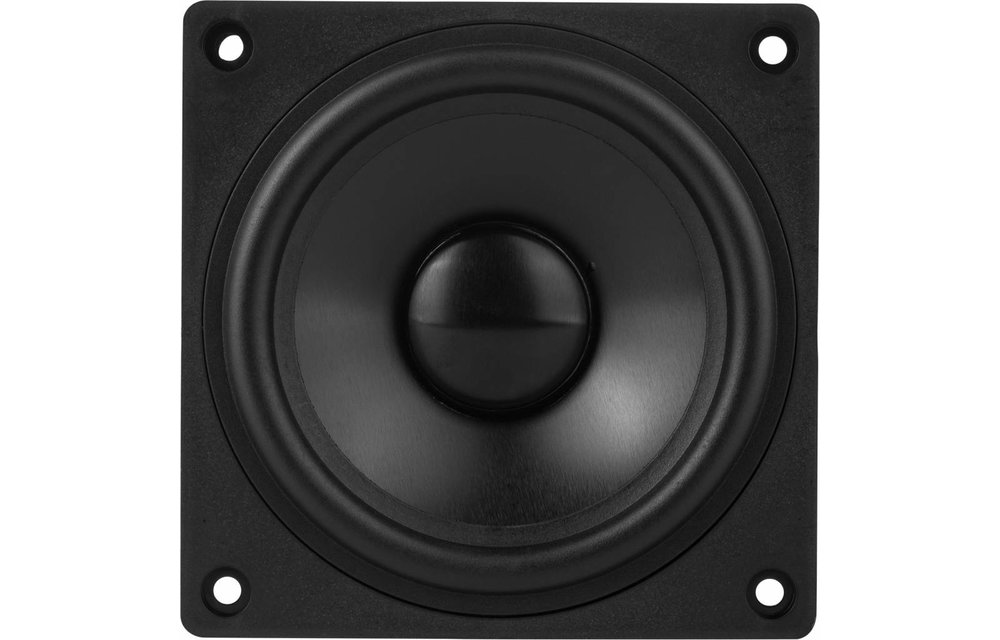

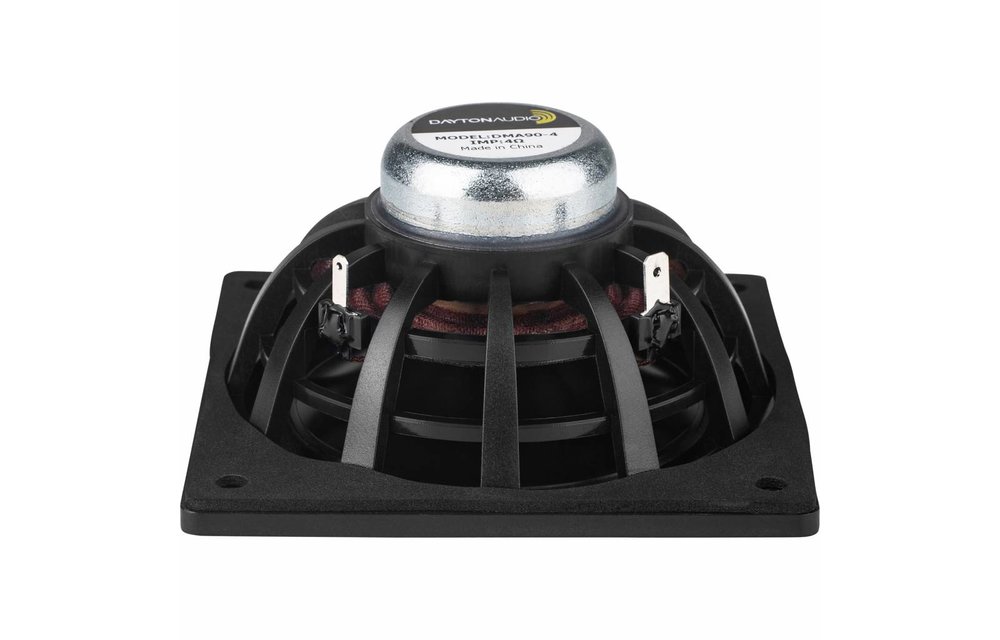

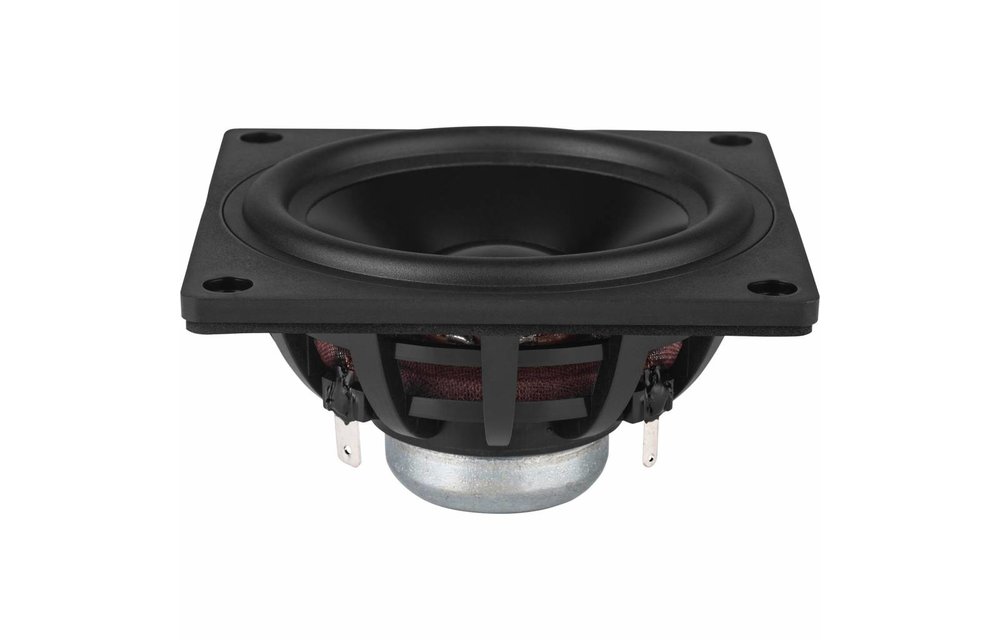

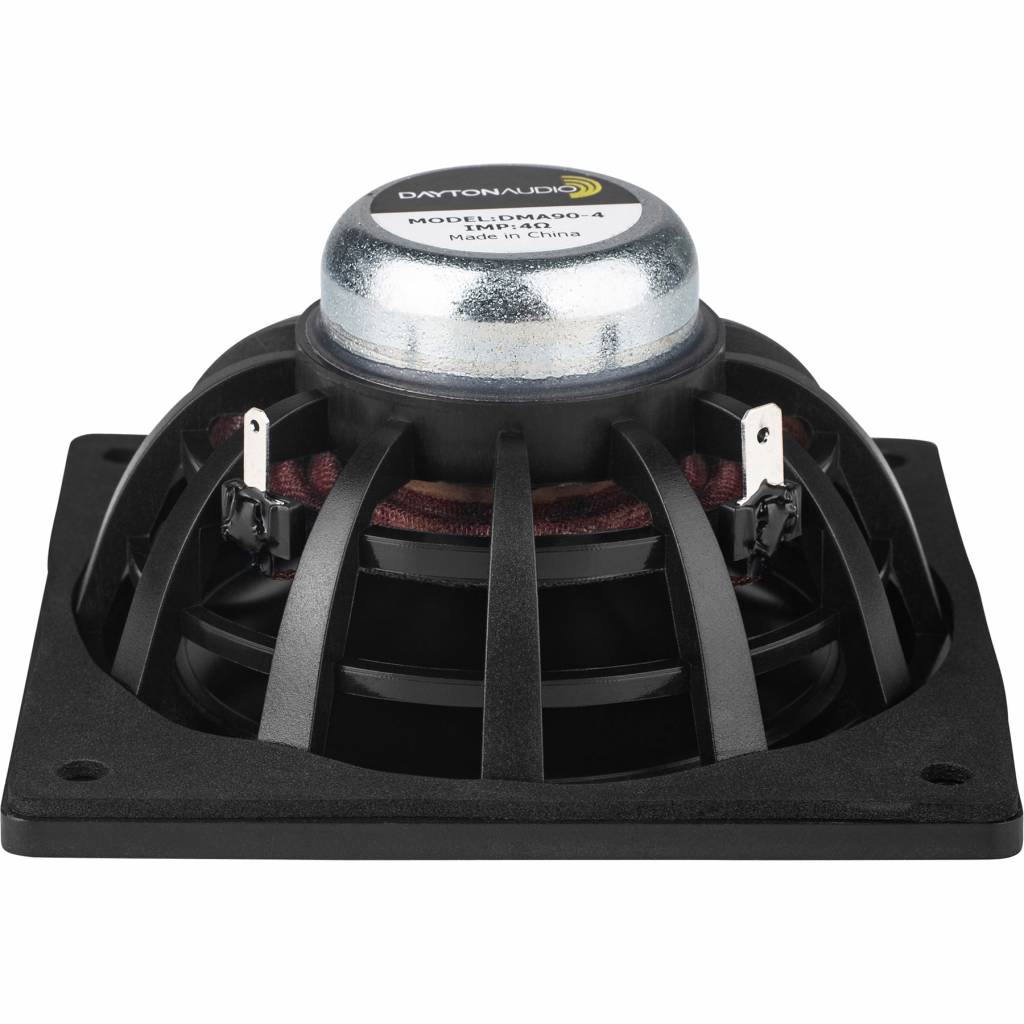

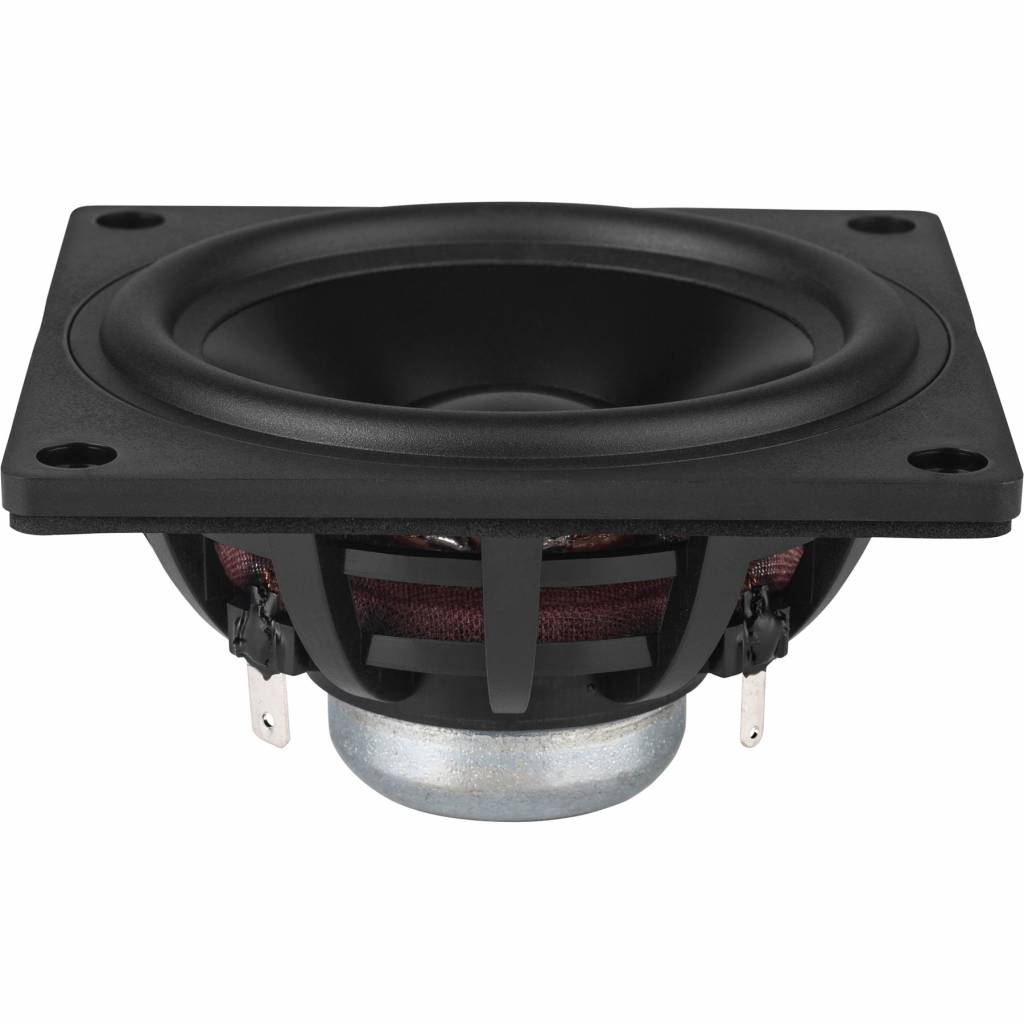

      Dayton Audio DMA105-8 Tiefmitteltöner

      €26,45

      10+ Auf Lager10+ erwartet auf 17-10-2025

      Zum Warenkorb hinzufügen

      Dayton Audio DMA105-8 Tiefmitteltöner

      3 klantbeoordelingen
      5 von 5
      3 klantbeoordelingen
      5 Sterne
      67%
      4 Sterne
      33%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Dayton Audio
      4" | 8 Ω
      DMA105-8 Tiefmitteltöner
      DMA105-8 Tiefmitteltöner
      DMA105-8 Tiefmitteltöner
      DMA105-8 Tiefmitteltöner
      DMA105-8 Tiefmitteltöner
      DMA105-8 Tiefmitteltöner
      21,86 €26,45 € 10+ Auf Lager10+ erwartet auf 17-10-2025
      • -5% Bestelle 4 für nur 25,13 € je Stück
      26,45 €
      +-
      Zum Warenkorb hinzufügen
      🔒 Sicher bezahlen
      MastercardVisaBank TransferApple PayGoogle Paypaypal

      Buy now, pay later

      • Wir versenden nach
      • Jetzt bestellt, am Montag versendet
      • Fünf Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      DMA105-8 Tiefmitteltöner
      DMA105-8 Tiefmitteltöner
      DMA105-8 Tiefmitteltöner
      DMA105-8 Tiefmitteltöner
      DMA105-8 Tiefmitteltöner
      DMA105-8 Tiefmitteltöner

      Produktbeschreibung Dayton Audio DMA105-8 Tiefmitteltöner

      Dayton Audio's DMA105-8 4" high performance full-range driver combines a rigid aluminum cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazing high frequency capability. Make the DMA105-8 the first choice for your next smart speaker, portable Bluetooth speaker, or even high output line array design.



      Highlights

      • Excellent high frequency response for true full-range applications
      • Dual neodymium motor to create a symmetrical magnetic field for superb control
      • Large copper cap lowers distortion while improving high frequency response
      • Vented aluminum voice coil former with exceptional heat dissipation for high power handling
      • Exclusive 8-spoke open frame design provides extensive venting and minimal reflection
      • DIY friendly, oversized mounting flange makes installation simple
      • Matching tunable passive radiators also available!



      Product details

      Dayton Audio DMA105-8 4" Dual Magnet Aluminum Cone Full-Range Driver 4 Ohm



      Providing high efficiency with low distortion, Dayton Audio's DMA105-8 4" aluminum cone full-range is an ideal driver for use in many of today's modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA105-8 is the perfect full-range for the job.

      Designed for the highest performance while delivering maximum value, the no compromise design of the DMA105-8 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 1" voice coil is wound on a vented aluminum former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 12-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion.

      Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8" radius, meaning that for flush mounting you can get a perfect fit using any standard 1/4" straight cut router bit.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      DMA105-8
      EAN
      0848791005299
      Tieftöner-Serie
      Dayton Audio DMA series
      Tieftönertyp
      Full-range
      Nenndurchmesser
      4"
      Belastbarkeit (QMW)
      35 Watt
      Belastbarkeit (max)
      70 Watt
      Impedanz (Z)
      8 Ω
      Empfindlichkeit (SPL bei 1m / 2,83V)
      84.8 dB
      Frequenzgang
      70 - 20.000 Hz
      Schwingspulendurchmesser
      25 mm
      Gleichstromwiderstand (Re)
      7.5 Ω
      Schwingspuleninduktion (Le)
      0.60 mH
      Resonanzfrequenz (Fs)
      72 Hz
      Mechanische Güte (Qms)
      2.64
      Elektrische Güte (Qes)
      0.83
      Gesamtgüte (Qts)
      0.63
      Bewegliche Masse (Mms)
      4.9 g
      Nachgiebigkeit der Aufhängung (Cms)
      1.0 mm/N
      Membranfläche (Sd)
      54.1 cm²
      Kraftfaktor (BL)
      4.47 Tm
      Äquivalentvolumen (Vas)
      4.25 L
      Maximale Auslenkung (Xmax)
      2.5 mm
      Cone / Diaphragm Material
      Aluminum
      Sicke-Material
      Rubber
      Schwingspulendrahtmaterial
      Copper
      Schwingspulenformmaterial
      Aluminum
      Korb- / Rahmenmaterial
      Polymer
      Magnetmaterial
      Neodymium
      Außendurchmesser
      104.14 x 104.14 mm
      Gesamttiefe
      47.24 mm
      Ausschnittdurchmesser
      89.92 mm
      # Befestigungsbohrungen
      4
      Geschlossenes Volumen
      4.73 L
      Geschlossenes F3
      97 Hz
      Bassreflex Volumen
      10.48 L
      Bassreflex F3
      48 Hz

      Mehr anzeigen

      Bewertungen

      3 klantbeoordelingen
      Produkt bewerten
      4 von 5
      -
      Durch pascal on 19 Dezember 2024
      5 von 5
      Very efficient and impressive how good and colorfull it render the sound. I didn't tried a lot of things this kind, but i'm pretty sure it might be one of the best quality/price match that you can find
