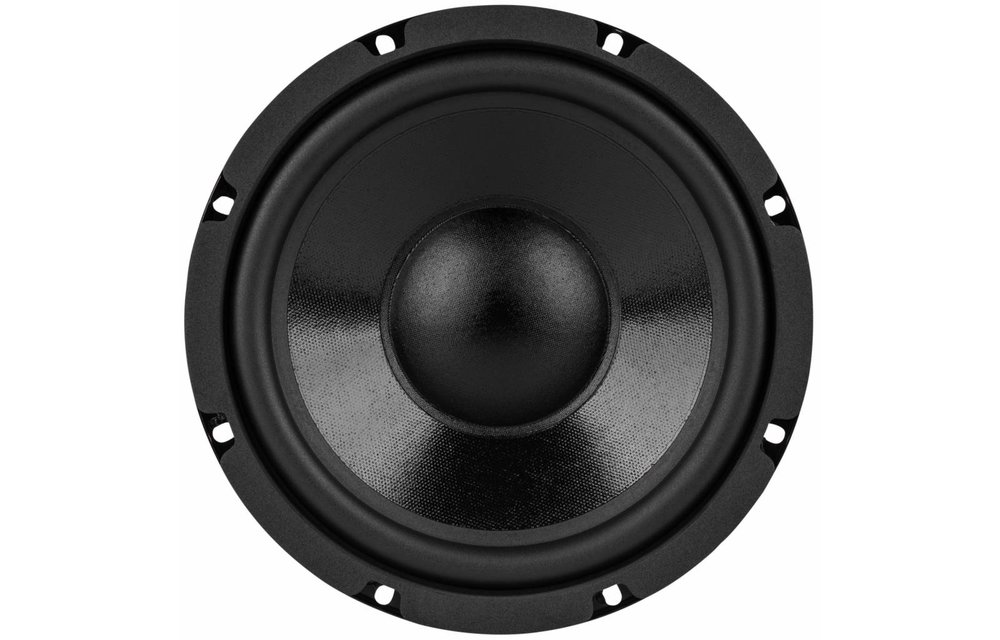

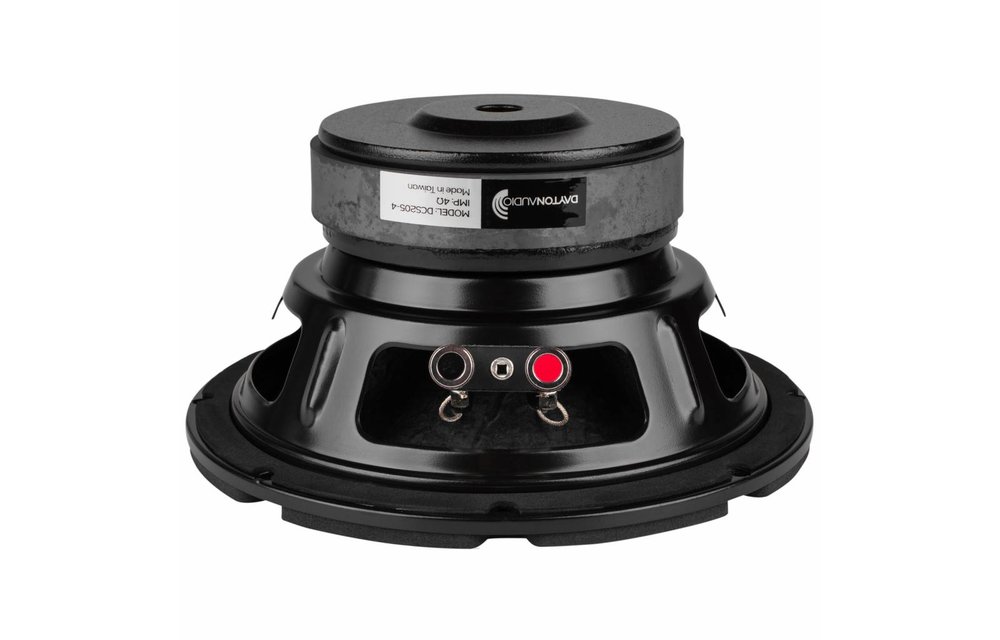

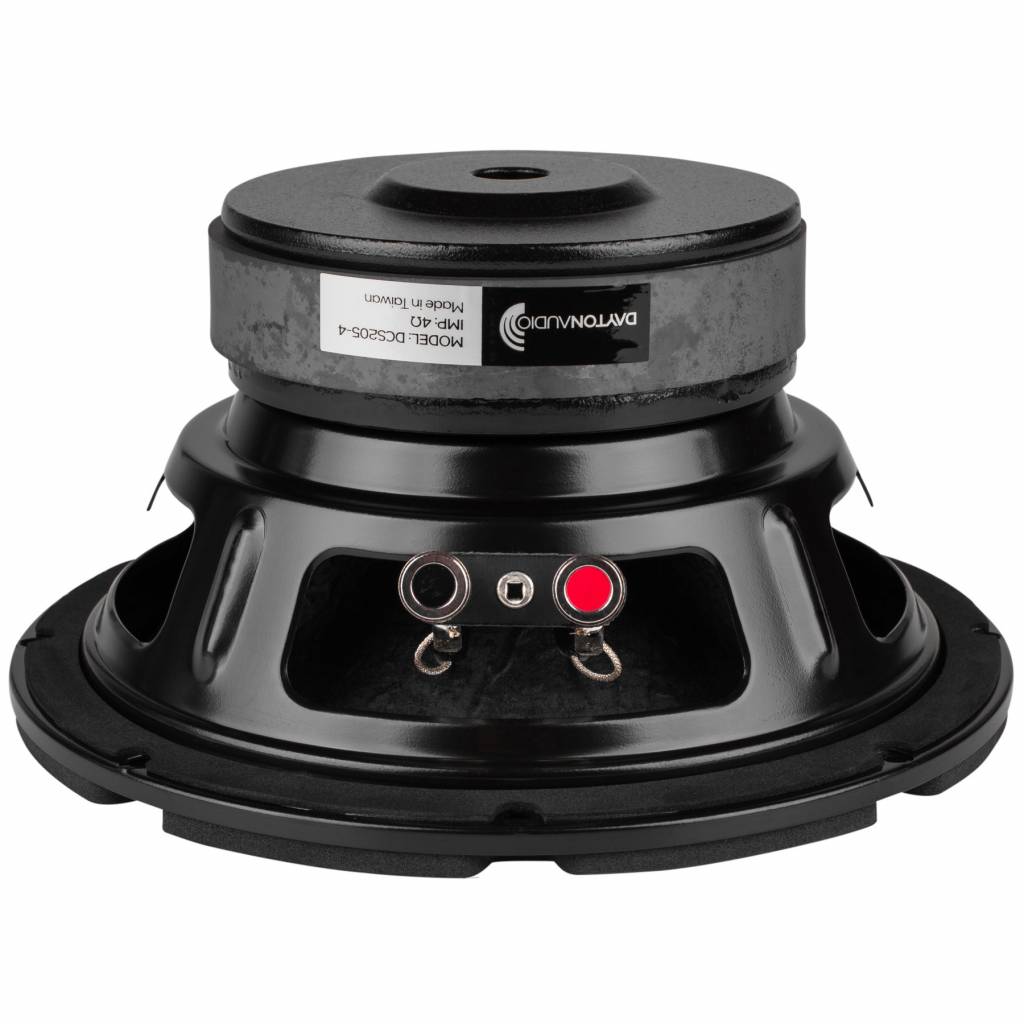

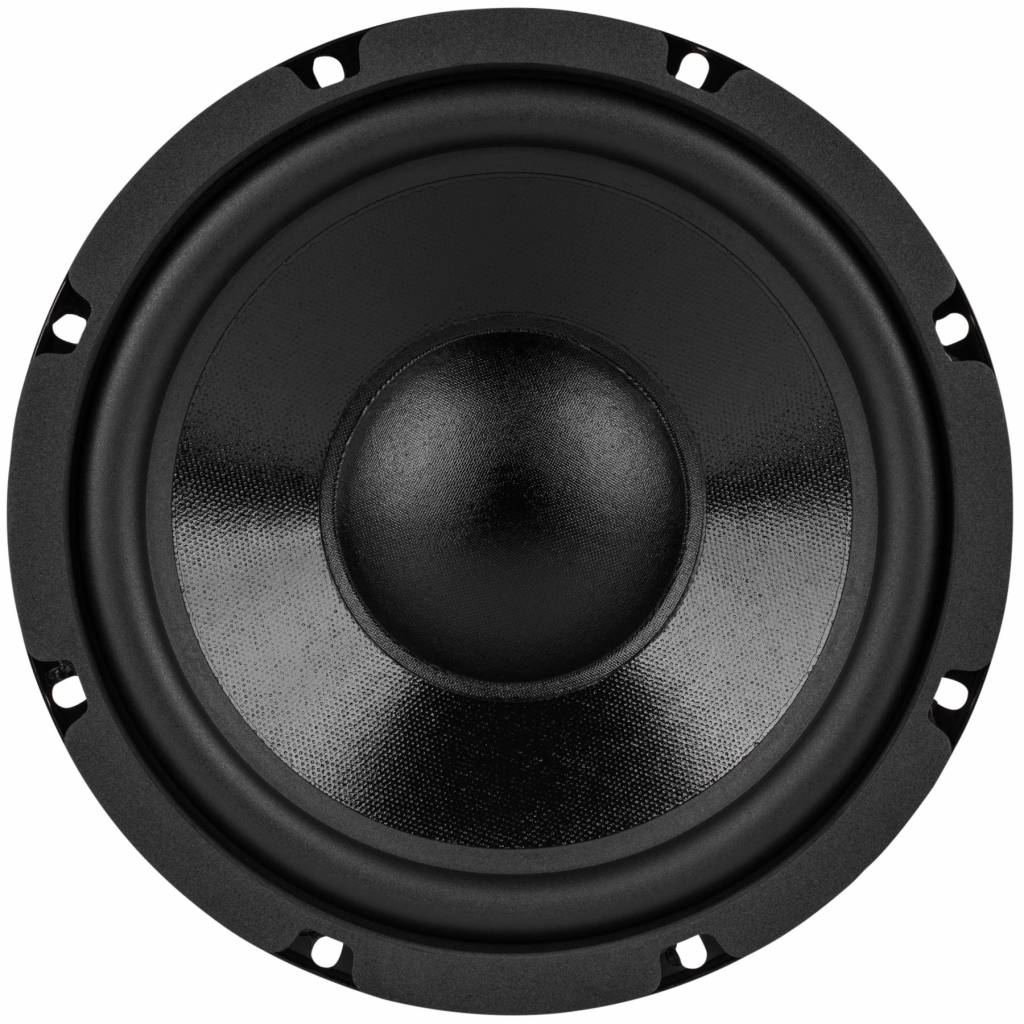

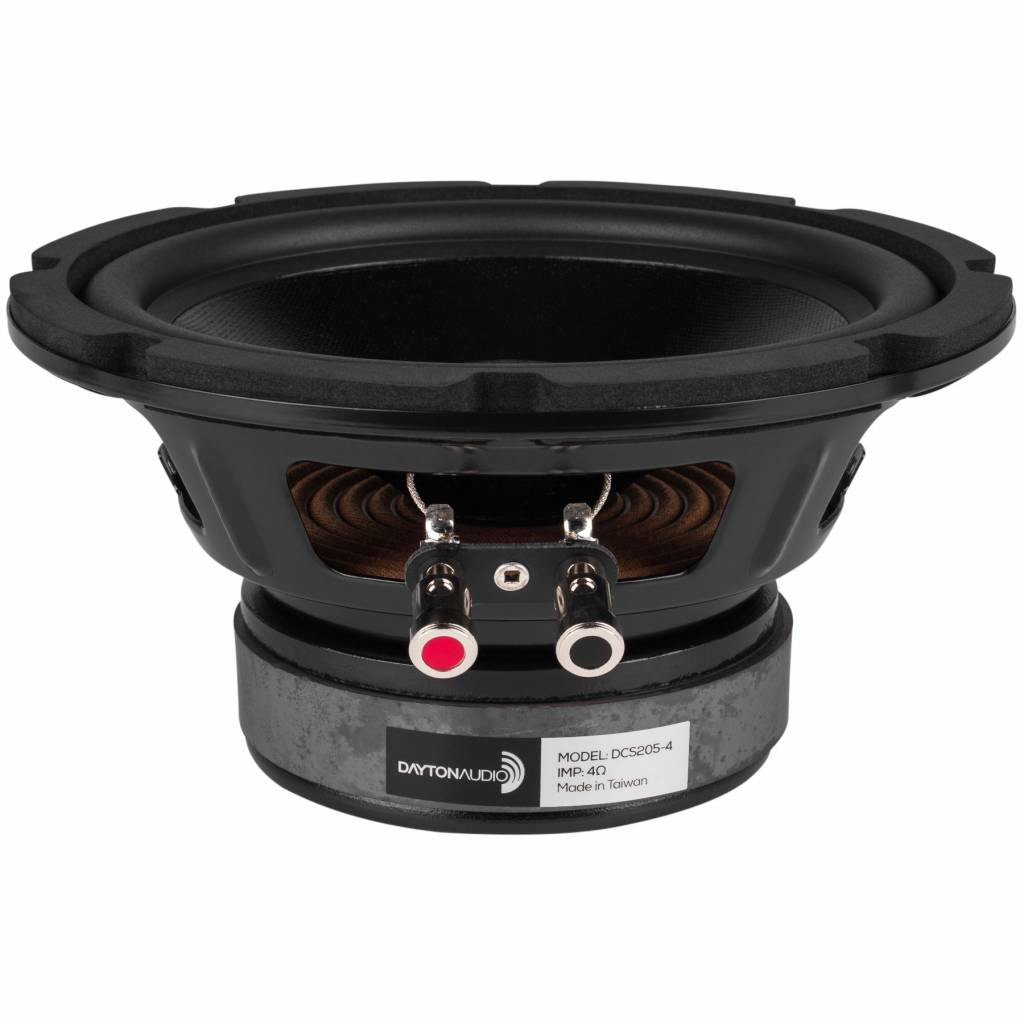

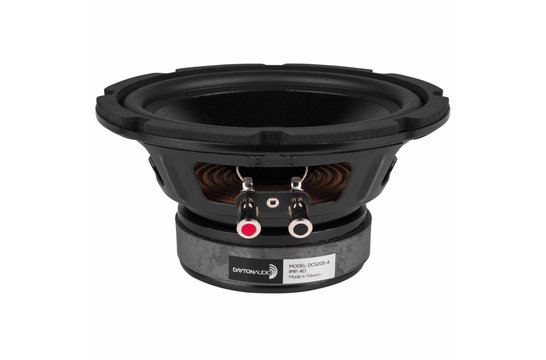

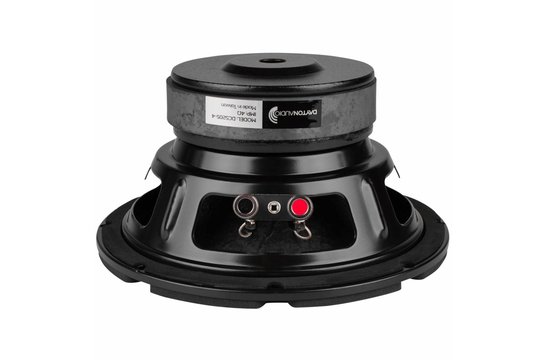

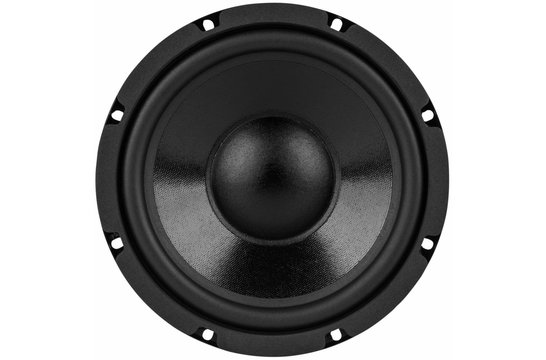

Dayton Audio DCS205-4 8" Classic Subwoofer 4 Ohm

€ 73,45 >10 Auf Lager: Lieferzeit 1-3 Werktage
The Dayton Audio Classic Series subwoofers offer solid value at lower price points. No compromises were made in the design, materials, or construction of these rugged 4-ohm powerhouses.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €69,78 pro stück
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Bezahlung mit PayPal, Kreditkarte und mehr
  • Hausinterner technischer Support

Produktbeschreibung

The Dayton Audio Classic Series subwoofers offer solid value at lower price points. No compromises were made in the design, materials, or construction of these rugged 4-ohm powerhouses.



Highlights

  • Sturdy stamped steel frame
  • Vented pole piece and bumped back plate
  • Inductance-reducing copper pole piece cap
  • Treated non-pressed paper/Kevlar cone with rubber surround
  • 4-layer VC with polyimide former
  • Great for home and automotive applications



Product details

Dayton Audio DCS205-4 8" Classic Subwoofer 4 Ohm



The Dayton Audio Classic Series subwoofers offer solid value at lower price points. No compromises were made in the design, materials, or construction of these rugged 4-ohm powerhouses. The drivers feature a vented pole piece with copper cap, bumped back plate for improved excursion capability, Kevlar reinforced cone with rubber half-roll surround, and a high-temperature 4-layer copper voice coil wound on a polyimide former.

Eigenschaften

Artikelnummer:
DCS205-4
Woofer Series
Classic Series
Woofer Type
Subwoofer
Nominal Diameter
8"
Power Handling (RMS)
150 watts
Power Handling (max)
300 watts
Impedance
4 ohms
Sensitivity
88.6 dB @ 2.83V/1m
Frequency Response
30 - 200 Hz
Voice Coil Diameter
38.5 mm
DC Resistance (Re)
3.9 ohms
Voice Coil Inductance (Le)
1.78 mH
Resonant Frequency (Fs)
32.3 Hz @ 1 kHz
Mechanical Q (Qms)
6.28
Electromagnetic Q (Qes)
0.4
Total Q (Qts)
0.37
Diaphragm Mass Inc. Airload (Mms)
57.7g
Mechanical Compliance of Suspension (Cms)
0.42 mm/N
Surface Area of Cone (Sd)
213.8 cm²
Volume of Displacement (Vd)
188.2 cm³
BL Product (BL)
10.7 Tm
Compliance Equivalent Volume (Vas)
27 liters
Maximum Linear Excursion (Xmax)
8.8 mm
Cone / Diaphragm Material
Paper / Kevlar Cone
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Kapton® / Polyimide
Basket / Frame Material
Steel
Magnet Material
Ferrite
Overall Outside Diameter
208 mm
Overall Depth
107.5 mm
Baffle Cutout Diameter
180 mm
# Mounting Holes
8
Sealed Volume
0.19 ft.³
Sealed F3
78 Hz
Vented Volume
0.48 ft.³
Vented F3
48 Hz
