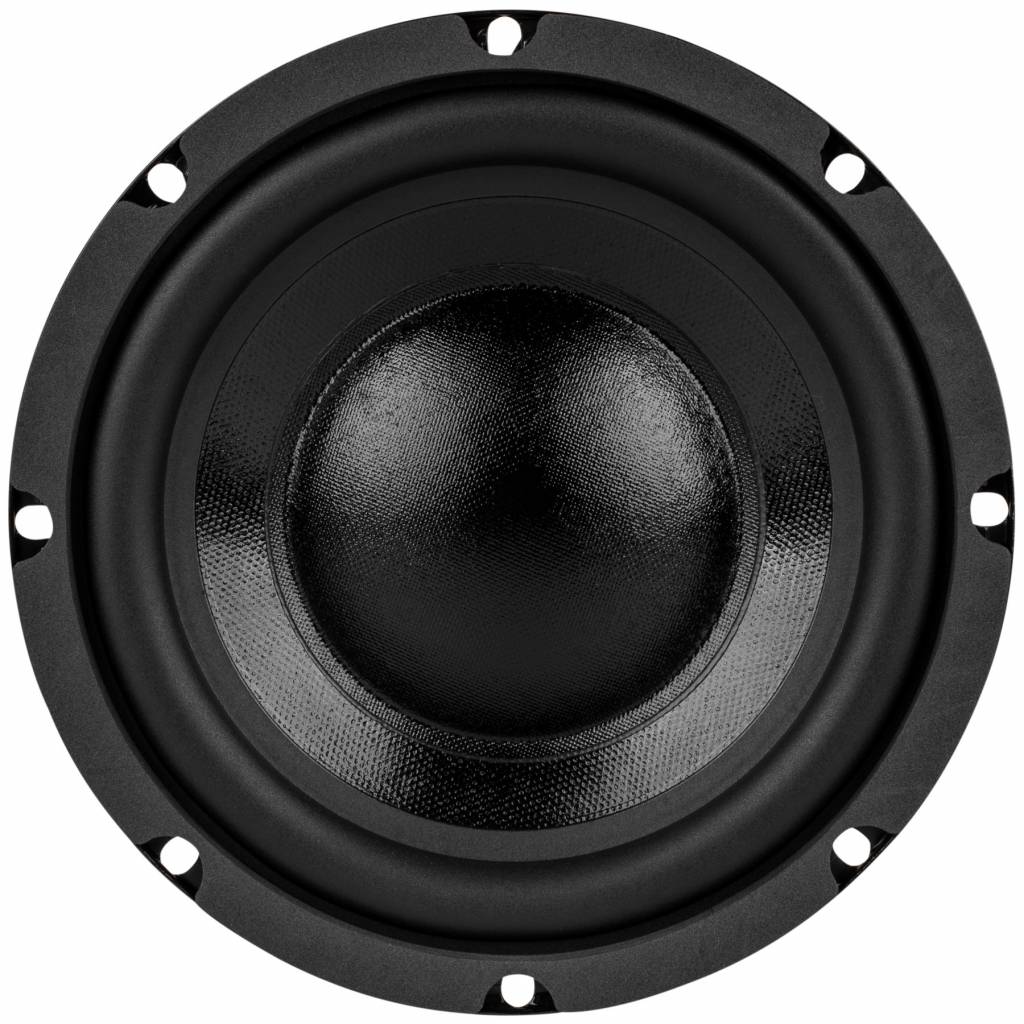

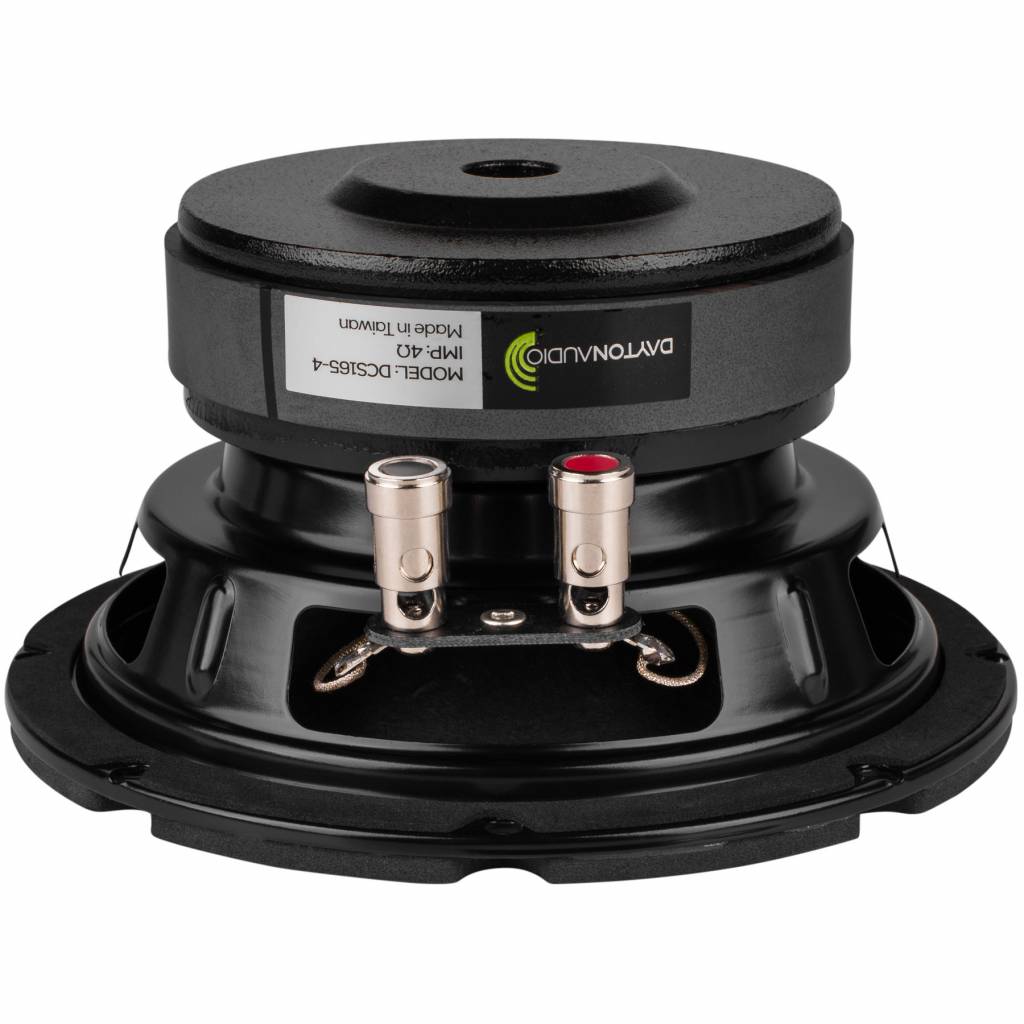

Dayton Audio DCS165-4 6-1/2" Classic Subwoofer 4 Ohm

Nur auf Bestellung lieferbar. Lieferzeit beträgt 3 bis 6 Wochen

  • Artikelnummer: DCS165-4
  • Nicht auf Lager

Capable of impressive low end when installed in enclosures of less than 0.5 cubic feet, the DCS165-4 6-1/2" subwoofer from Dayton Audio's Classic Series is the perfect low cost solution for compact low frequency designs.

€ 56,25 Inkl. MwSt.

  • Kaufen Sie 4 für je €53,44 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio DCS165-4 6-1/2" Classic Subwoofer 4 Ohm

Capable of impressive low end when installed in enclosures of less than 0.5 cubic feet, the DCS165-4 6-1/2" subwoofer from Dayton Audio's Classic Series is the perfect low cost solution for compact low frequency designs.



Highlights

  • 4-layer VC with polyimide former allows high power handling
  • Vented pole piece and bumped back plate provide plenty of VC travel with minimal compression
  • Copper pole piece cap minimizes inductance
  • Rigid non-pressed treated paper/Kevlar cone with rubber surround
  • Great for home and automotive applications



Product details

Dayton Audio DCS165-4 6-1/2" Classic Subwoofer 4 Ohm



Dayton Audio's rugged DCS165-4 6-1/2" subwoofer has all of the performance-enhancing attributes you would expect from a larger high-output subwoofer. With a vented pole piece and 4 ohm, 4-layer voice coil, this driver can handle up 100 watt RMS. The non-pressed paper cone is reinforced with Kevlar to increase stiffness, which promotes linear travel through the limits of its excursion. In addition, the pole piece includes a copper cap that keeps inductance to a minimum. The DCS165-4 driver is ideal for use in small multimedia speakers, portable speakers, or even automotive systems where space is at a minimum.

Eigenschaften

Spezifikationen für: DCS165-4 6-1/2" Classic Subwoofer 4 Ohm

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers. Classic Series
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Subwoofer
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 6.50"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 100 watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 200 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 4 ohms
  • Sensitivity 87.4 dB @ 2.83V/1m
  • Frequency Response 36 - 1,100 Hz
  • Voice Coil Diameter 38.5 mm
  • Magnet Weight
  • DC Resistance (Re) 3.4 Ohms
  • Voice Coil Inductance (Le) 1.43 mH @ 1 kHz
  • Resonant Frequency (Fs) 35.7 Hz
  • Mechanical Q (Qms) 6.62
  • Electromagnetic Q (Qes) 0.36
  • Total Q (Qts) 0.34
  • Diaphragm Mass Inc. Airload (Mms) 39.5g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.5 mm/N
  • Surface Area of Cone (Sd) 124.7 cm²
  • Volume of Displacement (Vd) 74.8 cm³
  • BL Product (BL) 9.15 Tm
  • Compliance Equivalent Volume (Vas) 12.1 liters
  • Maximum Linear Excursion (Xmax) 6 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Paper / Kevlar Cone
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Kapton®/Polyimide
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 6.57"
  • Overall Depth 3.25"
  • Baffle Cutout Diameter 5.62"
  • Bolt Circle Diameter
  • # Mounting Holes 8
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
