Dayton Audio DC380-8 15" Classic Woofer

Lieferzeit: 1-3 Werktage

  • Artikelnummer: DC380-8
  • Vorrat: 9 Auf Lager

The Dayton Audio Classic Series 15" woofer is excellent as a replacement driver or for new system design and construction. The versatile set of parameters makes it suitable for sealed or vented enclosure designs.

€ 96,45 Inkl. MwSt.

  • Kaufen Sie 4 für je €91,63 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

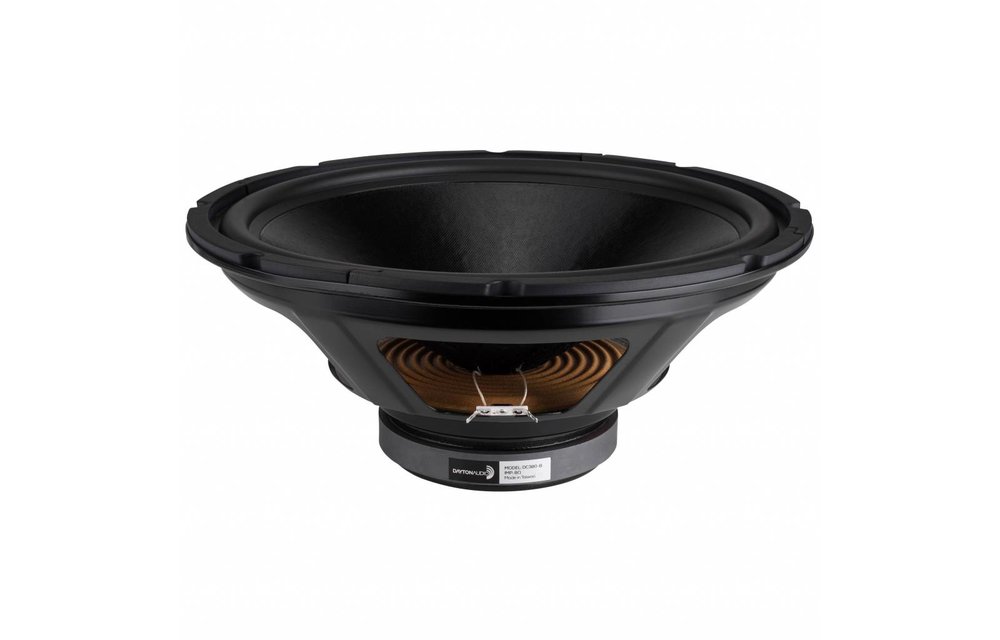

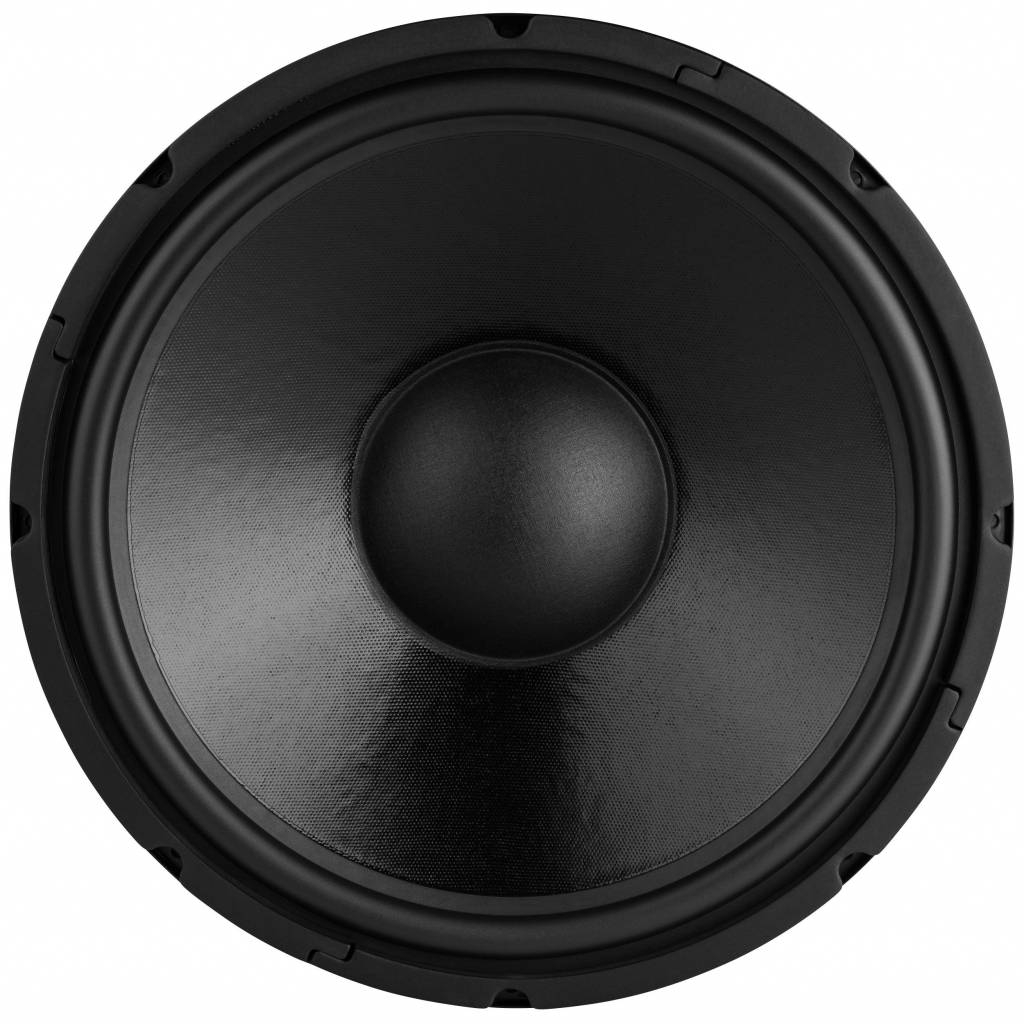

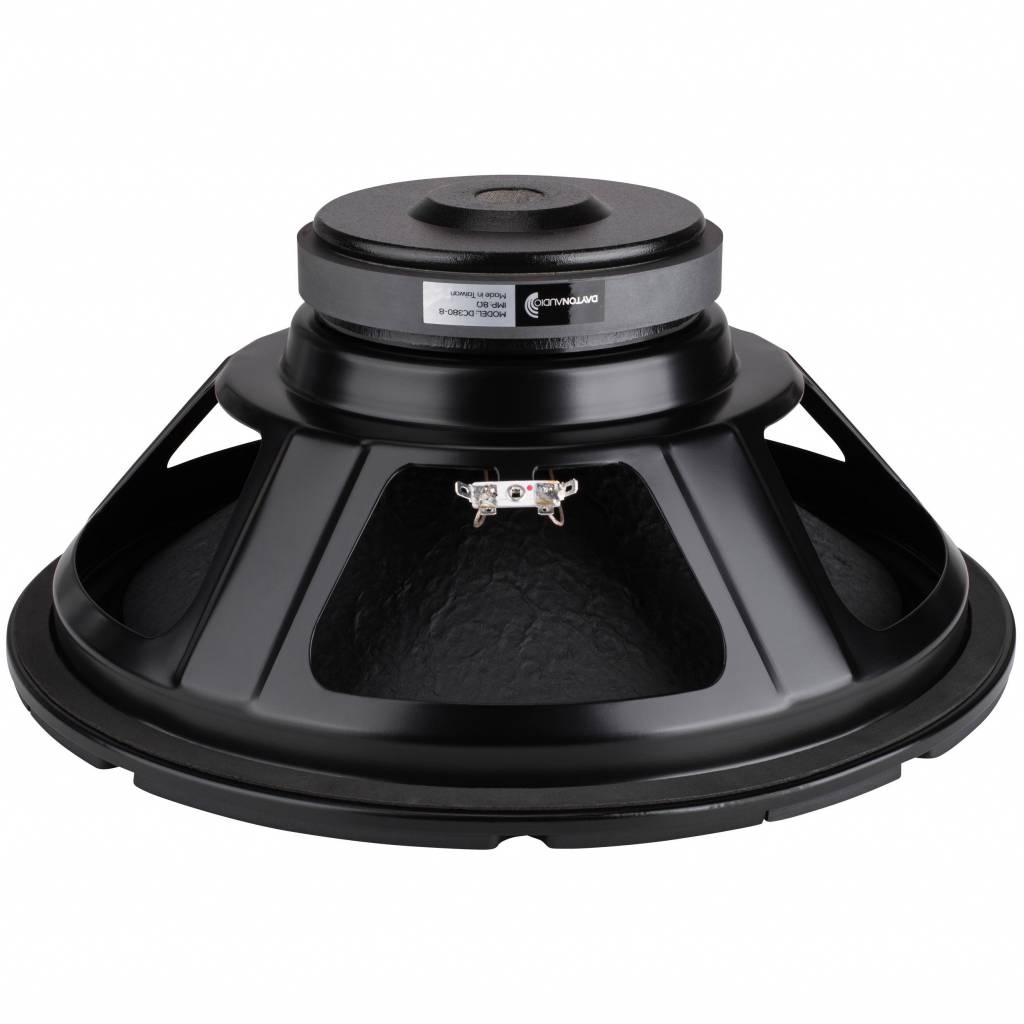

Dayton Audio DC380-8 15" Classic Woofer

The Dayton Audio Classic Series 15" woofer is excellent as a replacement driver or for new system design and construction. The versatile set of parameters makes it suitable for sealed or vented enclosure designs.



Highlights

  • Treated paper cone provides smooth response and low energy storage
  • Aluminum former, vented pole piece, and porous dustcap for high power handling
  • Large diameter flat spider and healthy Xmax for clean bass
  • Bring those old vintage speakers back to life



Product details

Dayton Audio DC380-8 15" Classic Woofer



Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC380-8 15" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. Smooth frequency response and extended bass performance make this driver ideal for use in large format two-way and classic three-way loudspeaker designs. A Qts of 0.35 allows the DC300-8 to work well in both sealed and ported speaker enclosures.



A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.



Eigenschaften

Spezifikationen für: DC380-8 15" Classic Woofer

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers. Classic Series
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Midwoofer
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 15"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 100 watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 200 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 91.8 dB @ 2.83V/1m
  • Frequency Response 20 - 1,500 Hz
  • Voice Coil Diameter 51 mm
  • Magnet Weight
  • DC Resistance (Re) 6.4 ohms
  • Voice Coil Inductance (Le) 3.09 mH @ 1 kHz
  • Resonant Frequency (Fs) 18.8 Hz
  • Mechanical Q (Qms) 2.87
  • Electromagnetic Q (Qes) 0.34
  • Total Q (Qts) 0.30
  • Diaphragm Mass Inc. Airload (Mms) 182.9g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.39 mm/N
  • Surface Area of Cone (Sd) 834.7 cm²
  • Volume of Displacement (Vd) 363.1 cm³
  • BL Product (BL) 20.4 Tm
  • Compliance Equivalent Volume (Vas) 391.4 liters
  • Maximum Linear Excursion (Xmax) 4.35 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Treated Paper
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 385 mm
  • Overall Depth 162 mm
  • Baffle Cutout Diameter 349 mm
  • Bolt Circle Diameter
  • # Mounting Holes 8
  • Mounting Hole Diameter
  • Sealed Volume 2 ft.³
  • Sealed F3 53 Hz
  • Vented Volume 5.27 ft.³
  • Vented F3 32 Hz
