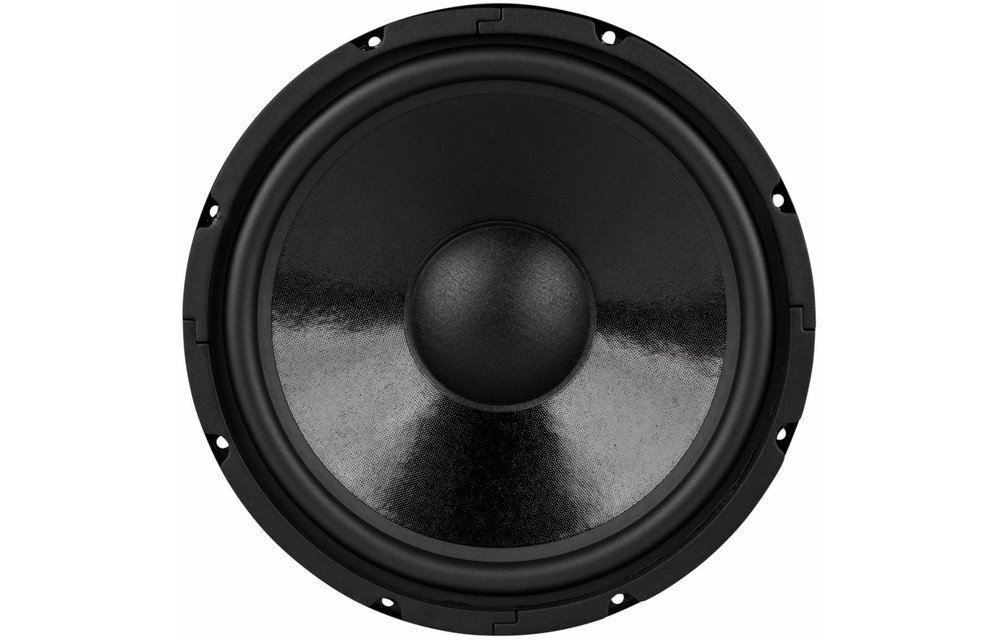

Dayton Audio DC300-8 12" Classic Woofer

Lieferzeit: 1-3 Werktage

  • Artikelnummer: DC300-8
  • Vorrat: >10 Auf Lager

Choose the Dayton Audio DC300-8 Classic Series 12" woofer for use as a great replacement speaker for large format 2-way and 3-way, ported or sealed loudspeakers.

€ 59,95 Inkl. MwSt.

  • Kaufen Sie 4 für je €56,95 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio DC300-8 12" Classic Woofer

Choose the Dayton Audio DC300-8 Classic Series 12" woofer for use as a great replacement speaker for large format 2-way and 3-way, ported or sealed loudspeakers.



Highlights

  • Works great as a general replacement woofer
  • Excellent price/performance ratio
  • Bring those old vintage speakers back to life
  • Long lasting rubber surround increases the life of the driver



Product details

Dayton Audio DC300-8 12" Classic Woofer



Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC300-8 12" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. Smooth frequency response and extended bass performance make this driver ideal for use in large format two-way and classic three-way loudspeaker designs. A Qts of 0.33 allows the DC300-8 to work well in both sealed and ported speaker enclosures.



A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.

OPTIMUM CABINET SIZE (DETERMINED USING BASSBOX 6 PRO HIGH FIDELITY SUGGESTION)

Eigenschaften

Spezifikationen für: DC300-8 12" Classic Woofer

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers. Classic Series
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Midwoofer
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 12"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 80 watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 160 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 90.3 dB @ 2.83V/1m
  • Frequency Response 25 - 2,500 Hz
  • Voice Coil Diameter 51 mm
  • Magnet Weight 30 oz.
  • DC Resistance (Re) 6.8 ohms
  • Voice Coil Inductance (Le) 2.93 mH @ 1 kHz
  • Resonant Frequency (Fs) 22.9 Hz
  • Mechanical Q (Qms) 3.21
  • Electromagnetic Q (Qes) 0.37
  • Total Q (Qts) 0.33
  • Diaphragm Mass Inc. Airload (Mms) 100.7g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.48 mm/N
  • Surface Area of Cone (Sd) 498.8 cm²
  • Volume of Displacement (Vd) 214.5 cm³
  • BL Product (BL) 16.3 Tm
  • Compliance Equivalent Volume (Vas) 181.5 liters
  • Maximum Linear Excursion (Xmax) 4.3 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Treated Paper
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 306.5 mm
  • Overall Depth 131.5 mm
  • Baffle Cutout Diameter 279.5 mm
  • Bolt Circle Diameter
  • # Mounting Holes 8
  • Mounting Hole Diameter
  • Sealed Volume 1.47 ft.³
  • Sealed F3 52 Hz
  • Vented Volume 4.58 ft.³
  • Vented F3 28 Hz
