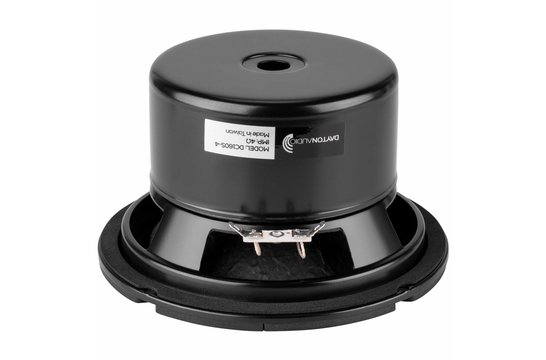

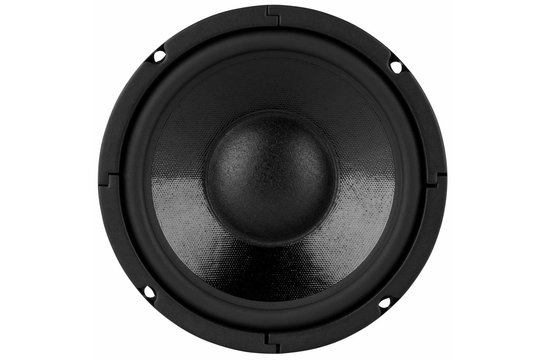

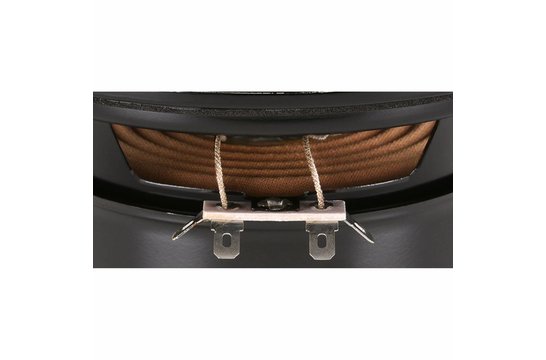

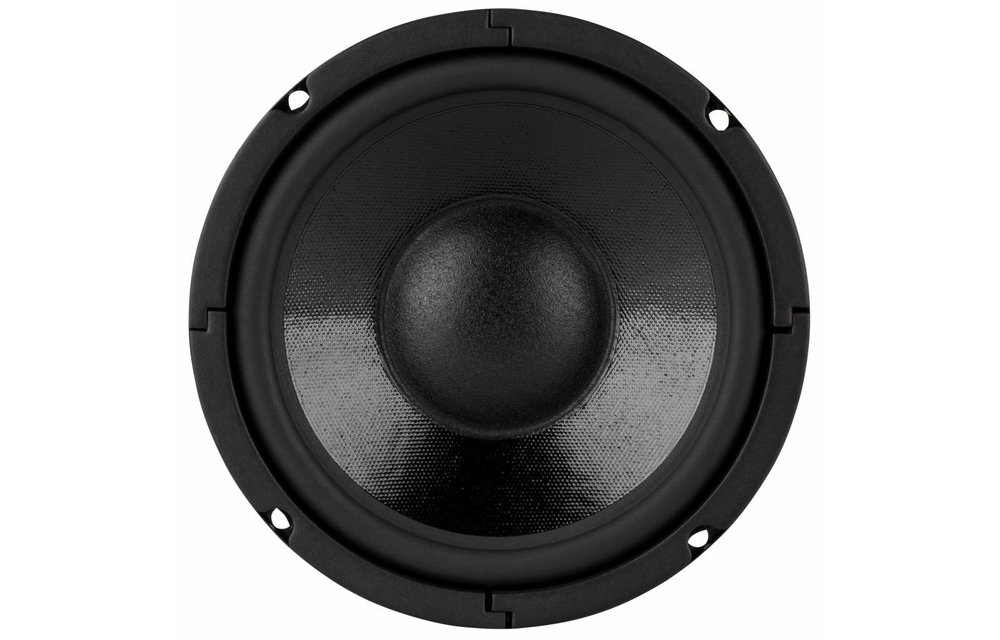

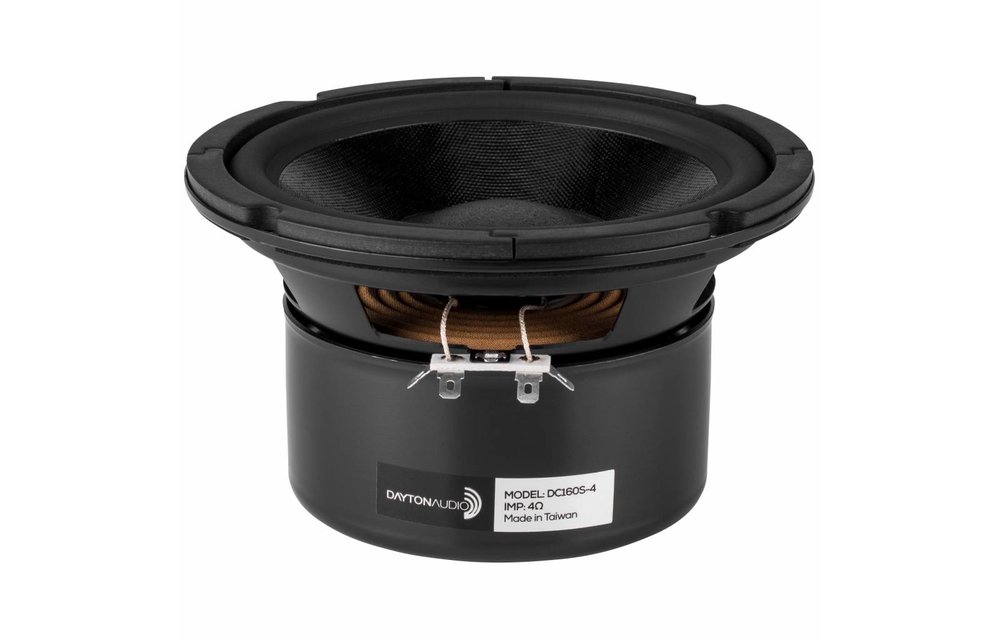

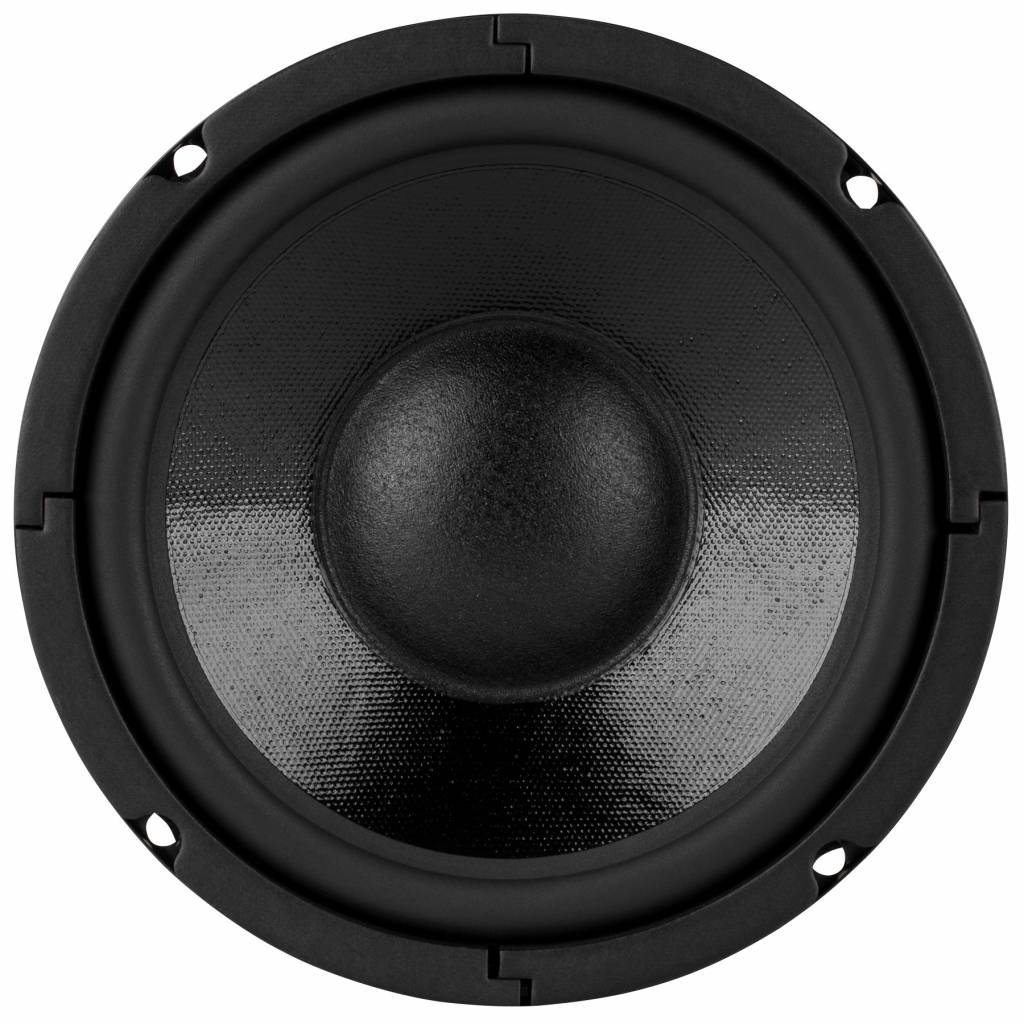

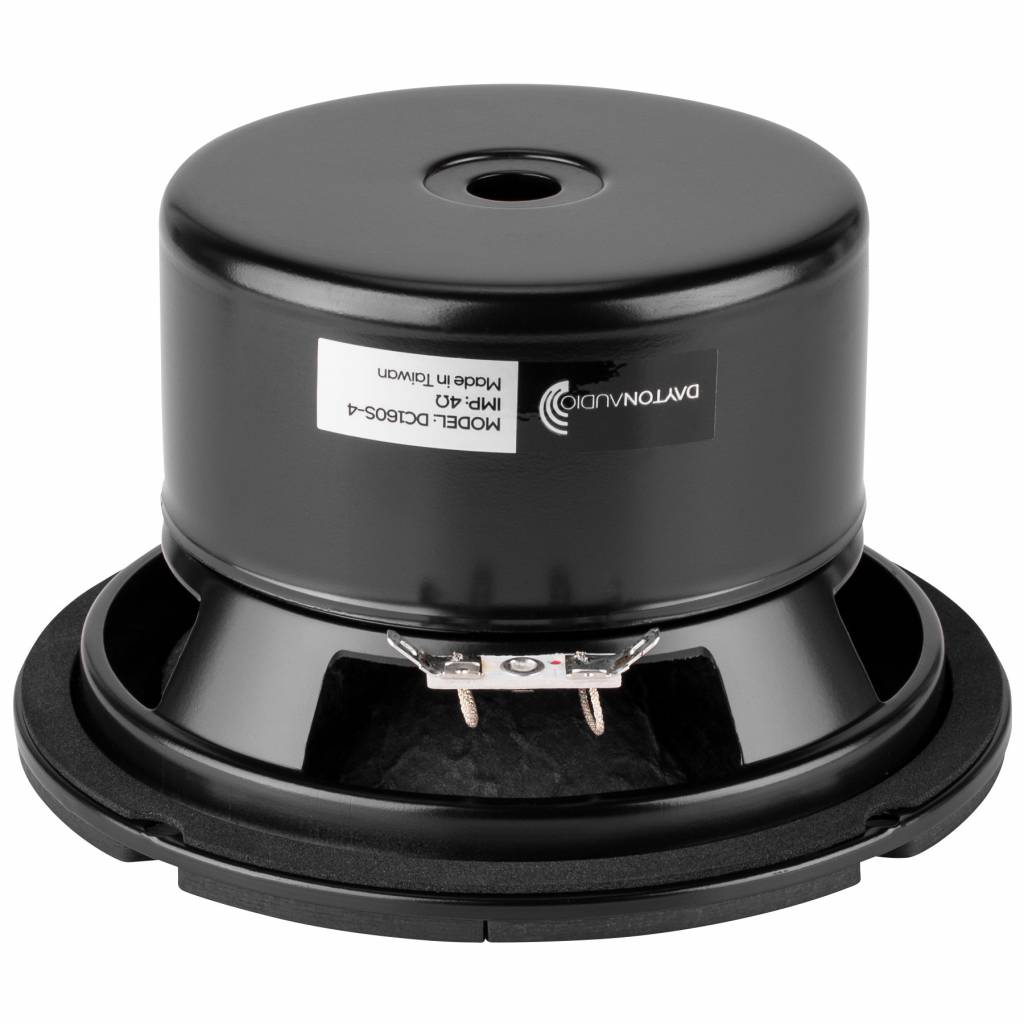

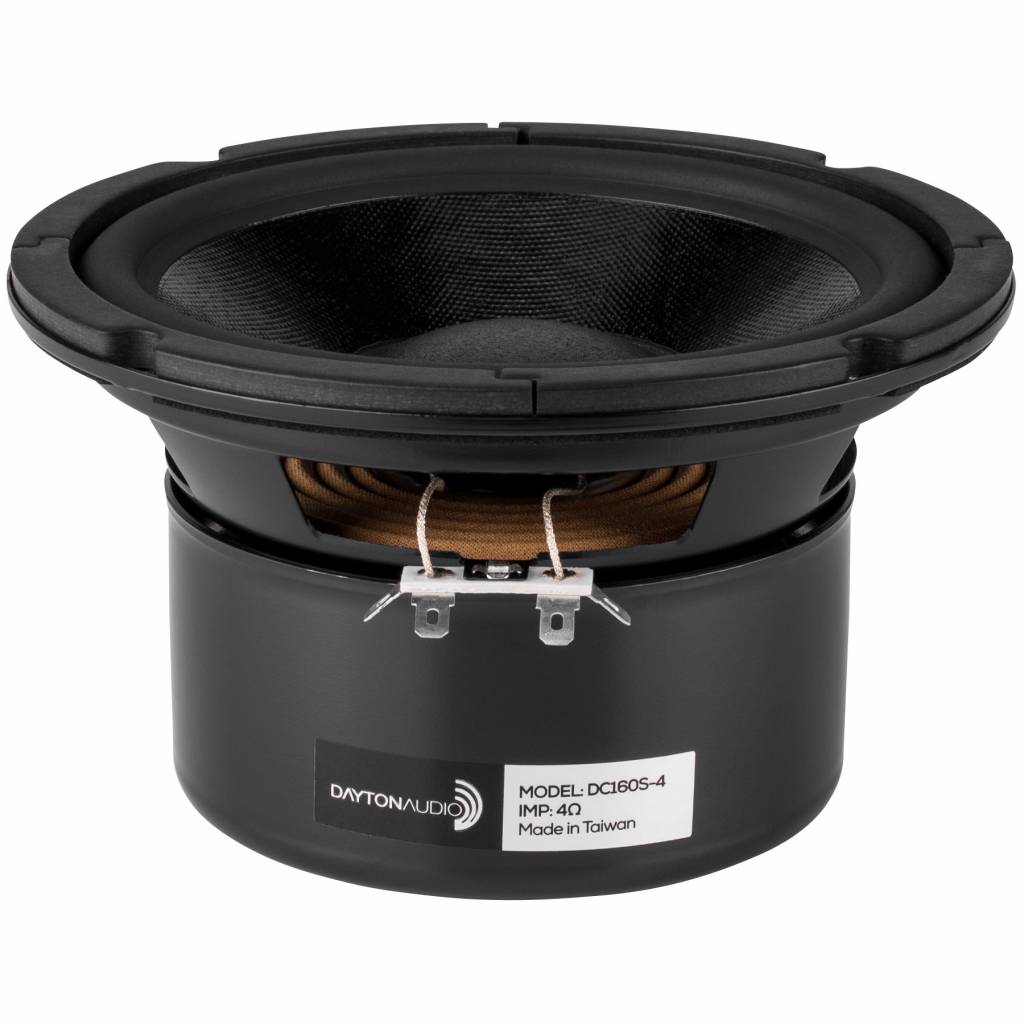

Dayton Audio DC160S-4 6-1/2" Classic Shielded Woofer 4 Ohm

Lieferzeit: 1-3 Werktage

  • Artikelnummer: DC160S-4
  • Vorrat: 2 Auf Lager

Choose the Dayton Audio DC160S-4 Classic Series 6-1/2" shielded woofer for use as a great replacement bookshelf speaker, midbass in 3-way designs, or even as a small subwoofer.

€ 46,25 Inkl. MwSt.

  • Kaufen Sie 4 für je €43,94 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio DC160S-4 6-1/2" Classic Shielded Woofer 4 Ohm

Choose the Dayton Audio DC160S-4 Classic Series 6-1/2" shielded woofer for use as a great replacement bookshelf speaker, midbass in 3-way designs, or even as a small subwoofer.



Highlights

  • Sturdy, easy-to-countersink round steel frame
  • 4 ohm impedance offers alternative load possibilities
  • Coated paper cone provides smooth response and reduced cone breakup
  • Aluminum VC former and vented pole piece for high power handling
  • Large diameter flat spider and good Xmax for clean bass
  • Suitable for sealed or vented enclosures



Product details

Dayton Audio DC160S-4 6-1/2" Classic Shielded Woofer 4 Ohm



Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC160S-4 6-1/2" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. You can even be use the DC160S-4 as a small subwoofer! The excellent low frequency performance will amaze you.



A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate. The 4 ohm impedance of the DC160S-4 makes it perfect for use in MTMs and center channel speakers.

Eigenschaften

Spezifikationen für: DC160S-4 6-1/2" Classic Shielded Woofer 4 Ohm

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers. Classic Series
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Midwoofer
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 6.50"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 50 watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 100 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 4 ohms
  • Sensitivity 88.5 dB @ 2.83V/1m
  • Frequency Response 33 - 4,000 Hz
  • Voice Coil Diameter 35 mm
  • Magnet Weight
  • DC Resistance (Re) 3.5 ohms
  • Voice Coil Inductance (Le) 0.89 mH @ 1 kHz
  • Resonant Frequency (Fs) 30.9 Hz
  • Mechanical Q (Qms) 2.61
  • Electromagnetic Q (Qes) 0.34
  • Total Q (Qts) 0.30
  • Diaphragm Mass Inc. Airload (Mms) 30g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.88 mm/N
  • Surface Area of Cone (Sd) 136.8 cm²
  • Volume of Displacement (Vd) 46.5 cm³
  • BL Product (BL) 7.68 Tm
  • Compliance Equivalent Volume (Vas) 23.2 liters
  • Maximum Linear Excursion (Xmax) 3.4 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Treated Paper
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded Yes
  • Overall Outside Diameter 165 mm
  • Overall Depth 95 mm
  • Baffle Cutout Diameter 144.6 mm
  • Bolt Circle Diameter
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume 0.15 ft.³
  • Sealed F3 90 Hz
  • Vented Volume 0.41 ft.³
  • Vented F3 52 Hz

Documenten

Bewertungen

Erfahrungsberichte 5 / 5 Bewertungen: (1)

  • RM Durch Ricardo M. an 26-06-2020 16:15

    5 / 5

    I use it as a small subwoofer with a Dayton passive radiator and the bass is very good. It is only a 50w RMS but seems much louder.
