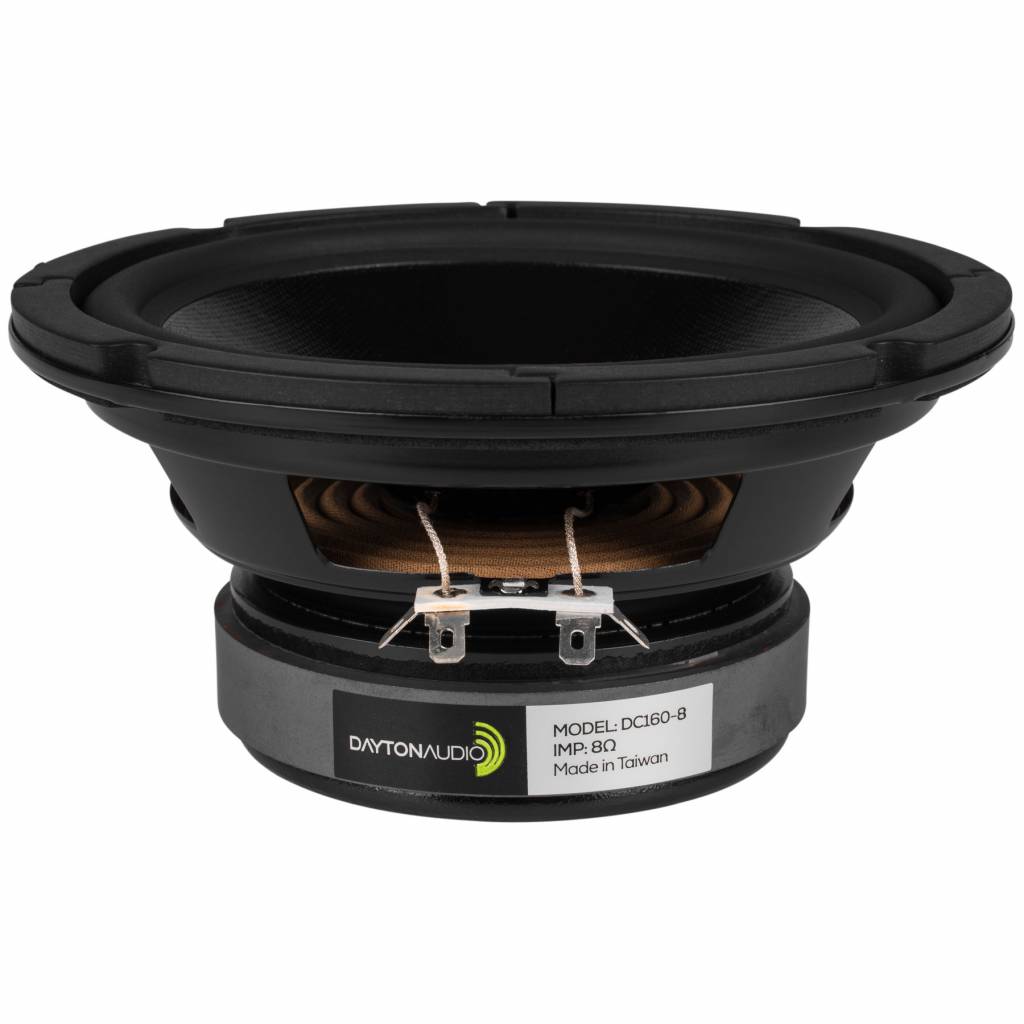

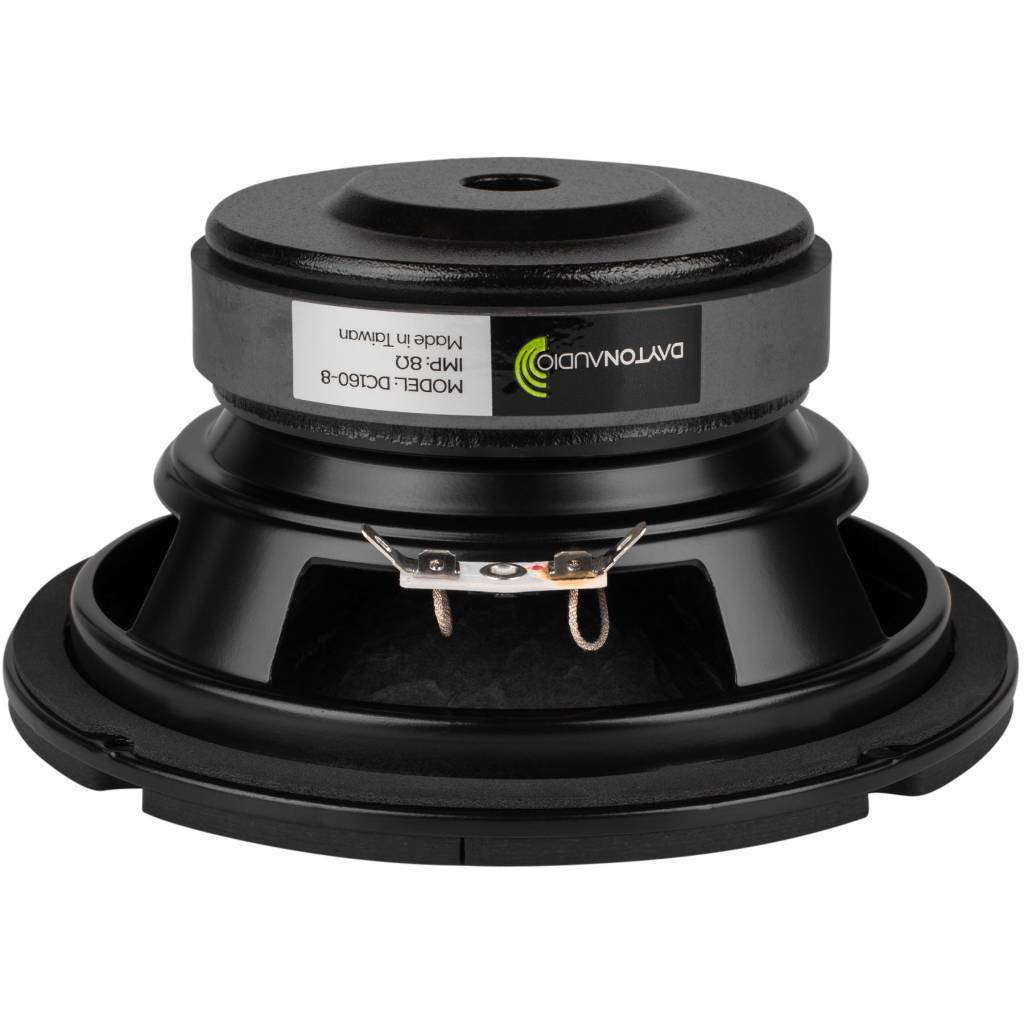

Dayton Audio DC160-8 6-1/2" Classic Woofer

Lieferzeit: 1-3 Werktage

  • Artikelnummer: DC160-8
  • Vorrat: >10 Auf Lager

Choose the Dayton Audio DC160-8 Classic Series 6-1/2" woofer for use as a great replacement bookshelf speaker, midbass in 3-way designs, or even as a small subwoofer.

€ 39,95 Inkl. MwSt.

  • Kaufen Sie 4 für je €37,95 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio DC160-8 6-1/2" Classic Woofer

Choose the Dayton Audio DC160-8 Classic Series 6-1/2" woofer for use as a great replacement bookshelf speaker, midbass in 3-way designs, or even as a small subwoofer.



Highlights

  • Great bang-for-the-buck driver can be used as a woofer, midbass, or even as a small subwoofer!
  • Smooth frequency response up to 2 kHz and great bass response
  • Rubber surround, aluminum voice coil, and extended bump plate
  • Low 34 Hz free-air resonance



Product details

Dayton Audio DC160-8 6-1/2" Classic Woofer



Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC160-8 6-1/2" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. You can even be use the DC160-8 as a small subwoofer! The excellent low frequency performance will amaze you.



A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.



Eigenschaften

Spezifikationen für: DC160-8 6-1/2" Classic Woofer

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers. Classic Series
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Midwoofer
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 6.50"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 50 watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 100 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 86.1 dB @ 2.83V/1m
  • Frequency Response 30 - 4,000 Hz
  • Voice Coil Diameter 35 mm
  • Magnet Weight 15 oz.
  • DC Resistance (Re) 6.6 ohms
  • Voice Coil Inductance (Le) 2.26 mH @ 1 kHz
  • Resonant Frequency (Fs) 35.7 Hz
  • Mechanical Q (Qms) 3.46
  • Electromagnetic Q (Qes) 0.38
  • Total Q (Qts) 0.34
  • Diaphragm Mass Inc. Airload (Mms) 29.3g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.68 mm/N
  • Surface Area of Cone (Sd) 134.8 cm²
  • Volume of Displacement (Vd) 42.5 cm³
  • BL Product (BL) 10.7 Tm
  • Compliance Equivalent Volume (Vas) 17.9 liters
  • Maximum Linear Excursion (Xmax) 3.15 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Treated Paper
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 165 mm
  • Overall Depth 82.2 mm
  • Baffle Cutout Diameter 144.6 mm
  • Bolt Circle Diameter
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume 0.14 ft.³
  • Sealed F3 89 Hz
  • Vented Volume 0.34 ft.³
  • Vented F3 54 Hz

Documenten

Bewertungen

Erfahrungsberichte 4.4 / 5 Bewertungen: (5)

  • MV Durch Maxim V. an 16-07-2020 12:37

    4 / 5

    As always with Dayton drivers, the build quality is solid and the finish is smart. The sound (with a 1st order passive LPF at 1.5kHz) is nice, very smooth and doesn't ever sound strained, even crossed at the limit of its usable frequency range. The only thing I don't like is that the front gasket is very thick, meaning without a recess, the driver comes out in front of the baffle a long way which doesn't look great.

  • VJ Durch Ville J. an 22-10-2019 17:06

    4 / 5

    No description was given

  • GL Durch Georgios L. an 19-03-2019 11:00

    4 / 5

    No description was given

  • PH Durch Petri H. an 02-10-2018 20:42

    5 / 5

    Its awesome

  • LA Durch Luigi A. an 26-06-2018 18:16

    5 / 5

    Very good sound!
