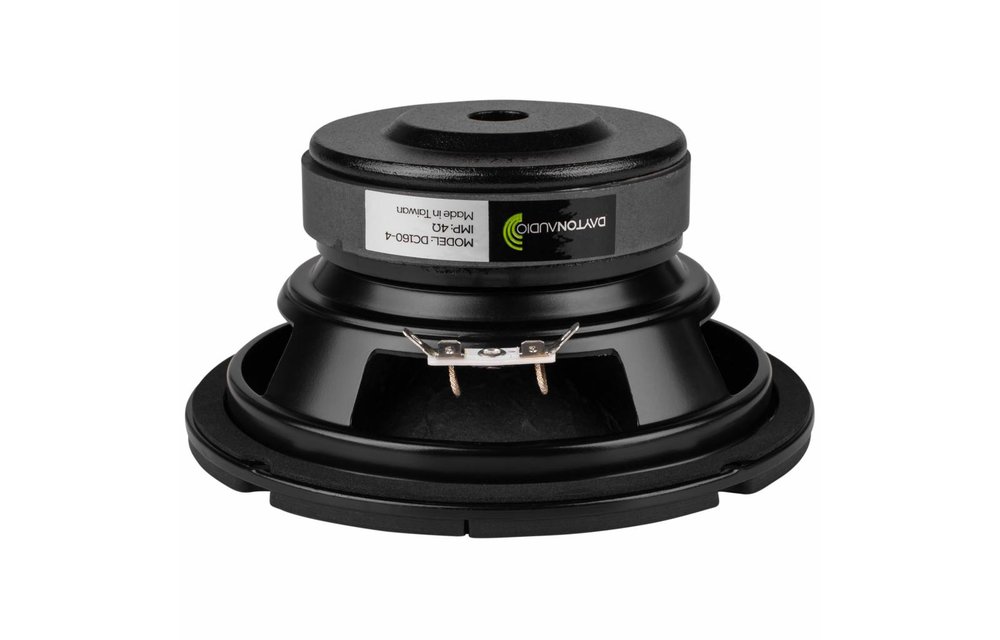

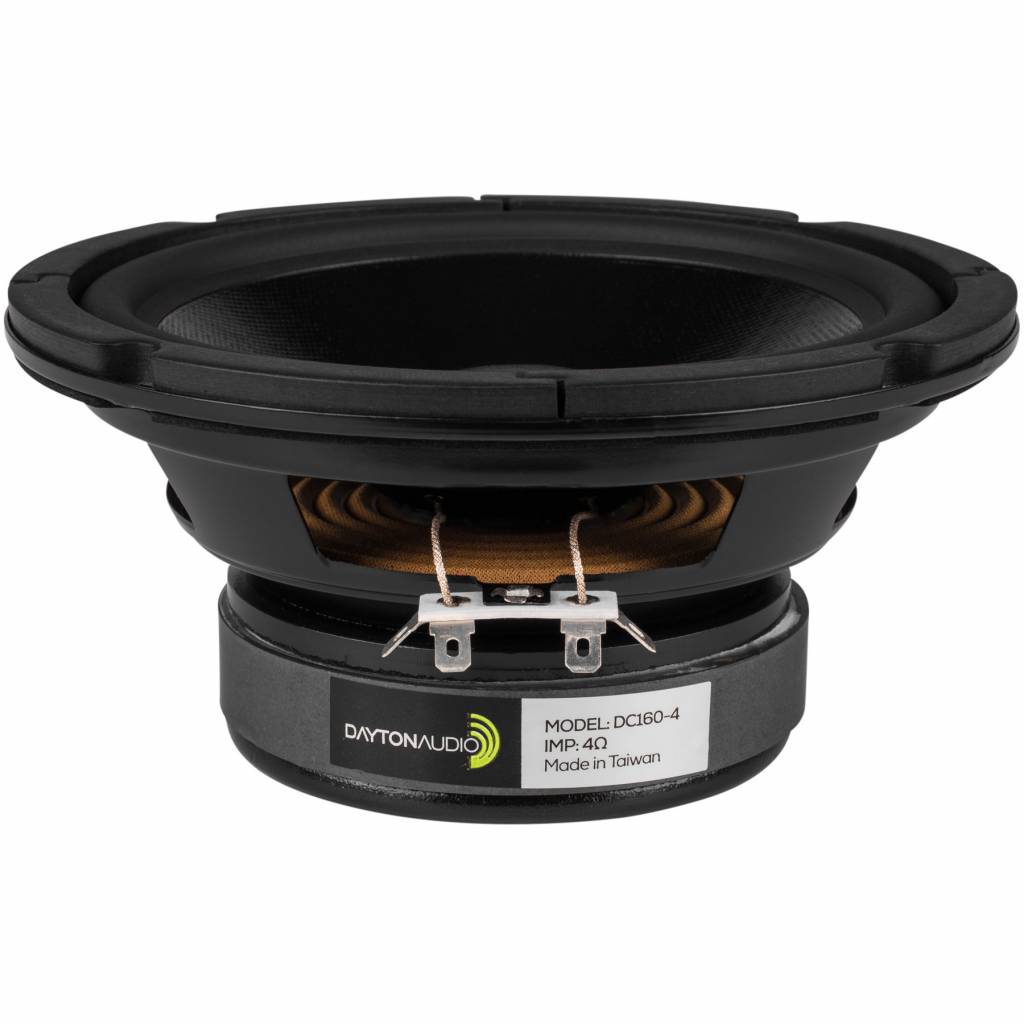

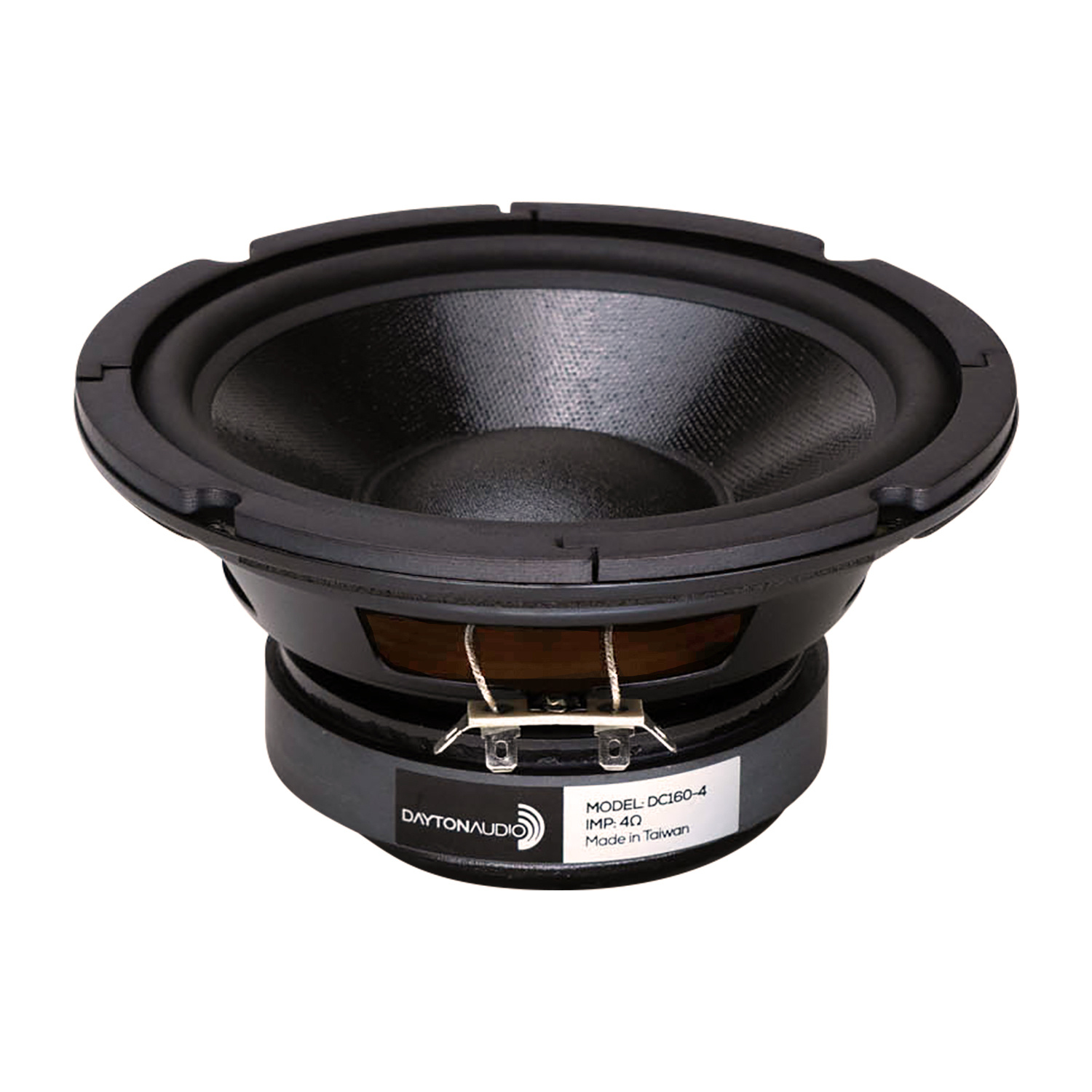

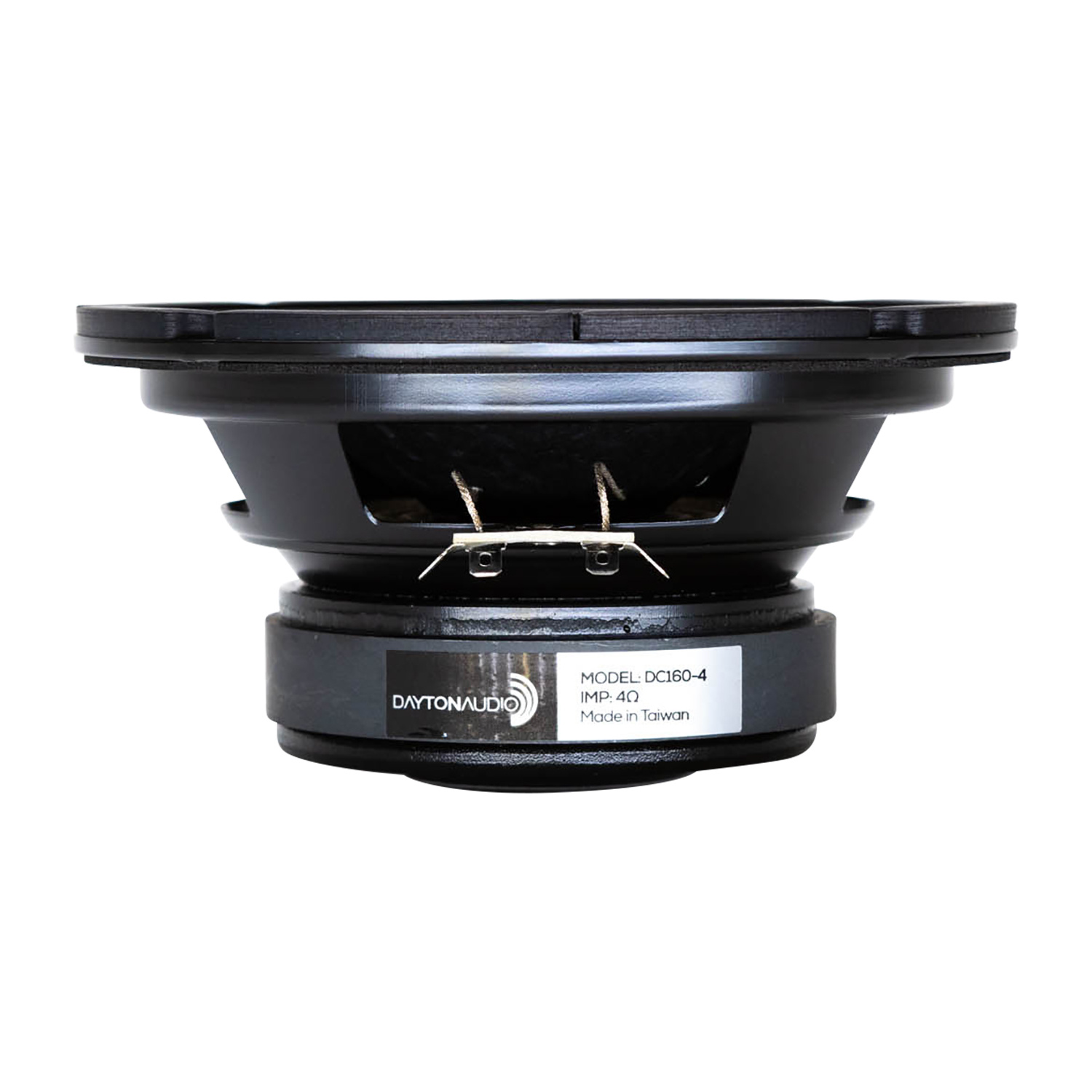

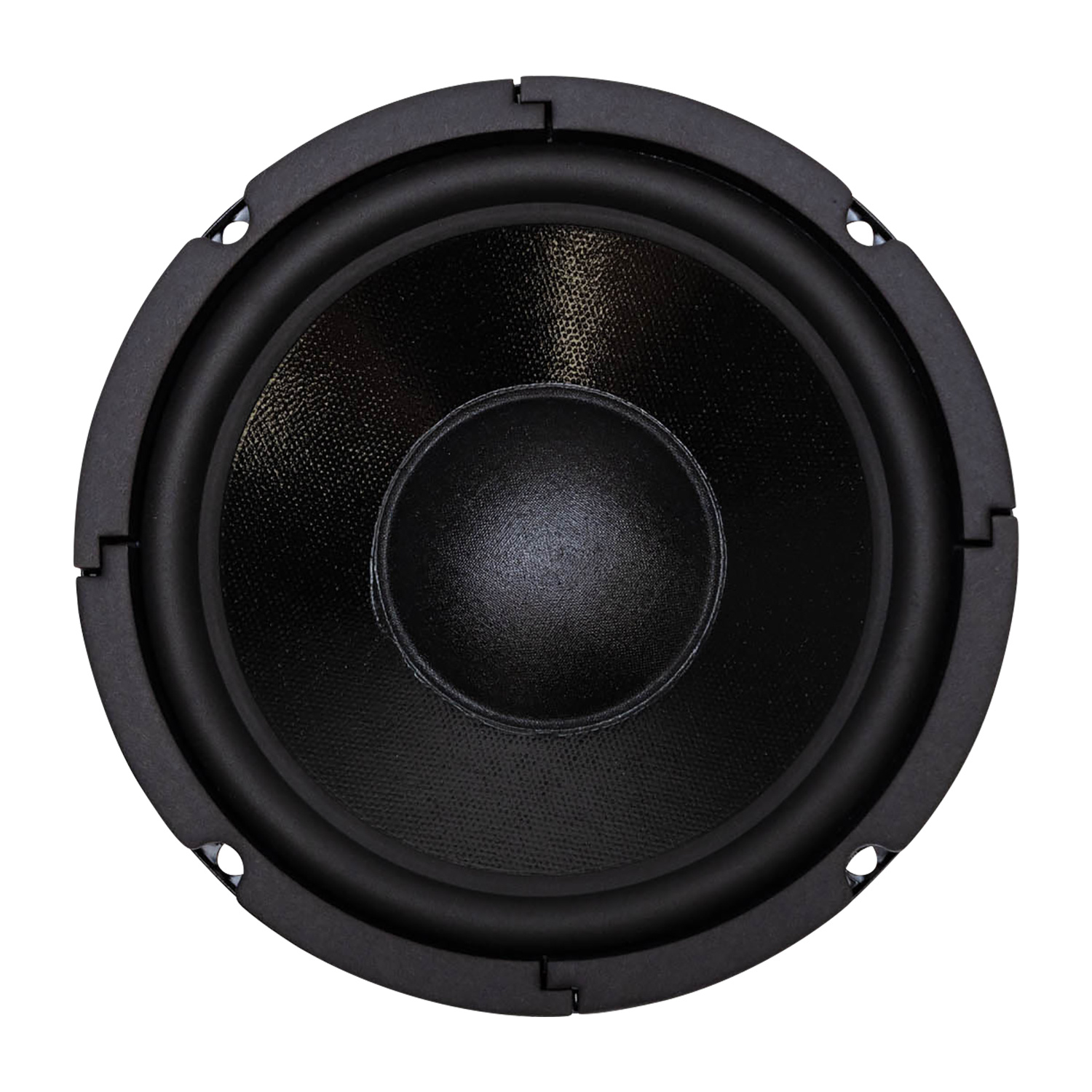

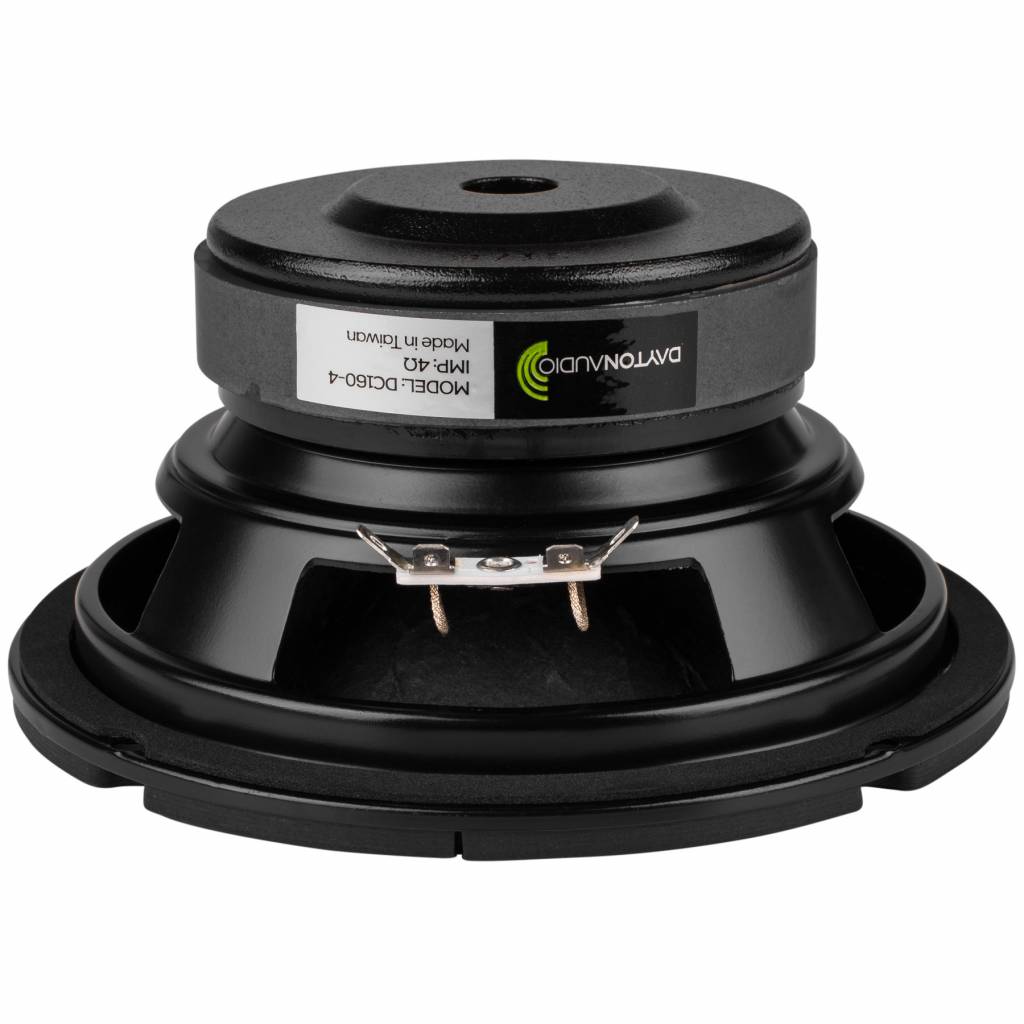

Dayton Audio DC160-4 6-1/2" Classic Woofer Speaker

Marke: Dayton Audio
Bewertungen: (3) Ihre Bewertung hinzufügen
Vergleichen
Vergleichen
Zur Wunschliste hinzufügen

Nur auf Bestellung lieferbar. Lieferzeit beträgt 3 bis 6 Wochen

Artikelnummer: DC160-4
Nicht auf Lager

Designed to offer premium results on a moderate budget, the Dayton Audio DC160-4 6-1/2" 4 ohm woofer provides solid bass and clean midrange response when used in sealed, vented, or transmission line speaker systems.

€ 39,95 Inkl. MwSt.

4 für je €37,95 kaufen und 5% sparen Sale 5%

Menge Zur Wunschliste hinzufügen

Gratis DHL-Versand ab 149€ (DE, A) Tooltip
Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen
Versand am selben Tag
45 Tage Bedenkzeit
Zahlung mit Paypal/Kreditkarte

Produktbeschreibung
Eigenschaften
Bewertungen
Data sheet

Dayton Audio DC160-4 6-1/2" Classic Woofer Speaker

Highlights

Sturdy, easy-to-countersink round steel frame
4 ohm impedance offers alternative load possibilities
Coated paper cone provides smooth response and reduced cone breakup
Aluminum VC former and vented pole piece for high power handling
Large diameter flat spider and good Xmax for clean bass
Suitable for sealed or vented enclosures

Product details

Dayton Audio DC160-4 6-1/2" Classic Woofer Speaker

One of the main design goals at Dayton Audio is to create loudspeakers that can achieve high levels of performance at reasonable prices. The Dayton Audio DC160-4 6-1/2" woofer is a great example of this approach. It features a non-pressed treated paper cone, rubber half-roll surround, ASV voice coil, vented pole piece, coated cloth dust cap, and excellent low frequency response.

Spezifikationen für: DC160-4 6-1/2" Classic Woofer Speaker

Woofer SeriesSpezielle Woofer- Produktionsreihe des Herstellers. Classic Series
Woofer TypeArt des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Midwoofer
Nominal DiameterUngefährer Durchmesser des Drivers, gemessen in Inch. 6.50"
Power Handling (RMS)Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 60 watts
Power Handling (max)Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 120 watts
View all specifications
Continuous Program Power
Impedance 4 ohms
Sensitivity 88.3 dB @ 2.83V/1m
Frequency Response 30 - 4,000 Hz
Voice Coil Diameter 35.5 mm
Magnet Weight 15 oz.
DC Resistance (Re) 3.4 ohms
Voice Coil Inductance (Le) 0.99 mH @ 1 kHz
Resonant Frequency (Fs) 39 Hz
Mechanical Q (Qms) 3.31
Electromagnetic Q (Qes) 0.49
Total Q (Qts) 0.43
Diaphragm Mass Inc. Airload (Mms) 29.2g
Moving Mass Of Diaphragm (Mmd)
Mechanical Compliance of Suspension (Cms) 0.57 mm/N
Surface Area of Cone (Sd) 136.8 cm²
Volume of Displacement (Vd) 46.5 cm³
BL Product (BL) 7.02 Tm
Compliance Equivalent Volume (Vas) 15 liters
Maximum Linear Excursion (Xmax) 3.4 mm
Driver's Mechanical Losses (Rms)
Cone / Diaphragm Material Coated Paper
Surround Material Rubber
Voice Coil Wire Material Copper
Voice Coil Former Aluminum
Dual Voice Coil
Basket / Frame Material Steel
Magnet Material Ferrite
Shielded
Overall Outside Diameter 165 mm
Overall Depth 82.2 mm
Baffle Cutout Diameter 144.6 mm
Bolt Circle Diameter
# Mounting Holes 4
Mounting Hole Diameter
Sealed Volume 0.23 ft.³
Sealed F3 73 Hz
Vented Volume 0.48 ft.³
Vented F3 45 Hz

Data sheet
