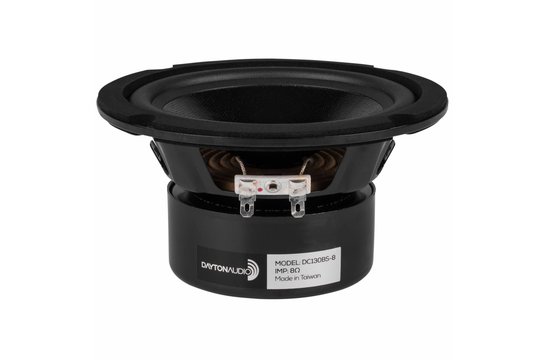

Dayton Audio DC130BS-8 5-1/4" Classic Shielded Woofer

Lieferzeit: 1-3 Werktage

  • Artikelnummer: DC130BS-8
  • Vorrat: 6 Auf Lager

Choose the Dayton Audio DC130BS-8 Classic Series 5-1/4" shielded woofer for use as a great replacement bookshelf speaker, midbass in 3-way designs, or even as a small subwoofer.

€ 29,95 Inkl. MwSt.

  • Kaufen Sie 4 für je €28,45 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio DC130BS-8 5-1/4" Classic Shielded Woofer

Choose the Dayton Audio DC130BS-8 Classic Series 5-1/4" shielded woofer for use as a great replacement bookshelf speaker, midbass in 3-way designs, or even as a small subwoofer.



Highlights

  • Great bang-for-the-buck driver can be used as a woofer, midbass, or even as a small subwoofer!
  • Smooth frequency response up to 2 kHz and great bass response
  • Rubber surround, aluminum voice coil, and extended bump plate
  • Shielded design increases performance and allows it to be used near tube TVs



Product details

Dayton Audio DC130BS-8 5-1/4" Classic Shielded Woofer



Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC130BS-8 5-1/4" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. You can even be use the DC130BS-8 as a small subwoofer! The excellent low frequency performance will amaze you.



A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil increases power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.

Eigenschaften

Spezifikationen für: DC130BS-8 5-1/4" Classic Shielded Woofer

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers. Classic Series
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Midwoofer
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 5.25"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 30 watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 60 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 88.9 dB @ 2.83V/1m
  • Frequency Response 55 - 4,000 Hz
  • Voice Coil Diameter 25 mm
  • Magnet Weight 10 oz.
  • DC Resistance (Re) 5.8 ohms
  • Voice Coil Inductance (Le) 0.82 mH @ 1 kHz
  • Resonant Frequency (Fs) 50.5 Hz
  • Mechanical Q (Qms) 1.82
  • Electromagnetic Q (Qes) 0.49
  • Total Q (Qts) 0.39
  • Diaphragm Mass Inc. Airload (Mms) 8.8g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 1.13 mm/N
  • Surface Area of Cone (Sd) 91.6 cm²
  • Volume of Displacement (Vd) 22.9 cm³
  • BL Product (BL) 5.71 Tm
  • Compliance Equivalent Volume (Vas) 13.8 liters
  • Maximum Linear Excursion (Xmax) 2.5 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Treated Paper
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded Yes
  • Overall Outside Diameter 145 mm
  • Overall Depth 77.4 mm
  • Baffle Cutout Diameter 120 mm
  • Bolt Circle Diameter
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume 0.11 ft.³
  • Sealed F3 116 Hz
  • Vented Volume 0.35 ft.³
  • Vented F3 61 Hz
