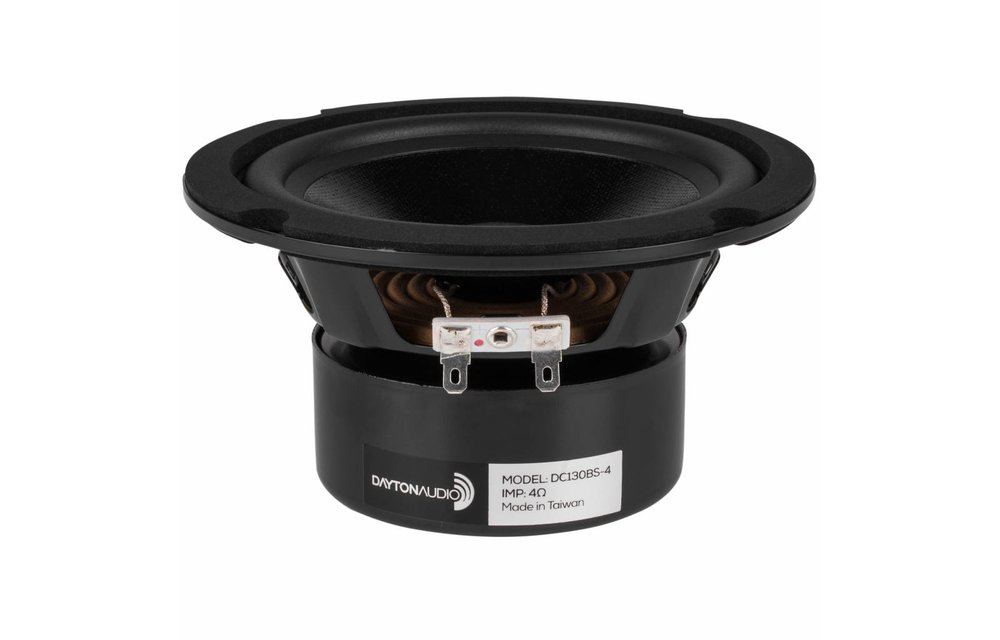

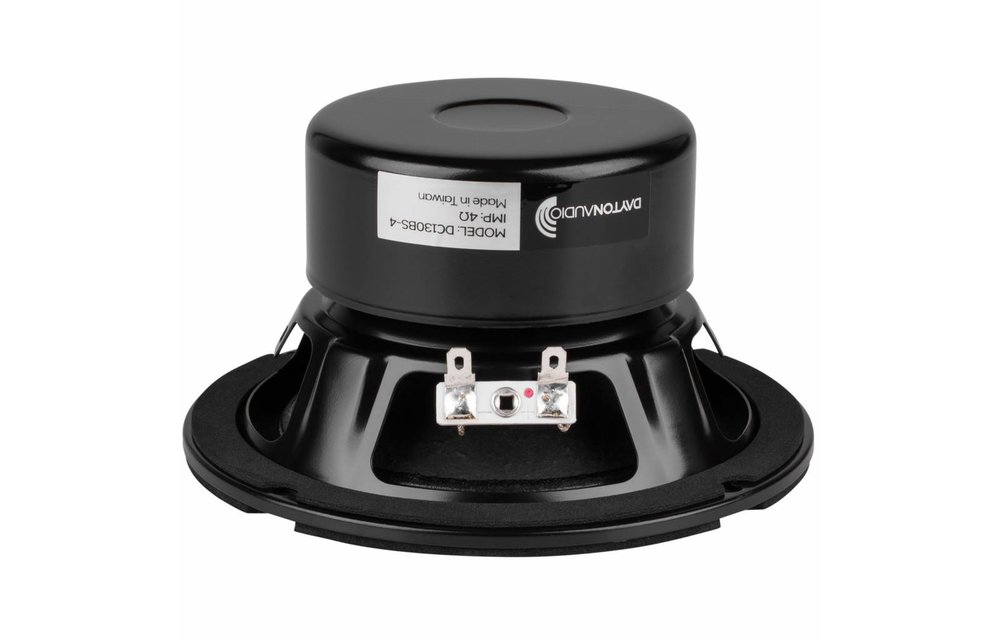

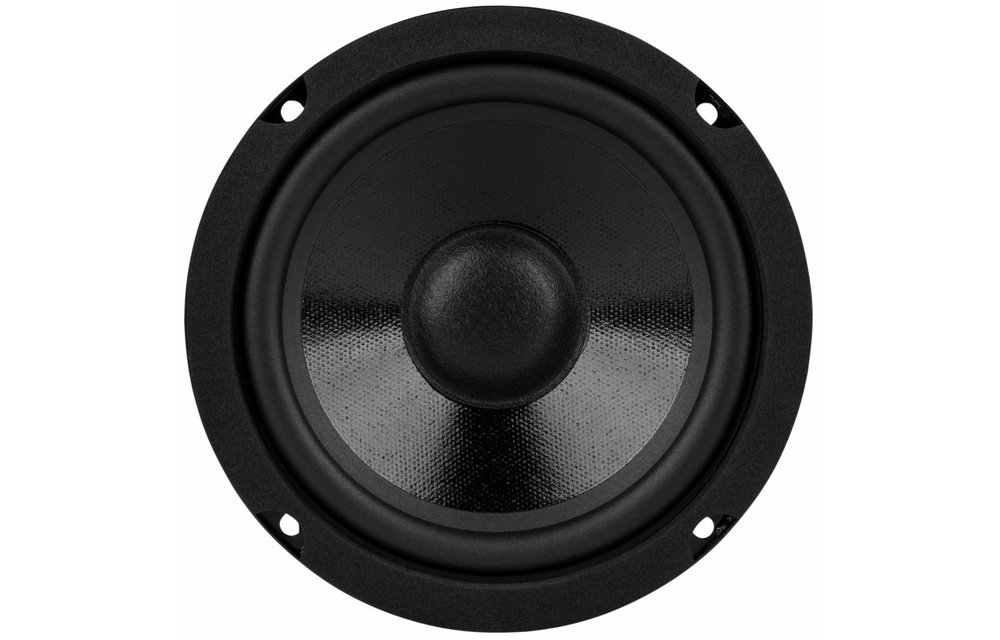

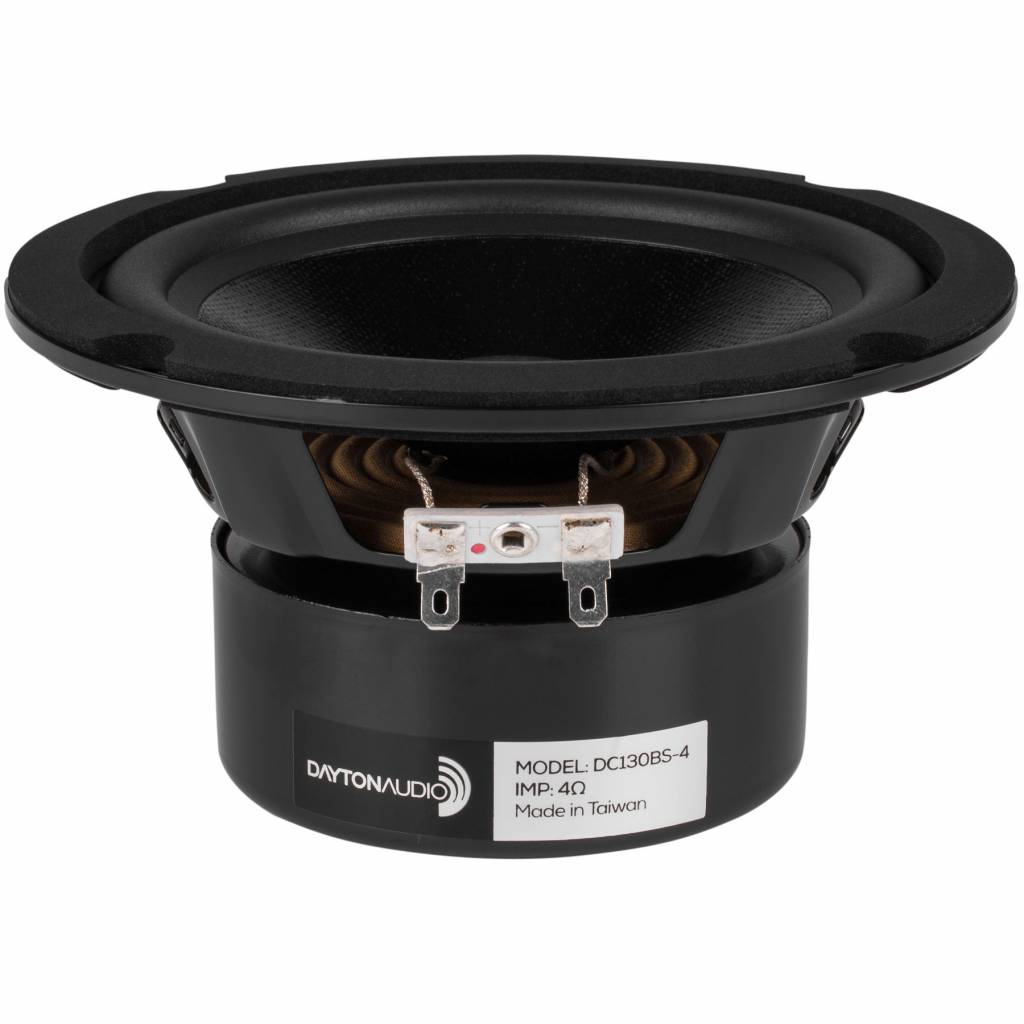

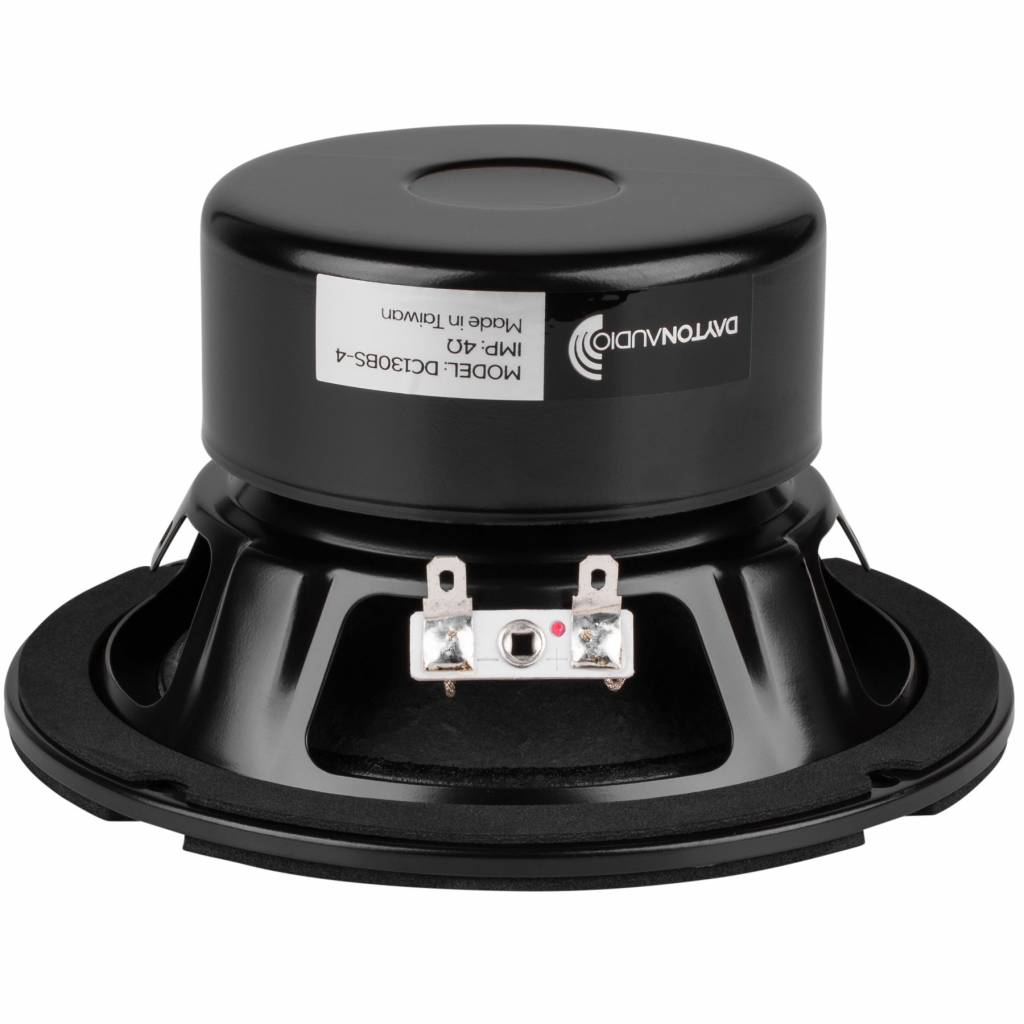

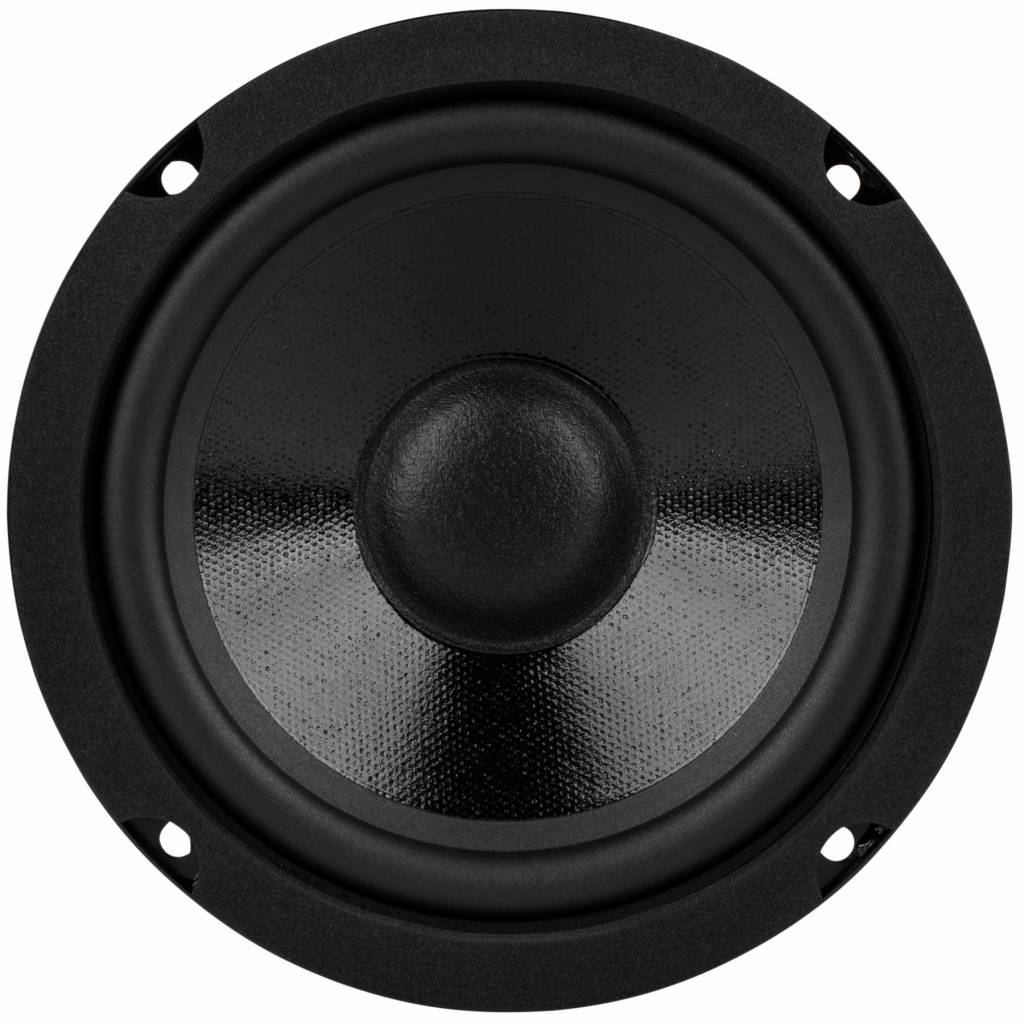

Dayton Audio DC130BS-4 5-1/4" Classic Shielded Woofer 4 Ohm

Lieferzeit: 1-3 Werktage

  • Artikelnummer: DC130BS-4
  • Vorrat: >10 Auf Lager

The Dayton Audio Classic woofers are excellent as replacements or for new system design and construction. With impressive bass performance and smooth overall response, they are popular in many DIY loudspeaker projects.

€ 29,95 Inkl. MwSt.

  • Kaufen Sie 4 für je €28,45 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio DC130BS-4 5-1/4" Classic Shielded Woofer 4 Ohm

The Dayton Audio Classic woofers are excellent as replacements or for new system design and construction. With impressive bass performance and smooth overall response, they are popular in many DIY loudspeaker projects.



Highlights

  • Treated paper cone provides smooth response and low energy storage
  • Aluminum former and porous dustcap for high power handling
  • Large diameter flat spider and good Xmax for clean bass



Product details

Dayton Audio DC130BS-4 5-1/4" Classic Shielded Woofer 4 Ohm



The Dayton Audio Classic woofers are excellent as replacements or for new system design and construction. Their versatile set of parameters make them suitable for sealed or vented enclosure designs. With impressive bass performance and smooth overall response, they are popular in many DIY loudspeaker projects.



PRODUCT SPECIFICATIONS

Nominal Diameter

5-1/4"

Power Handling (RMS)

30 Watts

Power Handling (max)

60 Watts

Impedance

4 ohms

Frequency Response

55 to 4,000 Hz

Sensitivity

91.6 dB 2.83V/1m

Voice Coil Diameter

1"



THIELE-SMALL PARAMETERS

Resonant Frequency (Fs)

51.8 Hz

DC Resistance (Re)

3.55 ohms

Voice Coil Inductance (Le)

0.5 mH

Mechanical Q (Qms)

1.86

Electromagnetic Q (Qes)

0.44

Total Q (Qts)

0.35

Compliance Equivalent Volume (Vas)

0.46 ft.³

Mechanical Compliance of Suspension (Cms)

1.08 mm/N

BL Product (BL)

4.8 Tm

Diaphragm Mass Inc. Airload (Mms)

8.8g

Maximum Linear Excursion (Xmax)

2.5 mm

Surface Area of Cone (Sd)

93.3 cm²



MATERIALS OF CONSTRUCTION

Cone Material

Coated Paper

Surround Material

Rubber

Voice Coil Wire Material

Copper

Voice Coil Former

Aluminum

Basket / Frame Material

Steel

Magnet Material

Ferrite



MOUNTING INFORMATION

Overall Outside Diameter

5.71"

Baffle Cutout Diameter

4.72"

Depth

3.09"

Bolt Circle Diameter

5.24"

# Mounting Holes

4



OPTIMUM CABINET SIZE (DETERMINED USING BASSBOX 6 PRO HIGH FIDELITY SUGGESTION)

Sealed Volume

0.12 ft.³

Sealed F3

119 Hz

Vented Volume

0.36 ft.³

Vented F3

64 Hz



Eigenschaften

Spezifikationen für: DC130BS-4 5-1/4" Classic Shielded Woofer 4 Ohm

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers. Classic Series
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Midwoofer
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 5.25"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 30 watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 60 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 4 ohms
  • Sensitivity 91.6 dB @ 2.83V/1m
  • Frequency Response 55 - 4,000 Hz
  • Voice Coil Diameter 25 mm
  • Magnet Weight
  • DC Resistance (Re) 3.55 ohms
  • Voice Coil Inductance (Le) 0.5 mH @ 1 kHz
  • Resonant Frequency (Fs) 51.8 Hz
  • Mechanical Q (Qms) 1.86
  • Electromagnetic Q (Qes) 0.44
  • Total Q (Qts) 0.35
  • Diaphragm Mass Inc. Airload (Mms) 8.8g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 1.08 mm/N
  • Surface Area of Cone (Sd) 93.3 cm²
  • Volume of Displacement (Vd) 14.0 cm³
  • BL Product (BL) 4.8 Tm
  • Compliance Equivalent Volume (Vas) 13.2 liters
  • Maximum Linear Excursion (Xmax) 2.5 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Coated Paper
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded Yes
  • Overall Outside Diameter 145 mm
  • Overall Depth 77.4 mm
  • Baffle Cutout Diameter 120 mm
  • Bolt Circle Diameter
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume 0.12 ft.³
  • Sealed F3 119 Hz
  • Vented Volume 0.36 ft.³
  • Vented F3 64 Hz

Documenten

Bewertungen

Erfahrungsberichte 3 / 5 Bewertungen: (1)

  • RB Durch Robert B. an 19-05-2020 16:47

    3 / 5

    it works as Subwoofer but the Volume is quiet
