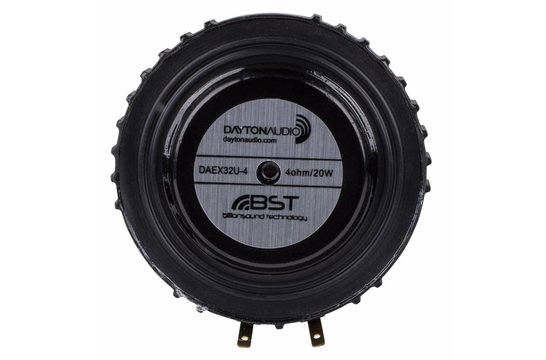

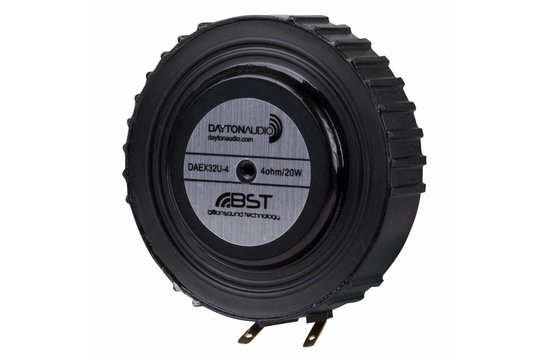

Dayton Audio DAEX32U-4 Ultra 32mm Exciter 20W 4 Ohm

Lieferzeit: 1-3 Werktage

  • Artikelnummer: DAEX32U-4
  • Vorrat: 6 Auf Lager

Turn large, rigid surfaces into speakers with the Dayton Audio DAEX32U-4 audio exciter. Includes pre-attached 3M VHB adhesive for maximum energy transfer, even on moving objects!

€ 25,45 Inkl. MwSt.

  • Kaufen Sie 4 für je €24,18 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio DAEX32U-4 Ultra 32mm Exciter 20W 4 Ohm

Turn large, rigid surfaces into speakers with the Dayton Audio DAEX32U-4 audio exciter. Includes pre-attached 3M VHB adhesive for maximum energy transfer, even on moving objects!



Highlights

  • Heavy-duty design with a 32 mm voice coil for a high 20 watt RMS power handling
  • Pre-applied 3M™ VHB™ adhesive for quick, secure installation
  • Rare-earth neodymium motor and a proprietary two-layer voice coil
  • 4-ohm impedance for use with small, Class D amplifiers



Product details

Dayton Audio DAEX32U-4 Ultra 32mm Exciter 20W 4 Ohm



Dayton Audio's DAEX32U-4 Ultra exciter is built to turn large, thick, rigid surfaces into speakers. The 32 mm voice coil makes it perfect for large glass panes, furniture, and surfaces that would normally resist the effects of an exciter.



A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small Class D audio amplifiers, without sacrificing total output.



To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body... just peel and stick! Two male spade quick-disconnect terminals are built onto the main body for quick electrical connection.



Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



Understanding & Using Dayton Audio Exciters.

Eigenschaften

Spezifikationen für: DAEX32U-4 Ultra 32mm Exciter 20W 4 Ohm

  • Exciter type SPEC Exciter type Full-Range
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 20 watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. -
  • Impedance SPEC Impedance 4 ohms
  • Frequency response SPEC Frequency response -
  • View all specifications
  • Resonant Frequency (Fs) 160 Hz
  • DC Resistance (Re) 3.5 ohms
  • Voice Coil Inductance (Le) 0.23 mH
  • Total Q (Qts) -
  • Diaphragm Mass Inc. Airload (Mms) -
  • Mechanical Compliance of Suspension (Cms) -
  • BL Product (BL) -
  • Voice Coil Diameter 32 mm
  • Overall Outside Diameter 64 mm
  • Overall Depth 19 mm
  • Overall Dimensions (L x W x H) -
  • Adhesive dimensions 41.7 mm outside Ø, 21.7 mm inside Ø
  • # Mounting Holes -
  • Mounting type 3M VHB adhesive pre-applied
  • Weight 140 grams

Documenten

Bewertungen

Erfahrungsberichte 5 / 5 Bewertungen: (4)

  • MV Durch Martin v. an 18-11-2020 12:19

    5 / 5

    Kwaliteitsproduct. Gebruik de exciters om panelen aan te sturen, die voor bepaalde soorten muziek uitstekend klinken, zeker in combinatie met een goede subwoofer. Het is voor mij de moeite waard om hier verder mee te experimenteren, want het lijkt erop dat de materiaalkeuze een groot effect heeft op de weergave. Mijn idee over wat een goede luidspreker maakt is hiermee behoorlijk veranderd.

  • AB Durch Alex B. an 15-02-2020 11:45

    5 / 5

    Very good quality. Works great

  • DD Durch Dinko D. an 09-02-2020 15:29

    5 / 5

    No description was given

  • BG Durch bob g. an 11-12-2018 12:25

    5 / 5

    Excellent service will use again. This is the second order for these and I am really happy with them. They need a few hours of use to give there best but after that the sound is superb with a well designed dml.
