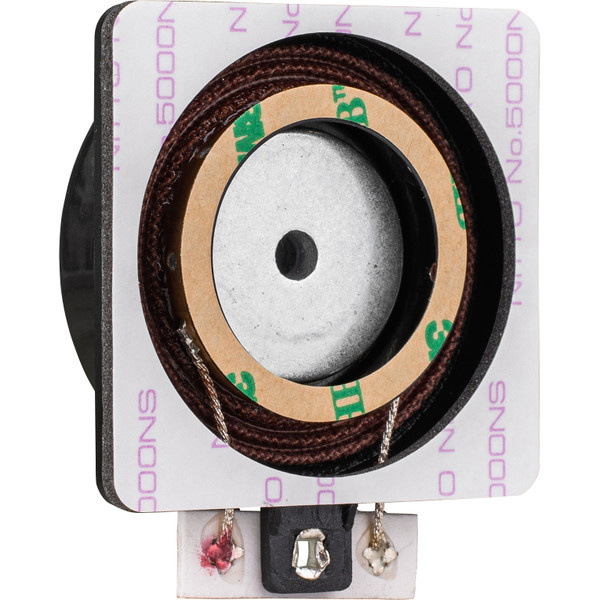

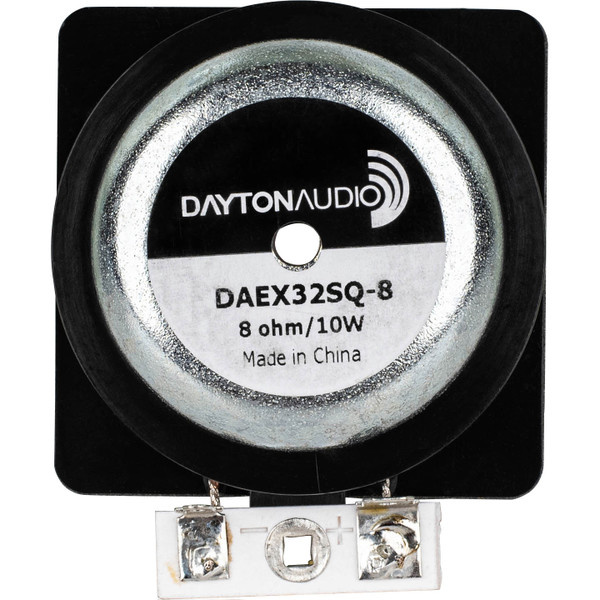

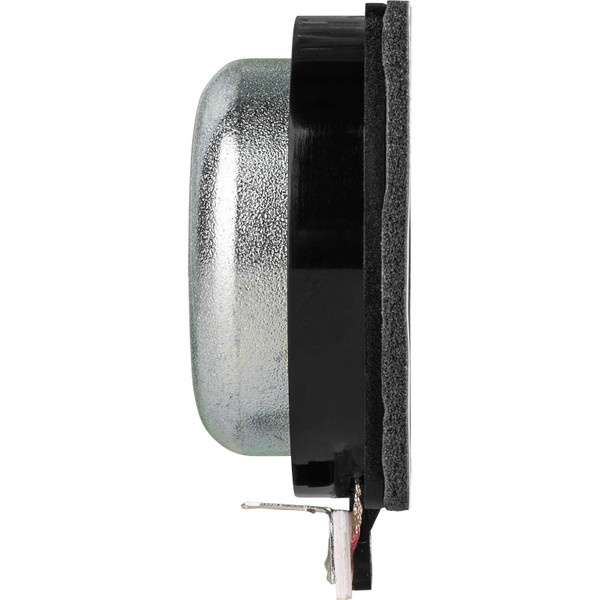

Dayton Audio DAEX32SQ-8 Square Frame 32mm Exciter 20W 8 Ohm

Lieferzeit: 1-3 Werktage

  • Artikelnummer: DAEX32SQ-8
  • Vorrat: 4 Auf Lager

Turn almost anything with a flat surface into a speaker. The Dayton Audio DAEX32SQ-8 square frame exciter uses a 2-layer 1-1/4" voice coil for high power handling. The square frame design provides additional support for the motor assembly to produce lower

€ 19,95 Inkl. MwSt.

  • Kaufen Sie 4 für je €18,95 und sparen Sie 5% Sale 5%
  • Kaufen Sie 10 für je €17,96 und sparen Sie 10% Sale 10%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio DAEX32SQ-8 Square Frame 32mm Exciter 20W 8 Ohm

Turn almost anything with a flat surface into a speaker. The Dayton Audio DAEX32SQ-8 square frame exciter uses a 2-layer 1-1/4" voice coil for high power handling. The square frame design provides additional support for the motor assembly to produce lower distortion when driven to its limits.



Highlights

  • Extended range and wide dispersion
  • 32 mm 2 layer voice coil for high, 20 watts RMS, power handling
  • Pre-applied 3M VHB adhesive for quick, secure installation
  • 8 ohms impedance for easy connection to most amplifiers



Product Details

Dayton Audio DAEX32SQ-8 Square Frame 32mm Exciter 20W 8 Ohm



Dayton Audio's DAEX32SQ-8 square frame 32mm exciter gives you the ability to turn almost any solid surface into a truly invisible high-fidelity speaker. With a 1-1/4" 2-layer voice coil this exciter is capable of great power handling and impressive overall output capability. The square frame design gives this exciter additional mounting area to help support the powerful motor assembly and provide improved linearity when mounted to vertical surfaces.



A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1.25" voice coil allows for more input power, creating rich, dynamic sound. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the four arms ... just peel and stick!



Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



Specifications: • Power handling: 20 watts RMS • VCdia: 1.25" (32 mm) • Nominal impedance: 8 ohms • Re: 8 ohms • Le: 0.51 mH • Fs: 481 Hz • Dimensions: 2" (51 mm) W x 2.43" (61.8 mm) H x 0.89" (22.5 mm) D • Weight: 130 grams.



Application Full-Range Exciter
Impedance 8 ohms
Power Handling (RMS) 20 Watts

Eigenschaften

Spezifikationen für: DAEX32SQ-8 Square Frame 32mm Exciter 20W 8 Ohm

  • Exciter type SPEC Exciter type Full-Range
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 20 watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. -
  • Impedance SPEC Impedance 8 ohms
  • Frequency response SPEC Frequency response -
  • View all specifications
  • Resonant Frequency (Fs) 481 Hz
  • DC Resistance (Re) 8 ohms
  • Voice Coil Inductance (Le) 0.51 mH
  • Total Q (Qts) 1.15
  • Diaphragm Mass Inc. Airload (Mms) 3.4 gr
  • Mechanical Compliance of Suspension (Cms) 0.32 mm/N
  • BL Product (BL) 7.98 Tm
  • Voice Coil Diameter 32 mm
  • Overall Outside Diameter -
  • Overall Depth 22.5 mm
  • Overall Dimensions (L x W x H) 61.8 x 51 x 22.5 mm
  • Adhesive dimensions 51 x 51 mm
  • # Mounting Holes -
  • Mounting type 3M VHB adhesive pre-applied
  • Weight 130 grams
