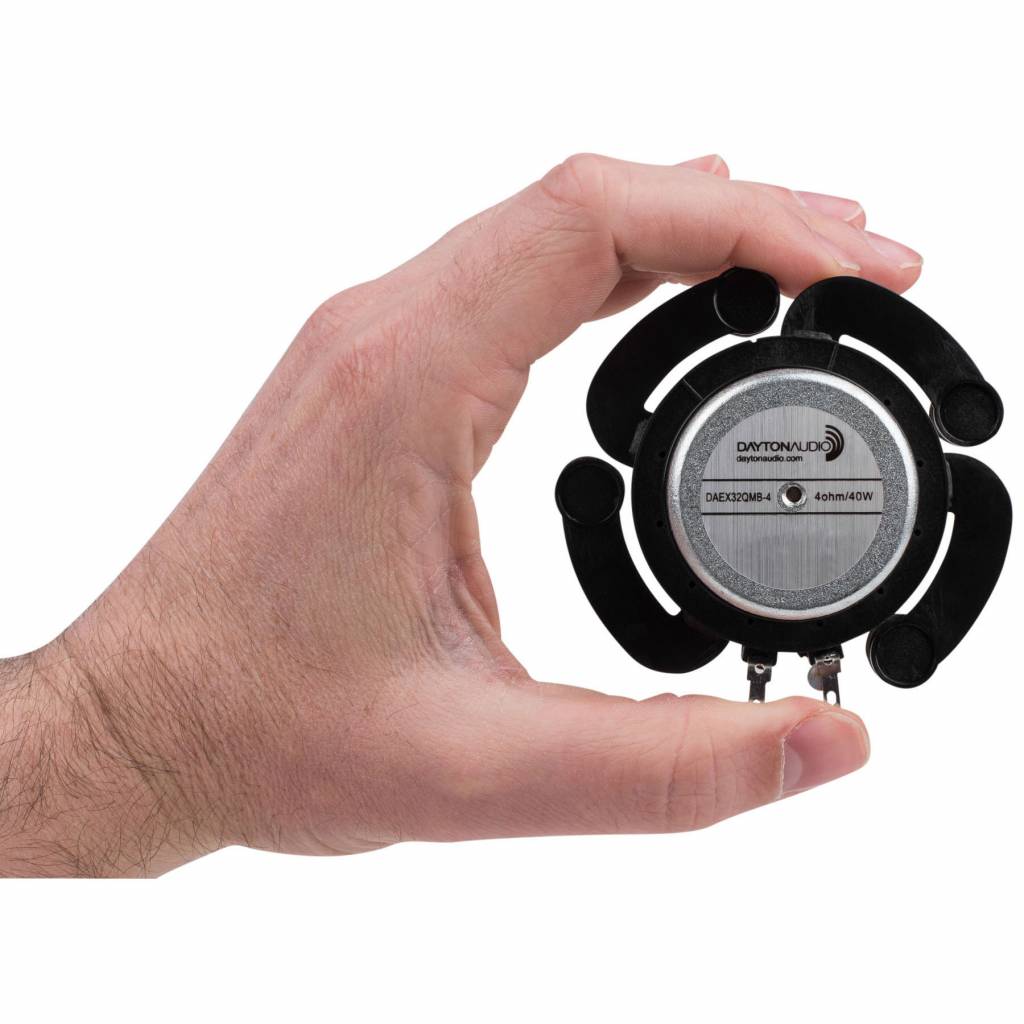

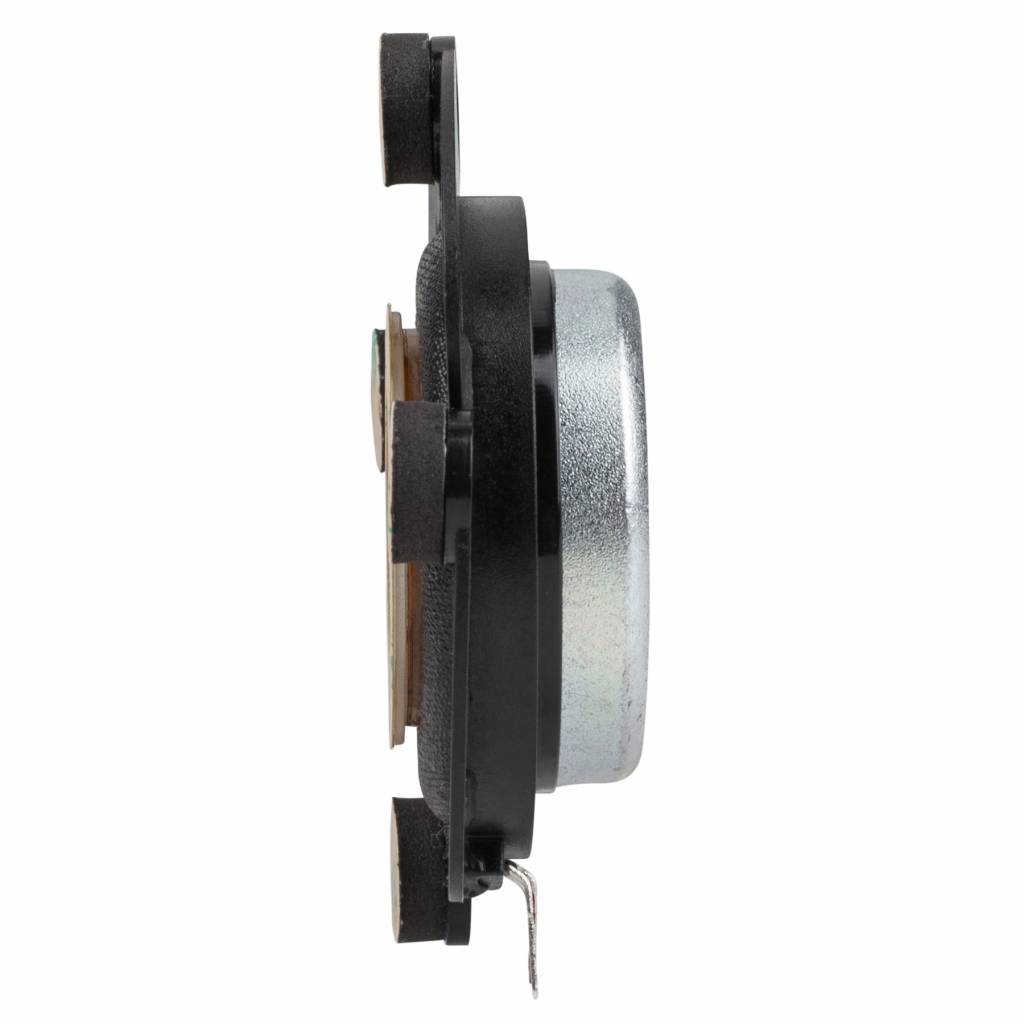

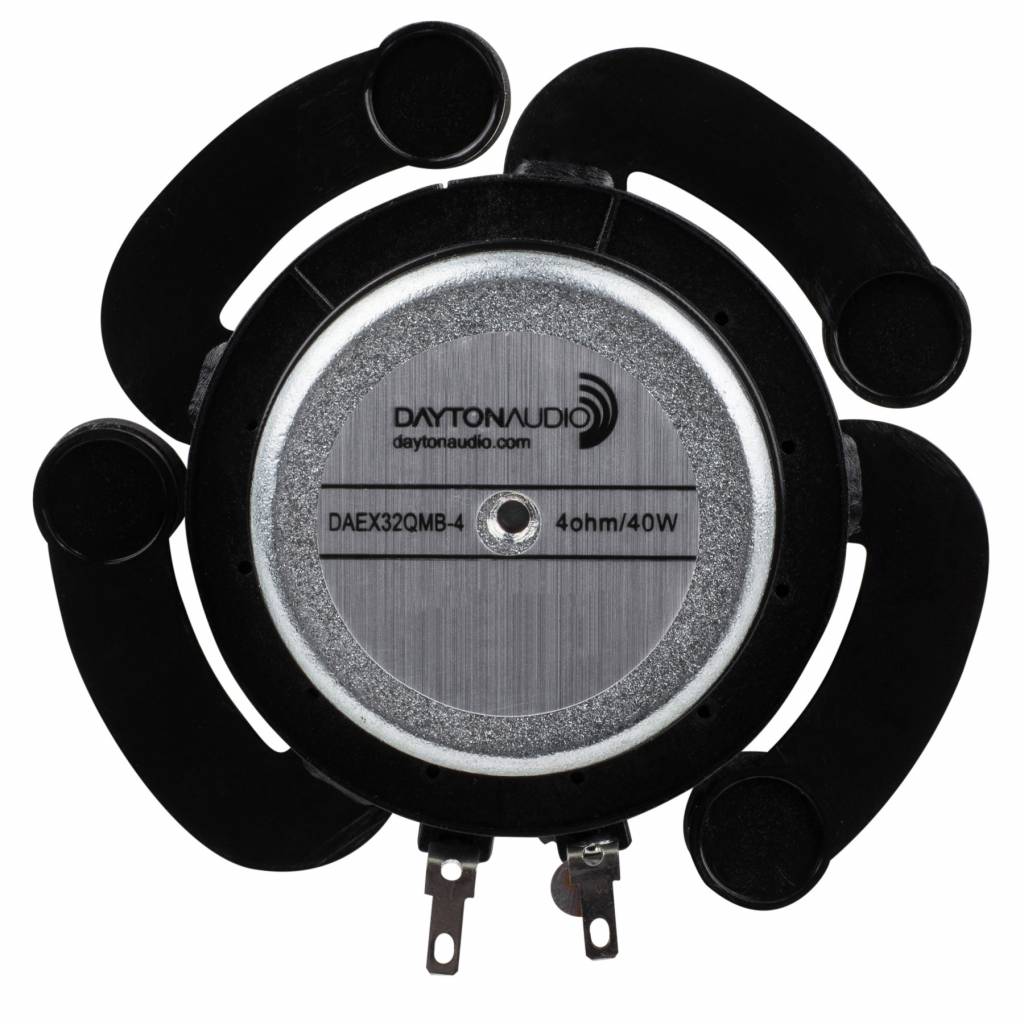

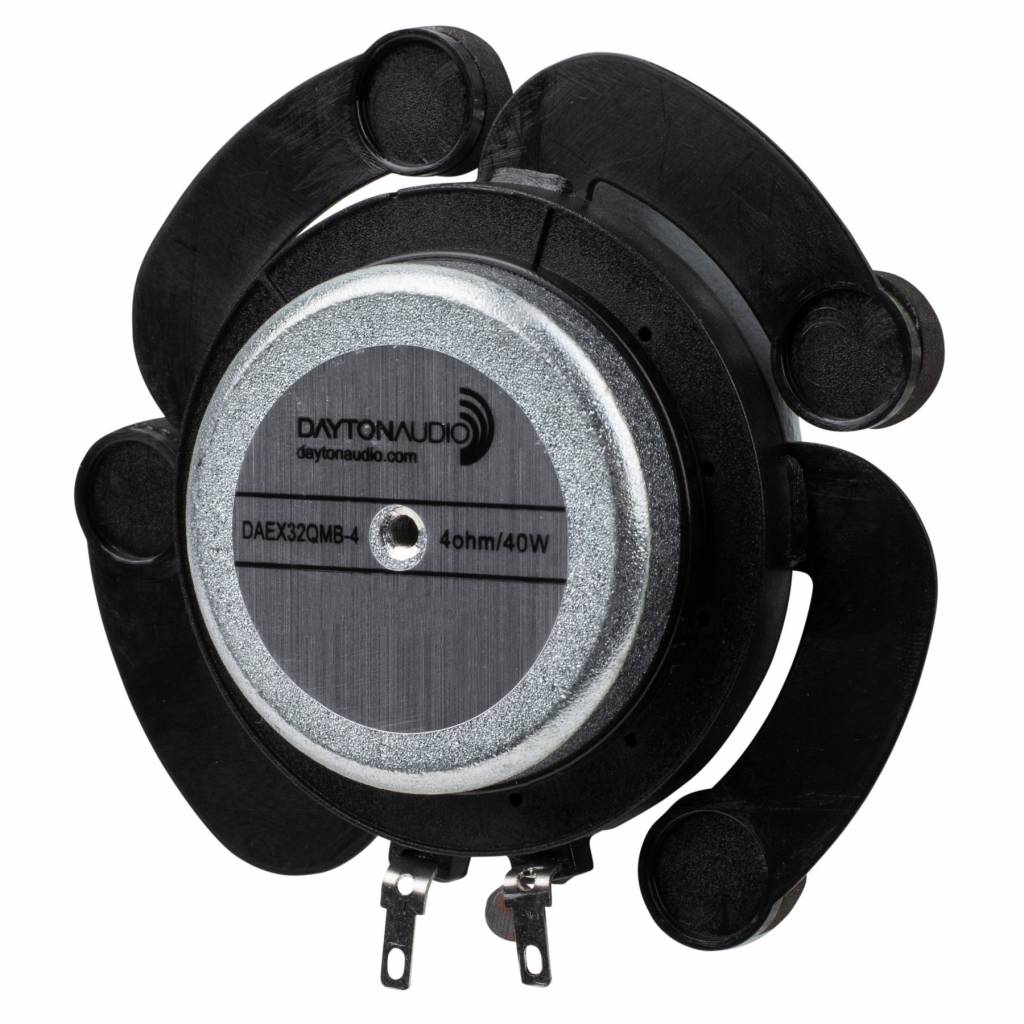

Dayton Audio DAEX32QMB-4 Quad Feet Mega Bass 32mm Exciter 40W 4 Ohm

Lieferzeit: 1-3 Werktage

  • Artikelnummer: DAEX32QMB-4
  • Vorrat: >10 Auf Lager

Turn almost anything with a flat surface into a speaker. The Dayton Audio DAEX32QMB-4 4 ohm 40 watt sound exciter improves power handling with a vented voice coil.

€ 27,45 Inkl. MwSt.

  • Kaufen Sie 4 für je €26,08 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio DAEX32QMB-4 Quad Feet Mega Bass 32mm Exciter 40W 4 Ohm

Turn almost anything with a flat surface into a speaker. The Dayton Audio DAEX32QMB-4 4 ohm 40 watt sound exciter improves power handling with a vented voice coil.



Highlights

  • Large 32 mm voice coil improves power handling to 40 watts RMS
  • Rare-earth neodymium motor and a proprietary vented voice coil
  • Four arms provide extra support improving linearity
  • Turns any flat, rigid surface into a speaker



Product details

Dayton Audio DAEX32QMB-4 Quad Feet Mega Bass 32mm Exciter 40W 4 Ohm



Dayton Audio's DAEX32QMB-4 quad arm exciter is built with four arms that extend out from the main exciter body, which allows this exciter to transfer sound to a much larger surface for lower frequency response extension (more bass). Also, the arms help to support the magnet/voice coil improving linearity when mounted on vertical surfaces.

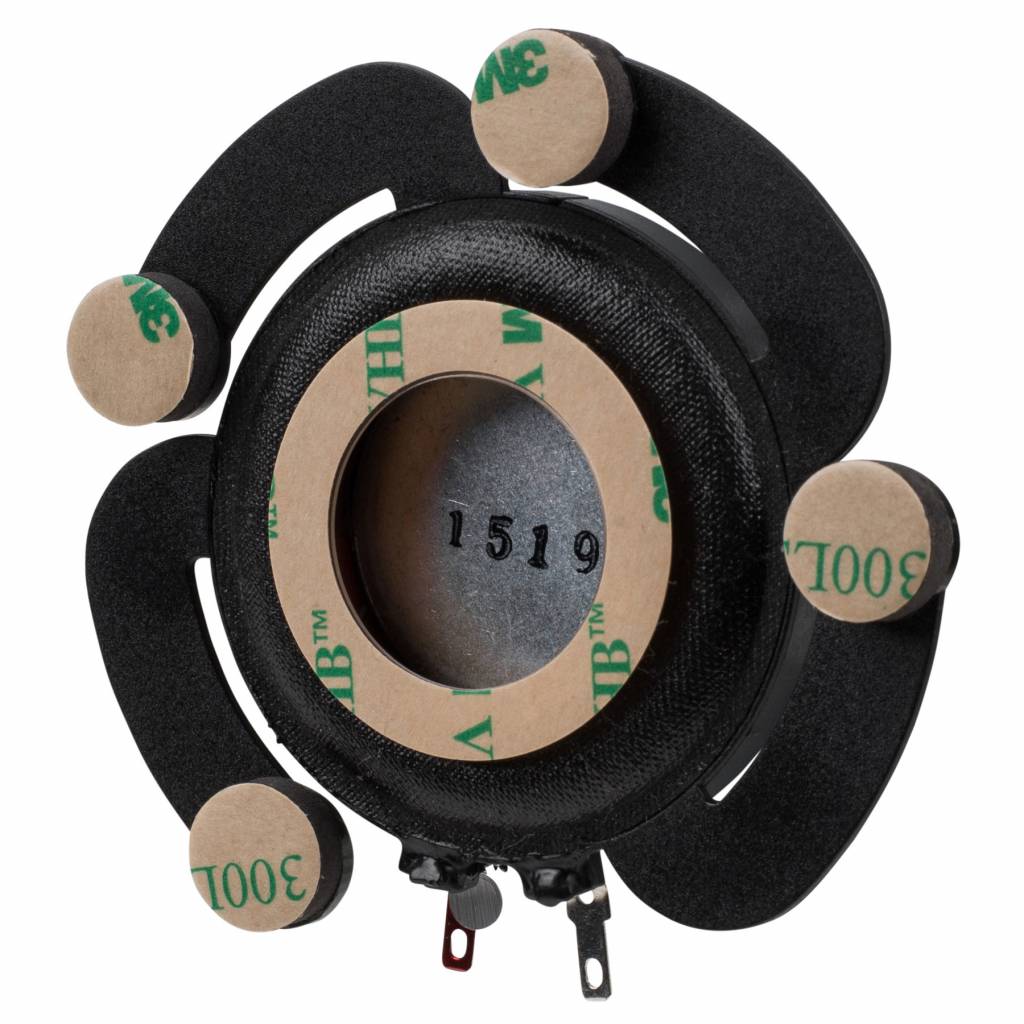

A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1.25" voice coil allows for more input power, creating rich, dynamic sound. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the four arms ... just peel and stick!



Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.

Eigenschaften

Spezifikationen für: DAEX32QMB-4 Quad Feet Mega Bass 32mm Exciter 40W 4 Ohm

  • Exciter type SPEC Exciter type Full-Range
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 40 watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. -
  • Impedance SPEC Impedance 4 ohms
  • Frequency response SPEC Frequency response -
  • View all specifications
  • Resonant Frequency (Fs) 480 Hz
  • DC Resistance (Re) 3.7 ohms
  • Voice Coil Inductance (Le) 0.23 mH
  • Total Q (Qts) -
  • Diaphragm Mass Inc. Airload (Mms) -
  • Mechanical Compliance of Suspension (Cms) -
  • BL Product (BL) -
  • Voice Coil Diameter 32 mm
  • Overall Outside Diameter 53.3 mm / 80 mm with legs
  • Overall Depth 20 mm
  • Overall Dimensions (L x W x H) -
  • Adhesive dimensions 24.5 mm inside Ø, 35.5 mm outside Ø, leg pad 4 mm outside Ø
  • # Mounting Holes -
  • Mounting type 3M VHB adhesive pre-applied
  • Weight 130 grams
