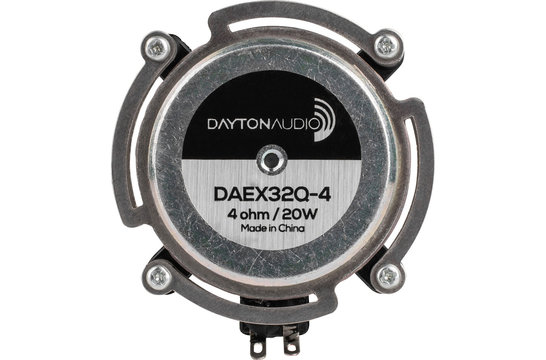

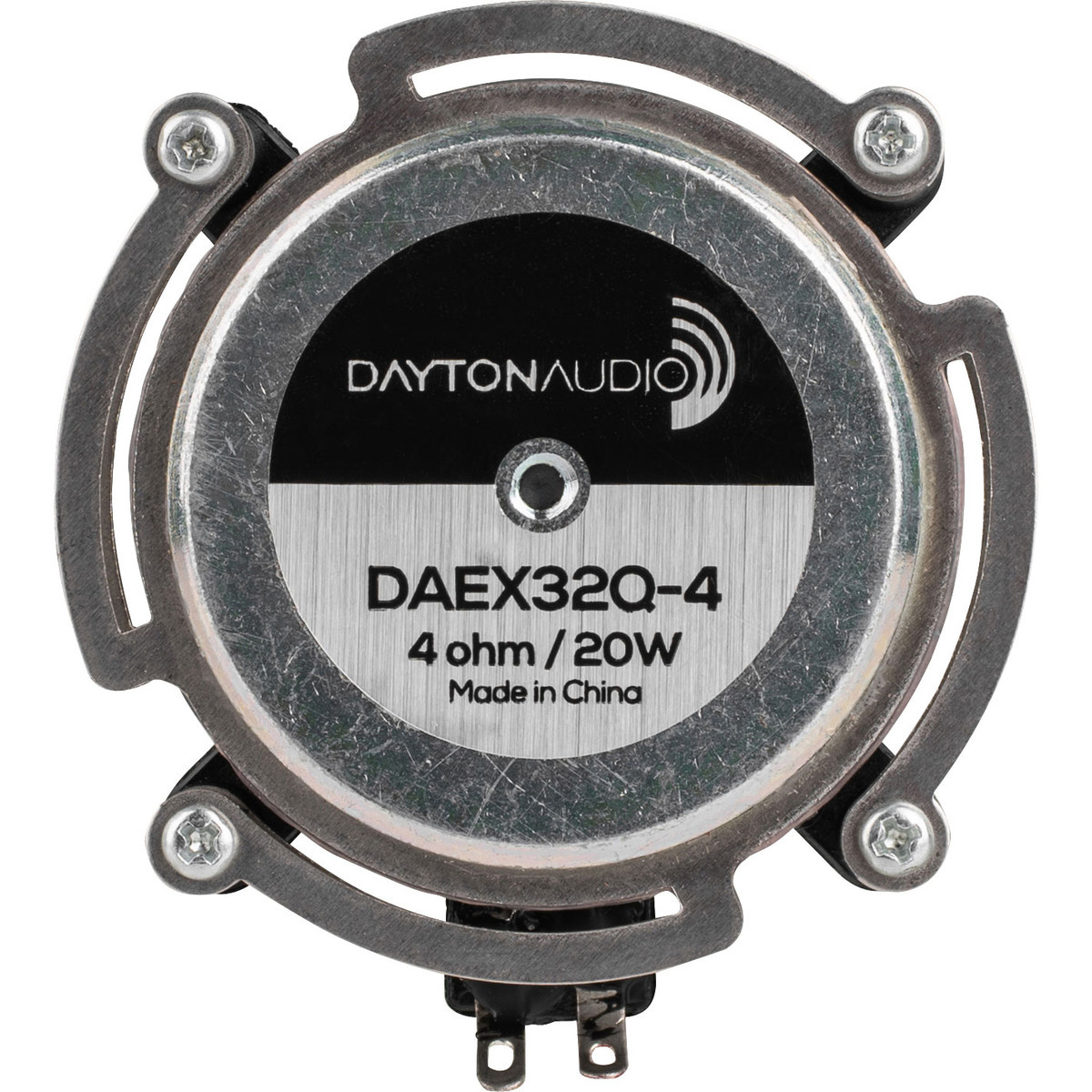

Dayton Audio DAEX32Q-4 Dual Steel Spring Balanced 32mm Exciter 40W 4 Ohm

Lieferzeit: 1-3 Werktage

  • Artikelnummer: DAEX32Q-4
  • Vorrat: >10 Auf Lager

When applied to vertical surfaces the Dayton Audio DAEX32Q-4 dual spring balanced exciter has more linear movement to deliver extremely accurate response while producing lower distortion.

€ 25,45 Inkl. MwSt.

  • Kaufen Sie 4 für je €24,18 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio DAEX32Q-4 Dual Steel Spring Balanced 32mm Exciter 40W 4 Ohm

When applied to vertical surfaces the Dayton Audio DAEX32Q-4 dual spring balanced exciter has more linear movement to deliver extremely accurate response while producing lower distortion.



Highlights

  • Dual steel spider design to better support the large neodymium motor
  • 32 mm two layer voice coil for high, 20 watts RMS, power handling

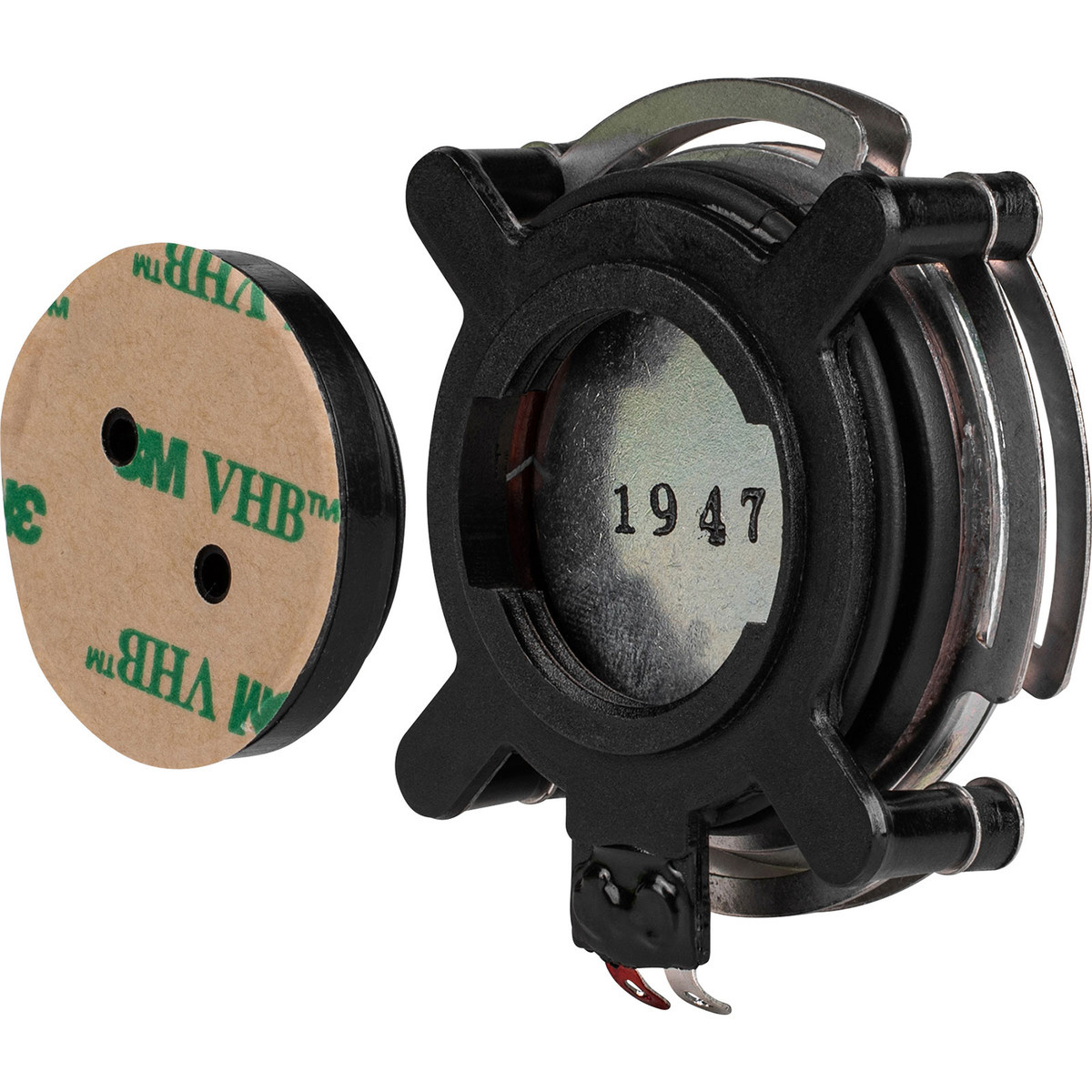

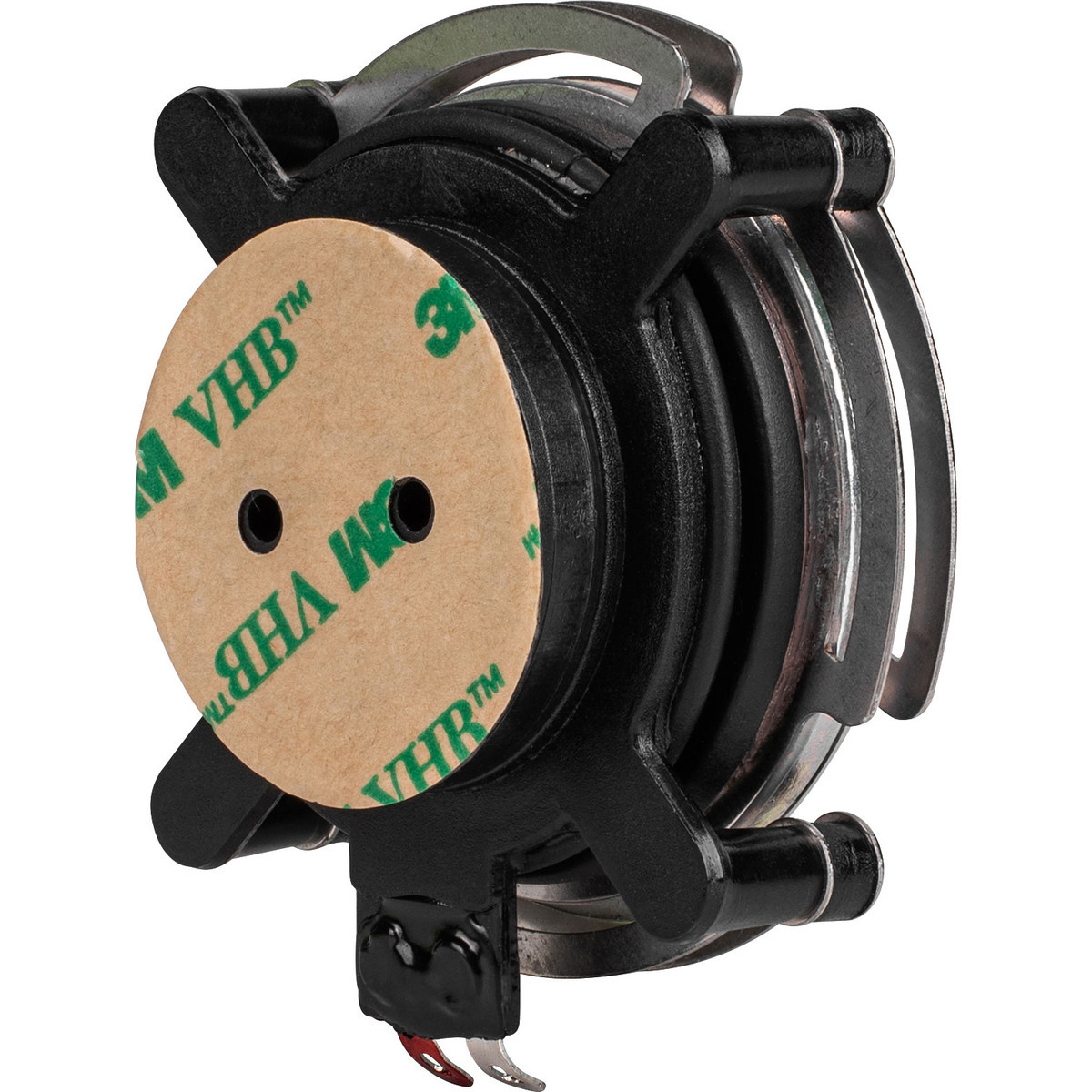

  • Pre-applied 3M™ VHB™ adhesive for quick, secure installation
  • 4 ohm impedance to make the most out of small class D amplifiers



Product details

Dayton Audio DAEX32Q-4 Dual Steel Spring Balanced 32mm Exciter 20W 4 Ohm



The DAEX32Q-4 from Dayton Audio can turn most rigid, flat surfaces into a speaker. Designed specifically for mounting to vertical surfaces, this exciter uses a dual spring spider to better support the large neodymium motor providing improved linearity. With a 2-layer 32 mm voice coil, this exciter can handle up to 20 watts RMS for high output even when attached to thicker surfaces. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! This exciter is perfect for turning whatever you can imagine into a speaker such as cabinet doors, monitors, windows, garage doors, ect…



Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.

Eigenschaften

Spezifikationen für: DAEX32Q-4 Dual Steel Spring Balanced 32mm Exciter 40W 4 Ohm

  • Exciter type SPEC Exciter type Full-Range
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 20 watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. -
  • Impedance SPEC Impedance 4 ohms
  • Frequency response SPEC Frequency response -
  • View all specifications
  • Resonant Frequency (Fs) 320 Hz
  • DC Resistance (Re) 3.2 ohms
  • Voice Coil Inductance (Le) 0.22 mH
  • Total Q (Qts) -
  • Diaphragm Mass Inc. Airload (Mms) -
  • Mechanical Compliance of Suspension (Cms) -
  • BL Product (BL) -
  • Voice Coil Diameter 32 mm
  • Overall Outside Diameter 60.5 mm
  • Overall Depth 19.5 mm
  • Overall Dimensions (L x W x H) -
  • Adhesive dimensions 32 mm outside Ø, 23 mm inside Ø
  • # Mounting Holes -
  • Mounting type 3M VHB adhesive pre-applied
  • Weight 132.6 grams
