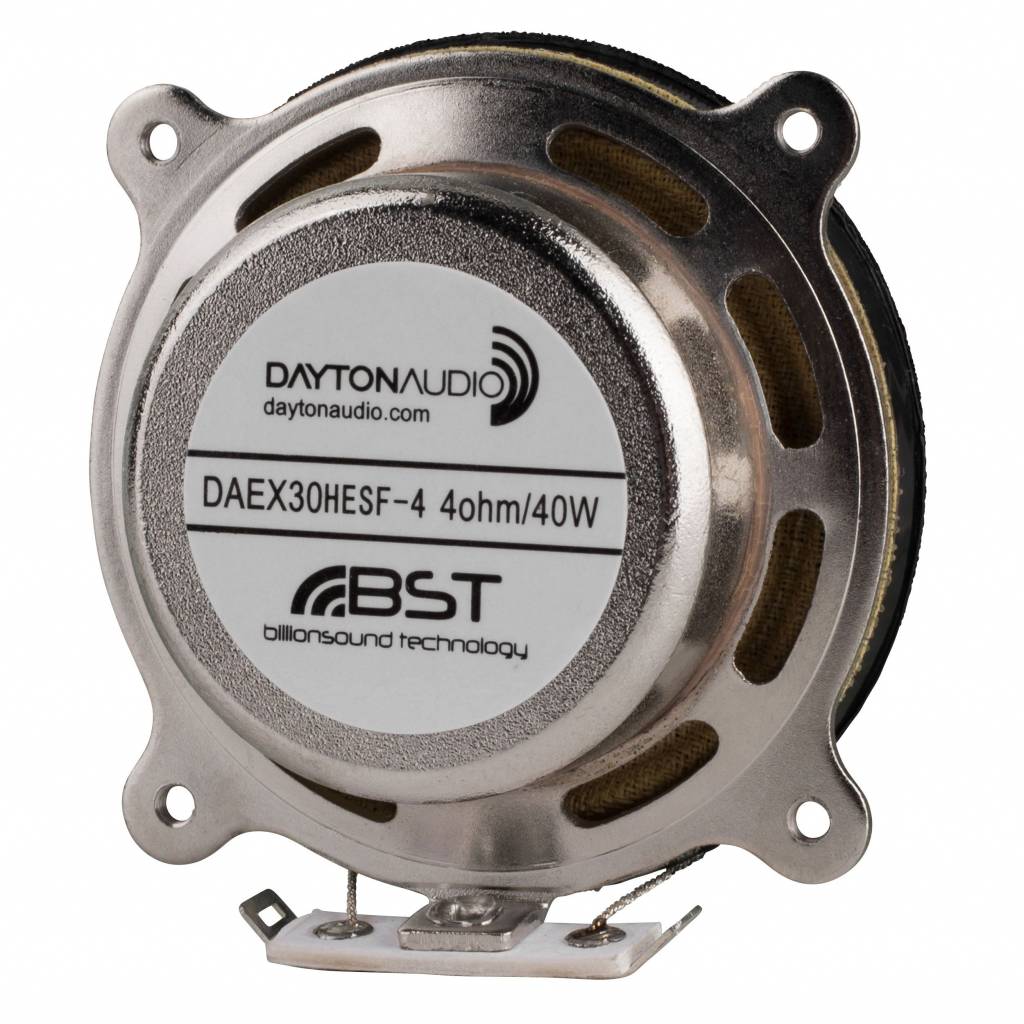

Dayton Audio DAEX30HESF-4 High Efficiency Steered Flux Exciter

Lieferzeit: 1-3 Werktage

  • Artikelnummer: DAEX30HESF-4
  • Vorrat: >10 Auf Lager

The DAEX30HESF-4 30 mm steered high flux exciter is one of the most powerful in Dayton Audio's line of exciters capable of handling up to 40 watts. A pre-attached 3M VHB adhesive ring combines with four screw-down mounting tabs for maximum energy transfer

€ 28,45 Inkl. MwSt.

  • Kaufen Sie 4 für je €27,03 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio DAEX30HESF-4 High Efficiency Steered Flux Exciter

The DAEX30HESF-4 30 mm steered high flux exciter is one of the most powerful in Dayton Audio's line of exciters capable of handling up to 40 watts. A pre-attached 3M VHB adhesive ring combines with four screw-down mounting tabs for maximum energy transfer.



Highlights

  • High output exciter design handles up to 40 watts RMS
  • Specially designed neodymium motor and proprietary voice coil
  • 3M™ VHB™ adhesive ring with four mounting holes
  • Low inductance (only 0.3 mH) motor for extended response



Product details

Dayton Audio DAEX30HESF-4 High Efficiency Steered Flux Exciter with Shielding 30 mm Exciter 40W 4 Ohm



Dayton Audio's DAEX30HESF-4 steered high flux exciter is one of our most powerful. It has a specially designed neodymium motor system that imparts strong forces on even the most rigid surface for maximum output.



For use with medium sized amplifiers, this steered high flux exciter incorporates a 4 ohm voice coil to extract maximum power. A wide frequency response is permitted due to this exciter's low inductance of only 0.3 mH.

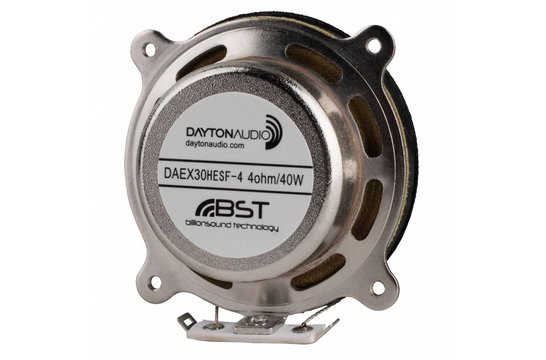

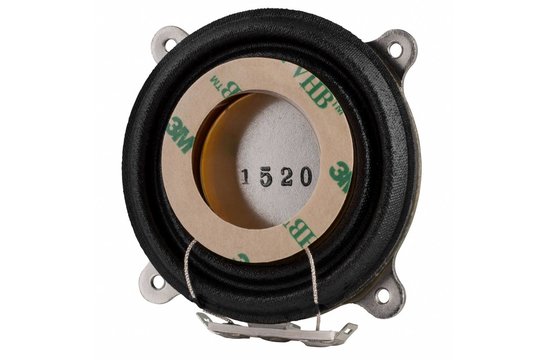

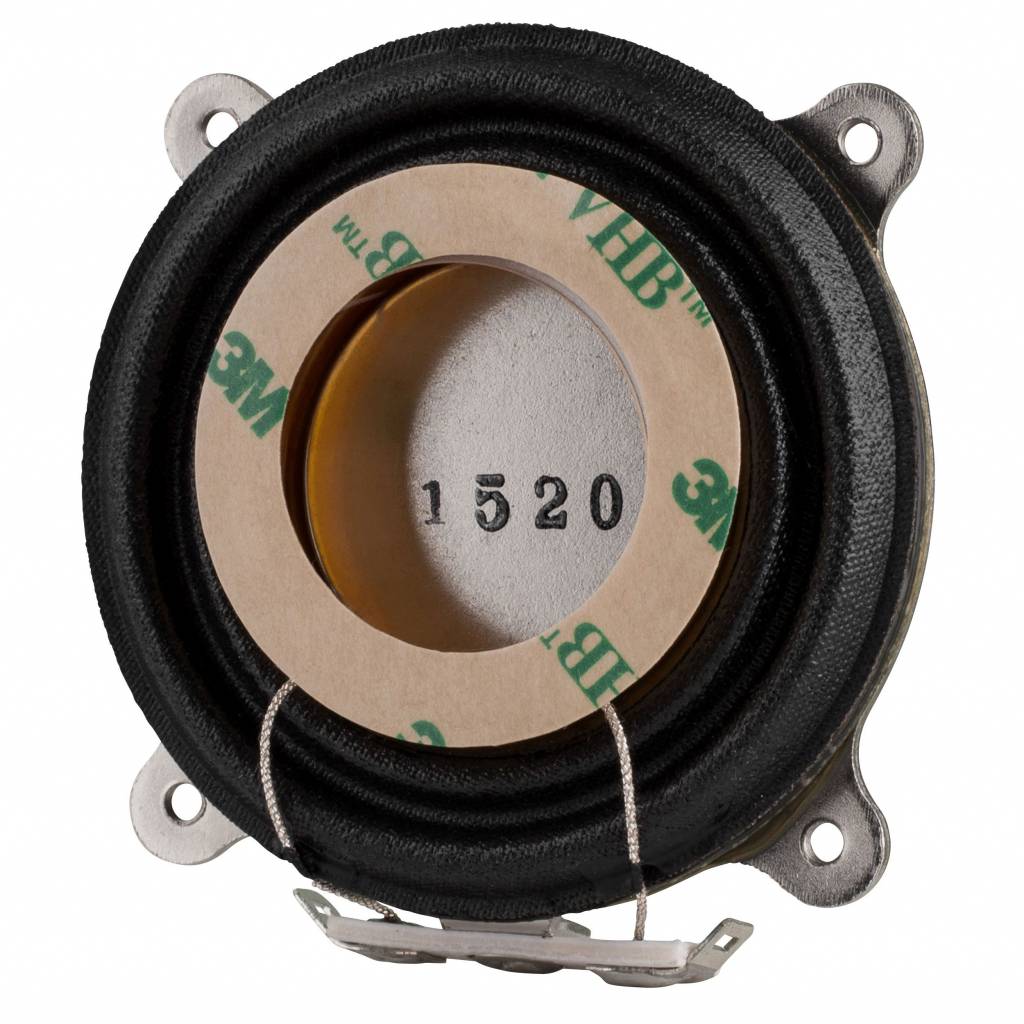

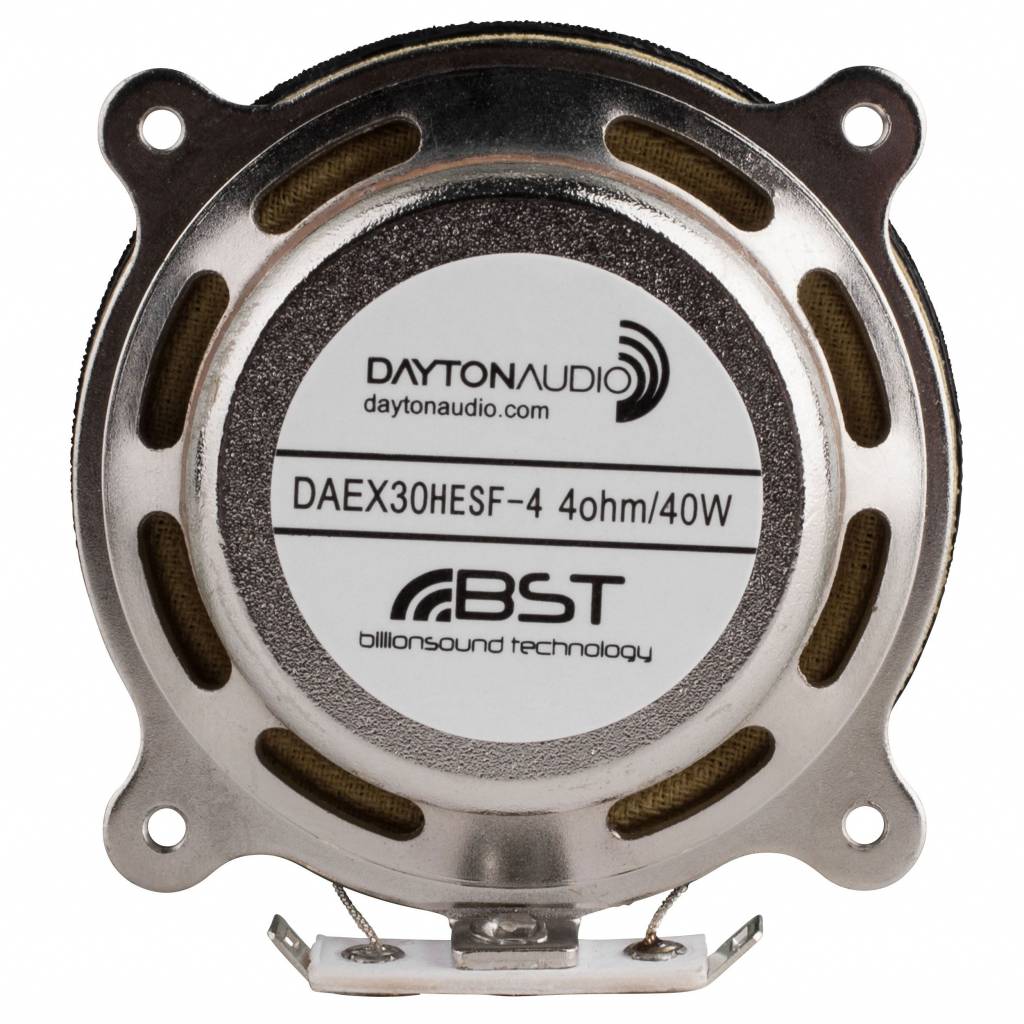

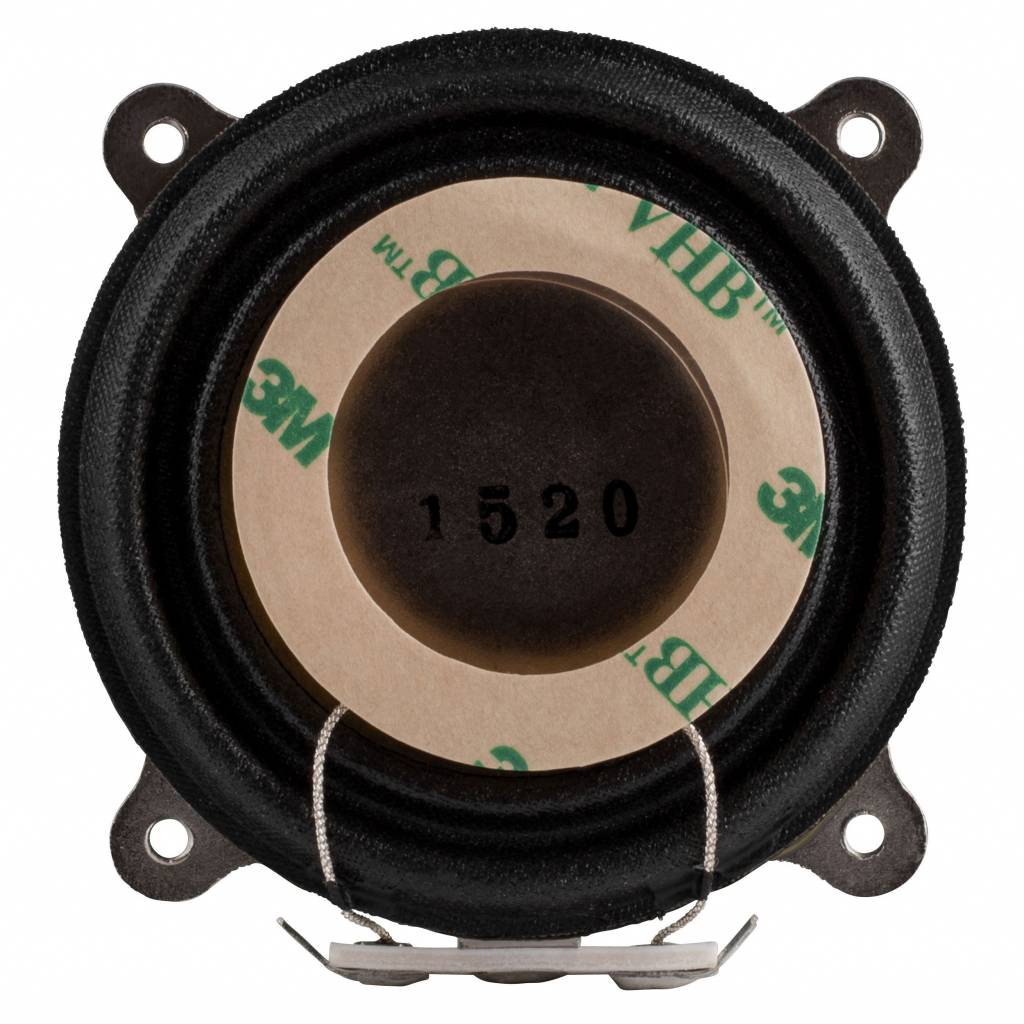

Four threaded screw holes are integrated into the exciter's shell and combine with a 3M VHB (Very High Bond) adhesive, permitting this exciter to be securely coupled to a wide range of materials, even upside-down mounting and attaching to moving objects. Two solder tabs offer quick, permanent wire attachment.



Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.

Eigenschaften

Spezifikationen für: DAEX30HESF-4 High Efficiency Steered Flux Exciter

  • Exciter type SPEC Exciter type Full-Range
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 40 watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. -
  • Impedance SPEC Impedance 4 ohms
  • Frequency response SPEC Frequency response 70 - 20.000 Hz
  • View all specifications
  • Resonant Frequency (Fs) 300 Hz
  • DC Resistance (Re) 3.8 ohms
  • Voice Coil Inductance (Le) 0.31 mH
  • Total Q (Qts) -
  • Diaphragm Mass Inc. Airload (Mms) -
  • Mechanical Compliance of Suspension (Cms) -
  • BL Product (BL) -
  • Voice Coil Diameter 30 mm

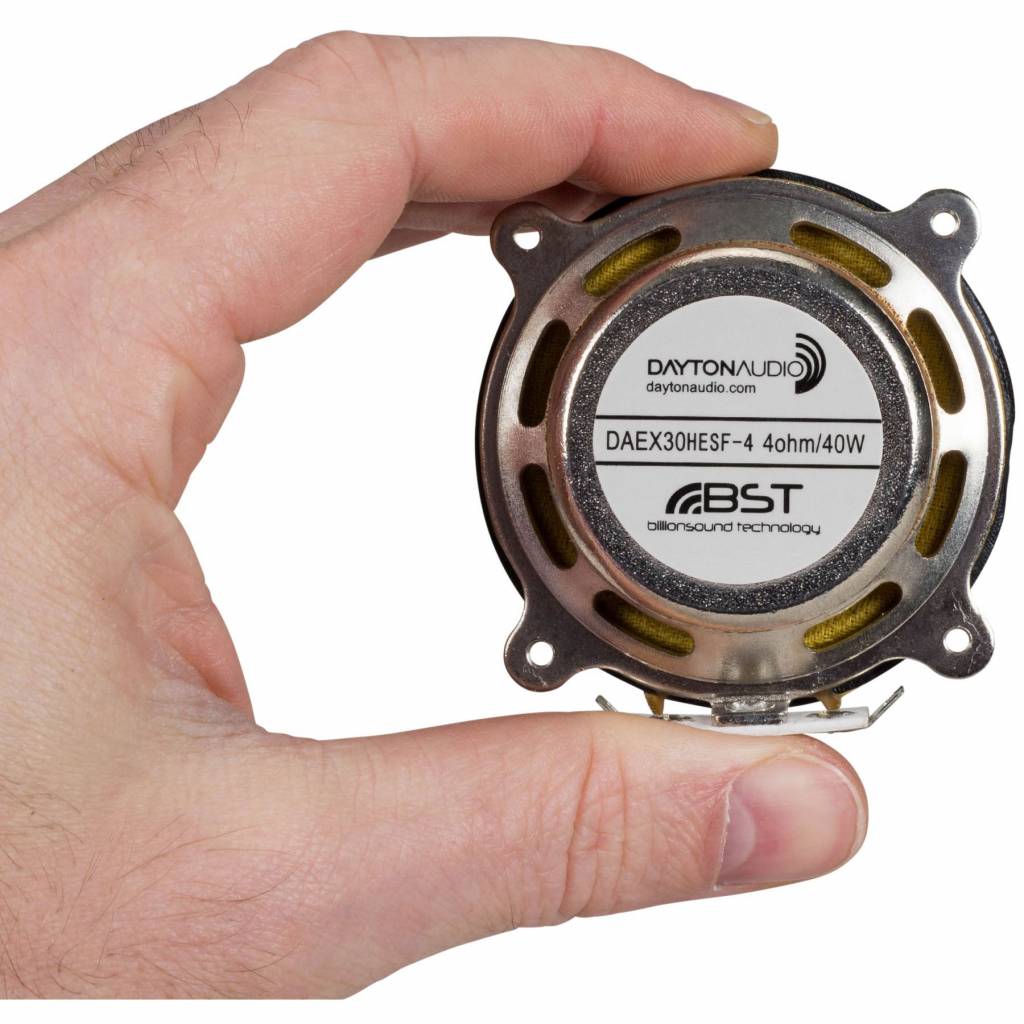

  • Overall Outside Diameter 57 mm Ø (69.9 mm acros mounting tabs)

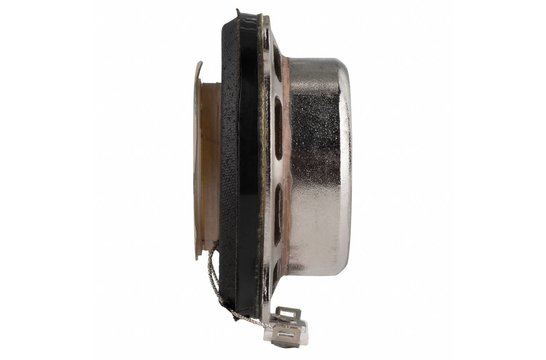

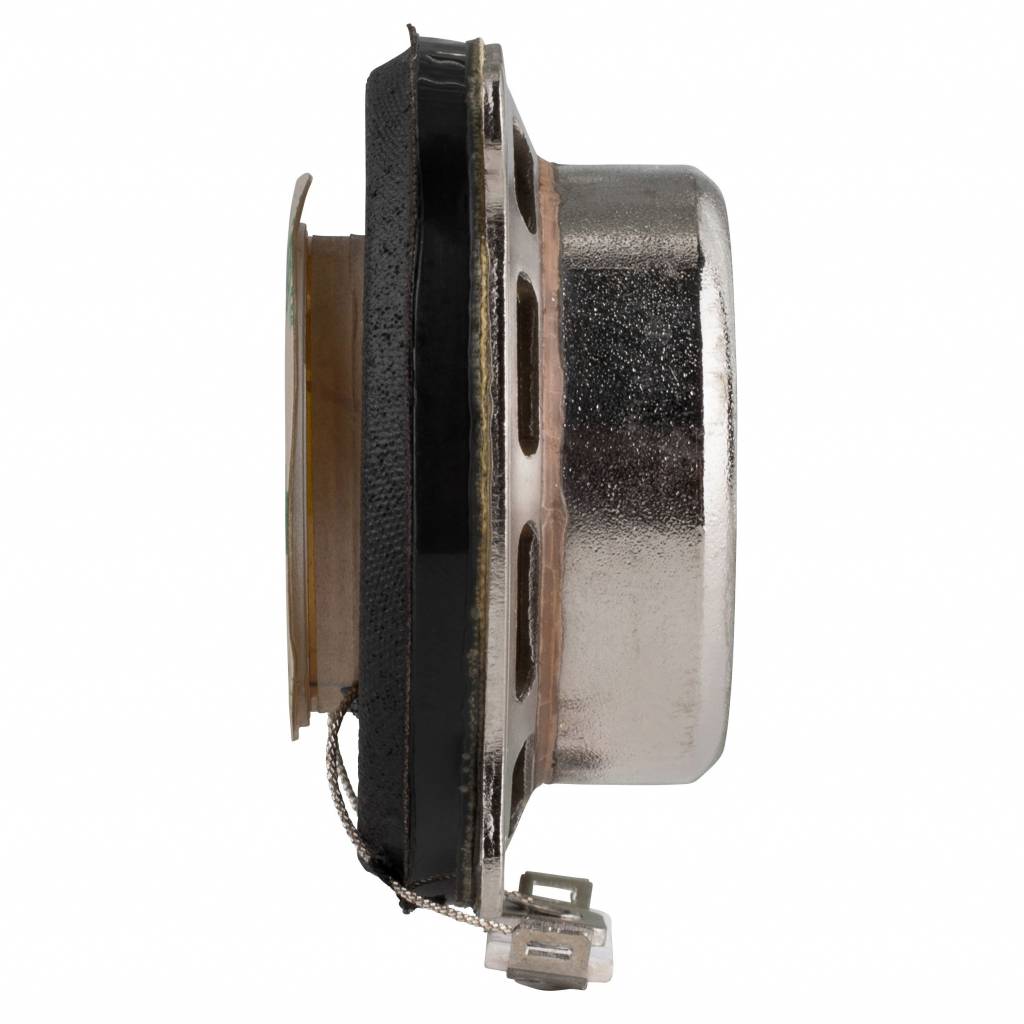

  • Overall Depth 28.5 mm
  • Overall Dimensions (L x W x H) -
  • Adhesive dimensions 3.18 cm outside Ø
  • # Mounting Holes 4
  • Mounting type 3M VHB adhesive pre-applied
  • Weight 158 grams

Documenten

Bewertungen

Erfahrungsberichte 5 / 5 Bewertungen: (5)

  • HN Durch Hiromi N. an 28-07-2020 14:09

    5 / 5

    Koper heeft geen omschrijving achtergelaten.

  • CT Durch Christian T. an 06-02-2020 10:43

    5 / 5

    sehr gut, benötige aber welche mit 8ohm

  • RR Durch Raul R. an 25-10-2018 12:53

    5 / 5

    No description was given

  • JS Durch Jarkko S. an 24-07-2018 12:05

    5 / 5

    Amazing sound from this small thing!

  • SW Durch Shirley W. an 30-10-2017 17:29

    5 / 5

    No description was given
