Dayton Audio DAEX25VT-4 Vented 25mm Exciter 20W 4 Ohm

€ 13,60€ 16,45 >10 Auf Lager: Lieferzeit 1-3 Werktage
Take your product or project to the next level by turning it into a speaker! The DAEX25VT-4 is designed by Dayton Audio with voice coil cooling air vents, for high-power applications.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €15,63 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Take your product or project to the next level by turning it into a speaker! The DAEX25VT-4 is designed by Dayton Audio with voice coil cooling air vents, for high-power applications.



Highlights

  • Small size; just over 2" diameter, about 7/8" high
  • Pre-applied 3M™ VHB™ adhesive for quick, secure installation
  • Rare-earth neodymium motor and a proprietary voice coil
  • 4-ohm impedance for use with small, Class D amplifiers
  • 20 watt RMS power handling for high output



Product details

Dayton Audio DAEX25VT-4 Vented 25mm Exciter 20W 4 Ohm



Dayton Audio's 25 mm DAEX25CT-4 coin type exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in a more compact package for working with smaller surfaces. This exciter's small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows!

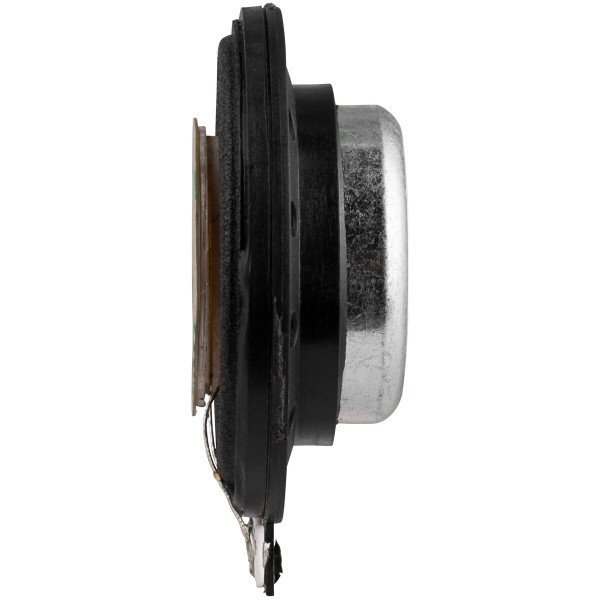

A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil, and cooling vents, allows for more input power for higher output applications while maintaining a slim-line form factor.

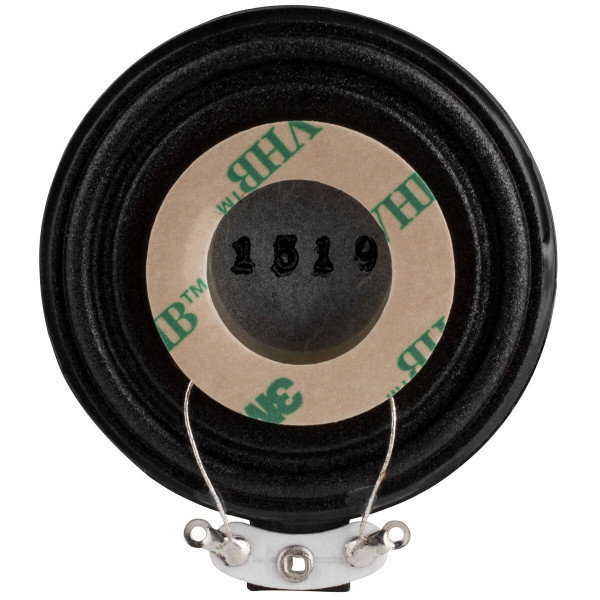

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible.



Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.

Eigenschaften

Artikelnummer:
DAEX25VT-4
Exciter type
Full range
Power Handling (RMS)
20 watts
Power Handling (max)
-
Impedance
4 ohms
Frequency response
-
Resonant Frequency (Fs)
230 Hz
DC Resistance (Re)
4.2 ohms
Voice Coil Inductance (Le)
0.24 mH
Total Q (Qts)
0.83
Diaphragm Mass Inc. Airload (Mms)
1.75 g
Mechanical Compliance of Suspension (Cms)
0.0003 mm/N
BL Product (BL)
3.86 Tm
Voice Coil Diameter
25 mm
Overall Outside Diameter
58.1 mm
Overall Depth
20.5 mm
Overall Dimensions (L x W x H)
-
Adhesive dimensions
28 mm outside Ø
21.5 mm inside Ø
# Mounting Holes
-
Mounting type
Self 3M VHB adhesive pre-applied mounting
Weight
77.5 grams

Bewertungen

5 from 5Based on 3 reviews
Produkt bewerten
4 van 5
No description was given
Durch Jarmo S. on 28 November 2019
5 van 5
After reading mixed opinion on the sound quality of exciters I decided to give these a go, and I'm glad I did! I've mounted them to tile backing board (the cement/foam sandwich type, 10mm thick) and am using them as the rear L/R in a home theater setup which can be built into the wall and easily plastered over as I (and moreover, the wife!) don't want visible speakers behind the sofa, and they sound great. With board size of 600mm by 400mm they produce decent bass - obviously a sub is going to help in that area for real grunt, but for general listening they are adequate. I was sceptical of the 20W output, but with boards of that size I would say they probably do manage it, or at least close to it. Voice clarity seems to suffer before music when pushed hard so if you need the full 20W maybe go with something more powerful, but for satellites it's plenty of juice for me. The small sacrifice in sound quality for 100% invisible speakers was an easy one to make!
Durch DaveBiv on 30 Juni 2019
Mehr anzeigen
