    Dayton Audio DAEX25TP-4 Exciter

    16,49 €19,95 € 10+ Auf Lager: Lieferzeit 1-3 Werktage
    Bulk discount Genießen Sie diese tollen Rabattangebote
    • -5% Bestellung 4 für nur € 18,95 pro stück
    • Kostenloser Versand ab 149 € (DE & A)
    • Versicherter Versand am selben Tag
    • Hausinterner technischer Support
    • 45 Tage Widerrufsrecht
    Haben Sie eine Frage zu diesem Produkt?

    Haben Sie eine Frage zu diesem Produkt?

    Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

    Produktbeschreibung

    For turning larger surfaces into speakers, and more bass output, Dayton Audio's DAEX25TP-4 features three extended arms. Cooling vents draw air across the propietary voice coil for higher power handling.



    Highlights

    • Unique, three arm design for exciting a large surface
    • Pre-applied 3M™ VHB™ adhesive for quick, secure installation
    • Rare-earth neodymium motor and a proprietary voice coil
    • 4-ohm impedance for use with small, Class D amplifiers
    • 20 watt RMS power handling for high output



    Product details

    Dayton Audio DAEX25TP-4 Tripod 25mm Exciter 20W 4 Ohm

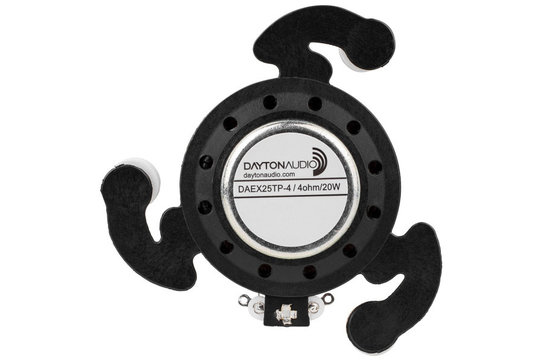

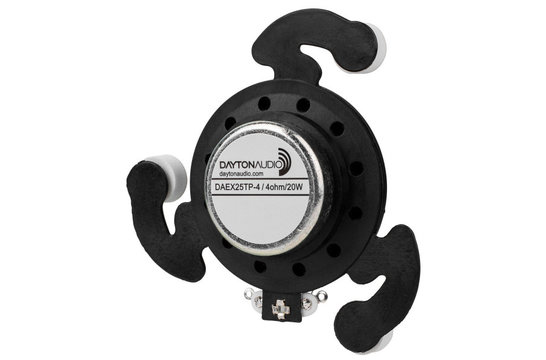

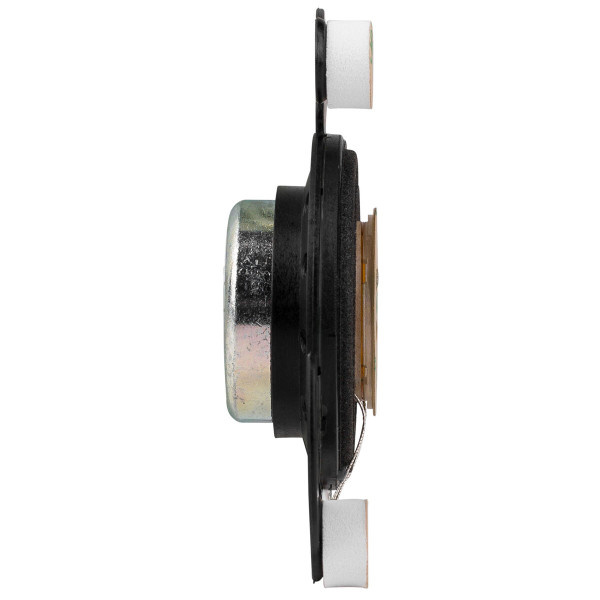

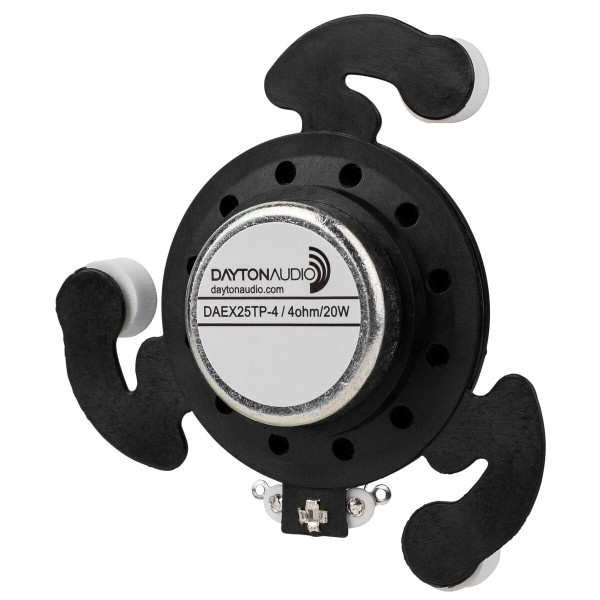

    Dayton Audio's DAEX25TP-4 tripod exciter is built with three arms that extend out from the main exciter body, which allows this exciter to transfer sound to a much larger surface for lower frequency response extension (more bass).



    A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil, and cooling vents, allows for more input power for higher output applications while maintaining a slim-line form factor.

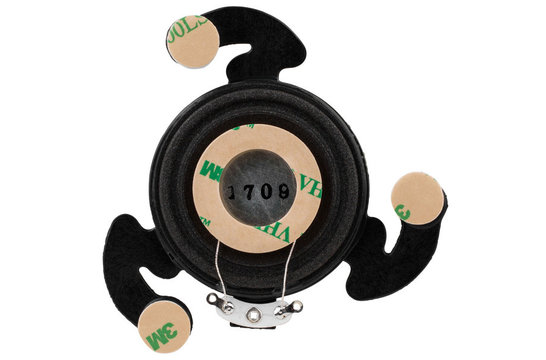

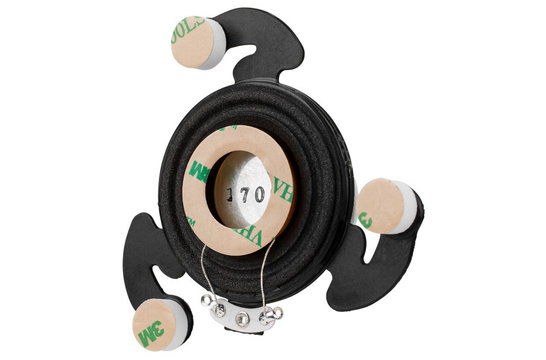

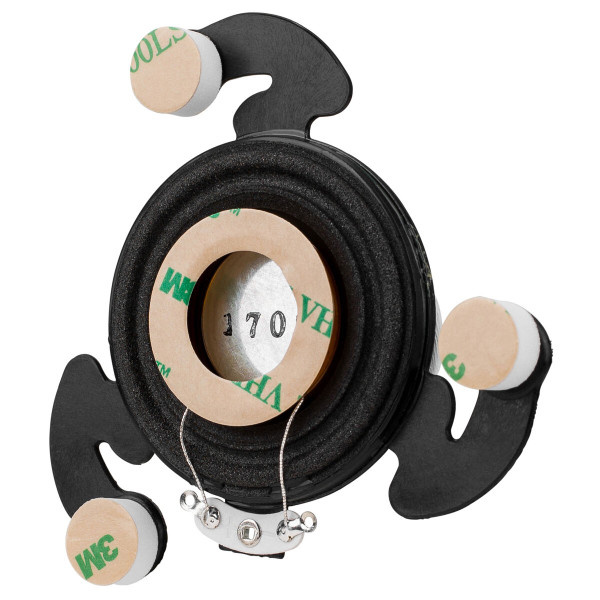

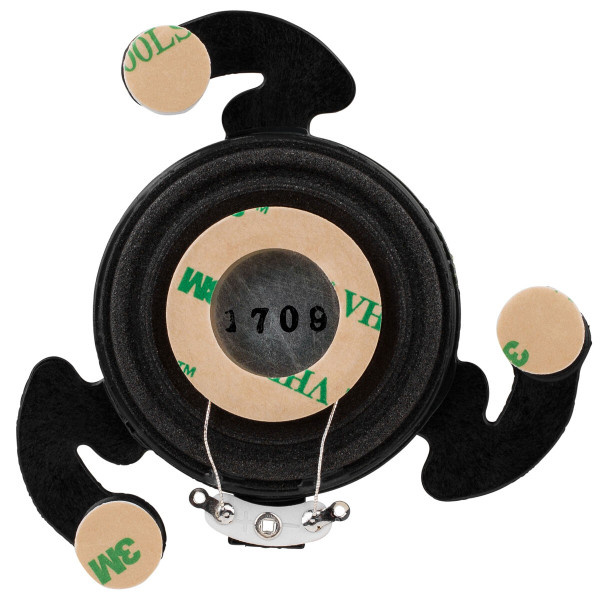

    To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the three arms ... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible.



    A great field of application for this exciter is so-called DML or flat-panel speakers. DML stands for Distributed Mode Loudspeakers and is a term for speakers that catch the eye with their incredibly slim design.



    Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



    To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.

    Eigenschaften

    Artikelnummer:
    DAEX25TP-4
    yp
    Full range
    Belastbarkeit (QMW)
    20 watts
    Belastbarkeit (max)
    -
    Impedanz
    4 ohms
    Frequenzgang
    -
    Resonanzfrequenz (Fs)
    233 Hz
    Gleichstromwiderstand (Re)
    4.2 ohms
    Schwingspuleninduktion (Le)
    0.10 mH
    Gesamt Q (Qts)
    0.74
    Bewegte Masse (Mms)
    1.75 g
    Nachgiebigkeit der Aufhängung (Cms)
    0.0003 mm/N
    Kraftfaktor
    3.86 Tm
    Schwingspulendurchmesser
    25 mm
    Außendurchmesser
    88.71 mm
    Gesamthöhe
    21 mm
    Gesamtabmessungen (L x B x H)
    -
    Abmessungen der Montagefläche
    12 mm diameter
    # Befestigungsbohrungen
    -
    Bestätigungstyp
    Self 3M VHB adhesive pre-applied mounting
    Gewicht
    82 grams

    Mehr anzeigen

    Bewertungen

    5 from 5Based on 1 reviews
    Produkt bewerten
    5 von 5
    Another great exciter from Dayton, it seems to be exactly the same as the DAEX25VT-4 just with three extra arms for extra bass. The sound quality from these never ceases to amaze me - until I used an exciter I always imagined it to sound flat, and more like a standard speaker coming from behind a door something, but it couldn't be further from the truth. Obviously the design of the DML plays a large part in the sound reproduction, but a cement/foam sandwich style tiling board seems to be ideal as the highs are crisp and it goes surprisingly low. There's a lovely depth to them which I didn't expect, and the fact that gives an almost 180 degree listening angle worth of full range sound is also a bonus. If you have a project for these and you're in two minds about getting them, I would definitely recommend giving these a go. And the fact that they can be built into a wall for absolute invisible audio makes them all the more amazing.
    Durch DB1v on 27 Juli 2019
