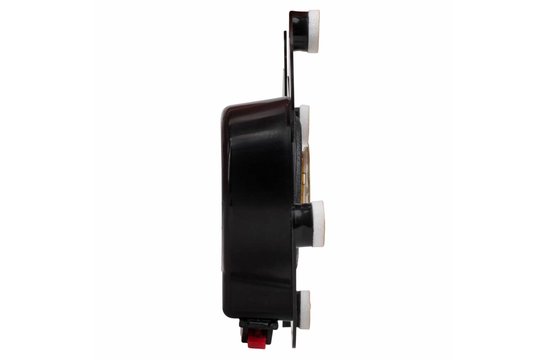

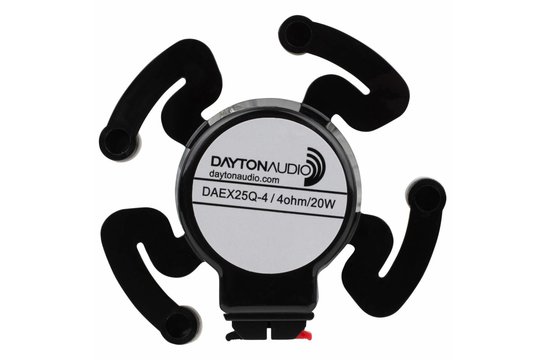

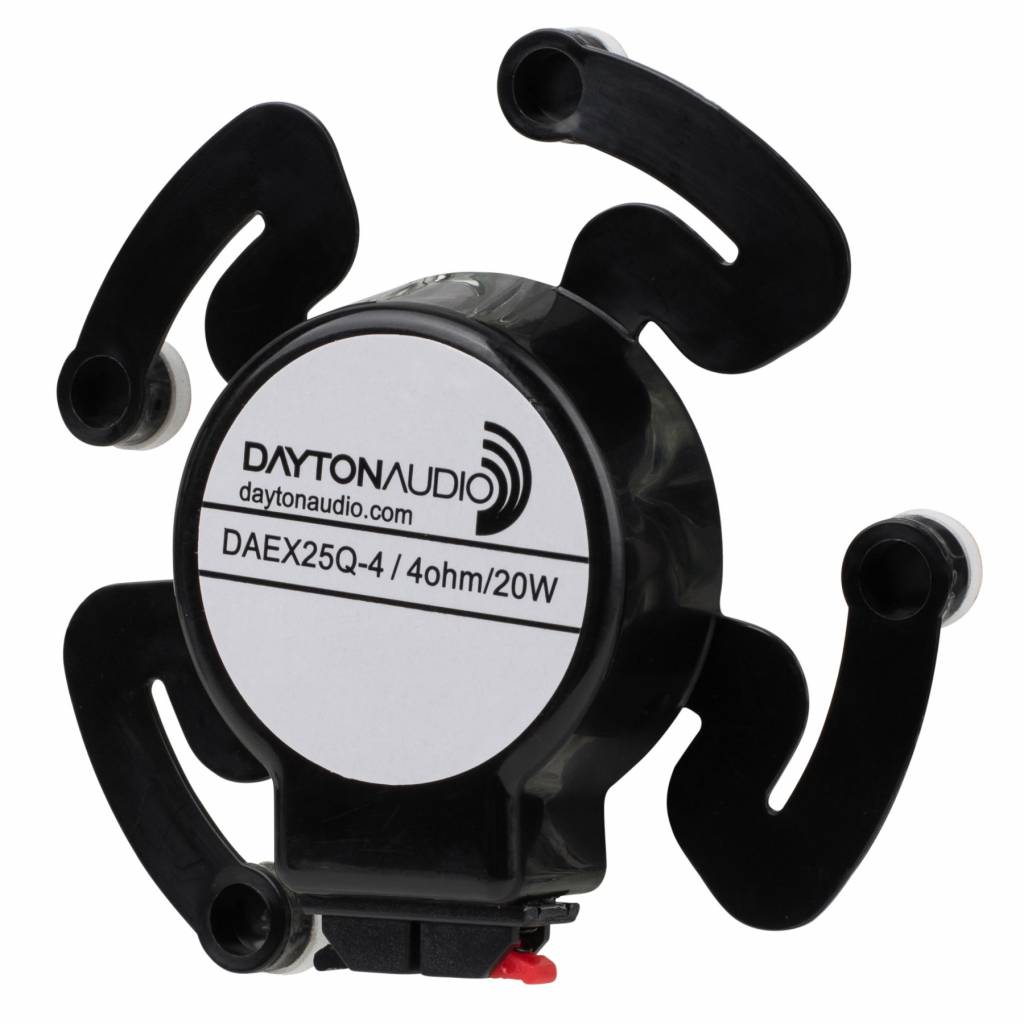

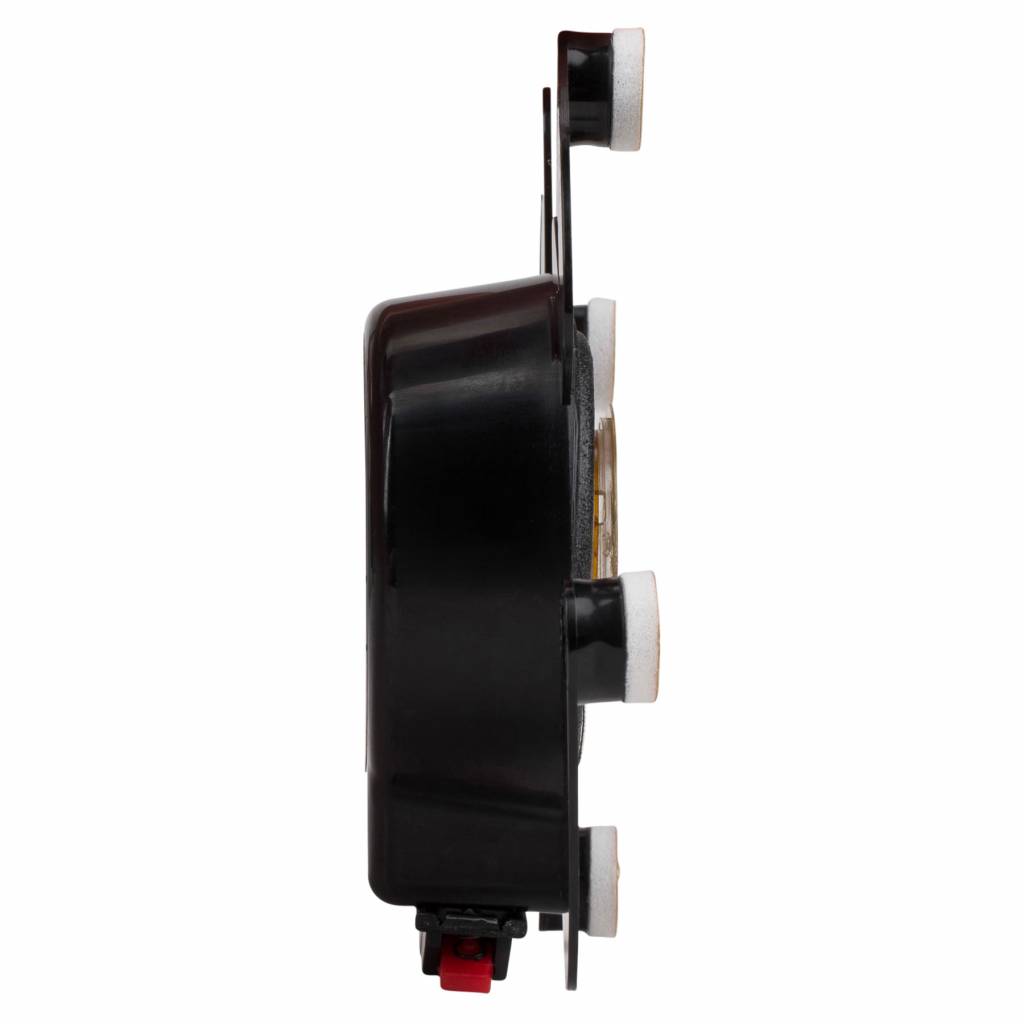

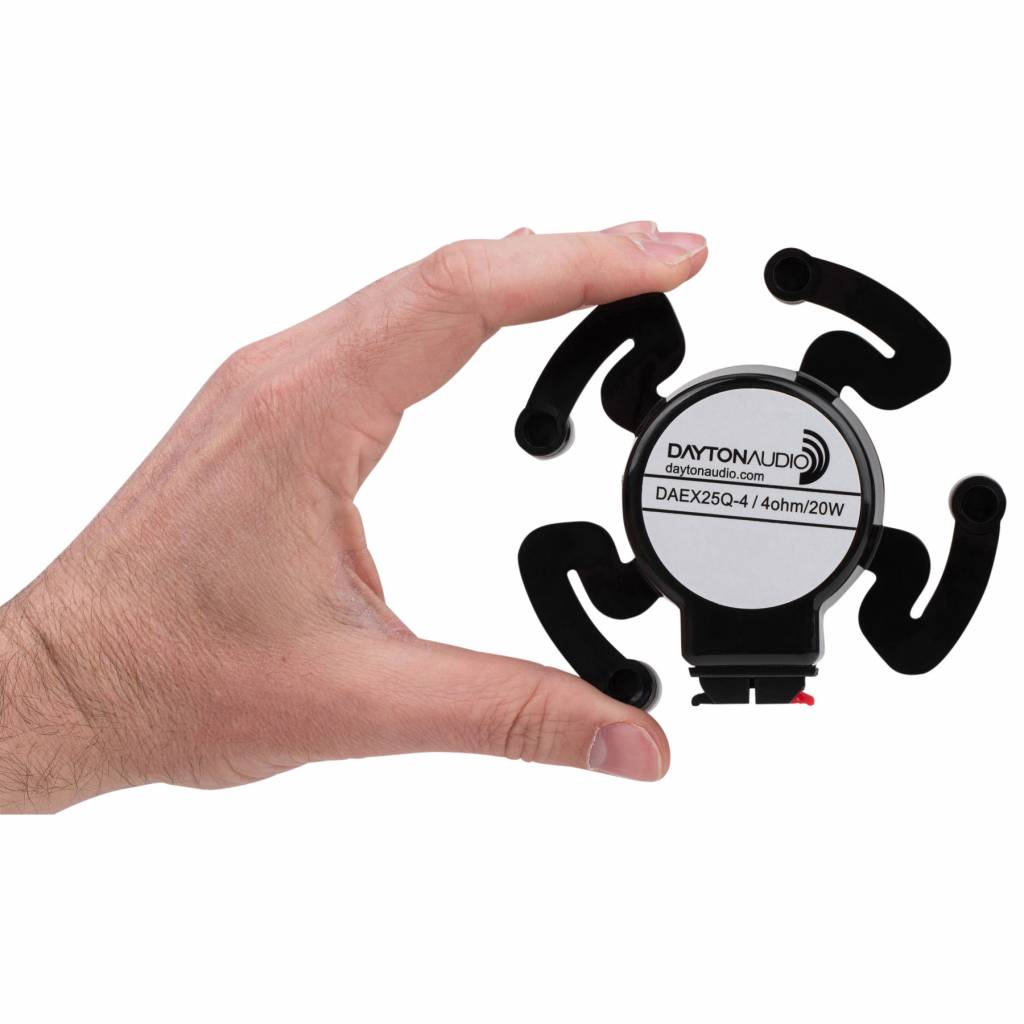

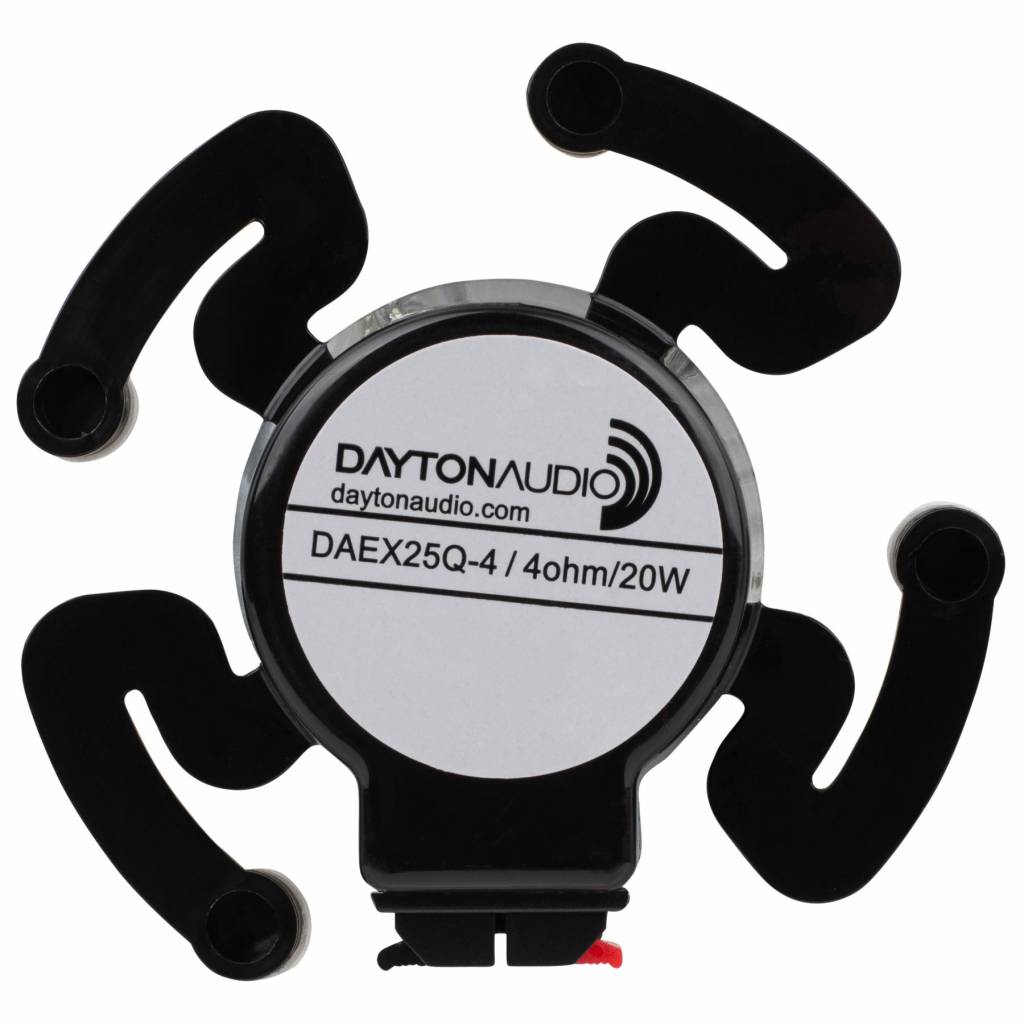

Dayton Audio DAEX25Q-4 Quad Feet 25mm Exciter 20W 4 Ohm

Lieferzeit: 1-3 Werktage

  • Artikelnummer: DAEX25Q-4
  • Vorrat: >10 Auf Lager

For turning larger surfaces into speakers, and more bass output, Dayton Audio's DAEX25Q-4 features four extended arms. Spring-loaded speaker terminals facilitate quick electrical connection.

€ 16,45 Inkl. MwSt.

  • Kaufen Sie 4 für je €15,63 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio DAEX25Q-4 Quad Feet 25mm Exciter 20W 4 Ohm

For turning larger surfaces into speakers, and more bass output, Dayton Audio's DAEX25Q-4 features four extended arms. Spring-loaded speaker terminals facilitate quick electrical connection.



Highlights

  • Unique, four arm design for exciting a large surface
  • Pre-applied 3M™ VHB™ adhesive for quick, secure installation
  • Rare-earth neodymium motor and a proprietary voice coil
  • 4-ohm impedance for use with small, Class D amplifiers
  • 20 watt RMS power handling for high output



Product details

Dayton Audio DAEX25Q-4 Quad Feet 25mm Exciter 20W 4 Ohm



Dayton Audio's DAEX25Q-4 quad arm exciter is built with four arms that extend out from the main exciter body, which allows this exciter to transfer sound to a much larger surface for lower frequency response extension (more bass).



A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil allows for more input power, creating rich, dynamic sound.

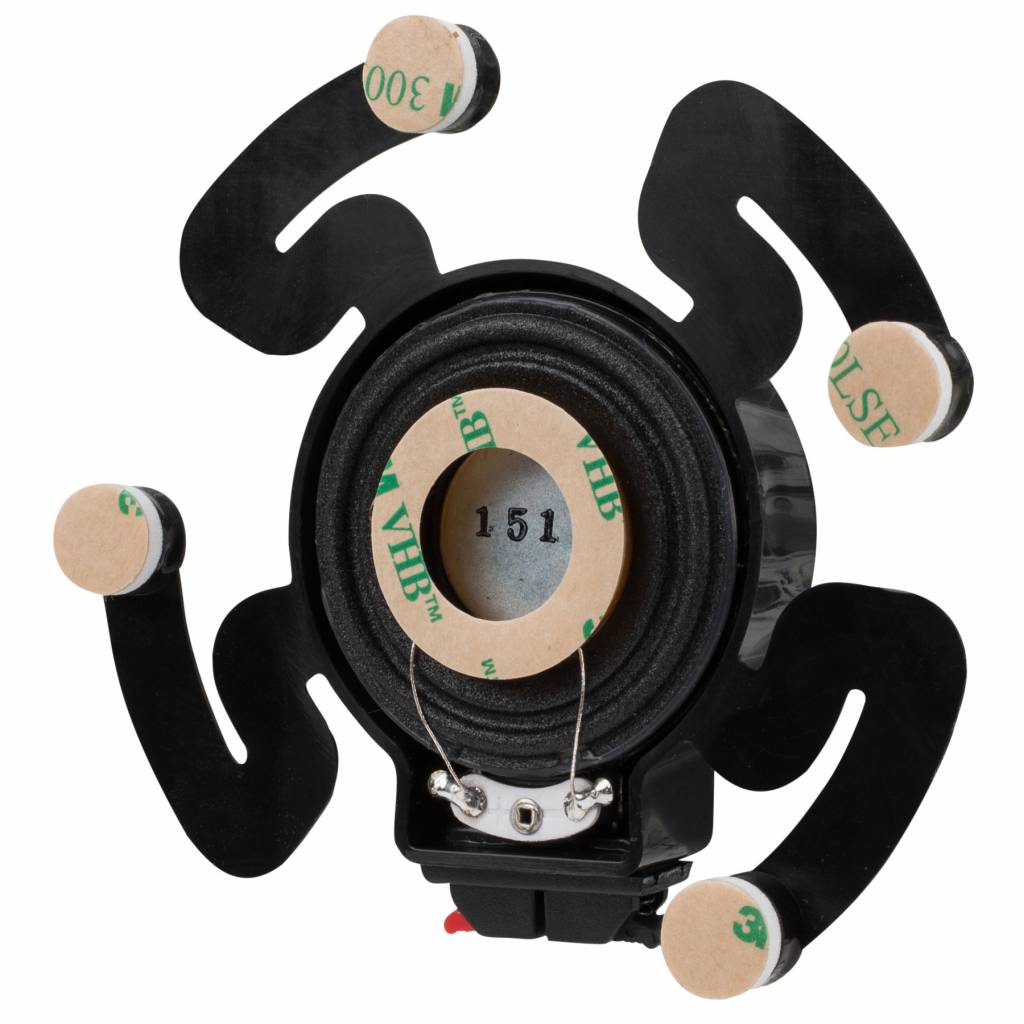

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the four arms ... just peel and stick! Two spring-loaded terminals are built onto the main body for quick electrical connection.



Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.

Eigenschaften

Spezifikationen für: DAEX25Q-4 Quad Feet 25mm Exciter 20W 4 Ohm

  • Exciter type SPEC Exciter type Full-Range
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 20 watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. -
  • Impedance SPEC Impedance 4 ohms
  • Frequency response SPEC Frequency response -
  • View all specifications
  • Resonant Frequency (Fs) -
  • DC Resistance (Re) 4.3 ohms
  • Voice Coil Inductance (Le) 0.25 mH
  • Total Q (Qts) 0.69
  • Diaphragm Mass Inc. Airload (Mms) 1.75 g
  • Mechanical Compliance of Suspension (Cms) 0.0003 mm/N
  • BL Product (BL) 3.86 Tm
  • Voice Coil Diameter 25 mm
  • Overall Outside Diameter 24.7 mm
  • Overall Depth 24.77 mm
  • Overall Dimensions (L x W x H) -
  • Adhesive dimensions 12 mm outside Ø
  • # Mounting Holes -
  • Mounting type 3M VHB adhesive pre-applied
  • Weight 90.5 grams
