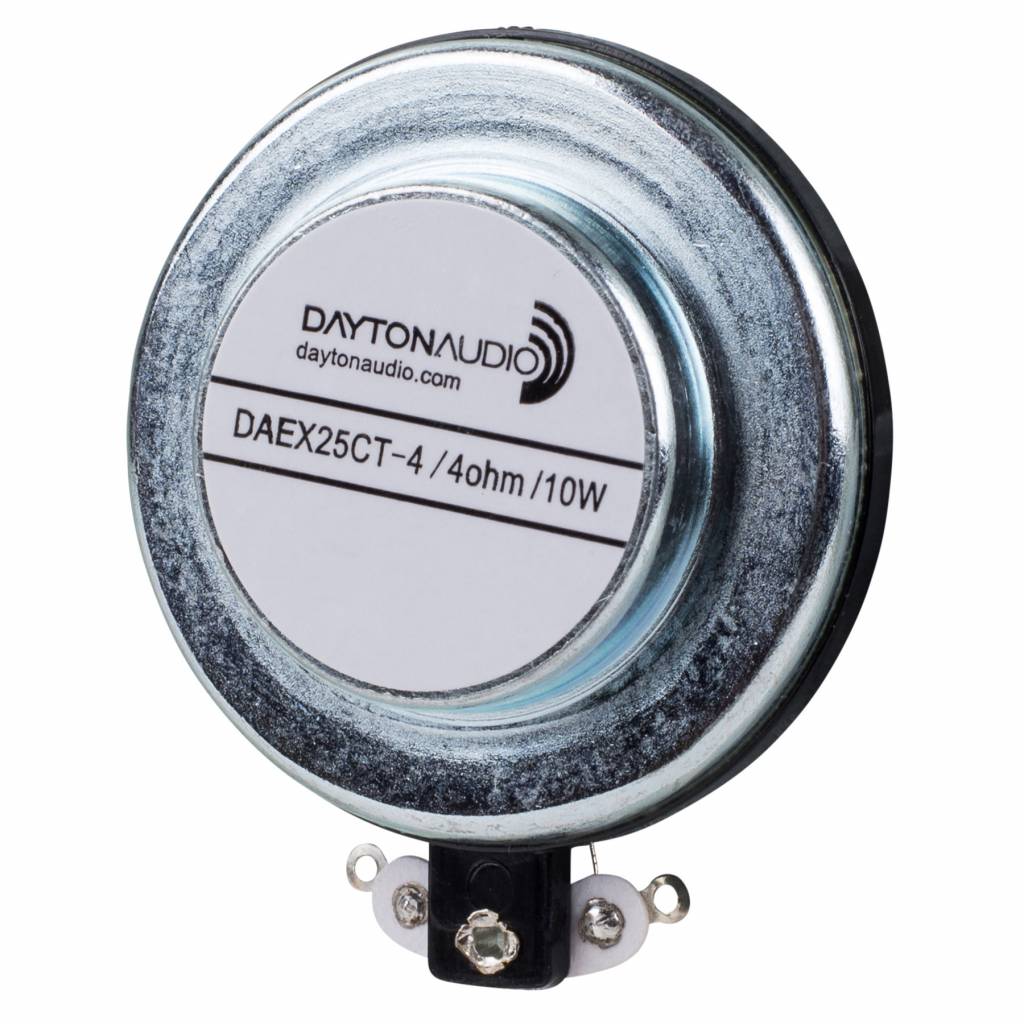

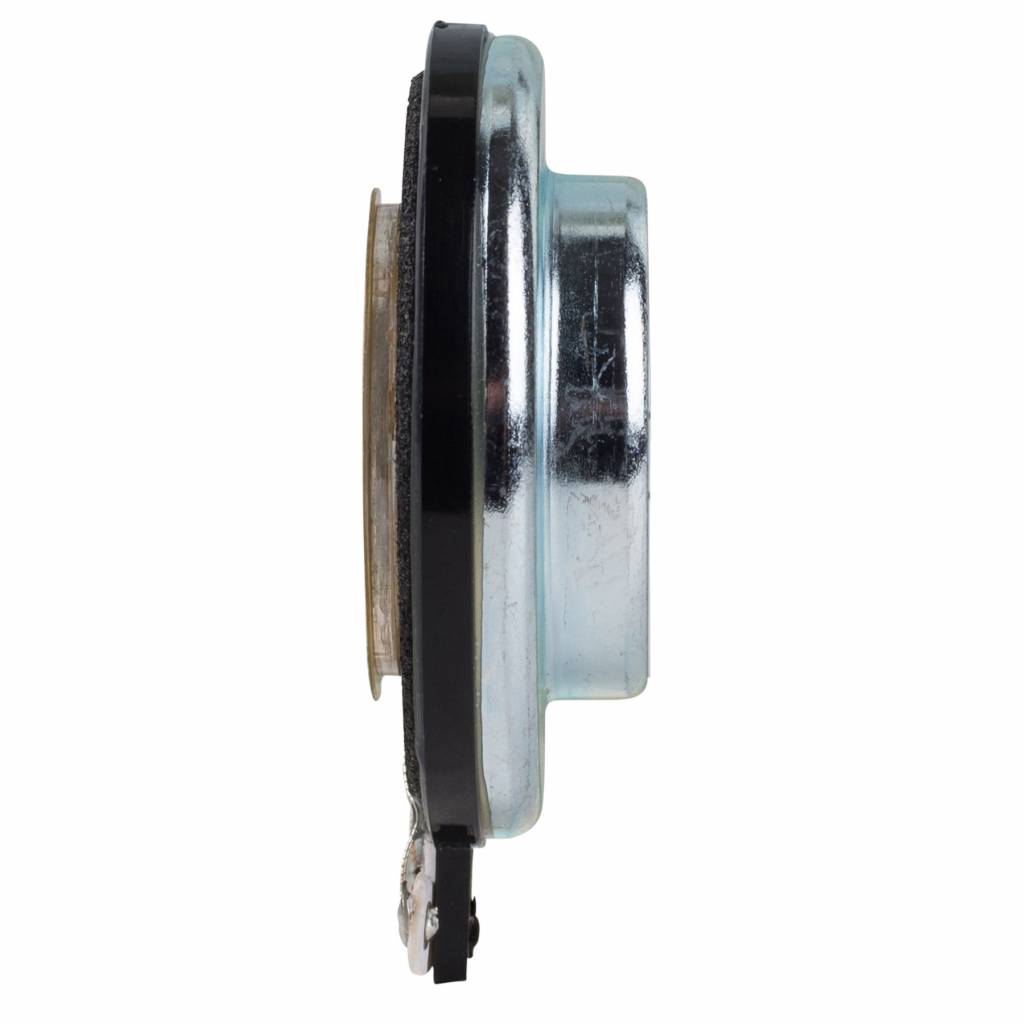

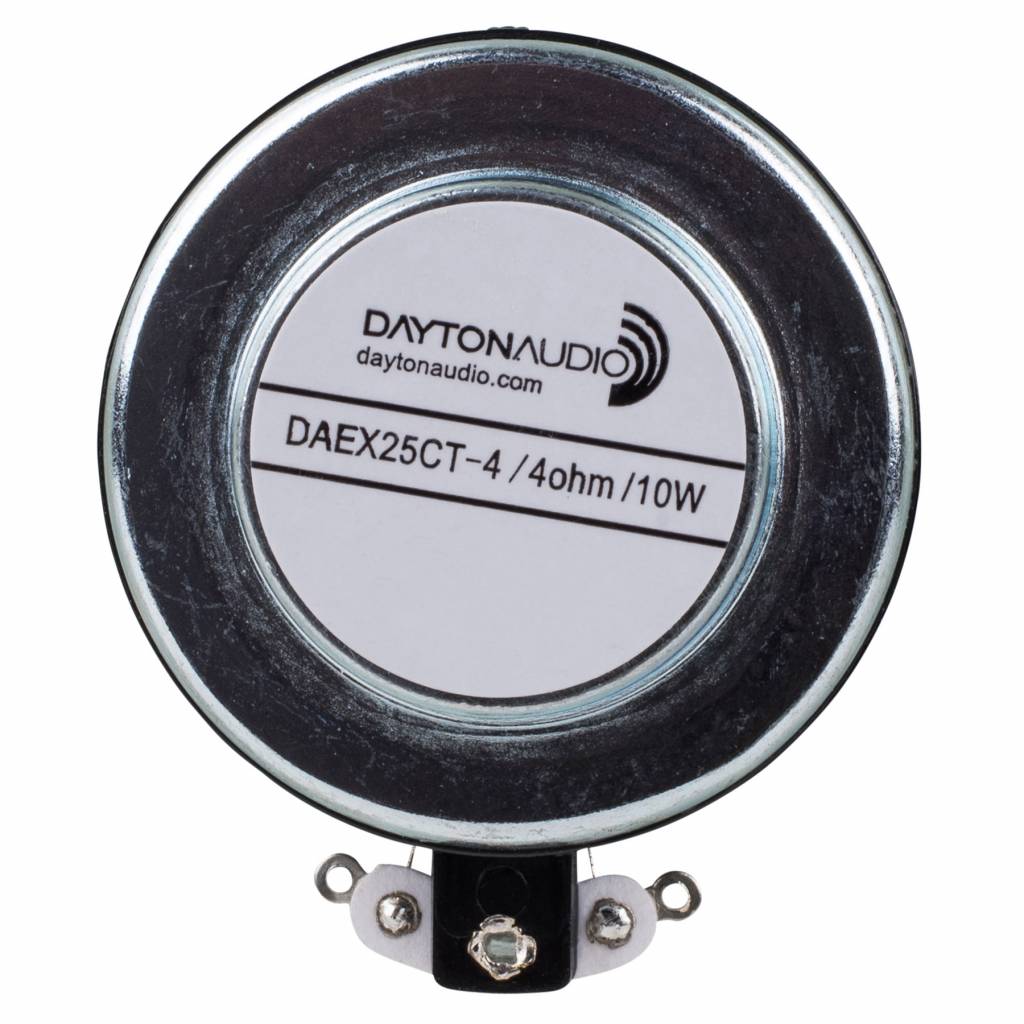

Dayton Audio DAEX25CT-4 Coin Type 25mm Exciter 10W 4 Ohm

€ 10,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
Take your product or project to the next level by turning it into a speaker! The DAEX25CT-4 is designed by Dayton Audio with a 1" voice coil for 10 watt RMS power handling, for more output than most of the other coin-type exciters.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €10,40 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Take your product or project to the next level by turning it into a speaker! The DAEX25CT-4 is designed by Dayton Audio with a 1" voice coil for 10 watt RMS power handling, for more output than most of the other coin-type exciters.



Highlights

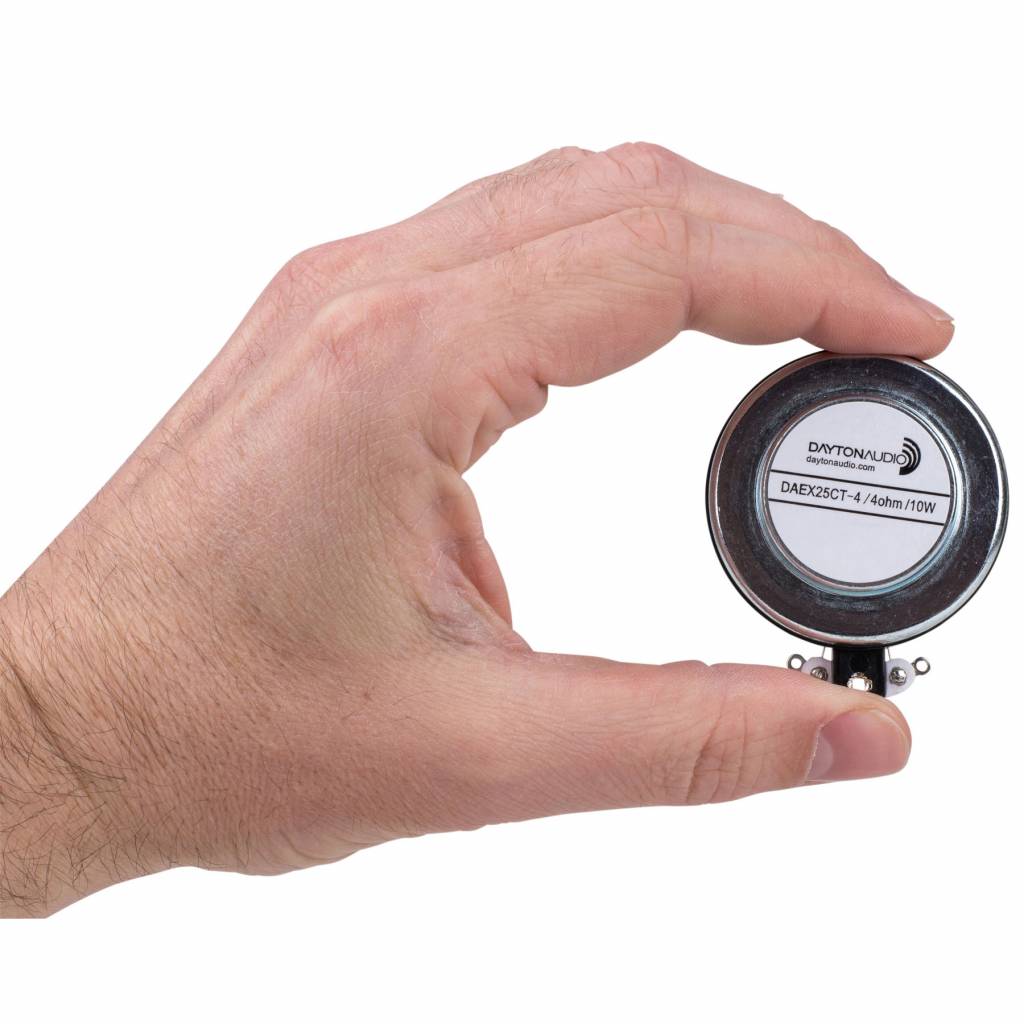

  • Small size; just under 2" diameter, about 9/16" high
  • Pre-applied 3M™ VHB™ adhesive for quick, durable installation
  • Rare-earth neodymium motor and a proprietary voice coil
  • 4-ohm impedance for use with small, Class D amplifiers
  • 1" voice coil for 10 watt RMS power handling



Product details

Dayton Audio DAEX25CT-4 Coin Type 25mm Exciter 10W 4 Ohm



Dayton Audio's 25 mm DAEX25CT-4 coin type exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in a more compact package for working with smaller surfaces. This exciter's small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows!



A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil allows for more input power for higher output applications while maintaining a slim-line form factor.

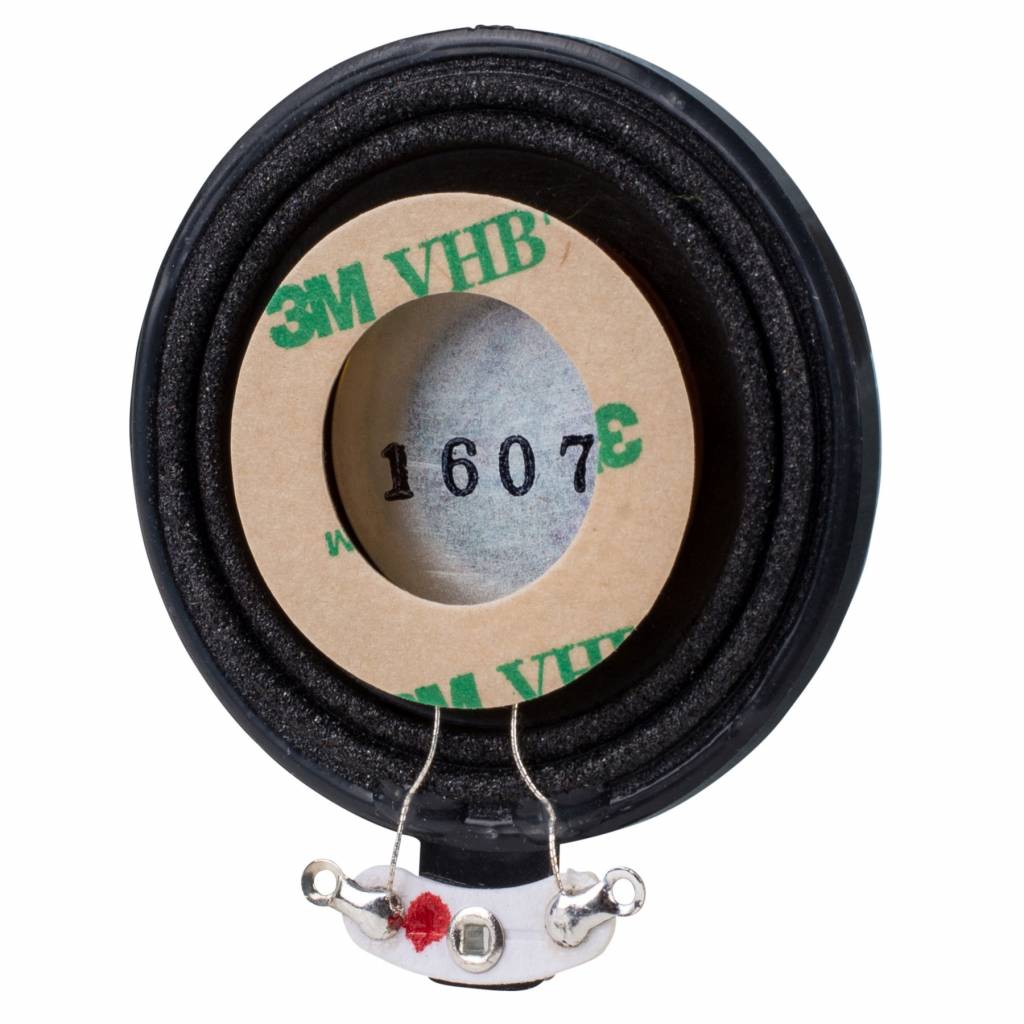

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible.



Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.

Eigenschaften

Artikelnummer:
DAEX25CT-4
Exciter type
Full range
Power Handling (RMS)
10 watts
Power Handling (max)
-
Impedance
4 ohms
Frequency response
-
DC Resistance (Re)
3.6 ohms
Voice Coil Inductance (Le)
0.07 mH
Total Q (Qts)
1.07
Diaphragm Mass Inc. Airload (Mms)
1.29 g
Mechanical Compliance of Suspension (Cms)
0.0002 mm/N
BL Product (BL)
1.54 Tm
Voice Coil Diameter
25 mm
Overall Outside Diameter
48 mm
Overall Depth
15 mm
Overall Dimensions (L x W x H)
-
Adhesive dimensions
27 mm outside Ø
# Mounting Holes
-
Mounting type
Self 3M VHB adhesive pre-applied mounting
Weight
74.6 grams
