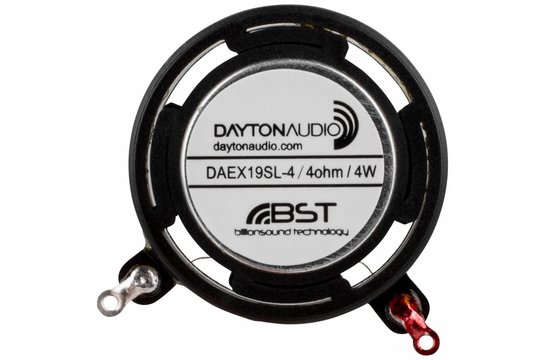

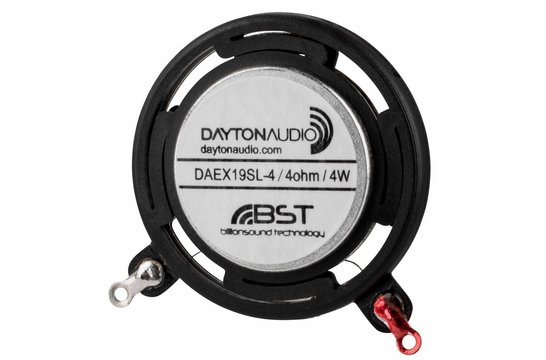

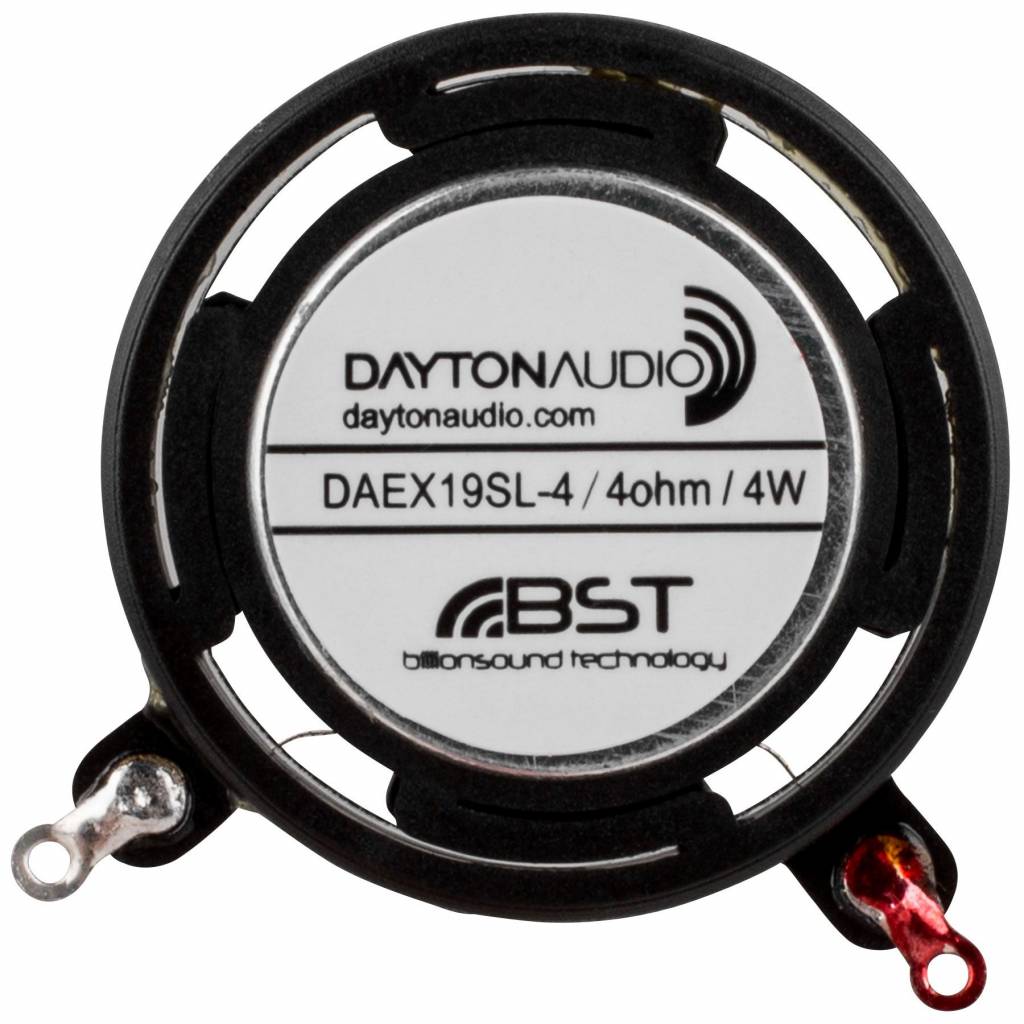

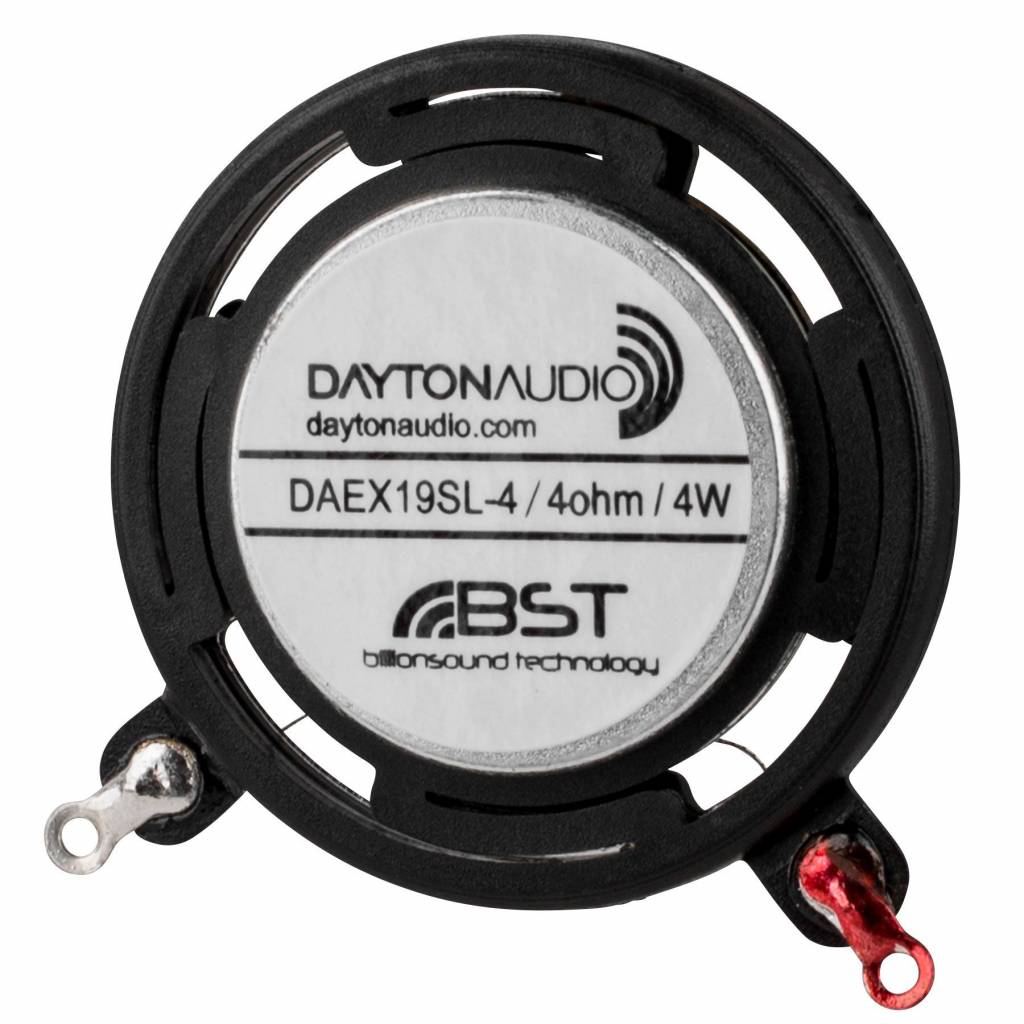

Dayton Audio DAEX19SL-4 Slimline Coin Type 19mm Exciter 4W 4 Ohm

Lieferzeit: 1-3 Werktage

  • Artikelnummer: DAEX19SL-4
  • Vorrat: 9 Auf Lager

This tiny exciter packs one heck of a punch. Dayton Audio's DAEX19SL-4 4 ohm sound exciter can turn most light rigid surfaces into a speaker with a surprising amount of output. Perfect for adding audio to small toys, signs, and many other projects.

€ 8,45 Inkl. MwSt.

  • Kaufen Sie 4 für je €8,03 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio DAEX19SL-4 Slimline Coin Type 19mm Exciter 4W 4 Ohm

This tiny exciter packs one heck of a punch. Dayton Audio's DAEX19SL-4 4 ohm sound exciter can turn most light rigid surfaces into a speaker with a surprising amount of output. Perfect for adding audio to small toys, signs, and many other projects.



Highlights

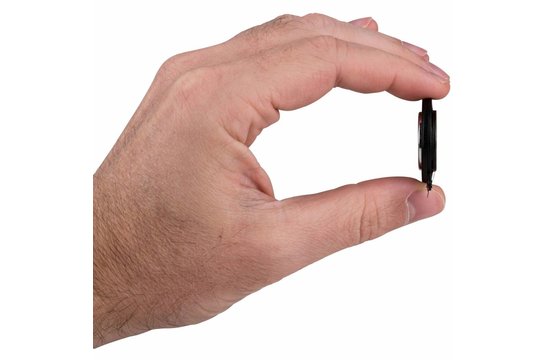

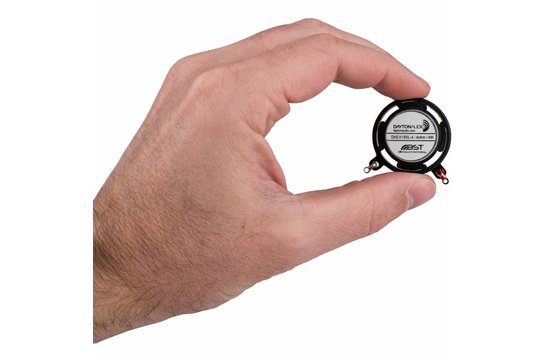

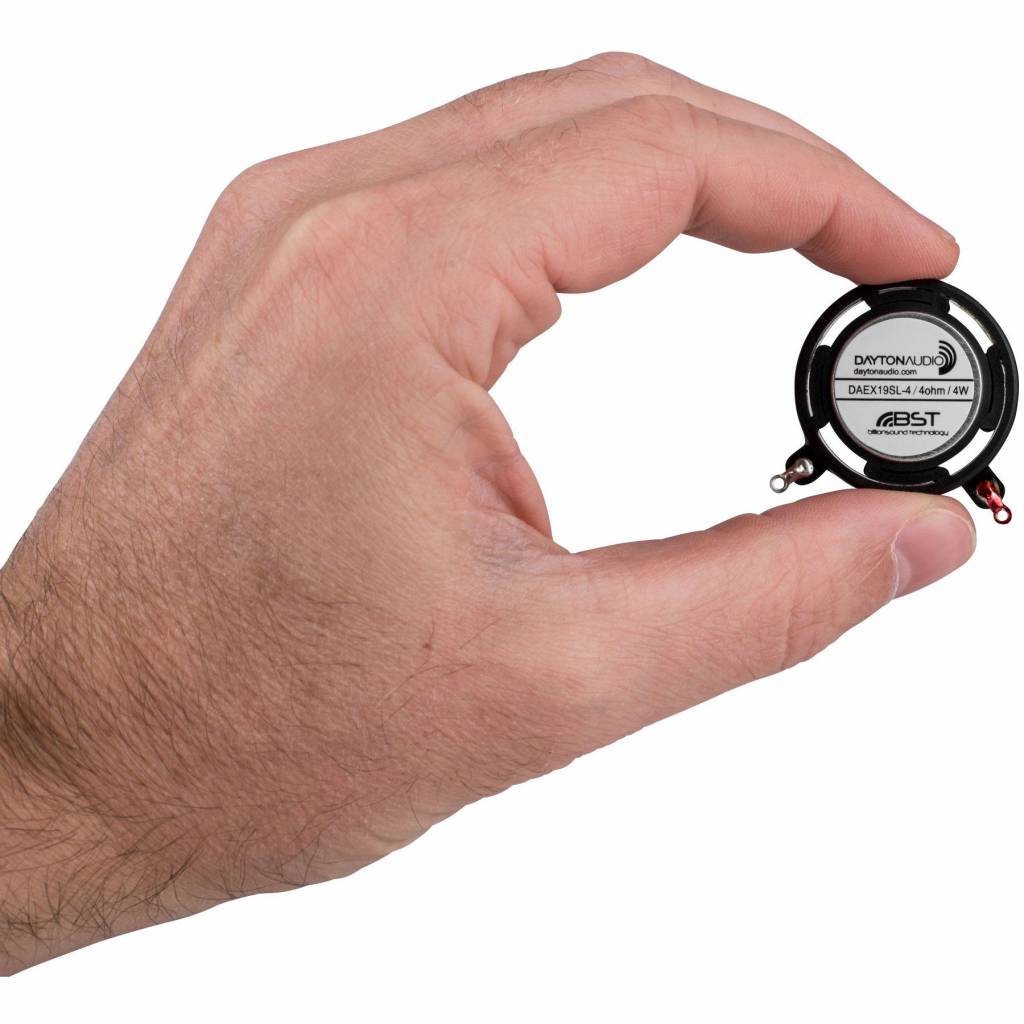

  • Only 1.3" diameter by 0.26" high, can be installed almost anywhere
  • Dual suspension for linear operation and lower distortion
  • 4-ohm impedance for use with small, Class D amplifiers
  • Pre-applied 3M™ VHB™ adhesive for quick, durable installation



Product details

Dayton Audio DAEX19SL-4 Slimline Coin Type 19mm Exciter 4W 4 Ohm



 Dayton Audio's 19 mm DAEX19SL-4 coin type exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in an extremely compact package for working with smaller surfaces in the minimum amount of space. This exciter's small size and weight enables audio reproduction in places never imagined: toys, signs, cabinet doors, etc... even windows!



A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output.

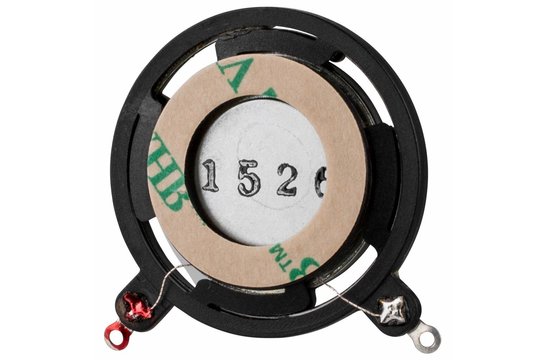

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible.



Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.

Eigenschaften

Spezifikationen für: DAEX19SL-4 Slimline Coin Type 19mm Exciter 4W 4 Ohm

  • Exciter type SPEC Exciter type Full range
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 4 watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. -
  • Impedance SPEC Impedance 4 ohms
  • Frequency response SPEC Frequency response -
  • View all specifications
  • Resonant Frequency (Fs) 426 Hz
  • DC Resistance (Re) 2.94 ohms
  • Voice Coil Inductance (Le) 0.01 mH
  • Total Q (Qts) -
  • Diaphragm Mass Inc. Airload (Mms) -
  • Mechanical Compliance of Suspension (Cms) -
  • BL Product (BL) -
  • Voice Coil Diameter 19 mm
  • Overall Outside Diameter 33 mm
  • Overall Depth 6.5 mm
  • Overall Dimensions (L x W x H) -
  • Adhesive dimensions 23 mm outside Ø, 16 mm inside Ø
  • # Mounting Holes -
  • Mounting type Self 3M VHB adhesive pre-applied mounting
  • Weight 13.5 grams

Documenten

Bewertungen

Erfahrungsberichte 2 / 5 Bewertungen: (1)

  • DM Durch David M. an 16-07-2019 10:56

    2 / 5

    I was hoping to use a few of these exciters mounted to a small piece of wood as part of a museum installation, but realized it is too weak for this project.
    Good product though. Maybe it would be helpful if you mentioned more detailed examples of applications in the exciter products specifications, like the usable thickness range for the various materials.
