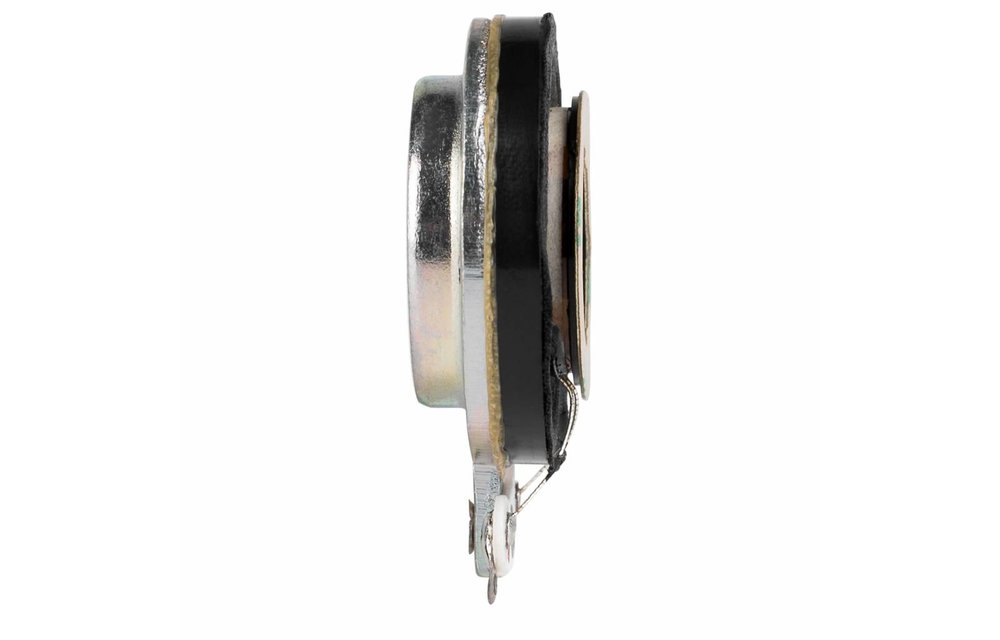

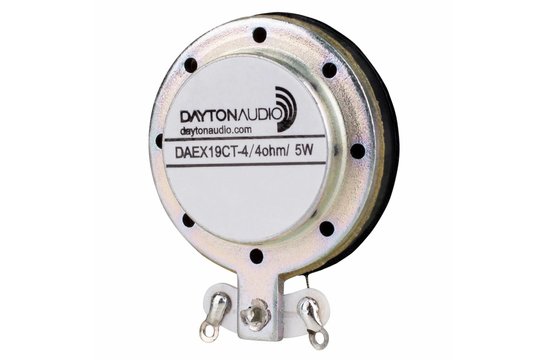

Dayton Audio DAEX19CT-4 Coin Type 19mm Vented Exciter 5W 4 Ohm

Lieferzeit: 1-3 Werktage

  • Artikelnummer: DAEX19CT-4
  • Vorrat: >10 Auf Lager

Take your product or project to the next level by turning it into a speaker! The DAEX19CT-4 sound exciter, by Dayton Audio, features voice coil vent holes for higher power handling

€ 8,95 Inkl. MwSt.

  • Kaufen Sie 4 für je €8,50 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio DAEX19CT-4 Coin Type 19mm Vented Exciter 5W 4 Ohm

Take your product or project to the next level by turning it into a speaker! The DAEX19CT-4 sound exciter, by Dayton Audio, features voice coil vent holes for higher power handling



Highlights

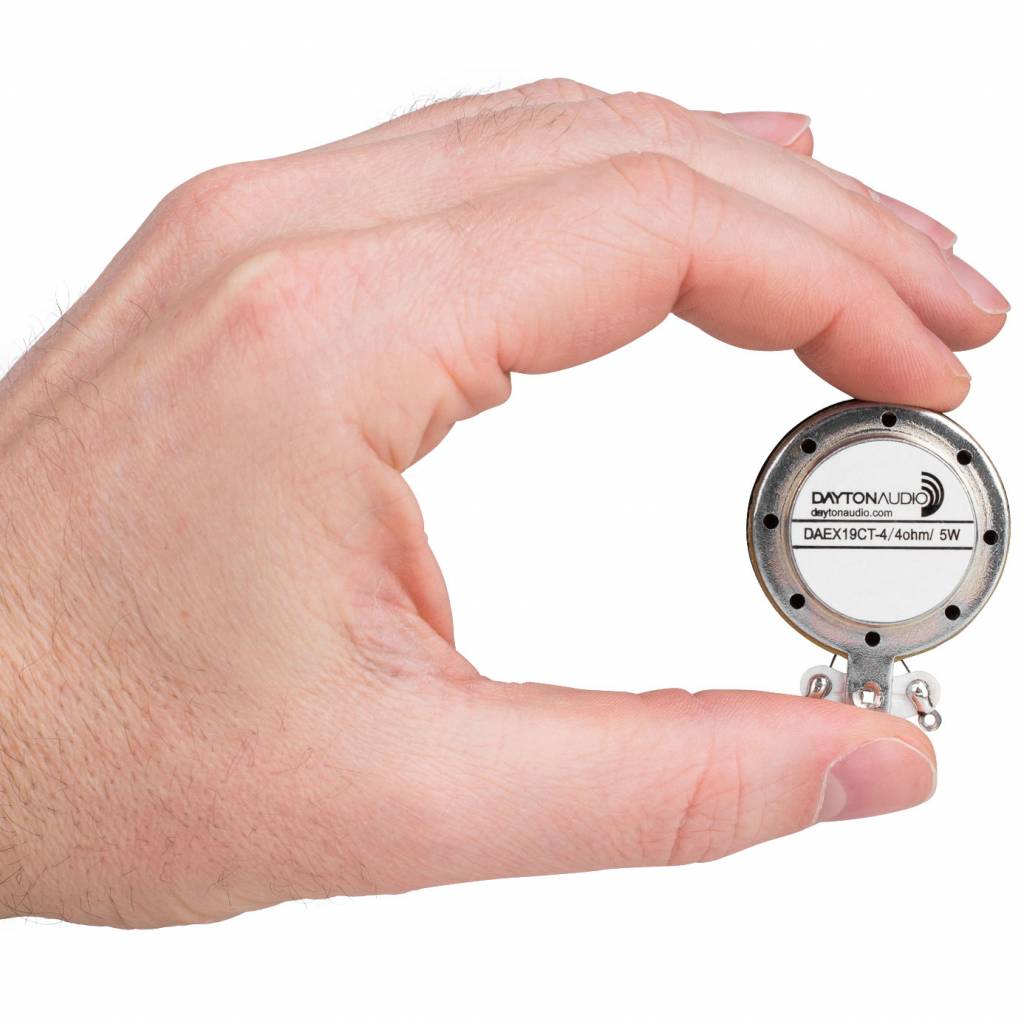

  • Small size; just under 1-1/2" diameter, about 1/2" high
  • Pre-applied 3M™ VHB™ adhesive for quick, durable installation
  • Rare-earth neodymium motor with cooling vents for higher power handling
  • 4-ohm impedance for use with small, Class D amplifiers

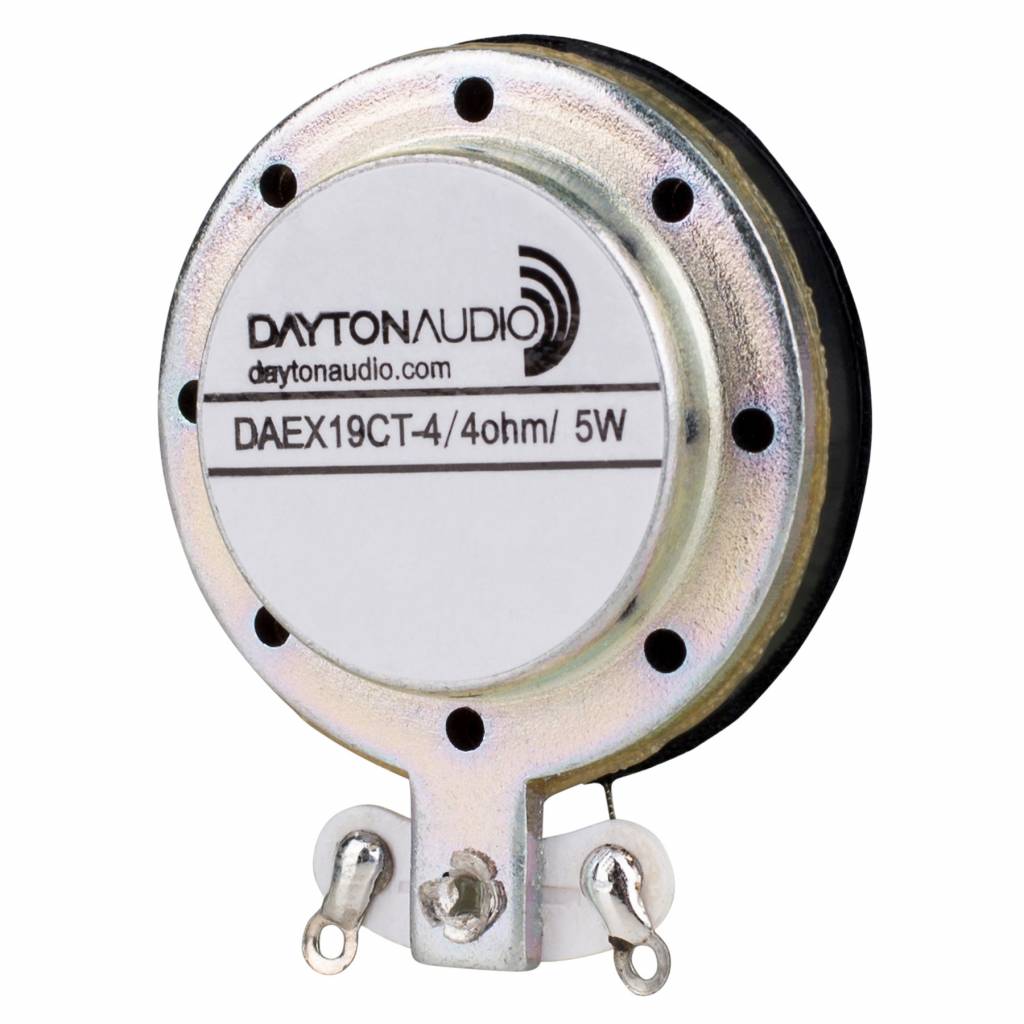

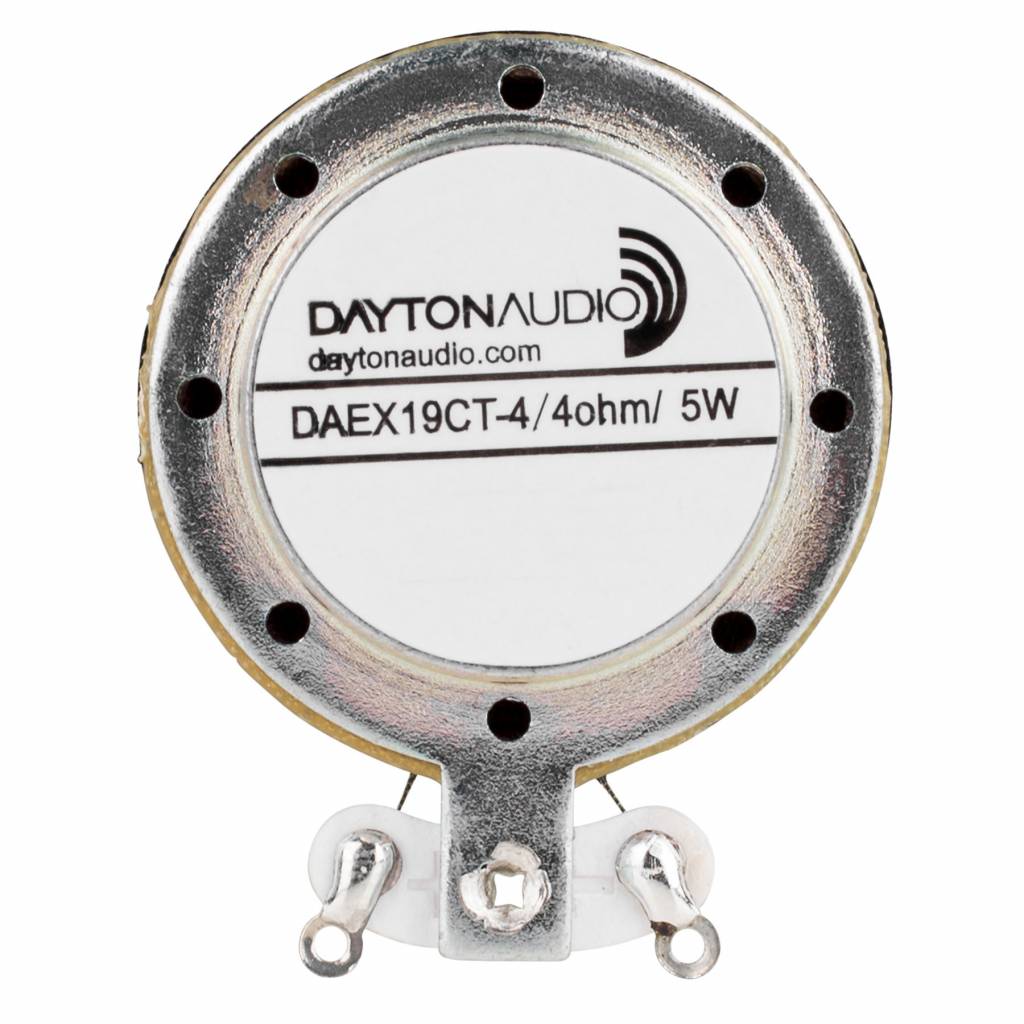

  • Strategically-placed vent holes cool this exciter's voice coil for higher power handling



Product details

Dayton Audio DAEX19CT-4 Coin Type 19mm Vented Exciter 5W 4 Ohm



Dayton Audio's 19 mm DAEX19CT-4 coin type exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in a more compact package for working with smaller surfaces. This exciter's small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows!



A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. Cooling holes placed strategically on this exciter's housing allows for higher power handling, for applications where more output is desired, while maintaining a small form factor.

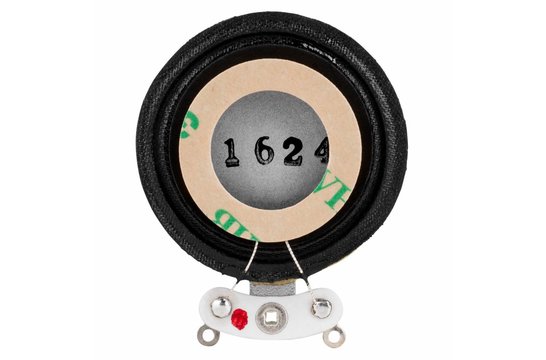

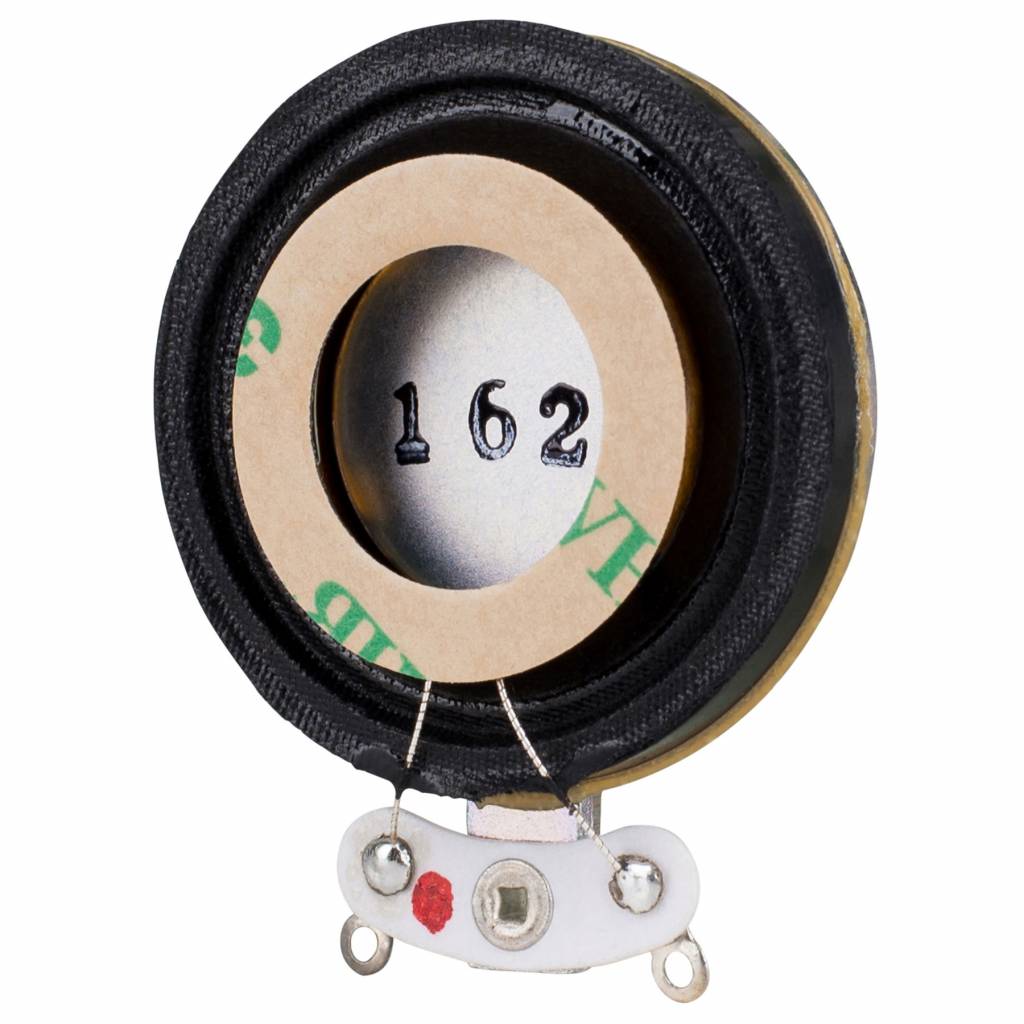

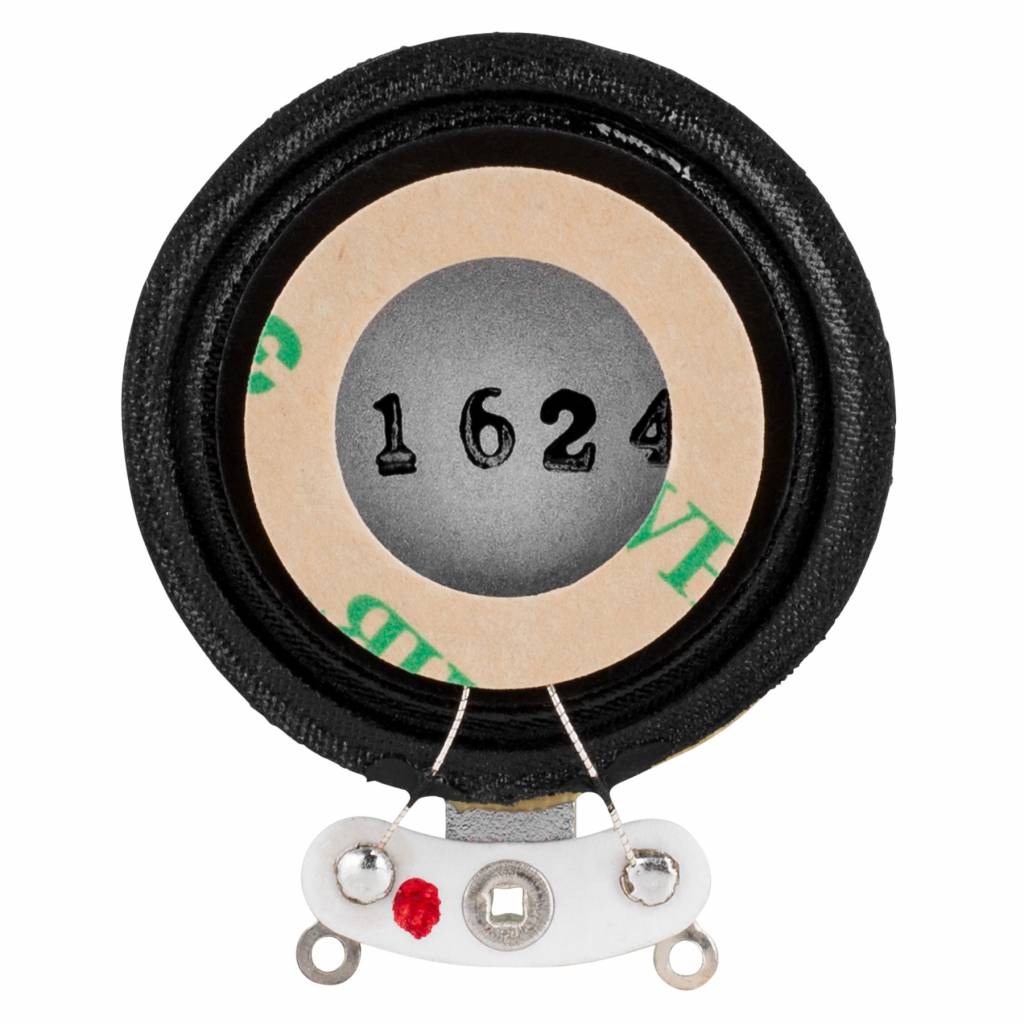

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible.



Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.

Eigenschaften

Spezifikationen für: DAEX19CT-4 Coin Type 19mm Vented Exciter 5W 4 Ohm

  • Exciter type SPEC Exciter type Full-Range
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 5 watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. -
  • Impedance SPEC Impedance 4 ohms
  • Frequency response SPEC Frequency response 70 - 20.000 Hz
  • View all specifications
  • Resonant Frequency (Fs) 637 Hz
  • DC Resistance (Re) 3.8 ohms
  • Voice Coil Inductance (Le) 0.04 mH
  • Total Q (Qts) 2.34
  • Diaphragm Mass Inc. Airload (Mms) 0.58 g
  • Mechanical Compliance of Suspension (Cms) 0.0001 mm/N
  • BL Product (BL) 1.78 Tm
  • Voice Coil Diameter 19 mm
  • Overall Outside Diameter 33 mm
  • Overall Depth 13 mm
  • Overall Dimensions (L x W x H) -
  • Adhesive dimensions 21.5 mm outside Ø, 21.75 mm inside Ø
  • # Mounting Holes -
  • Mounting type 3M VHB adhesive pre-applied
  • Weight 31.5 grams
