- Artikelnummer:

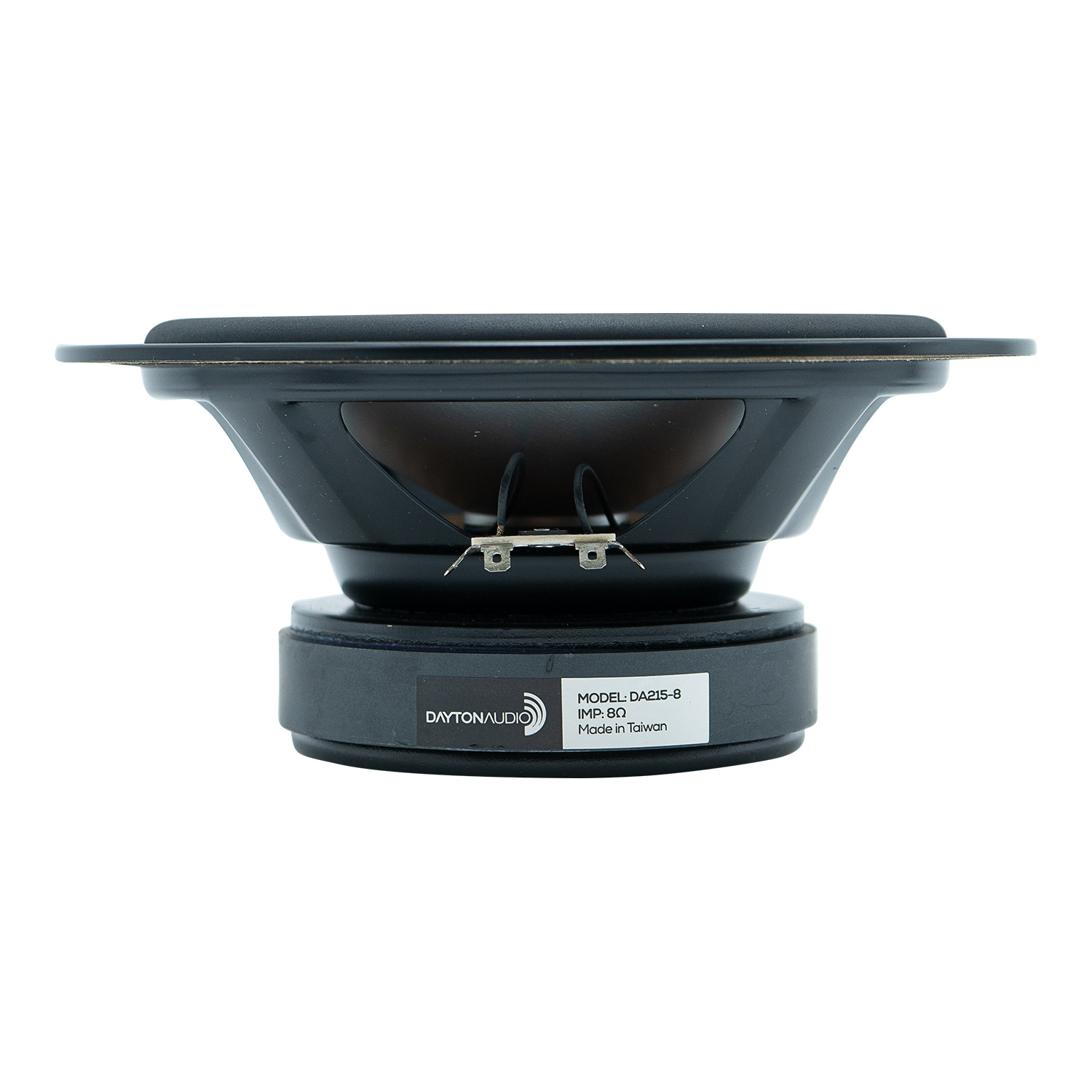

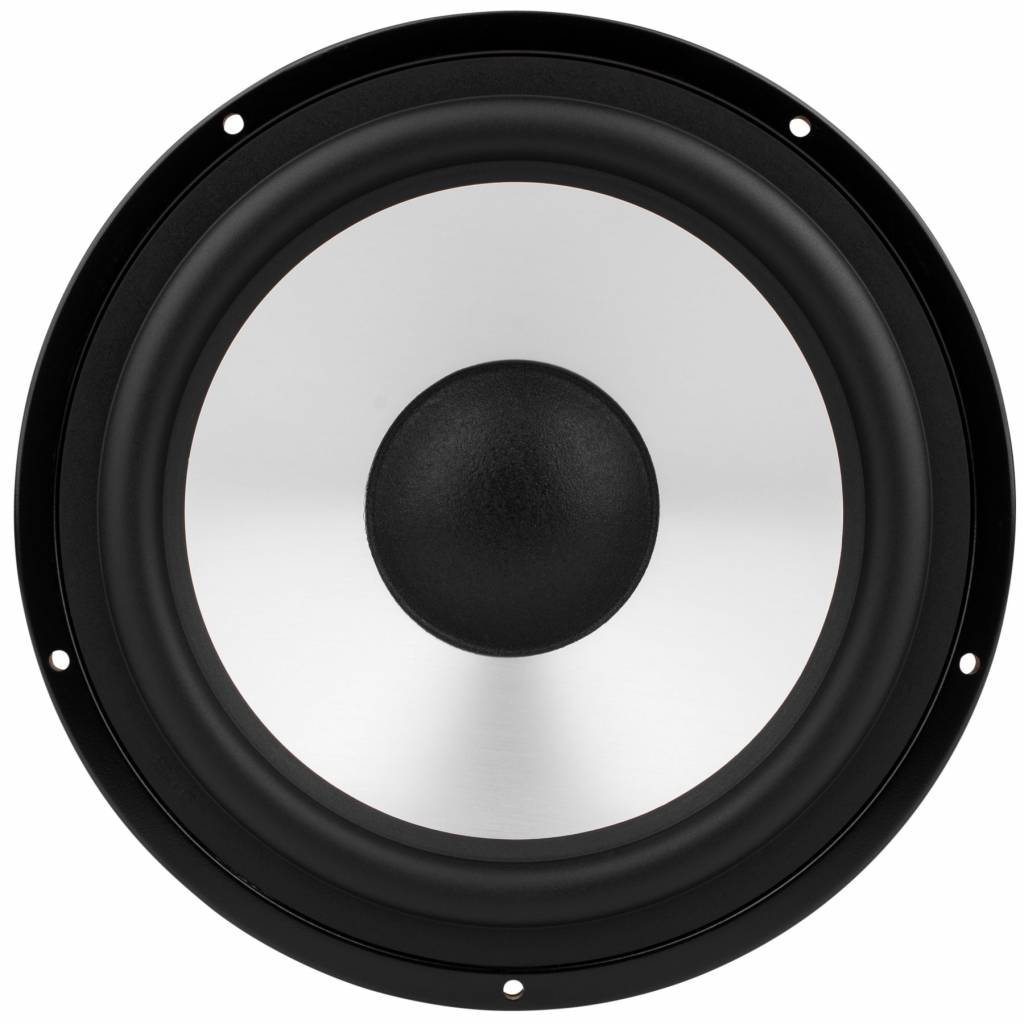

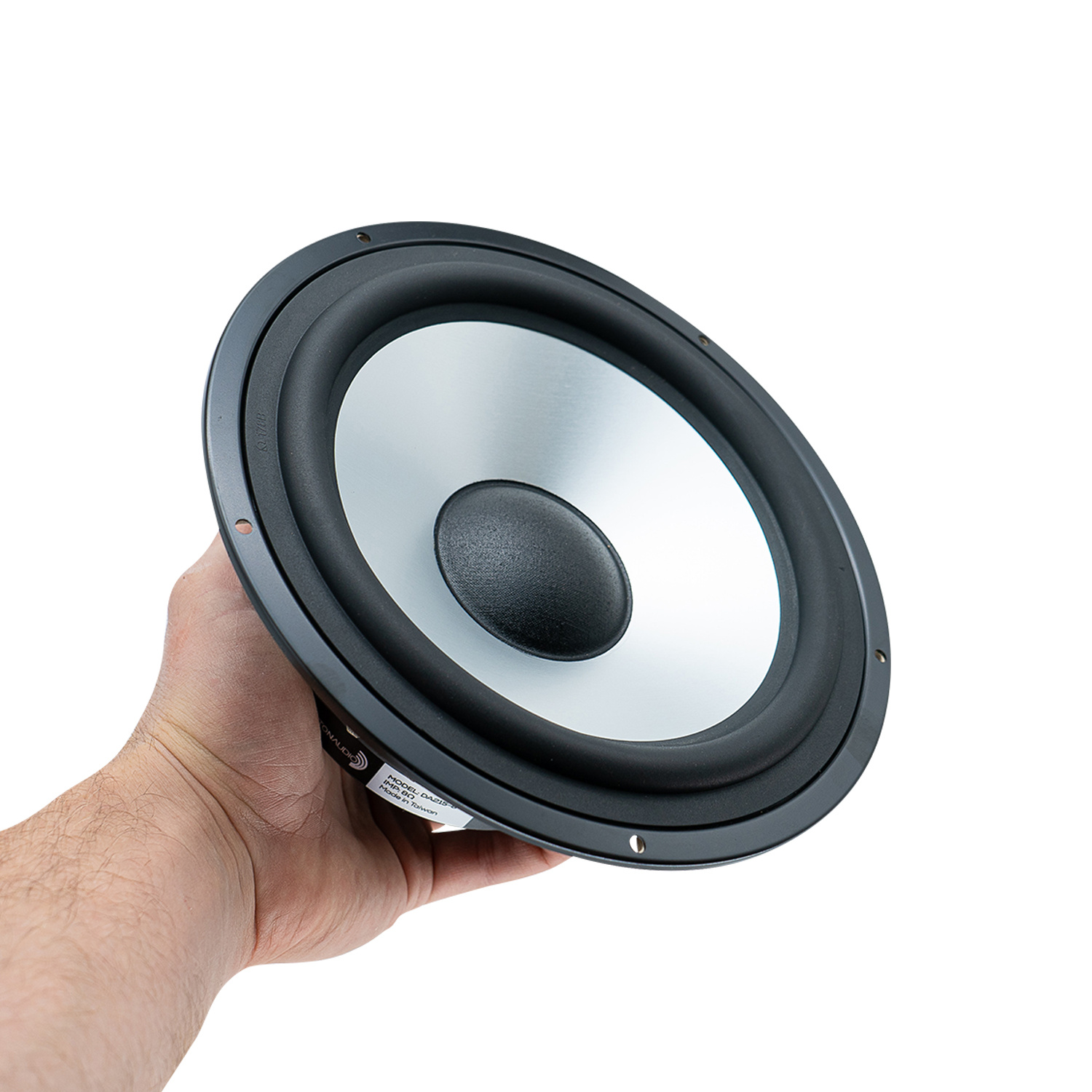

- DA215-8
- Woofer Series
- Specialty Drivers Series
- Woofer Type
- Midwoofer
- Nominal Diameter
- 8"
- Power Handling (RMS)
- 60 watts
- Power Handling (max)
- 120 watts
- Impedance
- 8 ohms
- Sensitivity
- 88.7 dB @ 1W/1m
- Frequency Response
- 35 - 8,000 Hz
- Voice Coil Diameter
- 36 mm
- Magnet Weight
- 30 oz.
- DC Resistance (Re)
- 6.8 ohms
- Voice Coil Inductance (Le)
- 1.44 mH
- Resonant Frequency (Fs)
- 34.9 Hz
- Mechanical Q (Qms)
- 1.95
- Electromagnetic Q (Qes)
- 0.45
- Total Q (Qts)
- 0.37
- Diaphragm Mass Inc. Airload (Mms)
- 30.3g
- Mechanical Compliance of Suspension (Cms)
- 0.68 mm/N
- Surface Area of Cone (Sd)
- 211.2 cm²
- Volume of Displacement (Vd)
- 112.0 cm³
- BL Product (BL)
- 10.00 Tm
- Compliance Equivalent Volume (Vas)
- 42.7 liters
- Maximum Linear Excursion (Xmax)
- 5.3 mm
- Cone / Diaphragm Material
- Aluminum Cone
- Surround Material
- Rubber
- Voice Coil Wire Material
- Copper
- Voice Coil Former
- Aluminum
- Basket / Frame Material
- Steel
- Magnet Material
- Ferrite
- Overall Outside Diameter
- 216 mm
- Overall Depth
- 94.5 mm
- Baffle Cutout Diameter
- 180 mm
- # Mounting Holes
- 5
- Sealed Volume
- 0.32 ft.³
- Sealed F3
- 81 Hz
- Vented Volume
- 0.89 ft.³
- Vented F3
- 46 Hz
