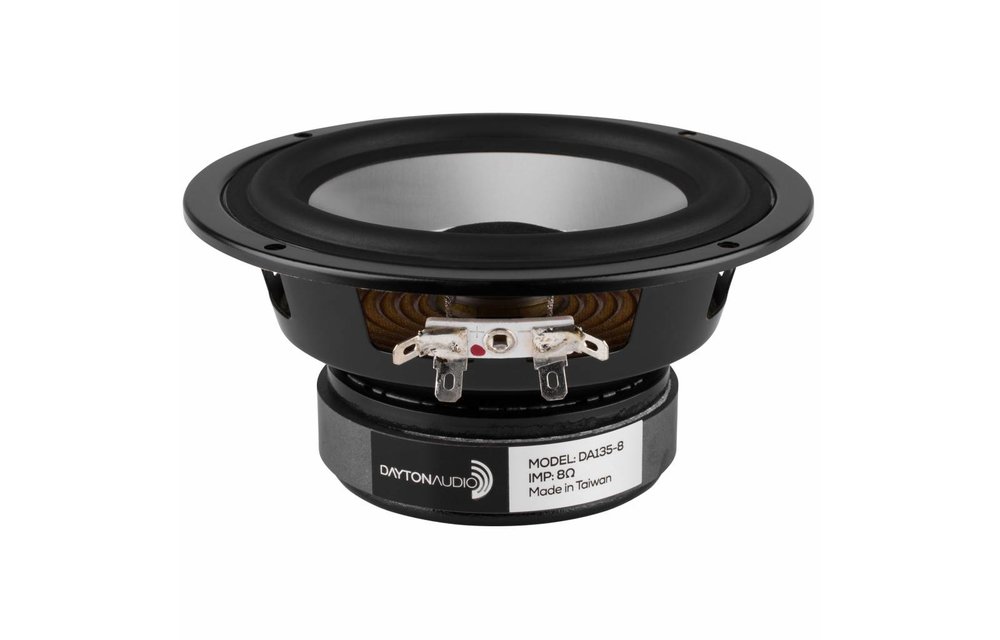

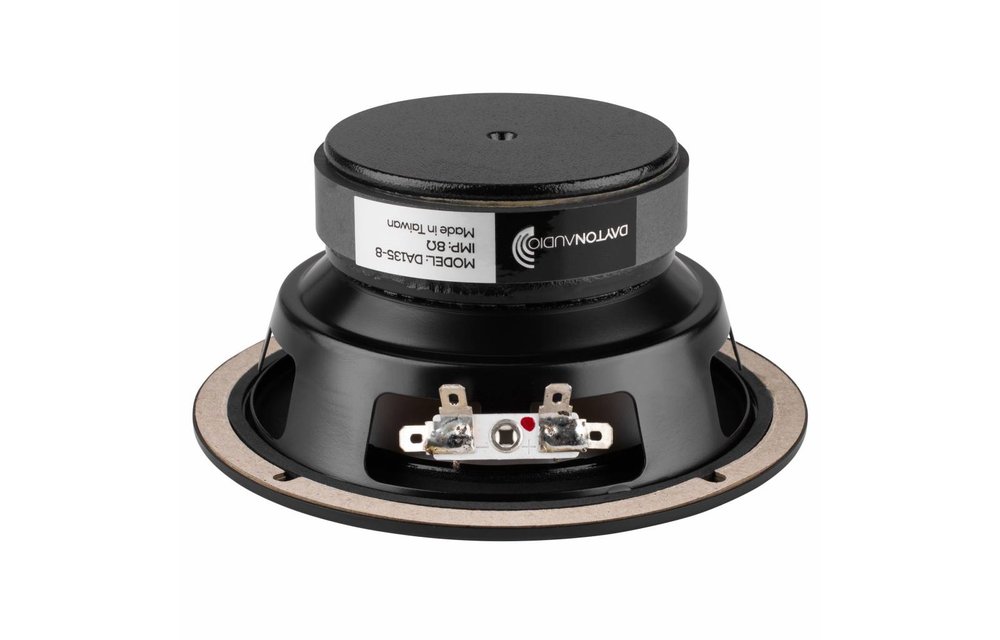

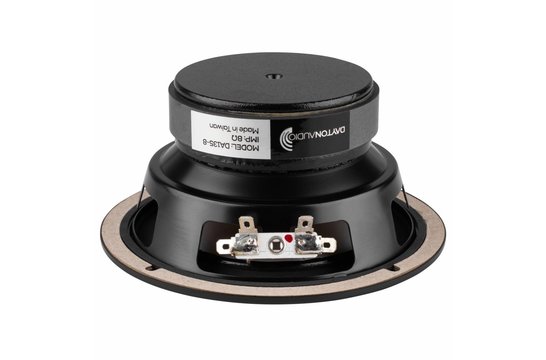

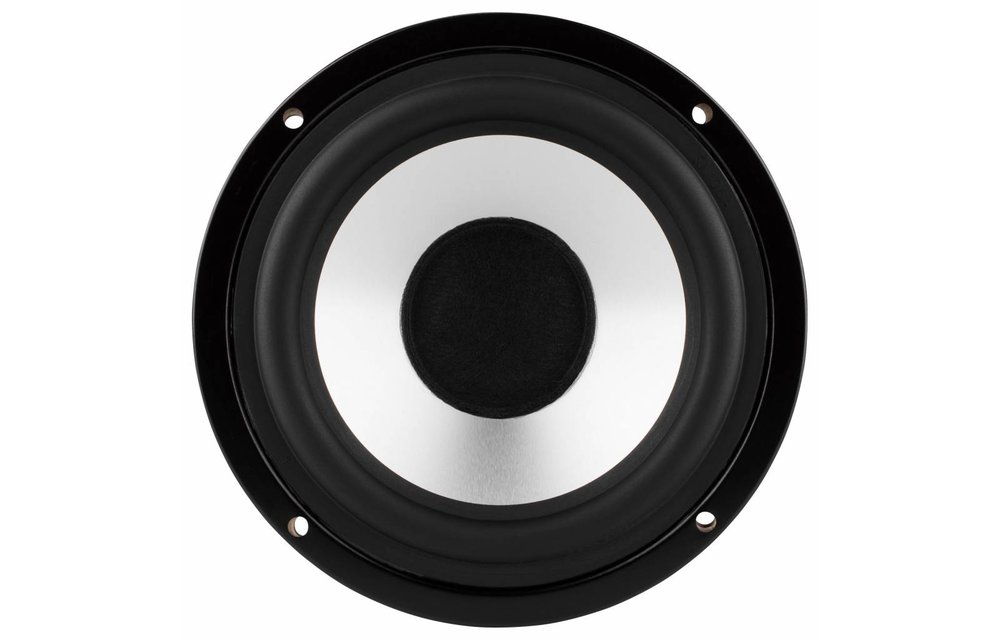

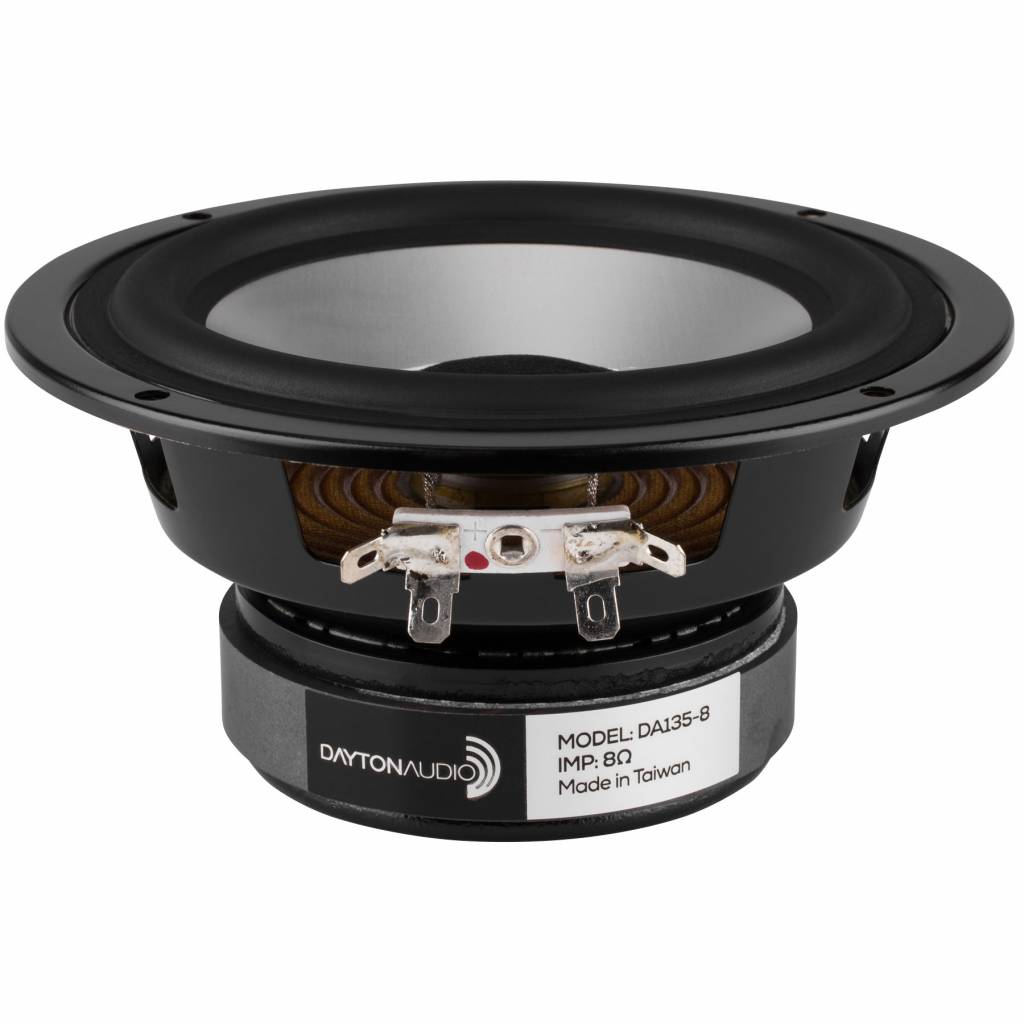

Dayton Audio DA135-8 5-1/4" Aluminum Cone Woofer

Name: Dayton Audio DA135-8 5-1/4" Aluminum Cone Woofer
Brand: Dayton Audio
Price: 29.95 EUR
Availability: InStock
Rating: 5 (1 reviews)

Marke: Dayton Audio
Bewertungen: (1) Kundenmeinung hinzufügen
Vergleichen
Vergleichen
Auf den Wunschzettel

Lieferzeit: 1-3 Werktage

Artikelnummer: DA135-8
Vorrat: >10 Auf Lager

5-1/4" aluminum cone woofer with rubber surround, flat spider, and special composite dustcap.

€ 29,95 Inkl. MwSt.

Kaufen Sie 4 für je €28,45 und sparen Sie 5% Sale 5%

Menge Auf den Wunschzettel

Heute verschickt? Du hast noch: 2018/12/25
Gratis DHL-Versand ab 149€ (DE, A) Tooltip
Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen
Versand am selben Tag
45 Tage Bedenkzeit
Zahlung mit Paypal/Kreditkarte

Produktbeschreibung
Eigenschaften
Bewertungen
Data sheet

Dayton Audio DA135-8 5-1/4" Aluminum Cone Woofer

5-1/4" aluminum cone woofer with rubber surround, flat spider, and special composite dustcap.

Highlights

Makes a great studio monitor speaker
Aluminum cone offers a flat frequency response
Cosmetically appealing integrated trim ring
Very low distortion driver

Product details

Dayton Audio DA135-8 5-1/4" Aluminum Cone Woofer

5-1/4" aluminum cone woofer with rubber surround, flat spider, and special composite dustcap. The cosmetic stamped steel frame provides a very high-class and professional look to your next speaker design. The aluminum cone offers a flat frequency response in the passband region with very low distortion.

Spezifikationen für: DA135-8 5-1/4" Aluminum Cone Woofer

Woofer SeriesSpezielle Woofer- Produktionsreihe des Herstellers. Specialty Drivers Series
Woofer TypeArt des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Midwoofer
Nominal DiameterUngefährer Durchmesser des Drivers, gemessen in Inch. 5.25"
Power Handling (RMS)Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 30 watts
Power Handling (max)Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 60 watts
View all specifications
Continuous Program Power
Impedance 8 ohms
Sensitivity 85 dB @ 1W/1m
Frequency Response 50 - 15,000 Hz
Voice Coil Diameter 25 mm
Magnet Weight
DC Resistance (Re) 6.4 ohms
Voice Coil Inductance (Le) 0.97 mH
Resonant Frequency (Fs) 56.5 Hz
Mechanical Q (Qms) 2.61
Electromagnetic Q (Qes) 0.68
Total Q (Qts) 0.54
Diaphragm Mass Inc. Airload (Mms) 8.54g
Moving Mass Of Diaphragm (Mmd)
Mechanical Compliance of Suspension (Cms) 0.93 mm/N
Surface Area of Cone (Sd) 75.4 cm²
Volume of Displacement (Vd) 22.6 cm³
BL Product (BL) 5.32 Tm
Compliance Equivalent Volume (Vas) 7.4 liters
Maximum Linear Excursion (Xmax) 3.0 mm
Driver's Mechanical Losses (Rms)
Cone / Diaphragm Material Aluminum Cone
Surround Material Rubber
Voice Coil Wire Material Copper
Voice Coil Former Aluminum
Dual Voice Coil
Basket / Frame Material Steel
Magnet Material Ferrite
Shielded
Overall Outside Diameter 135 mm
Overall Depth 63.1 mm
Baffle Cutout Diameter 111.5 mm
Bolt Circle Diameter
# Mounting Holes 4
Mounting Hole Diameter
Sealed Volume 0.16 ft.³
Sealed F3 89 Hz
Vented Volume 0.47 ft.³
Vented F3 44 Hz

Data sheet

Erfahrungsberichte 5 / 5 Bewertungen: (1)

BB Durch Bart B. an 12-01-2018 21:02

5 / 5

Voldoet aan alle verwachtingen. Bedoeld als vervanging van bestaande Woofer. Specs kwamen nagenoeg overeen. Inbouw verliep perfect en nu weer goed geluid met ook nog een mooi uiterlijk. Top!. Snel en netjes geleverd!
