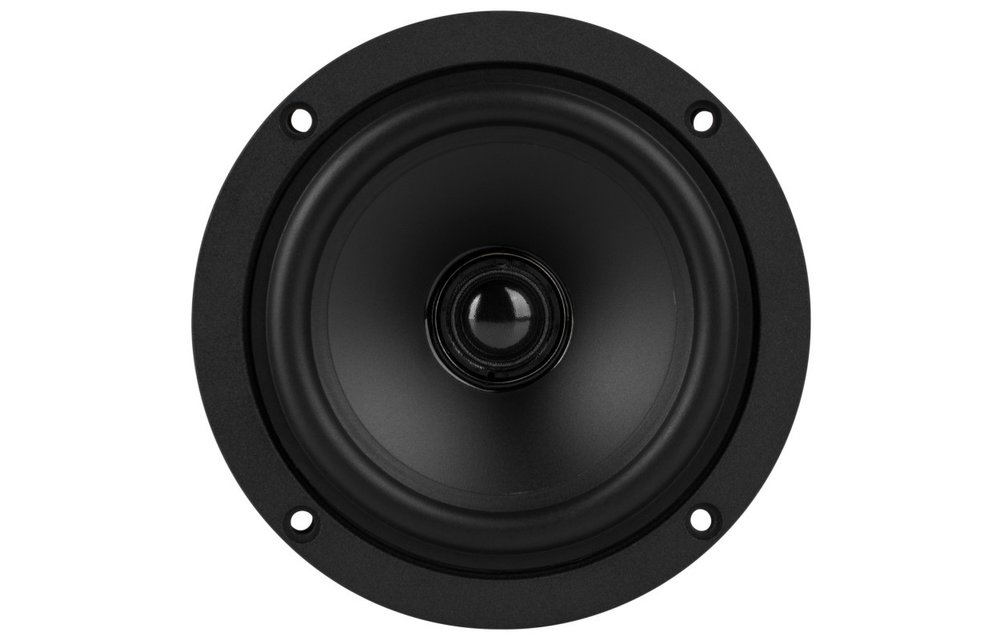

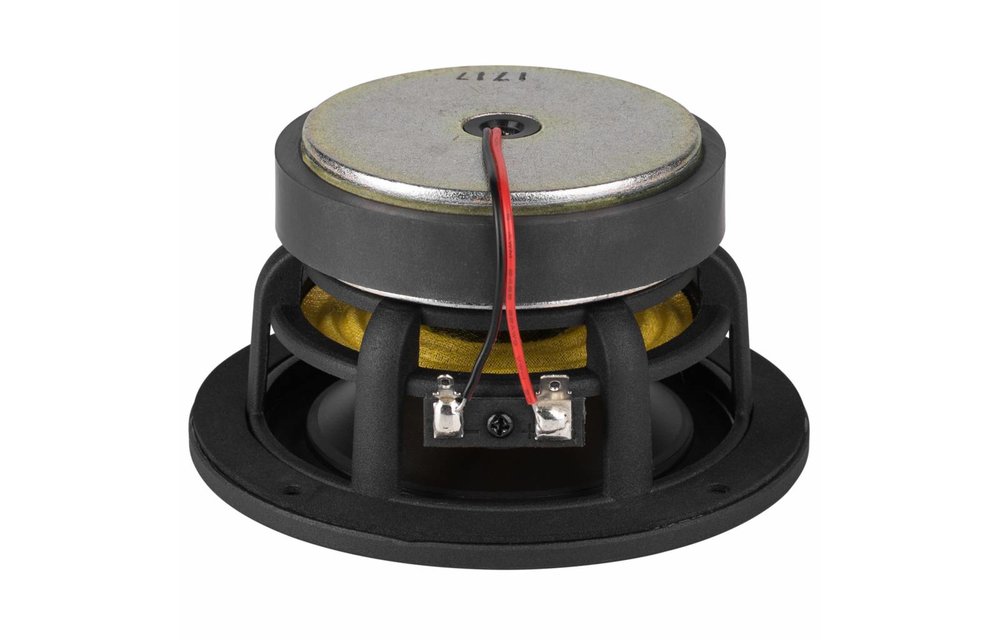

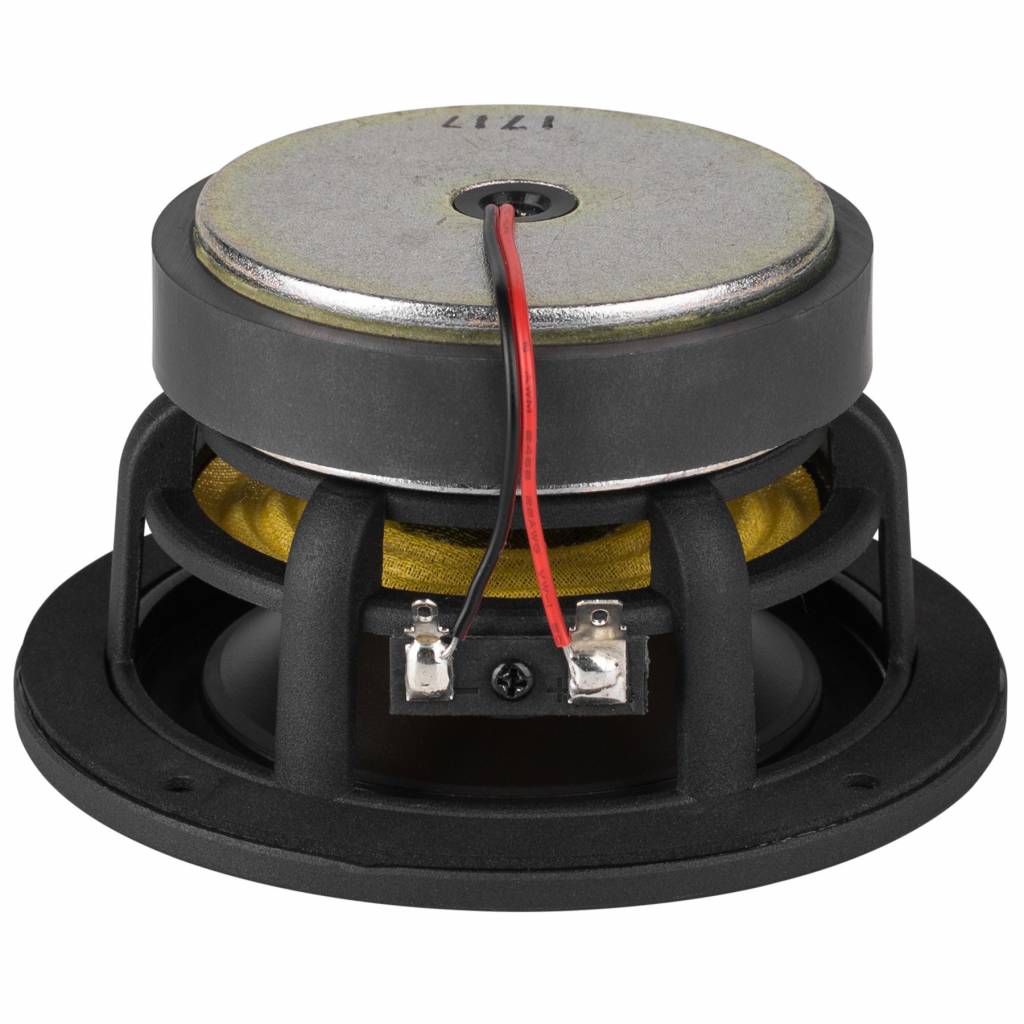

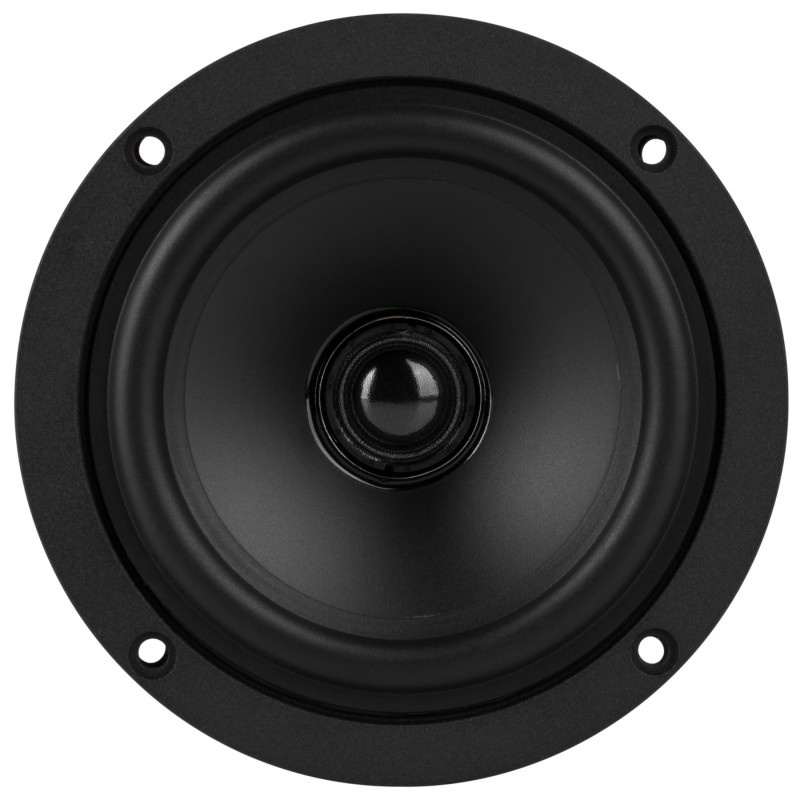

Dayton Audio CX120-8 4" Coaxial Driver with 3/4" Silk Dome Tweeter 8 Ohm

Lieferzeit: 1-3 Werktage

  • Artikelnummer: CX120-8
  • Vorrat: >10 Auf Lager

With a natural sounding 3/4" soft dome tweeter concentrically mounted in a long throw poly cone 4" woofer Dayton Audio's CX120-8 will produce extremely smooth response on and off-axis while avoiding the phase and lobing issues associated with standard 2-w

€ 39,95 Inkl. MwSt.

  • Kaufen Sie 4 für je €37,95 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio CX120-8 4" Coaxial Driver with 3/4" Silk Dome Tweeter 8 Ohm

With a natural sounding 3/4" soft dome tweeter concentrically mounted in a long throw poly cone 4" woofer Dayton Audio's CX120-8 will produce extremely smooth response on and off-axis while avoiding the phase and lobing issues associated with standard 2-way designs. This driver is perfect for compact designs, portable speakers, or even custom car audio systems.



Highlights

  • Full-range with accurate bass and extended high frequency response
  • Coaxial mounted 3/4" silk dome tweeter
  • Open cast frame for improved air flow and minimal power compression
  • 4" curvilinear poly cone woofer with rubber half roll surround



Product details

Dayton Audio CX120-8 4" Coaxial Driver with 3/4" Silk Dome Tweeter 8 Ohm



The Dayton Audio CX120-8 is a full-range coaxial loudspeaker providing high quality sound in a very compact format featuring a 4" curved linear poly cone woofer mated with a 3/4" silk dome tweeter. The poly cone woofer provides a good balance between stiffness, low mass and damping making for a very natural sounding driver with a smooth frequency response. The silk dome tweeter provides detailed and clear high frequencies with minimal distortion. In addition, the optimized tweeter placement and flaring reduces the phase issues with the woofer that is commonplace with even the BIG brand coaxes. Designed for use as a full-range in a small bookshelf speaker, an extended range (i.e. midrange/tweeter) driver in a 3-way system, or even car audio systems.



4" Woofer:

  • 1" voice coil wound on an aluminum former for high power handling
  • Curved linear shaped poly cone provides a good balance between stiffness, low mass and damping making for a natural sounding driver with a smooth frequency response
  • Optimized rubber surround for reduced break up in the midrange band
  • Attractive rigid open cast frame cast frame to minimize reflections, resonances and improve air flow
  • High energy ceramic magnet for greater cone control and improved efficiency



Specifications: • Power handling: 40 watts RMS/80 watts max • VCdia: 1" • Le: 0.62 mH • Impedance: 8 ohms • Re: 6.2 ohms • Frequency response: 90-5,500 Hz • Fs: 87.5 Hz • SPL: 88.5 dB 2.83V/1m • Vas: 0.10 cu. ft. (2.99 liters) • Qms: 2.89 • Qes: 0.57 • Qts: 0.48 • Xmax: 3.0 mm • Dimensions: Overall diameter: 4-3/4", Cutout diameter: 3-7/8", Depth: 2".



3/4" Tweeter:

  • Silk dome provides detail and clarity of high frequencies
  • Coaxially mounted to pole piece of woofer cone
  • Optimized placement and trimmed flaring to reduce phase issue interaction with woofer
  • Strong neodymium magnet
  • Trimmed flared throat to minimize phase issues causing suck-out with woofer
  • High pass filter required (not included)



Specifications: Power handling: 20 watts RMS/40 watts max • VCdia: 3/4" • Le: 0.04 mH @ 10 kHz • Impedance: 8 ohms • Re: 5.6 ohms • Frequency response: 4,500-20,000 Hz • Fs: 2745 Hz • SPL: 89.2 dB 2.83V/1m • Qms: 2.20 • Qes: 7.91 • Qts: 1.72.

Eigenschaften

Spezifikationen für: CX120-8 4" Coaxial Driver with 3/4" Silk Dome Tweeter 8 Ohm

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers. Coaxial
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Coaxial
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 4"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 40 watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 80 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 88.5 dB 2.83V/1m
  • Frequency Response 90 to 20,000 Hz
  • Voice Coil Diameter 1"
  • Magnet Weight
  • DC Resistance (Re) 6.22 ohms
  • Voice Coil Inductance (Le) 0.63 mH
  • Resonant Frequency (Fs) 87.5 Hz
  • Mechanical Q (Qms) 2.89
  • Electromagnetic Q (Qes) 0.57
  • Total Q (Qts) 0.48
  • Diaphragm Mass Inc. Airload (Mms) 4.82g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.765 mm/N
  • Surface Area of Cone (Sd) 52.51 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 5.08 Tm
  • Compliance Equivalent Volume (Vas) 3.0 liters
  • Maximum Linear Excursion (Xmax) 3.0 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Polypropylene
  • Surround Material Rubber
  • Voice Coil Wire Material CCA
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Cast Aluminum
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 4.75"
  • Overall Depth 3.875"
  • Baffle Cutout Diameter 4.313"
  • Bolt Circle Diameter
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume 0.046 ft.³
  • Sealed F3 156 Hz
  • Vented Volume 0.147 ft.³
  • Vented F3 80 Hz

Documenten

Bewertungen

Erfahrungsberichte 5 / 5 Bewertungen: (4)

  • JG Durch Johan Gustafsson an 31-07-2020 16:53

    5 / 5

    very detailed sound from this speaker even at loud volumes. Was surprised by the clarity. Suitable for small to medium size speakers and does exceptionally well in portable projects since it eliminates the need for a midrange woofer and tweeter. So basically less components and no crossover needed. Only bad thing is that it isn’t available as a 4 ohm version.

  • JM Durch Johannes M. an 25-04-2020 11:09

    5 / 5

    Es wurde keine Beschreibung gegeben.

  • LS Durch Luboš S. an 03-01-2019 18:19

    5 / 5

    No description was given

  • PU Durch Post u. an 25-04-2018 14:30

    5 / 5

    Great price/quality, Highly Recommanded
