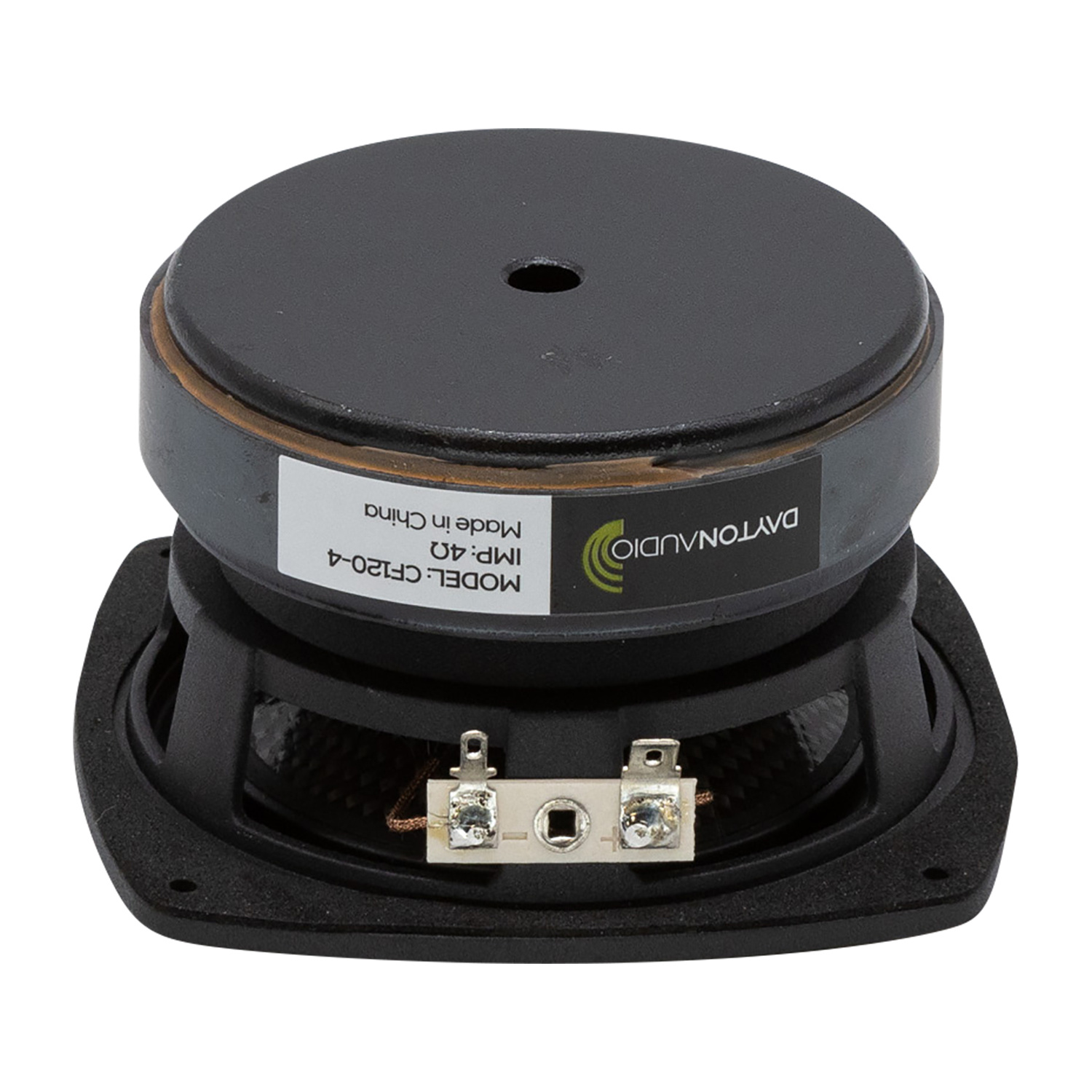

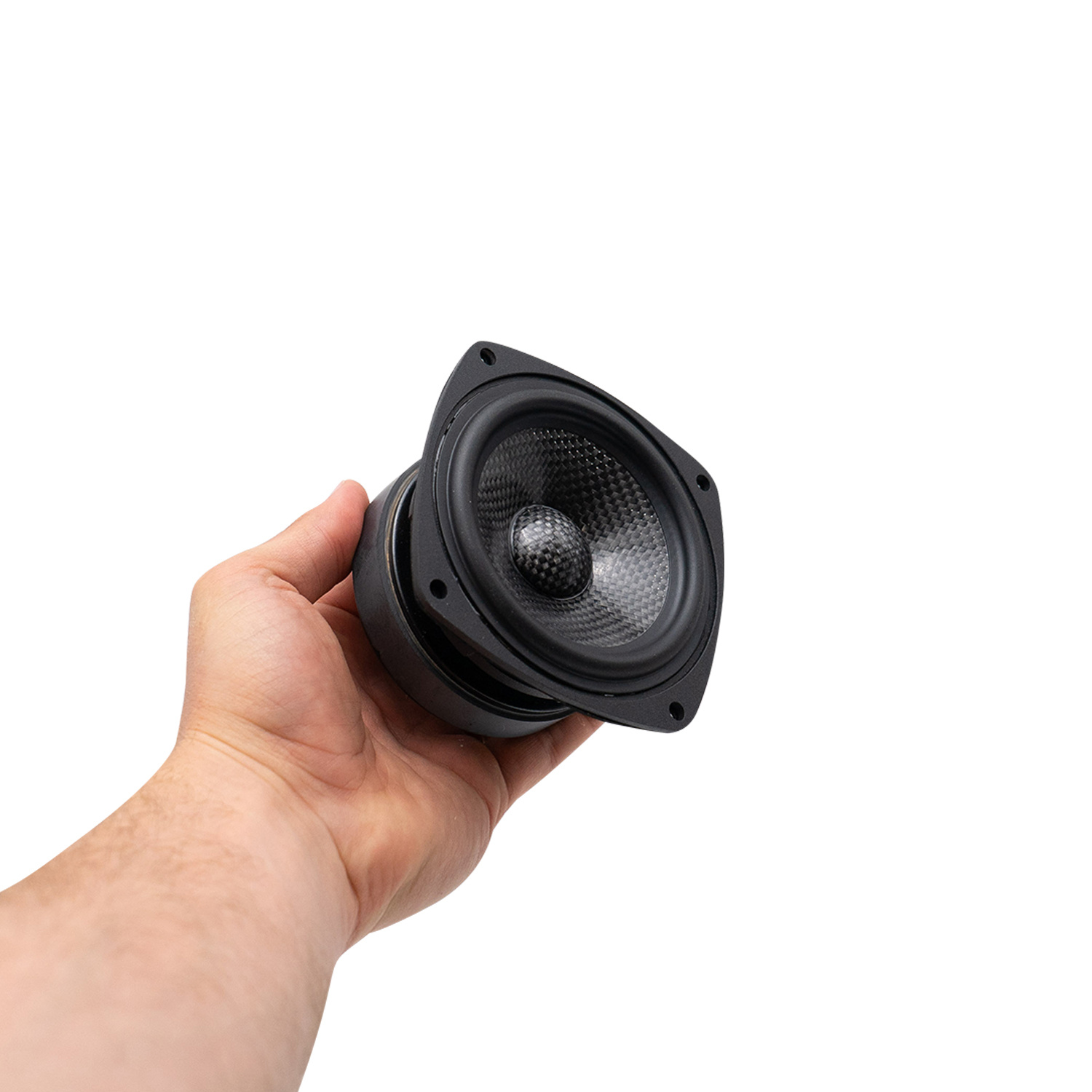

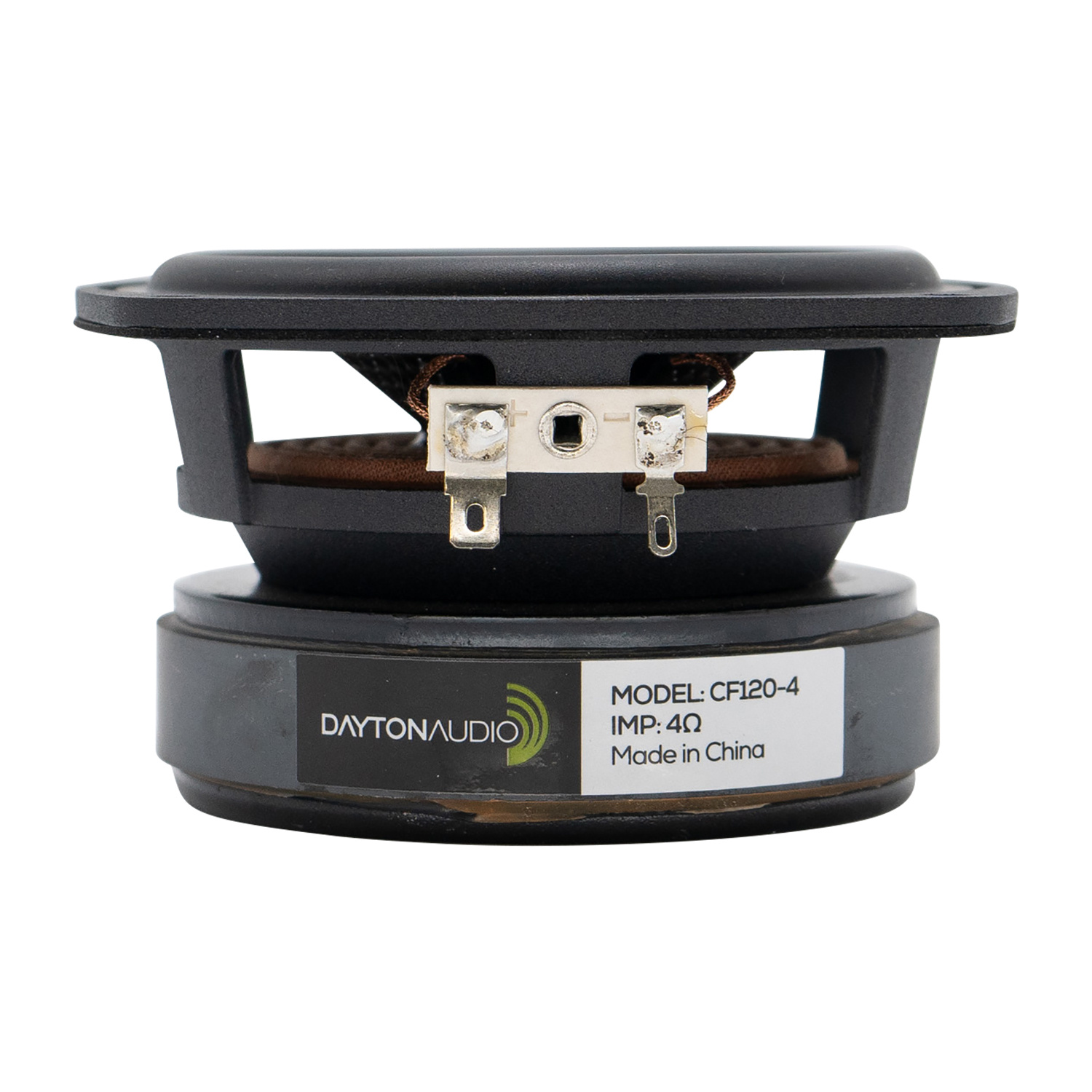

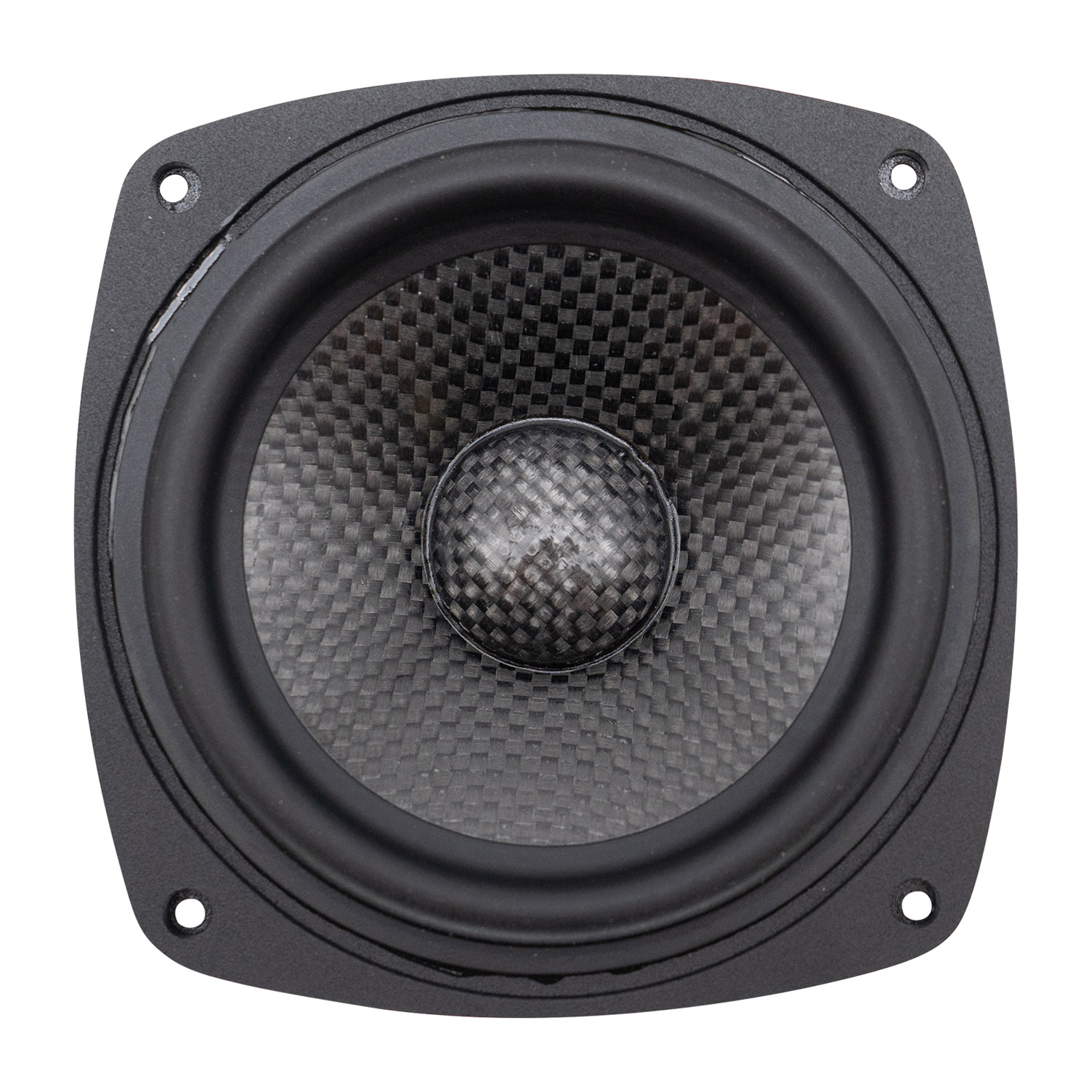

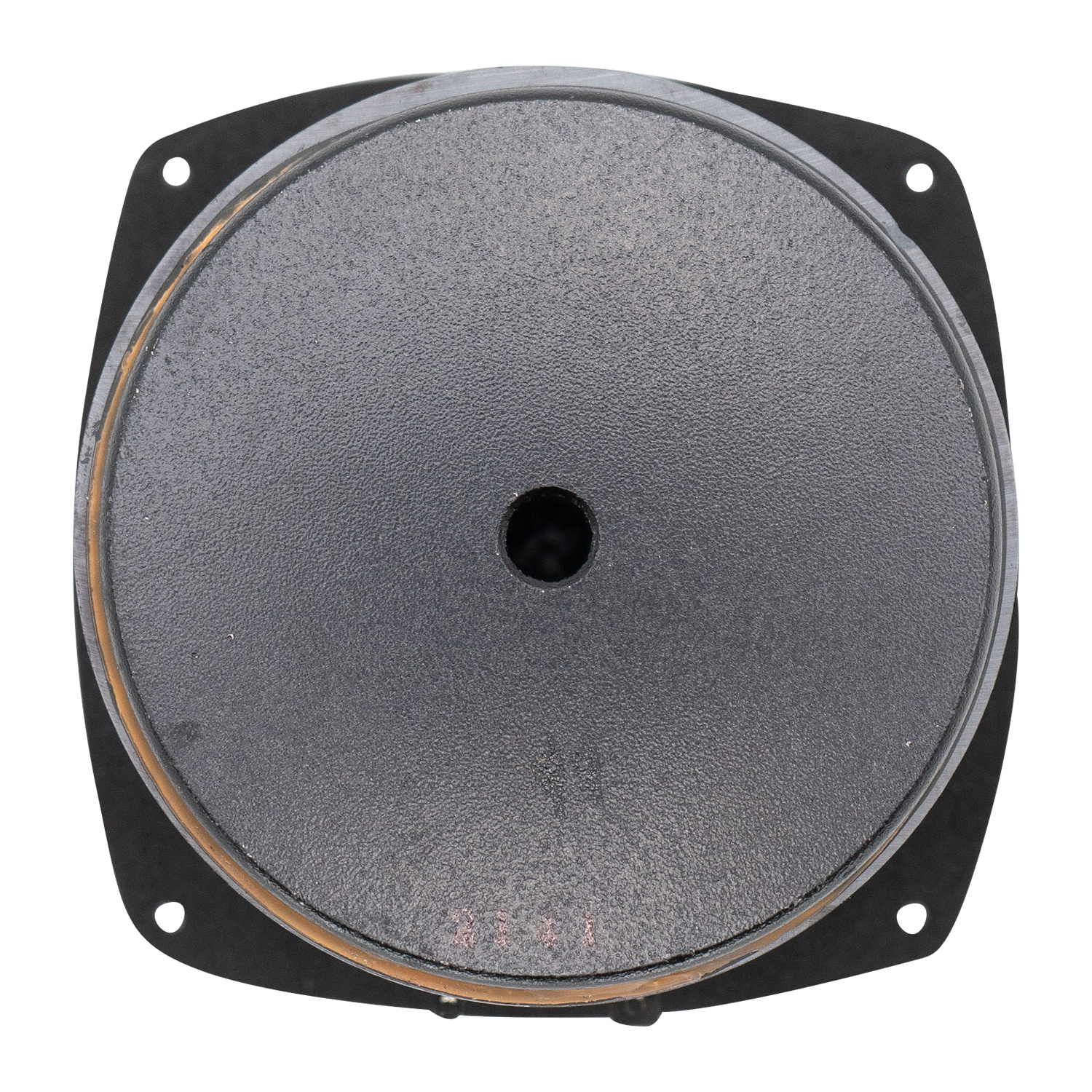

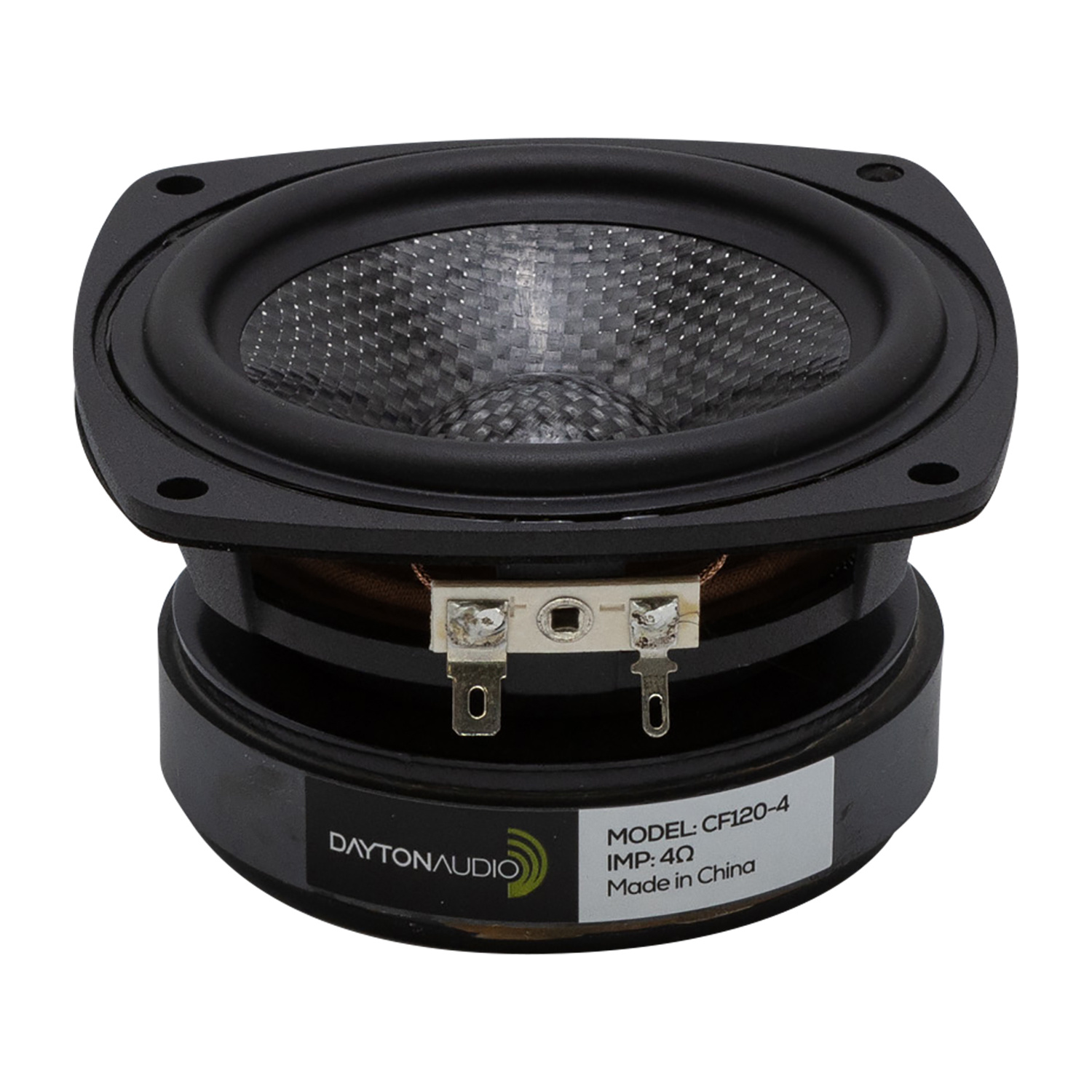

Dayton Audio CF120-4 4-1/2" Woven Carbon Fiber Midwoofer 4 Ohms

Lieferzeit: 1-3 Werktage

  • Artikelnummer: CF120-4
  • Vorrat: >10 Auf Lager

Dayton Audio's CF120-4 4-1/2" midwoofer utilizes a high-tech carbon fiber cone to create its own perfect combination of visual aesthetics and uncompromising audio performance.

€ 40,95 Inkl. MwSt.

  • 4 für je €38,90 kaufen und 5% sparen Sale 5%

Zur Wunschliste hinzufügen

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte


Dayton Audio CF120-4 4-1/2" Woven Carbon Fiber Midwoofer 4 Ohms

Dayton Audio's CF120-4 4-1/2" midwoofer utilizes a high-tech carbon fiber cone to create its own perfect combination of visual aesthetics and uncompromising audio performance.



  • Pincushion cast aluminum frame
  • Ultra-light and stiff woven carbon fiber cone
  • Copper cap and large magnet provide a low distortion motor structure
  • Durable and potent 1" diameter hi-temp 2-layer voice coil
  • Black anodized aluminum vented former increases heat dissipation and power handling
  • Flat extended frequency response to 15,000 Hz
  • Great for small satellite 2-way, MTM designs, or high-end car audio applications


Product details

Dayton Audio CF120-4 4-1/2" Woven Carbon Fiber Midwoofer 4 Ohms


Take one longing glance at the Dayton Audio CF120-4 4-1/2" midwoofer's carbon fiber cone, cast frame, and large magnet, and you'll realize performance, not cost, was the primary development criteria. Delve further into the product details, and the flat extended frequency response, strong motor, and well-balanced parameters will confirm your thoughts. This beautiful driver looks awesome -- and performs as well as it looks!


Spezifikationen für: CF120-4 4-1/2" Woven Carbon Fiber Midwoofer 4 Ohms

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers.
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Midwoofer
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 4.50"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 30 watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 60 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 4 ohms
  • Sensitivity 89.1 dB 2.83V/1m
  • Frequency Response 50 - 15,000 Hz
  • Voice Coil Diameter 25.4 mm
  • Magnet Weight
  • DC Resistance (Re) 3.4 ohms
  • Voice Coil Inductance (Le) 0.45 mH @ 1 kHz
  • Resonant Frequency (Fs) 53.2 Hz
  • Mechanical Q (Qms) 1.89
  • Electromagnetic Q (Qes) 0.32
  • Total Q (Qts) 0.28
  • Diaphragm Mass Inc. Airload (Mms) 6.9g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 1.31 mm/N
  • Surface Area of Cone (Sd) 51.5 cm²
  • Volume of Displacement (Vd) 20.6 cm³
  • BL Product (BL) 4.94 Tm
  • Compliance Equivalent Volume (Vas) 4.87 liters
  • Maximum Linear Excursion (Xmax) 3.5 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Carbon Fiber Composite
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Cast Aluminum
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 5" ; A flats 4.5"
  • Overall Depth 2.25"
  • Baffle Cutout Diameter 3.75"
  • Bolt Circle Diameter 4.5625"
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume 0.02 ft.³
  • Sealed F3 153 Hz
  • Vented Volume 0.06 ft.³
  • Vented F3 89 Hz



Erfahrungsberichte 5 / 5 Bewertungen: (2)

  • RM Durch Ricardo M. an 10-12-2020 22:08

    5 / 5

    It has clear sound and a surprisingly deep bass for such a small speaker. The carbon fiber looks beautiful in my red cabinet.
    I’m very pleased with the quality.

  • ML Durch Melb2Kiel an 04-01-2018 11:36

    5 / 5

    Firstly, i want to thank Tom from SoundImports for his fantastic advice and turnaround service during the Christmas season, which ensured i got these midranges ASAP.
    I have some original Def Tech Mythos II , which i have owned since 2002 and use as a front stage accross my HT system. One of the midranges blew and i was not able to source an original replacement.
    Having said that and mindful that the CF 120's are 4 ohm, and not exactly 100% matched in specs, I still decided to pull the trigger and buy 6 to replace all the old drivers with new ones. Now, I drive the Mythos with Denon POA4400 mono blocks... so they are not short of power but I have to admit I always felt they were a little 'hang back' in their presentation, especially when i compare to my Infinity Kappa's in the midrange (which are also rather hungry). Anyway, i started the replacment on the blown unit and simply hooked up the drivers in serial as the internal factory arrangement is parallel. I tested that speaker and immediately could tell a difference in comparison to the other channel with original drivers - and this, without running in. For me, it was clear the soundstage was wider, clearer and more robust. Simple as that. I proceeded to replace the other 4 midranges for the LF and Centre and could not be happier. Not everything went witout a hitch. If anyone wants these for Mythos, they are a facia match but the magnet is slightly larger in circumference to the original which makes it 'sit' about 1-2mm higher into the aluminium back enclosure. This means that the screws attaching the fascia of the speaker to the back enclosure in the middle section are hard to get back in and ever so slighlty not a straight fascia when all screws are in.... this should be sorted by getting slightly longer screws in the same size and potentially putting a gasget around the entire fascia mount to raise it by the required 1-1/2mm. However, in the end this is not a deal breaker. So all i can say is that i am very happy with these little guys given the small amount of choice at this size and, that arranging them in series for 8ohm has actually in my case, improved the Mythos II sonically. I was skeptical before going ahead but have no regrets. Highly recommended.
