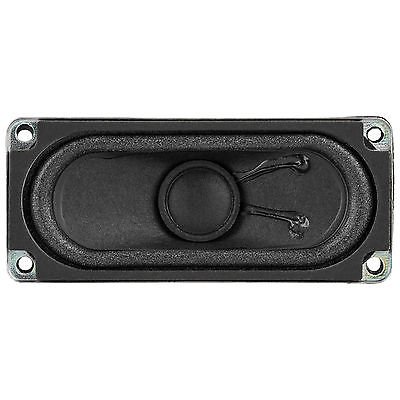

Dayton Audio CE70-30P-8 1-1/4" x 2-3/4" Full Range Driver

Lieferzeit: 1-3 Werktage

  • Artikelnummer: CE70-30P-8
  • Vorrat: 1 Auf Lager

Dayton Audio’s CE70-30P-8 is an economical small full-range driver that features an ultra-narrow racetrack shape, a high-output neodymium motor, a paper cone, a front gasket, and a steel frame. 8 ohm impedance.

€ 5,95 Inkl. MwSt.

  • Kaufen Sie 4 für je €5,65 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio CE70-30P-8 1-1/4" x 2-3/4" Full Range Driver

Dayton Audio’s CE70-30P-8 is an economical small full-range driver that features an ultra-narrow racetrack shape, a high-output neodymium motor, a paper cone, a front gasket, and a steel frame. 8 ohm impedance.



Highlights

  • Paper cone with foam surround for high output
  • Rugged stamped steel frame
  • High-energy neodymium magnet motor



Product details

Dayton Audio CE Series CE70-30P-8 1-1/4" x 2-3/4" Full Range Driver

Dayton Audio is pleased to introduce the new Commercial Engineering (CE) Series of small loudspeaker drivers. Engineers, designers, and integrators will benefit from how effortlessly these speaker components satisfy the diverse demands associated with consumer electronics and audio-enabled projects.

The CE70-30P-8 features a ‘racetrack’ design that maximizes cone area for high output while fitting into narrow spaces. Its high-quality design features a paper cone, foam surround, textile spider, high-performance neodymium motor, and a rectangular steel frame

with mounting lobes for conventional mounting.

Multiple types and styles are available within the CE Series driver family. Each was produced to provide excellent audio quality no matter what the overall system design goals may be, and to suit a wide spectrum of engineering requirements. These versatile yet economical loudspeakers are available in sizes from 28 mm (1-1/8") to 90 mm (3-1/2") in diameter, and with power ratings from 1.5 watts to 5 watts continuous RMS power.

Eigenschaften

Spezifikationen für: CE70-30P-8 1-1/4" x 2-3/4" Full Range Driver

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers. CE Series
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Full-range
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 1" x 2"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 2 Watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 4 Watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 85 dB 2.83V/1m
  • Frequency Response 310 to 20,000 Hz
  • Voice Coil Diameter 0.52"
  • Magnet Weight
  • DC Resistance (Re) 7.2 ohms
  • Voice Coil Inductance (Le) 0.21 mH
  • Resonant Frequency (Fs) 371 Hz
  • Mechanical Q (Qms) 5.65
  • Electromagnetic Q (Qes) 5.67
  • Total Q (Qts) 2.83
  • Diaphragm Mass Inc. Airload (Mms) 0.82g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.32 mm/N
  • Surface Area of Cone (Sd) 11.01 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 1.56 Tm
  • Compliance Equivalent Volume (Vas)
  • Maximum Linear Excursion (Xmax) 0.8 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Paper
  • Surround Material Foam
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material Neodymium
  • Shielded
  • Overall Outside Diameter 1.18" x 2.76"
  • Overall Depth 0.76"
  • Baffle Cutout Diameter 1.00" x 2.52"
  • Bolt Circle Diameter
  • # Mounting Holes
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
