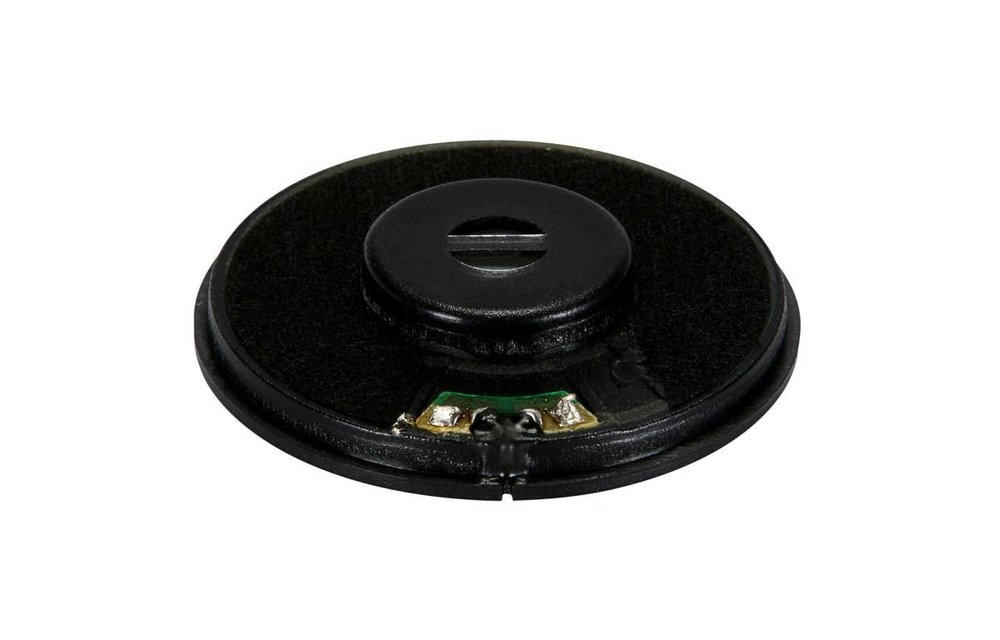

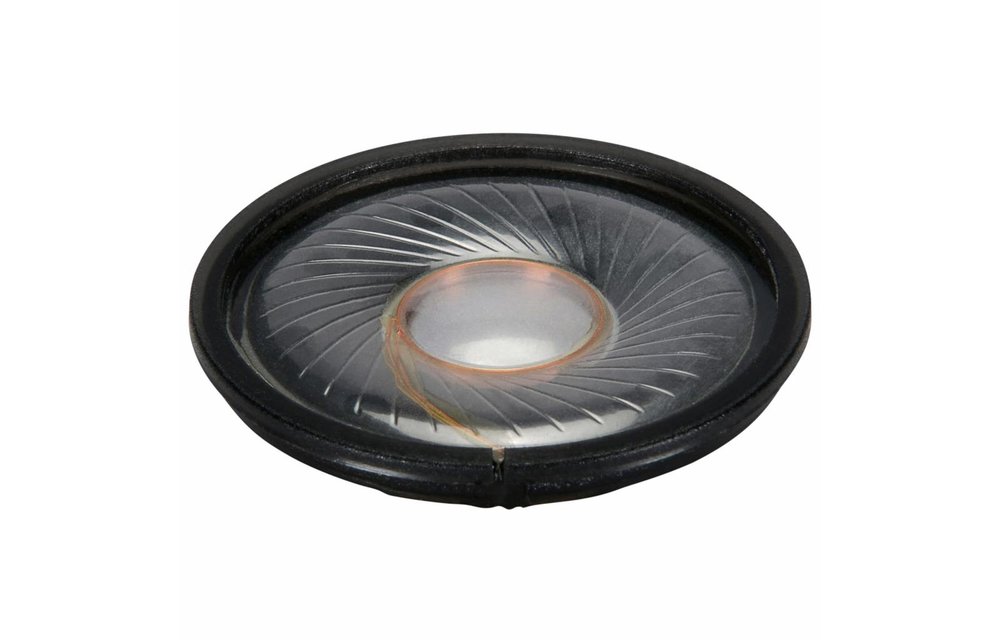

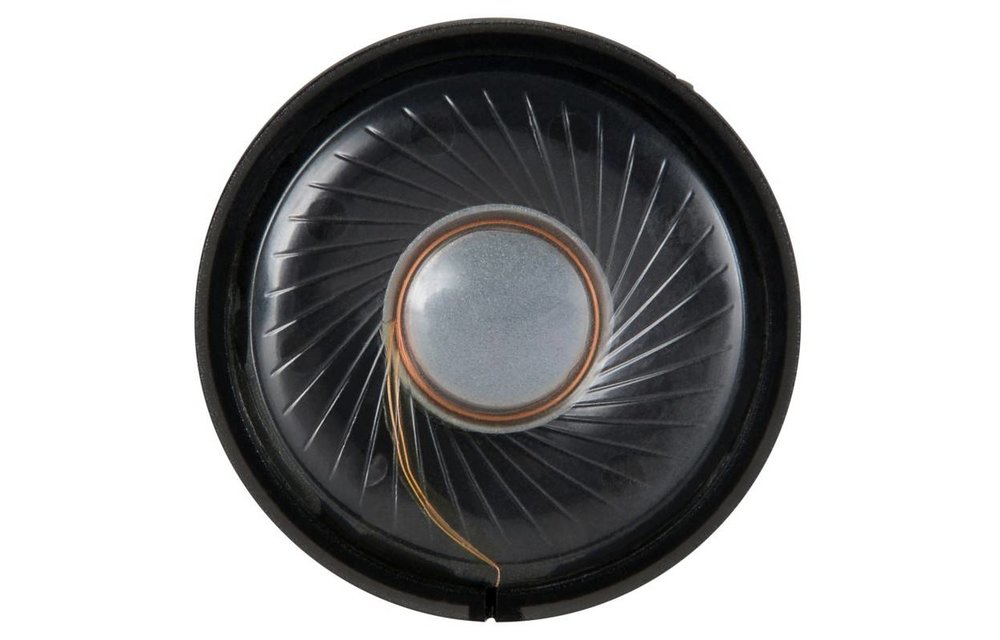

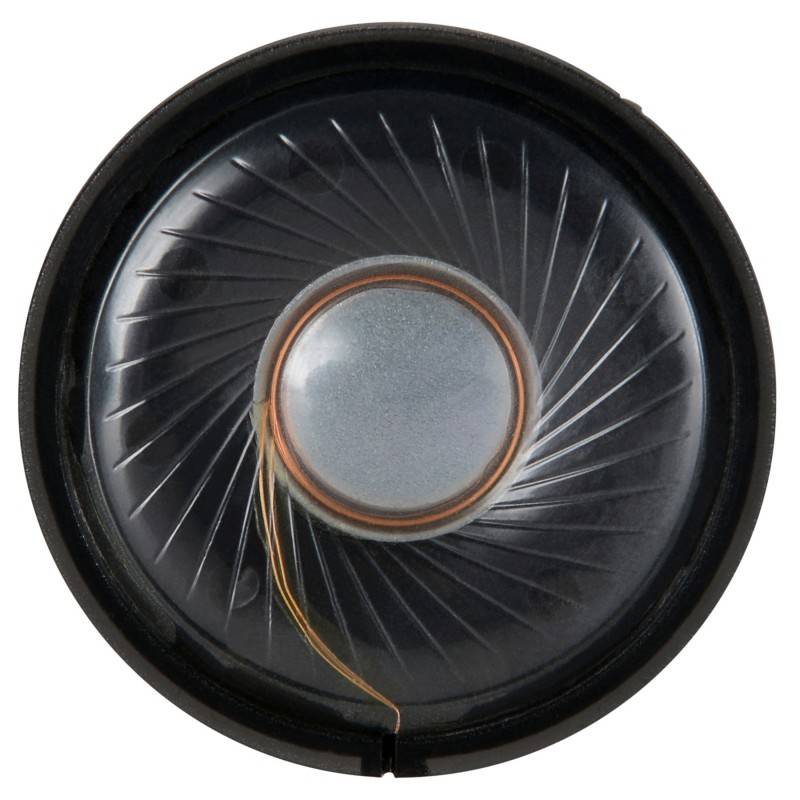

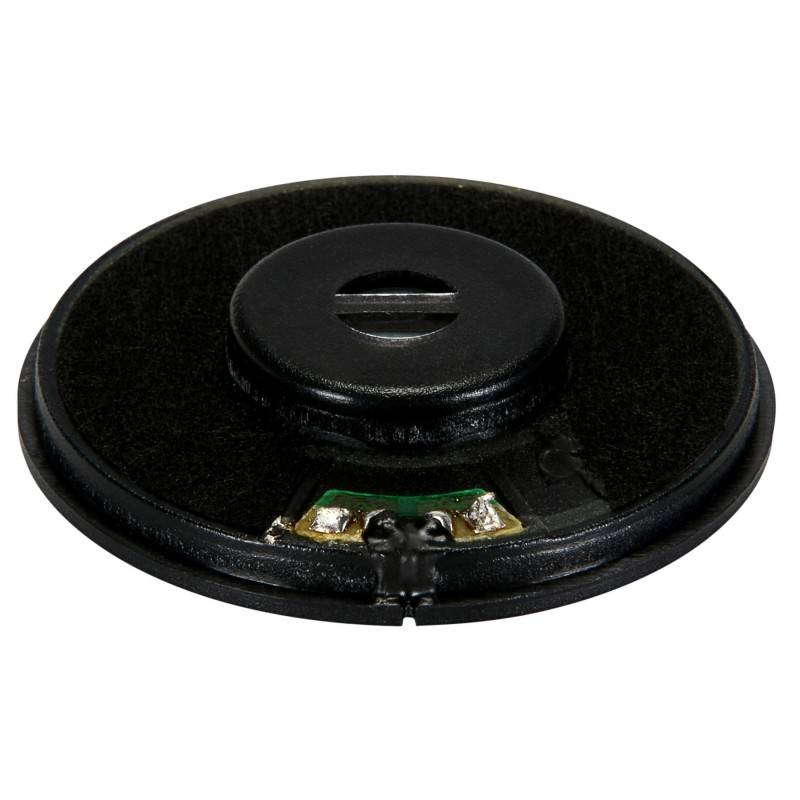

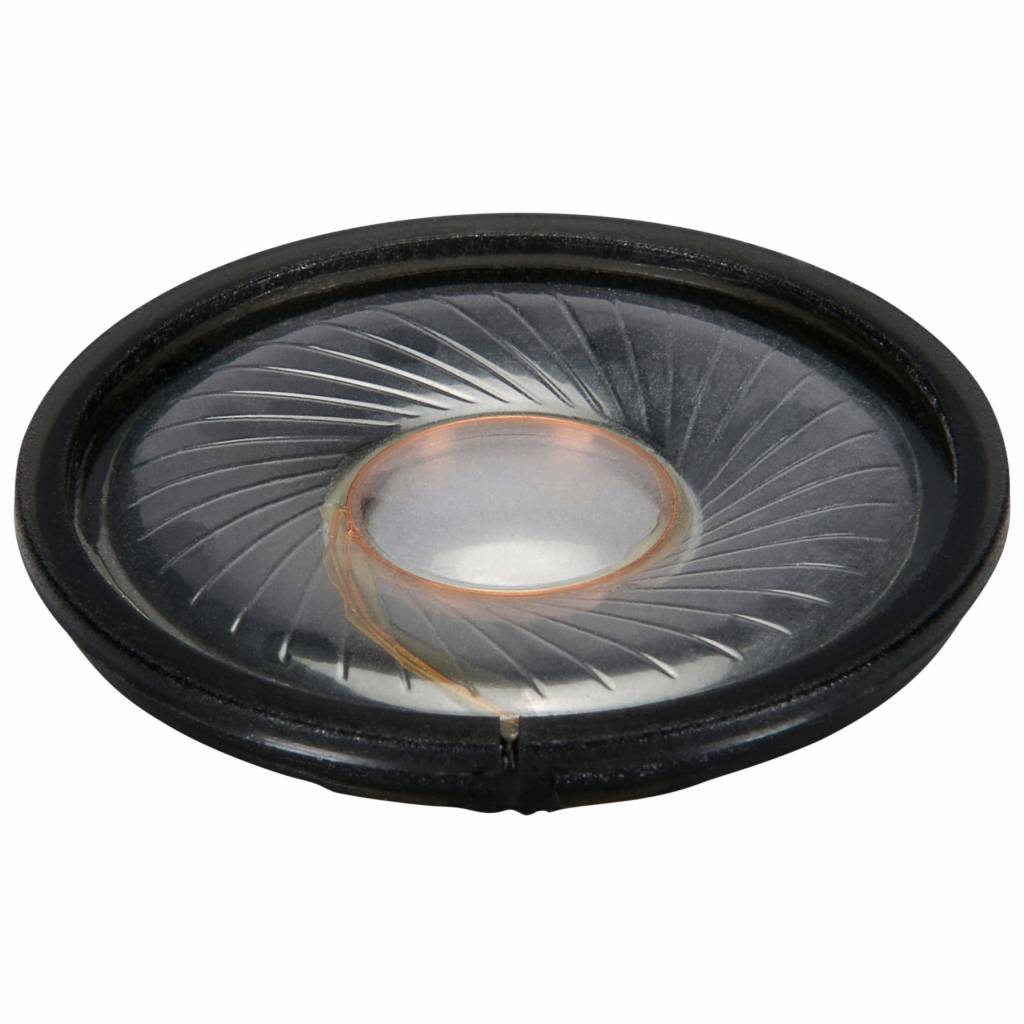

Dayton Audio CE38M-8 1-1/2" Mini Speaker

Lieferzeit: 1-3 Werktage

  • Artikelnummer: CE38M-8
  • Vorrat: 6 Auf Lager

Dayton Audio’s CE38M-8 is a lightweight and versatile mylar-diaphragm mini speaker with a rugged plastic frame and neodymium magnet. It’s a great choice for new design or replacement use in headphones, kiosks, electronic games, or portable electronics.

€ 4,25 Inkl. MwSt.

  • Kaufen Sie 4 für je €4,04 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio CE38M-8 1-1/2" Mini Speaker

Dayton Audio’s CE38M-8 is a lightweight and versatile mylar-diaphragm mini speaker with a rugged plastic frame and neodymium magnet. It’s a great choice for new design or replacement use in headphones, kiosks, electronic games, or portable electronics.



Highlights

  • Lightweight mylar diaphragm
  • Rugged molded plastic frame
  • Powerful neodymium magnet
  • Light weight, low cost



Product details

Dayton Audio CE Series CE38M-8 1-1/2" Mini Speaker 8 Ohm

The Commercial Engineering (CE) Series drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects.

The Dayton Audio CE38M-8 1-1/2” mini speaker features a feather-light and smooth-sounding Mylar diaphragm and a lightweight injection-molded plastic frame, making it great for portable electronics and headphones. The high sensitivity also enables it to be used as a speaker in kiosks, intercoms, displays, or electronic games, and the 8-ohm impedance works with most small audio amplifiers or line-level outputs. The round frame can be press-fit or glued in place.



Note: The Mylar diaphragm is very fragile. To prevent damage, avoid contact with the diaphragm when handling. This driver should be installed behind a grille.

Eigenschaften

Spezifikationen für: CE38M-8 1-1/2" Mini Speaker

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers. CE Series
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Full-range
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 1-1/2"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 0.25 Watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 0.50 Watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 75 dB 2.83V/1m
  • Frequency Response 190 to 20,000 Hz
  • Voice Coil Diameter 0.5"
  • Magnet Weight
  • DC Resistance (Re) 7.72 ohms
  • Voice Coil Inductance (Le) 0.172 mH
  • Resonant Frequency (Fs) 191.8 Hz
  • Mechanical Q (Qms) 1.591
  • Electromagnetic Q (Qes) 4.453
  • Total Q (Qts) 1.172
  • Diaphragm Mass Inc. Airload (Mms) 0.07g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 9.68 mm/N
  • Surface Area of Cone (Sd) 4.9 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 0.39 Tm
  • Compliance Equivalent Volume (Vas)
  • Maximum Linear Excursion (Xmax) 0.1 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Poly / Mylar Diaphragm
  • Surround Material
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material Neodymium
  • Shielded
  • Overall Outside Diameter 1.65"
  • Overall Depth 0.3"
  • Baffle Cutout Diameter 1.45"
  • Bolt Circle Diameter
  • # Mounting Holes
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
