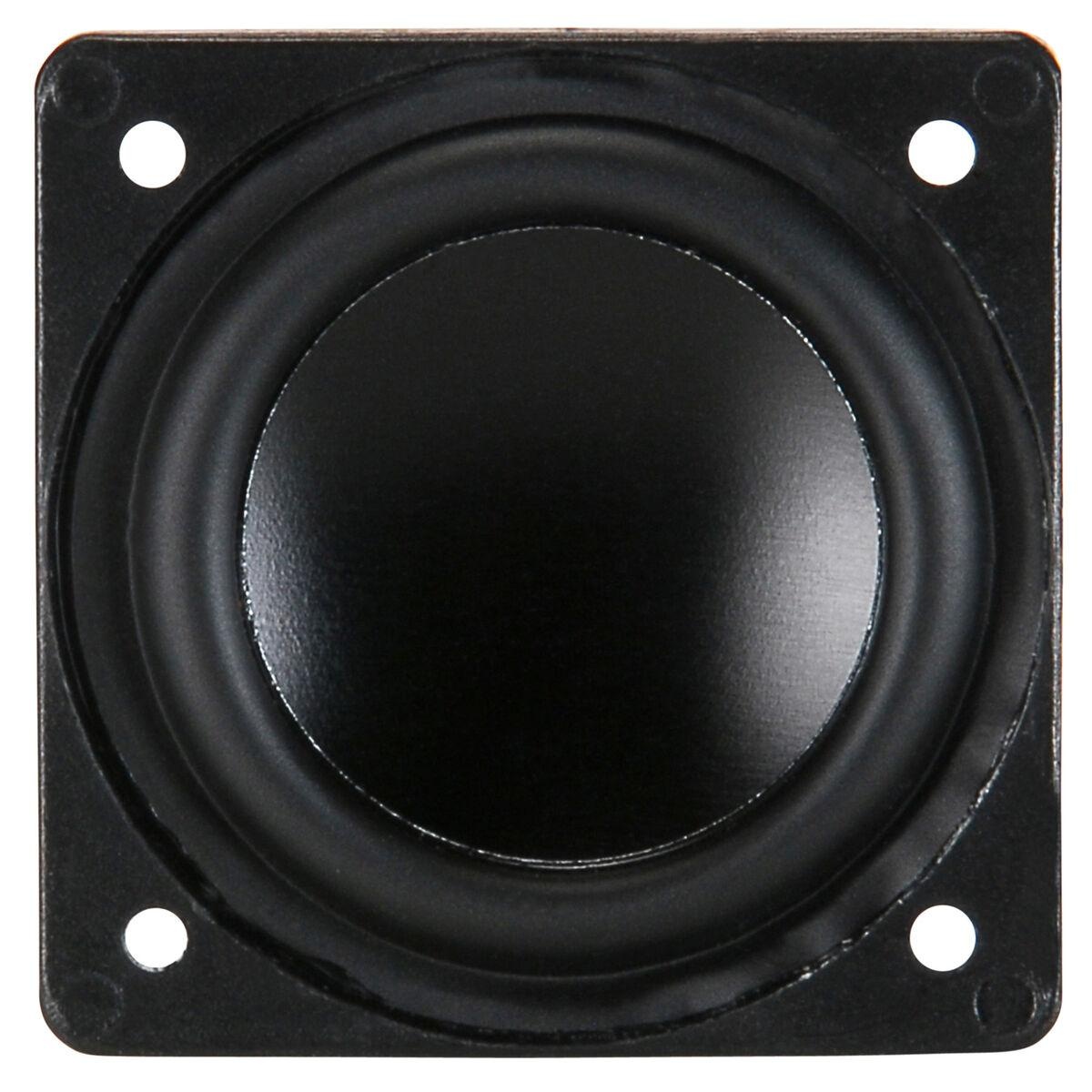

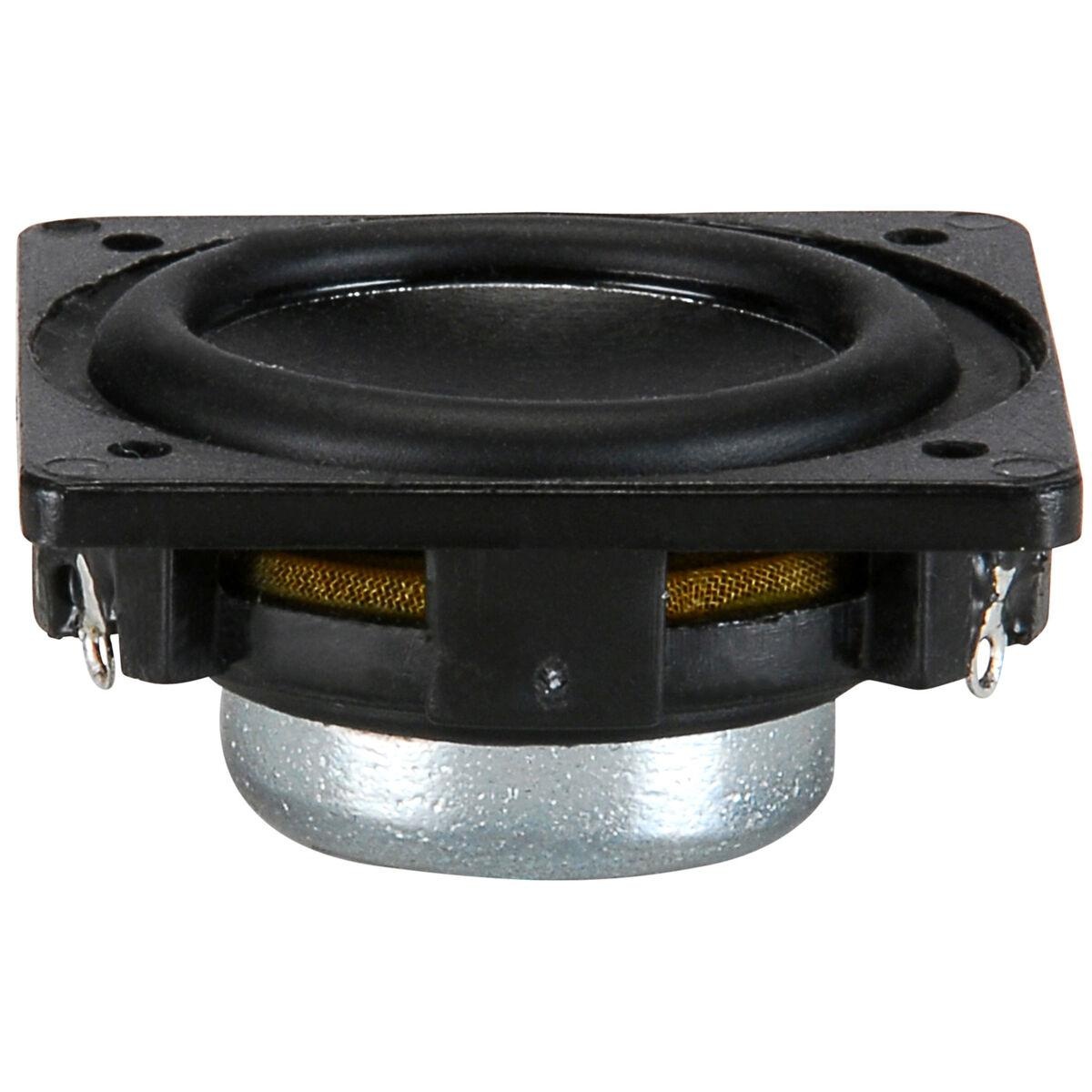

Dayton Audio CE32A-4 1-1/4" Mini Speaker

Lieferzeit: 1-3 Werktage

  • Artikelnummer: CE32A-4
  • Vorrat: >10 Auf Lager

Great-looking and great-sounding, the CE32A-4 miniature speaker driver from Dayton Audio has the goods in a surprisingly small package. Its high-quality design has big-speaker features like an elegant black-anodized aluminum cone, rubber surround, and a n

€ 4,95 Inkl. MwSt.

  • Kaufen Sie 4 für je €4,70 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio CE32A-4 1-1/4" Mini Speaker

Great-looking and great-sounding, the CE32A-4 miniature speaker driver from Dayton Audio has the goods in a surprisingly small package. Its high-quality design has big-speaker features like an elegant black-anodized aluminum cone, rubber surround, and a neodymium motor. 4 ohm impedance.



Highlights

  • Black anodized aluminum inverted dome diaphragm
  • Rubber surround and cloth spider for low distortion
  • High-energy double neodymium magnet motor



Product details

Dayton Audio CE Series CE32A-4 1-1/4" Mini Speaker 4 Ohm

Dayton Audio is pleased to introduce the new Commercial Engineering (CE) Series of small loudspeaker drivers. Engineers, designers, and integrators will benefit from how effortlessly these speaker components satisfy the diverse demands associated with consumer electronics and audio-enabled projects.

The CE32A-4 provides features you’d expect from a much larger driver, in a size that’s perfect for miniature applications that require wide dispersion and rich, natural sound. Its high-quality design features an elegant black-anodized concave aluminum diaphragm, rubber surround, textile spider, high-output neodymium motor, and a square injection-molded frame drilled for conventional mounting.



Multiple types and styles are available within the Dayton Audio CE Series driver family. Each was produced to provide excellent audio quality no matter what the overall system design goals may be, and to suit a wide spectrum of engineering requirements. These versatile yet economical loudspeakers are available in sizes from 28 mm (1-1/8") to 90 mm (3-1/2") in diameter, and with power ratings from 1.5 watts to 5 watts continuous RMS power.

Eigenschaften

Spezifikationen für: CE32A-4 1-1/4" Mini Speaker

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers.
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 1"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 2 Watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 4 Watts
  • View all specifications
  • Continuous Program Power
  • Impedance 4 ohms
  • Sensitivity 81 dB 2.83V/1m
  • Frequency Response 240 to 20,000 Hz
  • Voice Coil Diameter 0.5"
  • Magnet Weight
  • DC Resistance (Re) 3.6 ohms
  • Voice Coil Inductance (Le) 0.15 mH
  • Resonant Frequency (Fs) 262 Hz
  • Mechanical Q (Qms) 2.86
  • Electromagnetic Q (Qes) 1.24
  • Total Q (Qts) 0.86
  • Diaphragm Mass Inc. Airload (Mms) 0.52g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.69 mm/N
  • Surface Area of Cone (Sd) 3.92 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 1.59 Tm
  • Compliance Equivalent Volume (Vas) 0.00052 ft.³
  • Maximum Linear Excursion (Xmax) 0.5 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Aluminum
  • Surround Material Rubber
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material Neodymium
  • Shielded
  • Overall Outside Diameter 1.26"
  • Overall Depth 0.57"
  • Baffle Cutout Diameter 1.24"
  • Bolt Circle Diameter
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume 0.000799 ft.³
  • Sealed F3 280.1 Hz
  • Vented Volume 0.00233 ft.³
  • Vented F3 134.3 Hz
