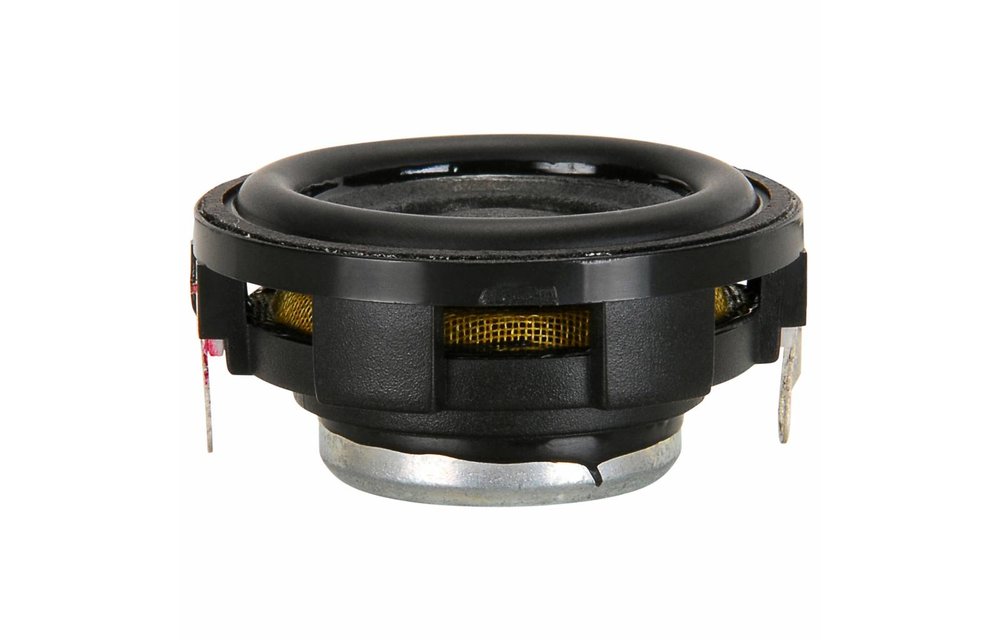

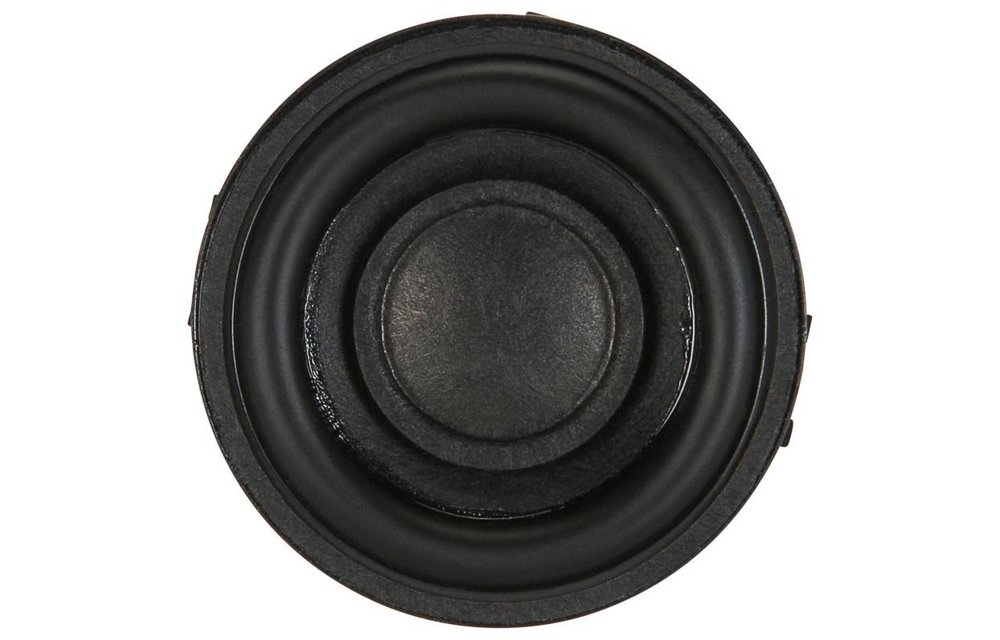

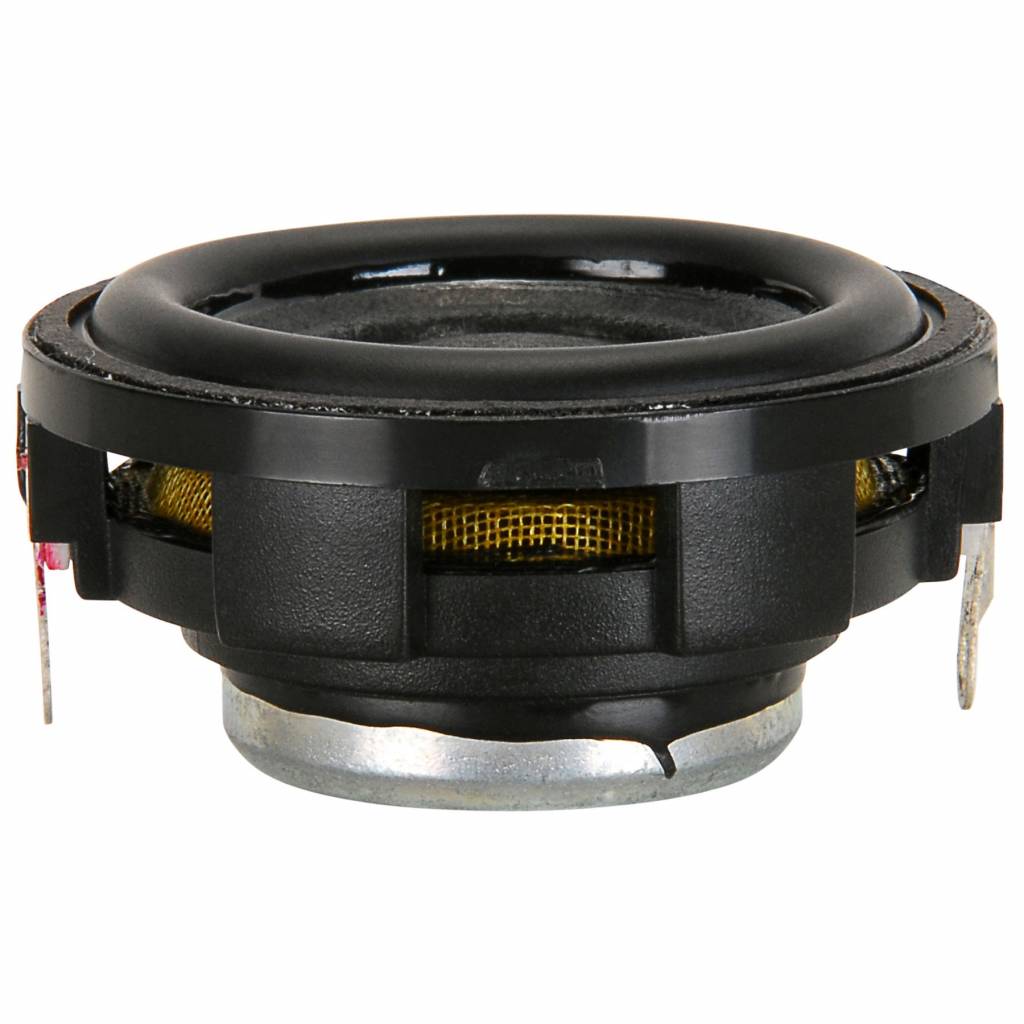

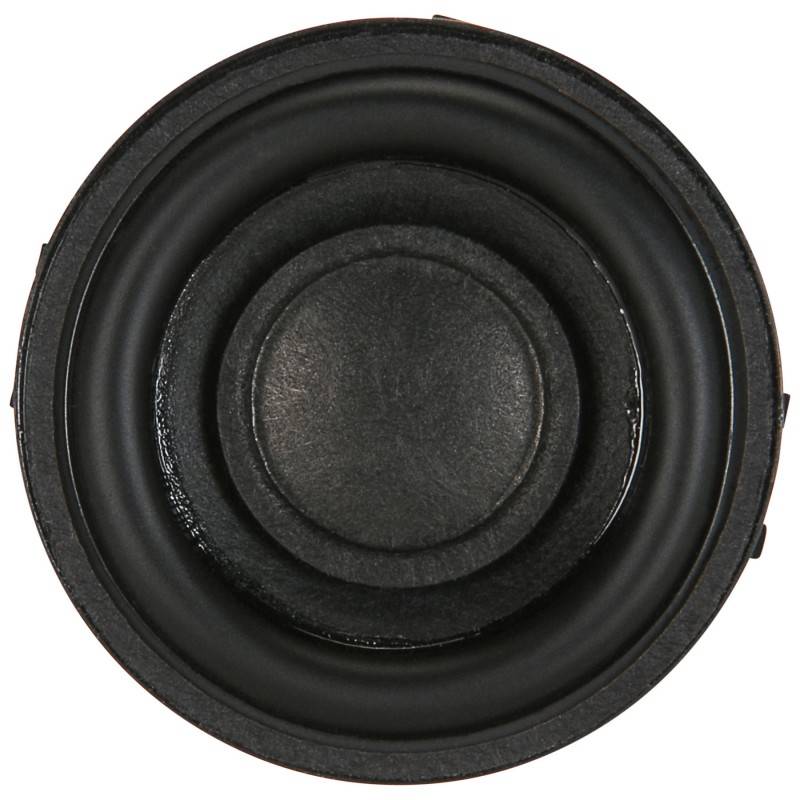

Dayton Audio CE30P-4 1-1/4" Mini Speaker

Momentan nicht vorrätig. Lieferzeit beträgt 1 Woche

  • Artikelnummer: CE30P-4
  • Nicht auf Lager

The Dayton Audio CE30P-4 features a paper cone, round plastic frame, rubber surround, and powerful neodymium motor structure, for small devices and projects that require big sound from a small driver. 4-ohm impedance.

€ 5,75 Inkl. MwSt.

  • Kaufen Sie 4 für je €5,46 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio CE30P-4 1-1/4" Mini Speaker

The Dayton Audio CE30P-4 features a paper cone, round plastic frame, rubber surround, and powerful neodymium motor structure, for small devices and projects that require big sound from a small driver. 4-ohm impedance.



Highlights

  • Extremely compact size in a press-fit frame
  • Paper cone, rubber surround
  • High-output double neodymium magnet motor



Product details

Dayton Audio CE Series CE30P-4 1-1/4" Mini Speaker

Dayton Audio is pleased to introduce the new Commercial Engineering (CE) Series of small loudspeaker drivers. Engineers, designers, and integrators will benefit from how effortlessly these speaker components satisfy the diverse demands associated with consumer electronics and audio-enabled projects.

The Dayton Audio CE30P-4 provides big-speaker features in an extremely compact unit. It features a paper cone, rubber roll surround, and high-energy double neodymium motor structure, mounted to a robust injection-molded plastic frame that’s perfect for press-fit or glued mounting. Its design makes it perfect for use in multimedia loudspeakers, small docking speakers for portable music players, or compact television frames and sound bars, plus a variety of other applications.

Multiple types and styles are available within the CE Series driver family. Each was produced to provide excellent audio quality no matter what the overall system design goals may be, and to suit a wide spectrum of engineering requirements. These versatile yet economical loudspeakers are available in sizes from 28 mm (1-1/8") to 90 mm (3-1/2") in diameter, and with power ratings from 1.5 watts to 5 watts continuous RMS power.

Eigenschaften

Spezifikationen für: CE30P-4 1-1/4" Mini Speaker

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers. CE series
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Micro speaker
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 1"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 2 Watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 4 Watts
  • View all specifications
  • Continuous Program Power
  • Impedance 4 ohms
  • Sensitivity 81 dB 1W/1m
  • Frequency Response 280 to 14,000 Hz
  • Voice Coil Diameter 0.51"
  • Magnet Weight
  • DC Resistance (Re) 3.4 ohms
  • Voice Coil Inductance (Le) 0.19 mH
  • Resonant Frequency (Fs) 336 Hz
  • Mechanical Q (Qms) 3.62
  • Electromagnetic Q (Qes) 1.03
  • Total Q (Qts) 0.8
  • Diaphragm Mass Inc. Airload (Mms) 0.65g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.34 mm/N
  • Surface Area of Cone (Sd) 4.1 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 2.16 Tm
  • Compliance Equivalent Volume (Vas)
  • Maximum Linear Excursion (Xmax) 0.3 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Paper
  • Surround Material Rubber
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material Neodymium
  • Shielded
  • Overall Outside Diameter 1.25"
  • Overall Depth 0.57"
  • Baffle Cutout Diameter 1.19"
  • Bolt Circle Diameter
  • # Mounting Holes
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
