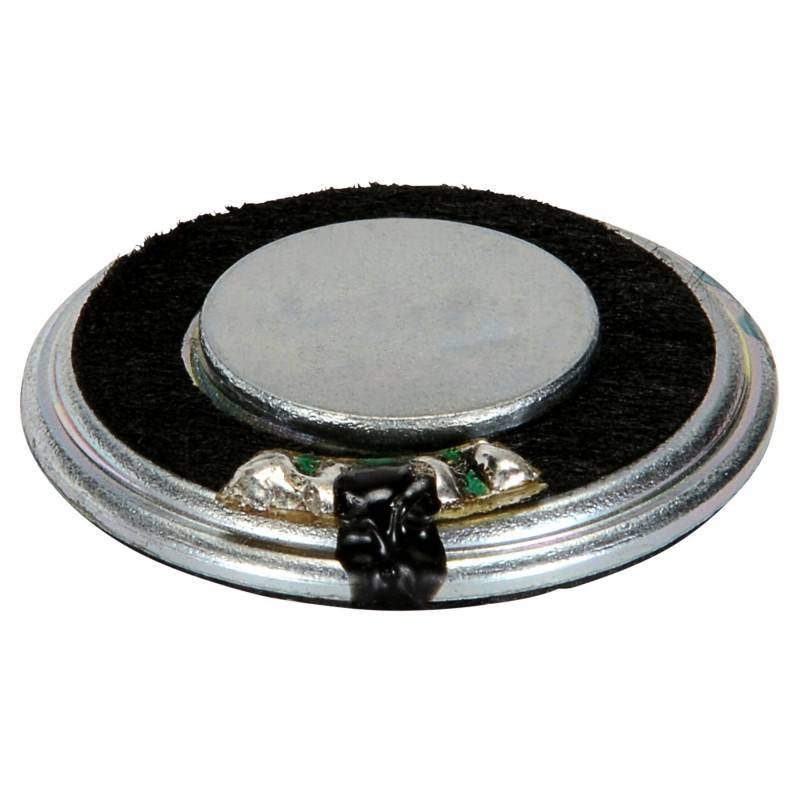

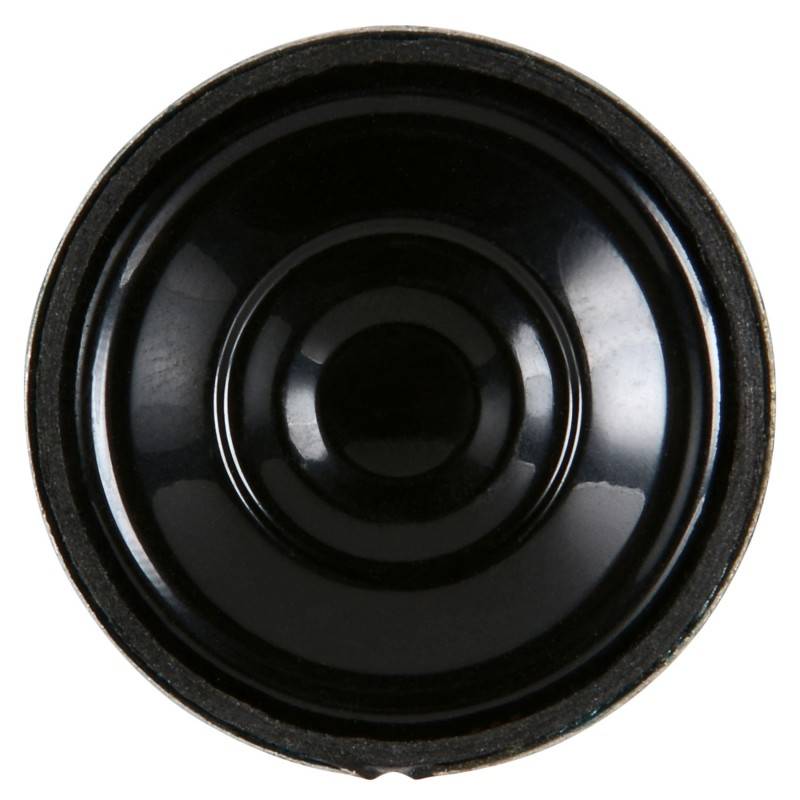

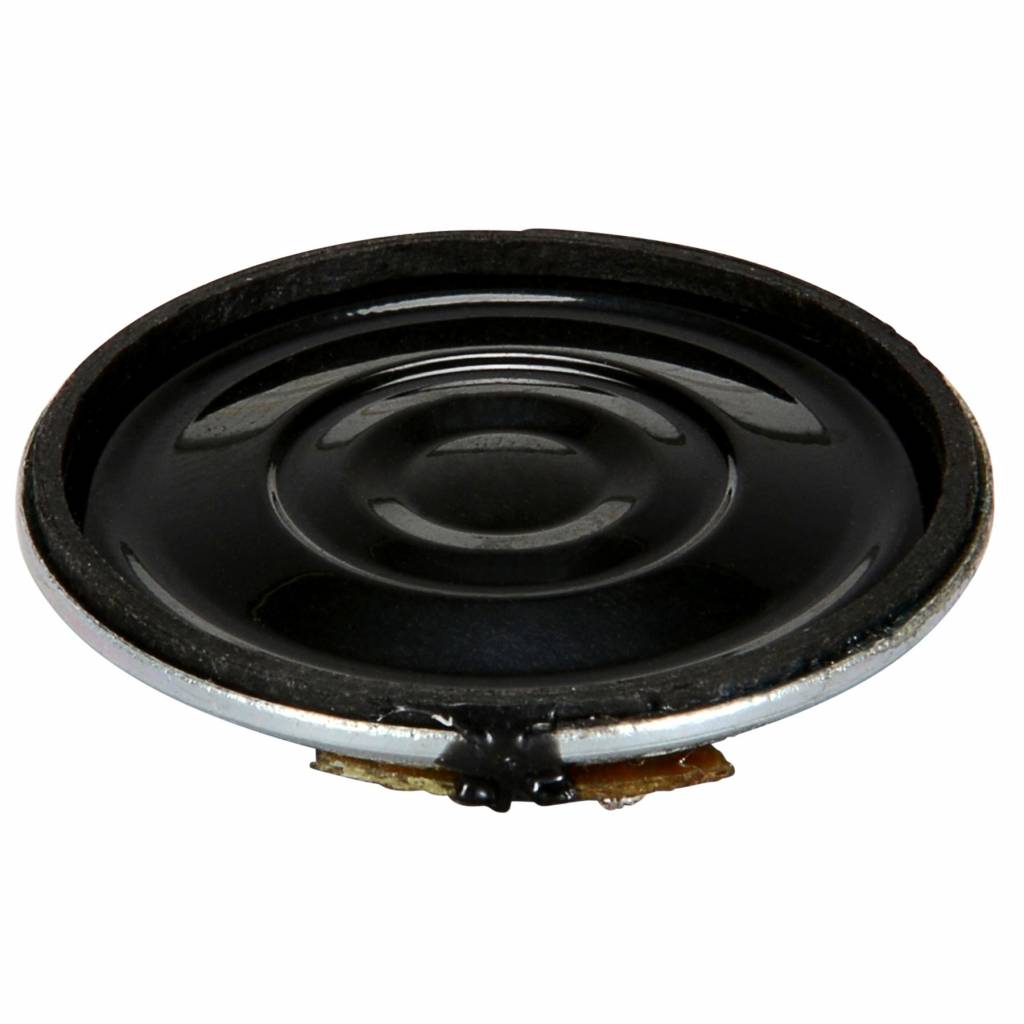

Dayton Audio CE30MB-16A 1-1/4" Mini Speaker

Lieferzeit: 1-3 Werktage

  • Artikelnummer: CE30MB-16A
  • Vorrat: 8 Auf Lager

Dayton Audio’s CE30MB-16A is a low power, high-efficiency buzzer-style mini speaker with a lightweight yet rugged Mylar diaphragm. Excellent for applications where high output is required with minimum drive voltage.

€ 2,95 Inkl. MwSt.

  • Kaufen Sie 4 für je €2,80 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio CE30MB-16A 1-1/4" Mini Speaker

Dayton Audio’s CE30MB-16A is a low power, high-efficiency buzzer-style mini speaker with a lightweight yet rugged Mylar diaphragm. Excellent for applications where high output is required with minimum drive voltage.



Highlights

  • High efficiency buzzer-style design
  • Lightweight mylar diaphragm
  • Rugged steel frame with front gasket
  • Powerful neodymium magnet
  • 16 ohm impedance



Product details

The Commercial Engineering (CE) series of speaker drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects.

The Dayton Audio CE30MB-16A is a compact, high-efficiency “buzzer-style” mini speaker with a lightweight Mylar diaphragm designed for high output. When minimal drive voltage is available, select this driver for rugged, reliable audio. It’s the perfect choice for instrument panels, security control panels, electronic toys, and portable electronics.



Note: The Mylar diaphragm is very fragile. To prevent damage, avoid contact with the diaphragm when handling. This driver should be installed behind a grille.

Eigenschaften

Spezifikationen für: CE30MB-16A 1-1/4" Mini Speaker

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers. CE series
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Micro speaker
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 1-1/4"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 0.5 Watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 1.0 Watts
  • View all specifications
  • Continuous Program Power
  • Impedance 16 ohms
  • Sensitivity 77.1 dB 1W/1m
  • Frequency Response 830 to 5,000 Hz
  • Voice Coil Diameter 0.50"
  • Magnet Weight
  • DC Resistance (Re) 14.4 ohms
  • Voice Coil Inductance (Le) 1.35 mH
  • Resonant Frequency (Fs) 831 Hz
  • Mechanical Q (Qms) 2.42
  • Electromagnetic Q (Qes) 8.71
  • Total Q (Qts) 1.89
  • Diaphragm Mass Inc. Airload (Mms) 0.05g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.70 mm/N
  • Surface Area of Cone (Sd) 4.5 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 0.68 Tm
  • Compliance Equivalent Volume (Vas)
  • Maximum Linear Excursion (Xmax) 0.1 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Poly / Mylar Diaphragm
  • Surround Material
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material Neodymium
  • Shielded
  • Overall Outside Diameter 1.18"
  • Overall Depth 0.19"
  • Baffle Cutout Diameter 1.07"
  • Bolt Circle Diameter
  • # Mounting Holes
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
