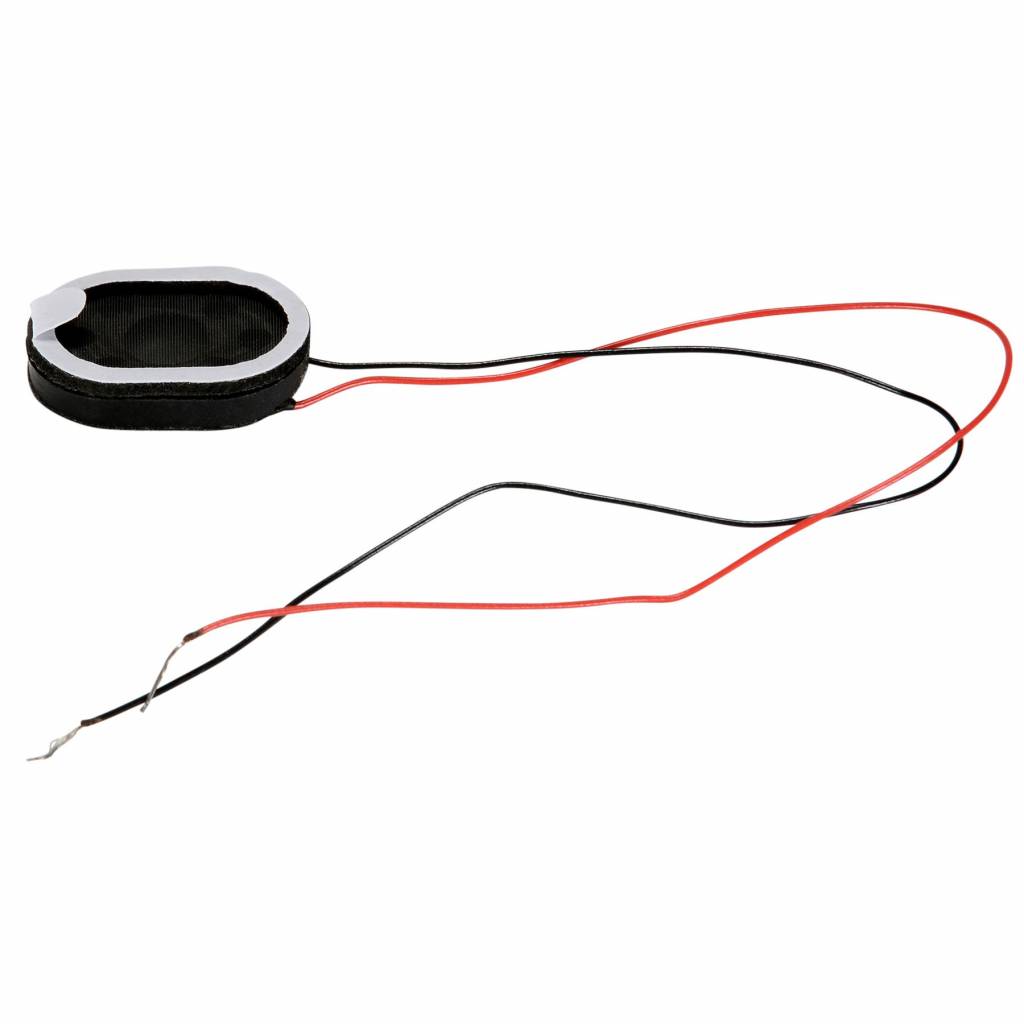

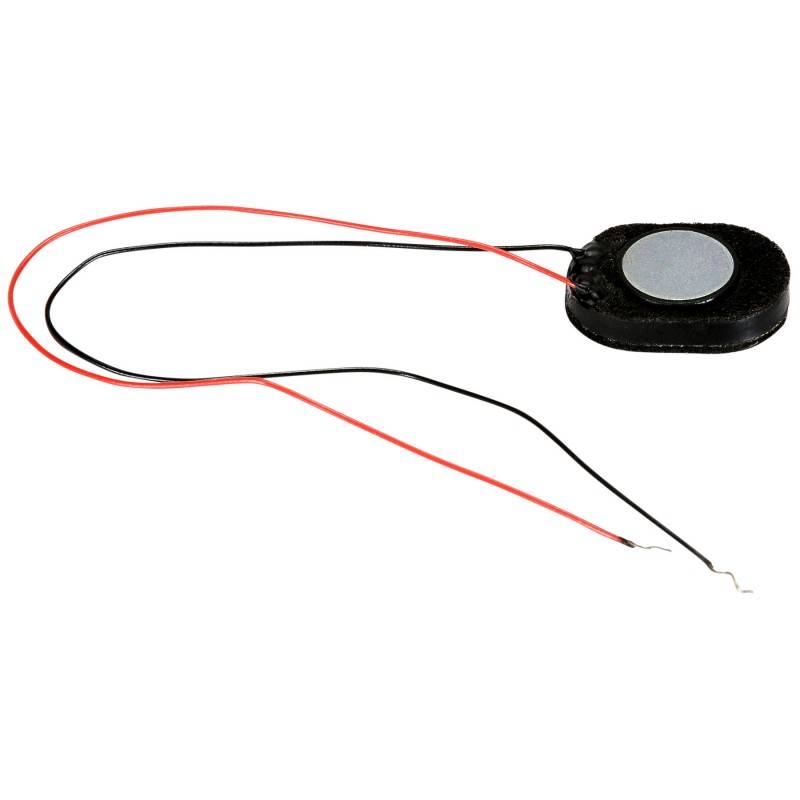

Dayton Audio CE20-14M-8 3/4" x 1/2" Micro Speaker

Lieferzeit: 1-3 Werktage

  • Artikelnummer: CE20-14M-8
  • Vorrat: 5 Auf Lager

Dayton Audio’s smallest speaker driver, the CE20-14M-8 Micro Speaker, features an ultra-lightweight Mylar diaphragm and plastic frame, plus a strong Neodymium magnet, for high output from an incredibly tiny driver.

€ 2,45 Inkl. MwSt.

  • Kaufen Sie 4 für je €2,33 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio CE20-14M-8 3/4" x 1/2" Micro Speaker

Dayton Audio’s smallest speaker driver, the CE20-14M-8 Micro Speaker, features an ultra-lightweight Mylar diaphragm and plastic frame, plus a strong Neodymium magnet, for high output from an incredibly tiny driver.



Highlights

  • Ultra-miniature size
  • Lightweight Mylar diaphragm
  • Powerful neodymium magnet
  • Pre-attached film adhesive for mounting
  • Protective screen grill



Product details

Dayton Audio CE Series CE20-14M-8 3/4" x 1/2" Micro Speaker 8 Ohm

The Commercial Engineering (CE) Series drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects.

It’s so tiny! The CE20-14M-8 micro speaker is the smallest driver in Dayton Audio’s CE Series. Featuring a racetrack-shaped, lightweight Mylar diaphragm and neodymium magnet, the CE20-14M achieves useful levels of audio output from a speaker that’s only 1/2" wide and 3/4" long, for the very smallest audio applications. Its uses include telephone handsets, tablet PCs, and even miniature on-ear headphones.

Eigenschaften

Spezifikationen für: CE20-14M-8 3/4" x 1/2" Micro Speaker

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers. CE series
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Micro speaker
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 1" x 2"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 0.25 Watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 0.50 Watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 77 dB 1W/1m
  • Frequency Response 1,200 to 20,000 Hz
  • Voice Coil Diameter 0.38"
  • Magnet Weight
  • DC Resistance (Re) 7.03 ohms
  • Voice Coil Inductance (Le) 0.36 mH
  • Resonant Frequency (Fs) 1,297 Hz
  • Mechanical Q (Qms) 2.21
  • Electromagnetic Q (Qes) 19.9
  • Total Q (Qts) 1.46
  • Diaphragm Mass Inc. Airload (Mms)
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms)
  • Surface Area of Cone (Sd) 1.8 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL)
  • Compliance Equivalent Volume (Vas)
  • Maximum Linear Excursion (Xmax) 0.1 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Poly / Mylar Diaphragm
  • Surround Material
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material Neodymium
  • Shielded
  • Overall Outside Diameter 0.78" x 0.55"
  • Overall Depth 0.14"
  • Baffle Cutout Diameter 0.64" x 0.4"
  • Bolt Circle Diameter
  • # Mounting Holes
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
