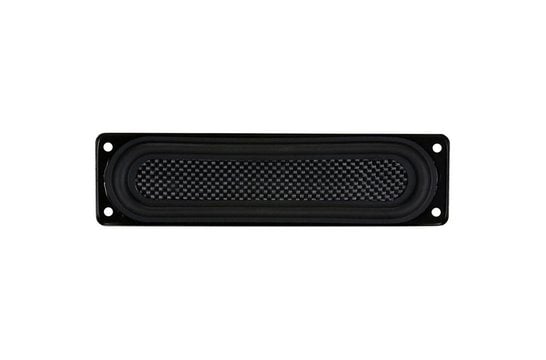

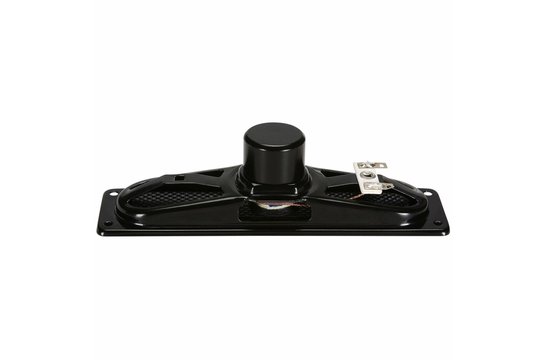

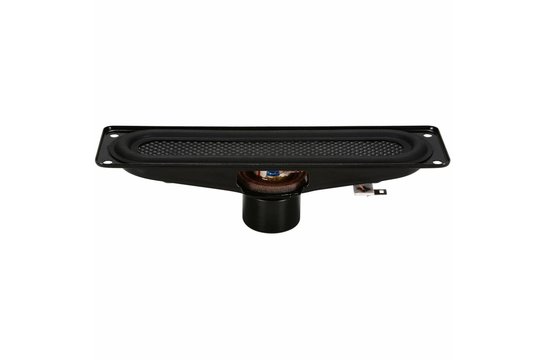

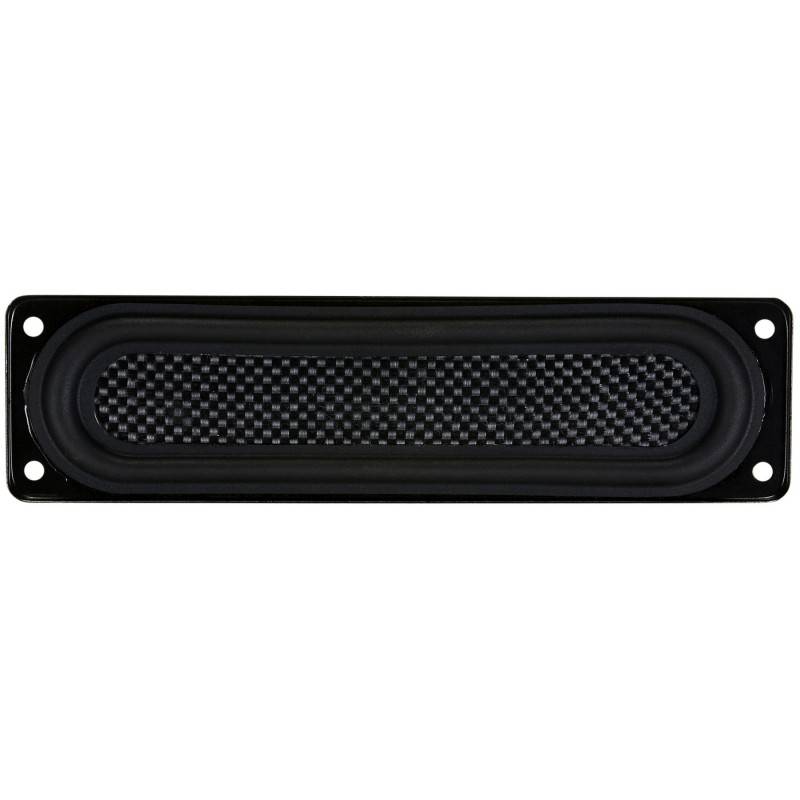

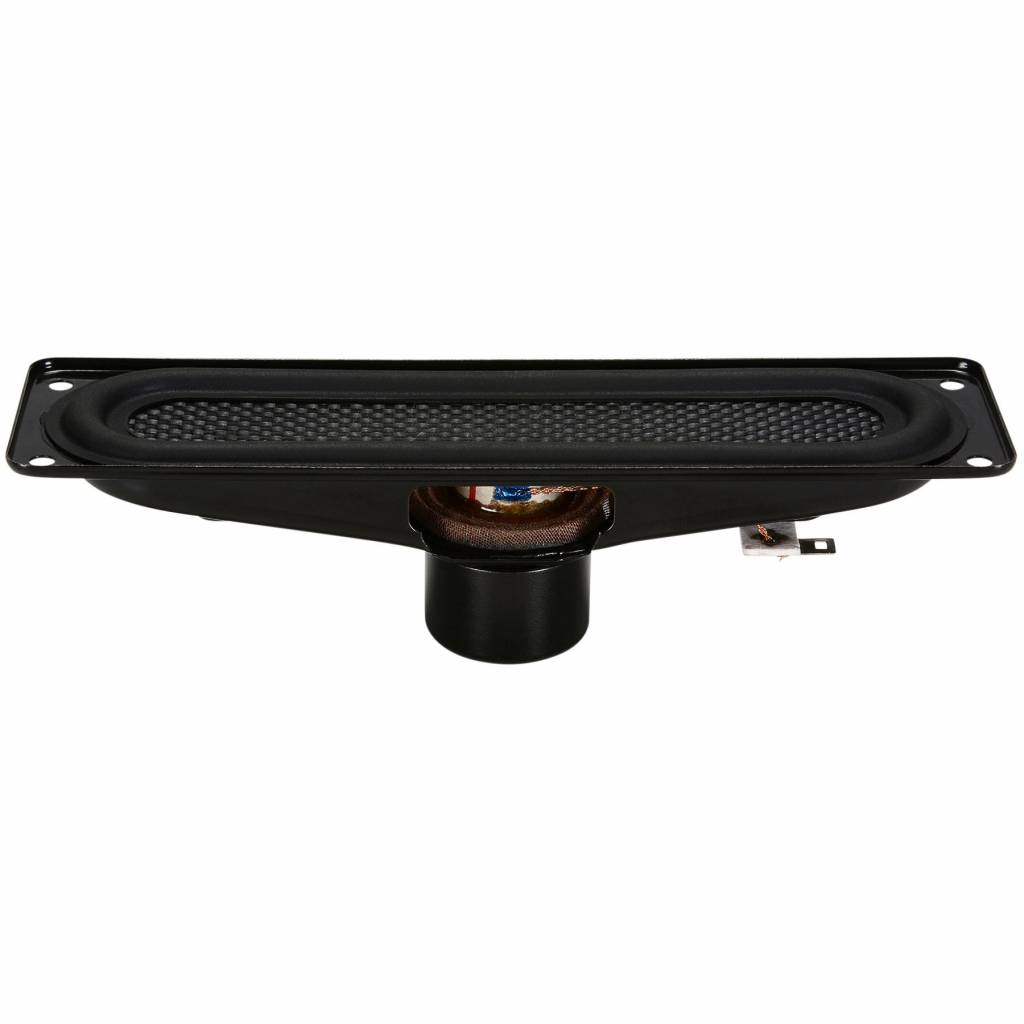

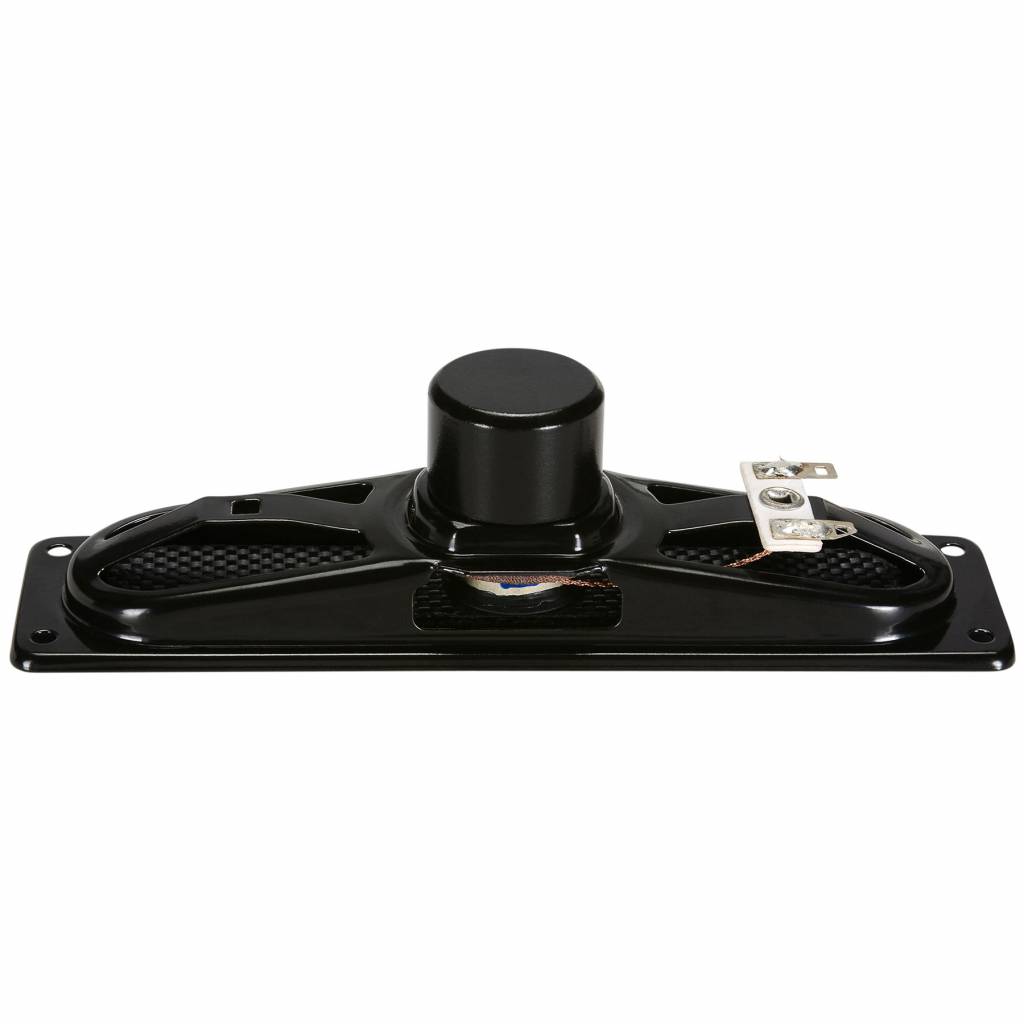

Dayton Audio CE140-30S-8 1" x 5" Extended Range Driver 8 Ohm

Lieferzeit: 1-3 Werktage

  • Artikelnummer: CE140-30S-8
  • Vorrat: 4 Auf Lager

The CE140-30S-8 by Dayton Audio is a 1" x 5" tall-aspect-ratio extended range driver with a flat sandwich-construction diaphragm and a compact neodymium motor, for applications requiring a very narrow format yet wide-bandwidth driver.

€ 13,45 Inkl. MwSt.

  • 4 für je €12,78 kaufen und 5% sparen Sale 5%

Zur Wunschliste hinzufügen

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio CE140-30S-8 1" x 5" Extended Range Driver 8 Ohm

The CE140-30S-8 by Dayton Audio is a 1" x 5" tall-aspect-ratio extended range driver with a flat sandwich-construction diaphragm and a compact neodymium motor, for applications requiring a very narrow format yet wide-bandwidth driver.



Highlights

  • Tall aspect ratio flat diaphragm for wide dispersion
  • Compact neodymium magnet structure
  • Low profile stamped steel frame
  • Copper voice coil on vented Kapton former
  • Suitable as a mid-woofer or extended range driver



Product details

Dayton Audio CE Series CE140-30S-8 1" x 5" Extended Range Driver 8 Ohm

The Commercial Engineering (CE) Series drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects.

The Dayton Audio CE140-30S-8 is a 1" x 5" driver for applications requiring a narrow format, yet wide bandwidth. The flat diaphragm uses a sandwich construction composed of woven glass fiber skins over a paper honeycomb core, for an excellent combination of stiffness and damping – often difficult to achieve in a flat diaphragm. The compact neodymium motor provides long-throw performance in a small form factor, enabling the driver frame to be only 1.4" wide.

The rugged, low-profile stamped steel frame features screw mounting holes for simplified installation. Use the CE140-30S-8 as a wide-bandwidth driver, or as a narrow-format midwoofer driver for high-fidelity music.

Eigenschaften

Spezifikationen für: CE140-30S-8 1" x 5" Extended Range Driver 8 Ohm

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers. CE Series
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Full-range
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 1" x 5"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 10 Watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 20 Watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 76 dB 2.83V/1m
  • Frequency Response 100 to 8,500 Hz
  • Voice Coil Diameter 0.75"
  • Magnet Weight
  • DC Resistance (Re) 7.75 ohms
  • Voice Coil Inductance (Le) 0.78 mH
  • Resonant Frequency (Fs) 105 Hz
  • Mechanical Q (Qms) 4.64
  • Electromagnetic Q (Qes) 1.35
  • Total Q (Qts) 2.76
  • Diaphragm Mass Inc. Airload (Mms) 5.08g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.47 mm/N
  • Surface Area of Cone (Sd) 25.1 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 4.34 Tm
  • Compliance Equivalent Volume (Vas)
  • Maximum Linear Excursion (Xmax) 2 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Fiberglass
  • Surround Material Fiberglass
  • Voice Coil Wire Material
  • Voice Coil Former Kapton® / Polyimide
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material Neodymium
  • Shielded
  • Overall Outside Diameter 5.4" x 1.5"
  • Overall Depth 1.4"
  • Baffle Cutout Diameter 4.88" x 1.19"
  • Bolt Circle Diameter
  • # Mounting Holes
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
