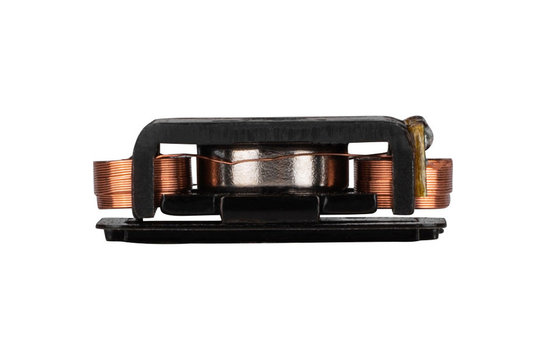

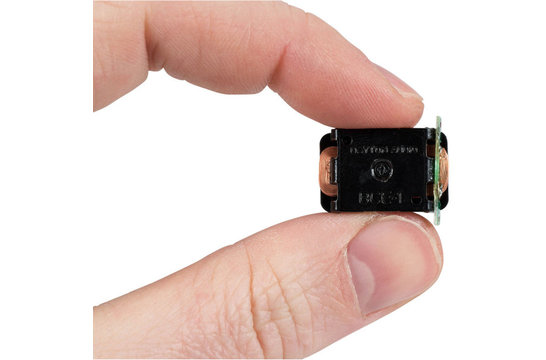

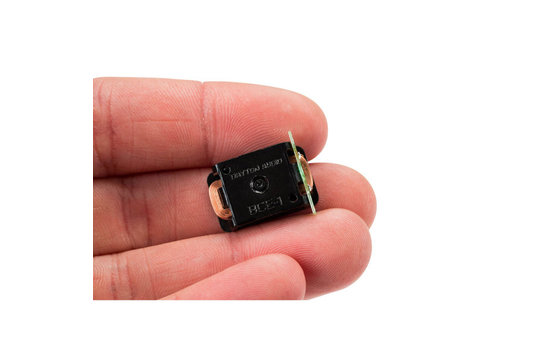

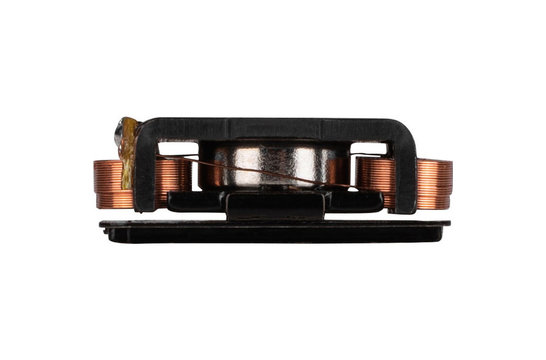

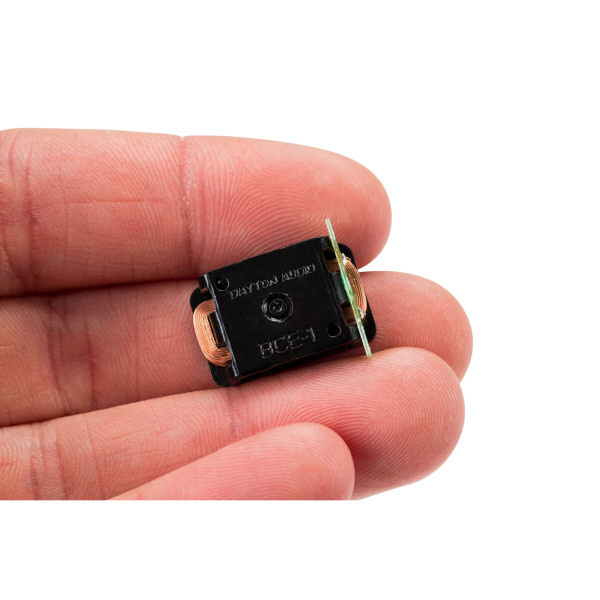

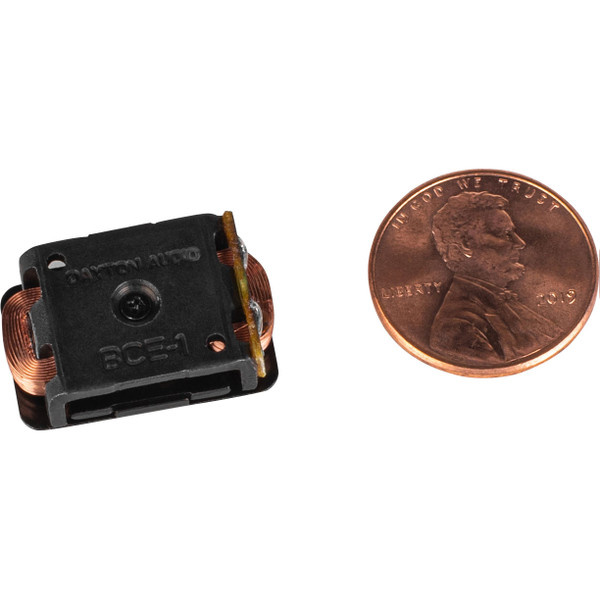

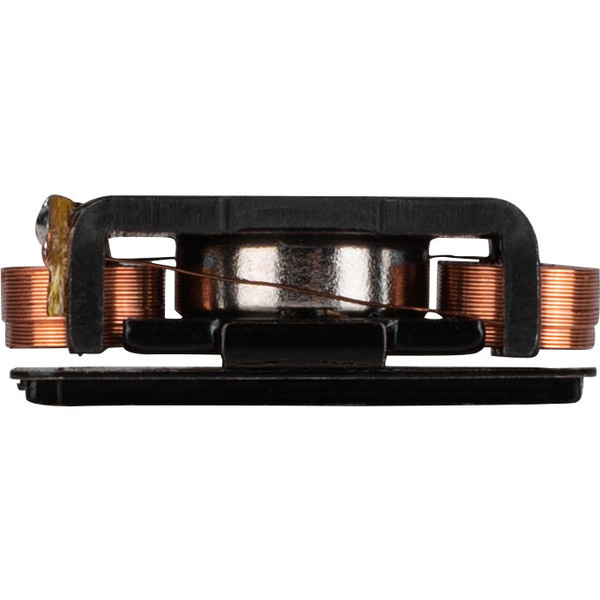

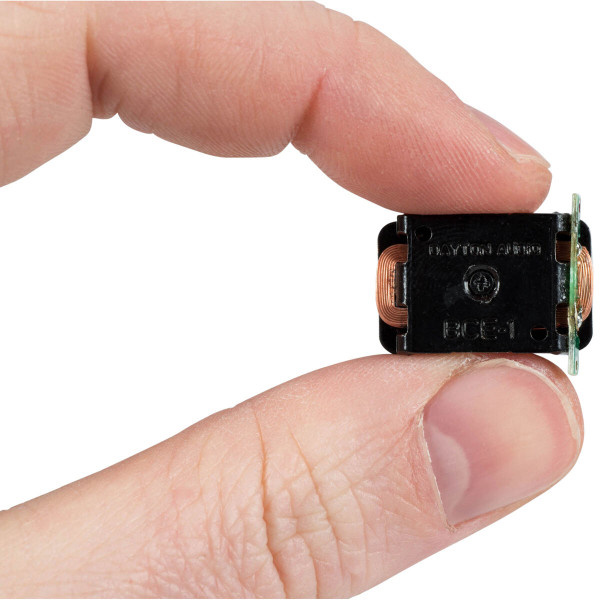

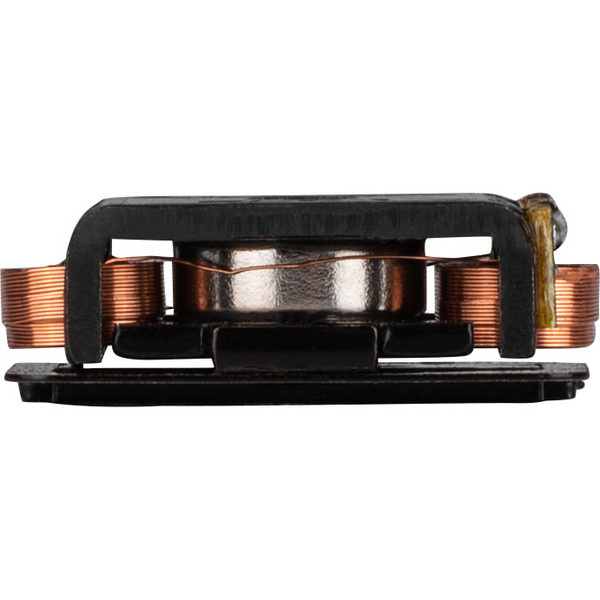

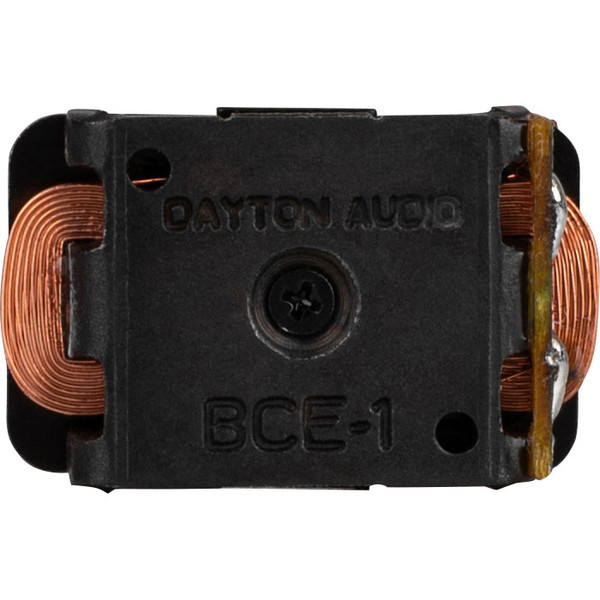

Dayton Audio BCE-1 22 x 14mm Bone Conducting Exciter

Lieferzeit: 1-3 Werktage

  • Artikelnummer: BCE-1
  • Vorrat: >10 Auf Lager

Dayton Audio BCE exciters produce sound through direct vibration of the bones in the head or are capable of converting surfaces into speakers via vibration when placed on materials such as desks, walls, doors, and many other materials.

€ 13,95 Inkl. MwSt.

  • Kaufen Sie 4 für je €13,25 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio BCE-1 22 x 14mm Bone Conducting Exciter

Dayton Audio BCE exciters produce sound through direct vibration of the bones in the head or are capable of converting surfaces into speakers via vibration when placed on materials such as desks, walls, doors, and many other materials.



Highlights

  • Creates sound using bone conduction
  • Leaves ears free for increased listener safety
  • Can be used as a mini tactile transducer when attached to substrates
  • Wide 300 to 19,000 Hz frequency response
  • 4 ohm impedance with 1W power handling



Product details

Dayton Audio BCE-1 22 x 14mm Bone Conducting Exciter



Unlike conventional transducers that use moving air to produce sound around you, Dayton Audio BCEs (bone conducting exciters) convert the electrical signal into mechanical vibrations so clean, that the brain interprets the vibrating stimulus as excellent sound. Listener's ears are left free to remain aware of their surroundings, increasing personal safety.



When used against materials such as cardboard, wood, steel, and plastics, the BCE operates much like a surface exciter, capable of moving mass to produce robust sound output; much like an invisible speaker! BCEs are excellent for unique OEM sound applications and for the experimenter, where conventional speakers and exciters cannot be used due to size constraints.

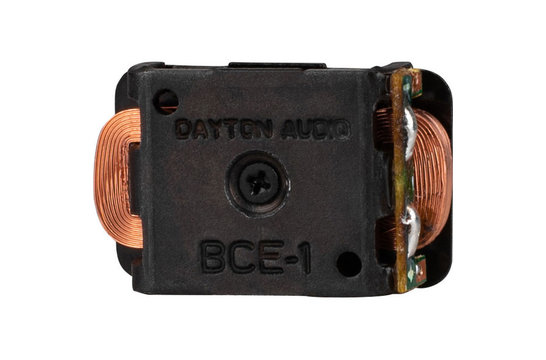

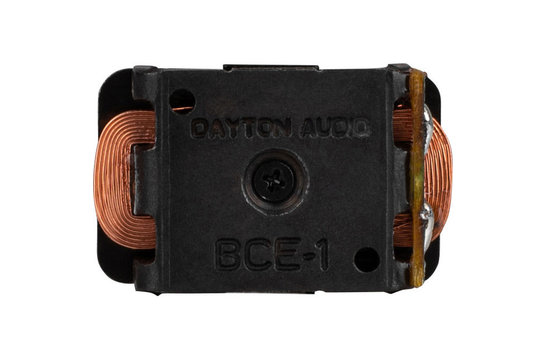

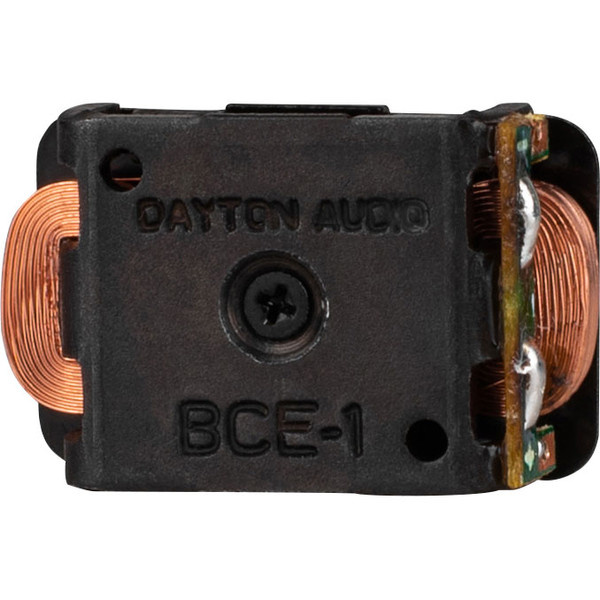

Note: The frequency response is given when used as a bone conducting transducer. This will change when attached to a substrate, and different substrate materials will have different frequency responses. Polarity is indicated by a small half-moon above the positive solder point.





To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Dayton Audio's Understanding and Using Dayton Audio Exciters White Paper.

Eigenschaften

Spezifikationen für: BCE-1 22 x 14mm Bone Conducting Exciter

  • Exciter type SPEC Exciter type Full-Range
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 1 watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 2 watts
  • Impedance SPEC Impedance 4 ohms
  • Frequency response SPEC Frequency response 300 - 19,000 Hz
  • View all specifications
  • Resonant Frequency (Fs) 2100 Hz
  • DC Resistance (Re) 4 ohms
  • Voice Coil Inductance (Le) 0.56 mH at 10,000 Hz
  • Total Q (Qts) -
  • Diaphragm Mass Inc. Airload (Mms) -
  • Mechanical Compliance of Suspension (Cms) -
  • BL Product (BL) -
  • Voice Coil Diameter -
  • Overall Outside Diameter -
  • Overall Depth 7.5 mm

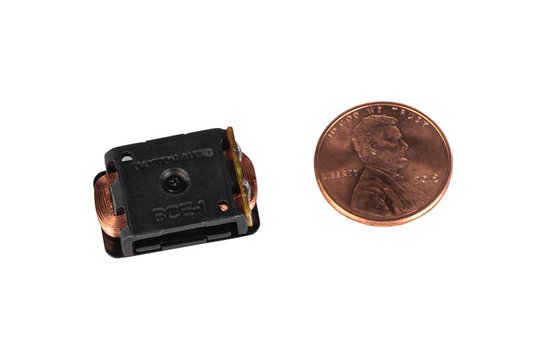

  • Overall Dimensions (L x W x H) 21.6 x 14.5 x 7.9 mm
  • Adhesive dimensions -

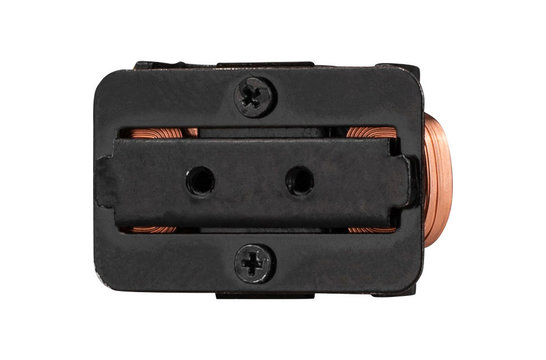

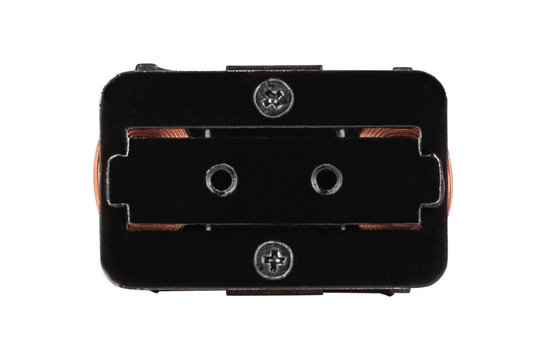

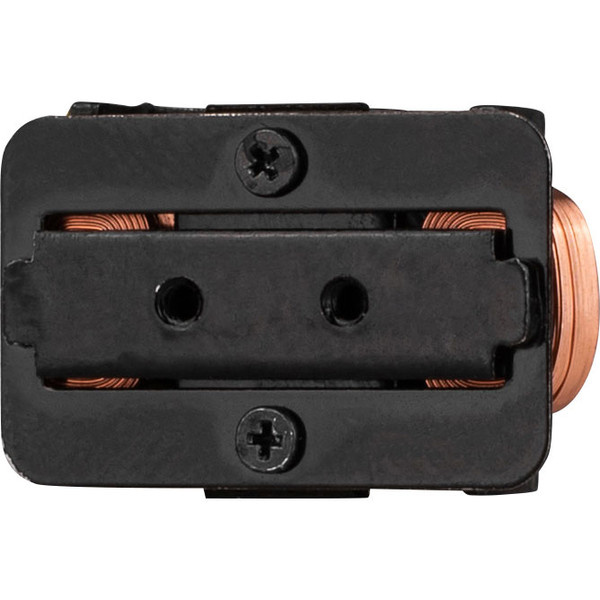

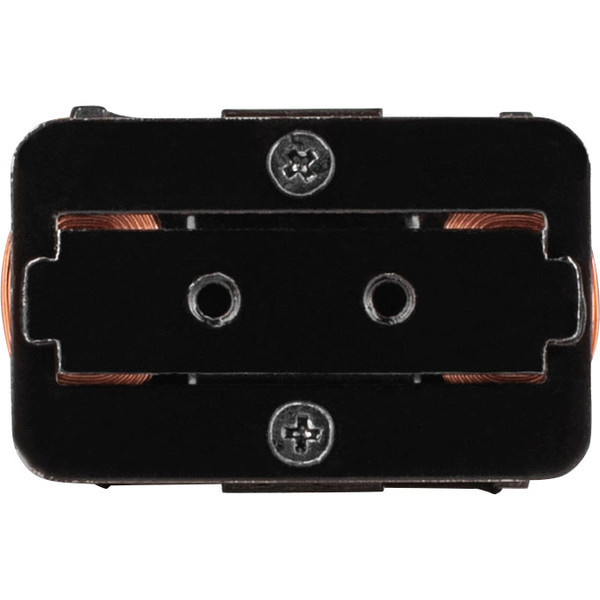

  • # Mounting Holes 2
  • Mounting type -
  • Weight -
