Dayton Audio AN25F-4 1" Soft Dome Neodymium Car Audio Tweeter Pair 4 Ohm

Lieferzeit: 1-3 Werktage

  • Artikelnummer: AN25F-4
  • Vorrat: 5 Auf Lager

The Automotive Neodymium Series tweeter pairs by Dayton Audio offer remarkable clarity, good off-axis dispersion, and an exceptionally flat response above 3 kHz. These tweeters are specifically designed for car audio systems, however their modern appearan

€ 29,95 Inkl. MwSt.

  • Kaufen Sie 4 für je €28,45 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio AN25F-4 1" Soft Dome Neodymium Car Audio Tweeter Pair 4 Ohm

The Automotive Neodymium Series tweeter pairs by Dayton Audio offer remarkable clarity, good off-axis dispersion, and an exceptionally flat response above 3 kHz. These tweeters are specifically designed for car audio systems, however their modern appearance and flat response curve integrate easily into any design, especially where minimal center-to-center spacing of the tweeter and woofer placement is needed.



Highlights

  • Ultra-high sensitivity 96dB from 3 kHz to 20 kHz
  • Exceptionally flat treble response for accurate high frequency reproduction
  • High-strength neodymium motor provides low distortion
  • 1" silk diaphragm for remarkable clarity and great off-axis response
  • 1" diameter voice coil for excellent power handling

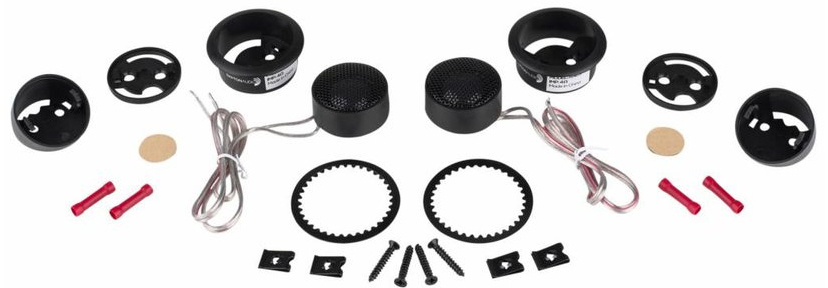

  • All hardware included to permit flush or surface mounting



Product details

Dayton Audio AN25F-4 1" Soft Dome Neodymium Car Audio Tweeter Pair 4 Ohm



Dayton Audio designed the AN25F-4 tweeter to provide superb audio reproduction. The silk diaphragm offers remarkable clarity, great off-axis dispersion and an exceptionally flat response above 3 kHz. Although these tweeters where specifically designed for car audio systems, their modern appearance, high efficiency, and flat response curve integrate easily into many non-automotive designs and are especially useful in MTM and TMM designs where high efficiency and/or minimal center-to-center spacing of the tweeter and woofer placement is needed. Sold in pairs.

Eigenschaften

Spezifikationen für: AN25F-4 1" Soft Dome Neodymium Car Audio Tweeter Pair 4 Ohm

  • Tweeter Type Art des Drivers, wie zum Beispiel soft dome, piezo, ribbon, AMT oder bullet tweeter etc. Soft Dome
  • Tweeter Series Spezielle Tweeter Produktionsreihe des Herstellers. Automotive Neodymium Series
  • Cone / Dome Diameter Nominal Durchmesser des Domes/Cones, gemessen in Inch. 1"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 30 Watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt.
  • View all specifications
  • Impedance 4 ohms
  • Sensitivity 96.5 dB 2.83V/1m96.5 dB 2.83V/1m
  • Frequency Response 3,000 - 20,000 Hz
  • Resonant Frequency (Fs) 1619 Hz
  • DC Resistance (Re) 3.04 ohms
  • Voice Coil Inductance (Le) 0.03 mH
  • Mechanical Q (Qms) 3.77
  • Electromagnetic Q (Qes) 1.91
  • Total Q (Qts) 1.27
  • Overall Outside Diameter 2.9''
  • Cutout Diameter 1.7''
  • Depth 0.75"
  • Angle
  • Mounting Type
  • Exit Diameter
  • Diaphragm Material
  • Recommended cut frequency

Documenten

Bewertungen

Erfahrungsberichte 4.5 / 5 Bewertungen: (2)

  • MV Durch Marcel V. an 01-05-2019 13:49

    4 / 5

    Mooie tweeters en zeer betaalbaar. Klank is erg Amerikaans, scherp hoog.

  • RN Durch Ronald Nijhof an 20-08-2018 15:19

    5 / 5

    Zeer goede tweeter. Zijdezachte sound zonder schelle of slissende tonen. Open en gedetailleerde weergave.
    Heb ze gebruikt voor het vervangen van de tweeters in een coaxiale studio monitor (past precies). Zeer verast door de kwaliteit van de sound.
