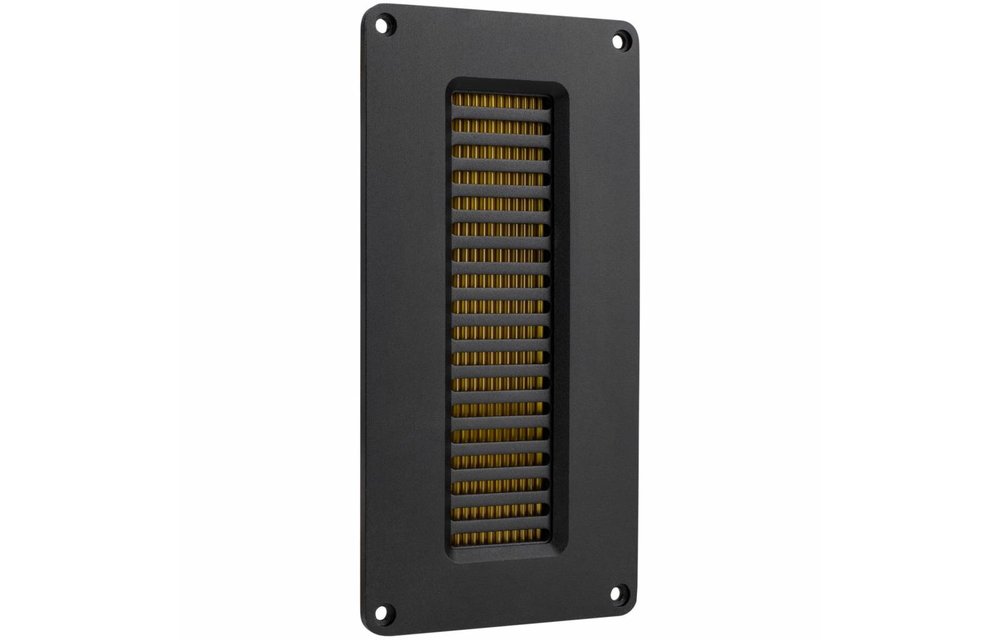

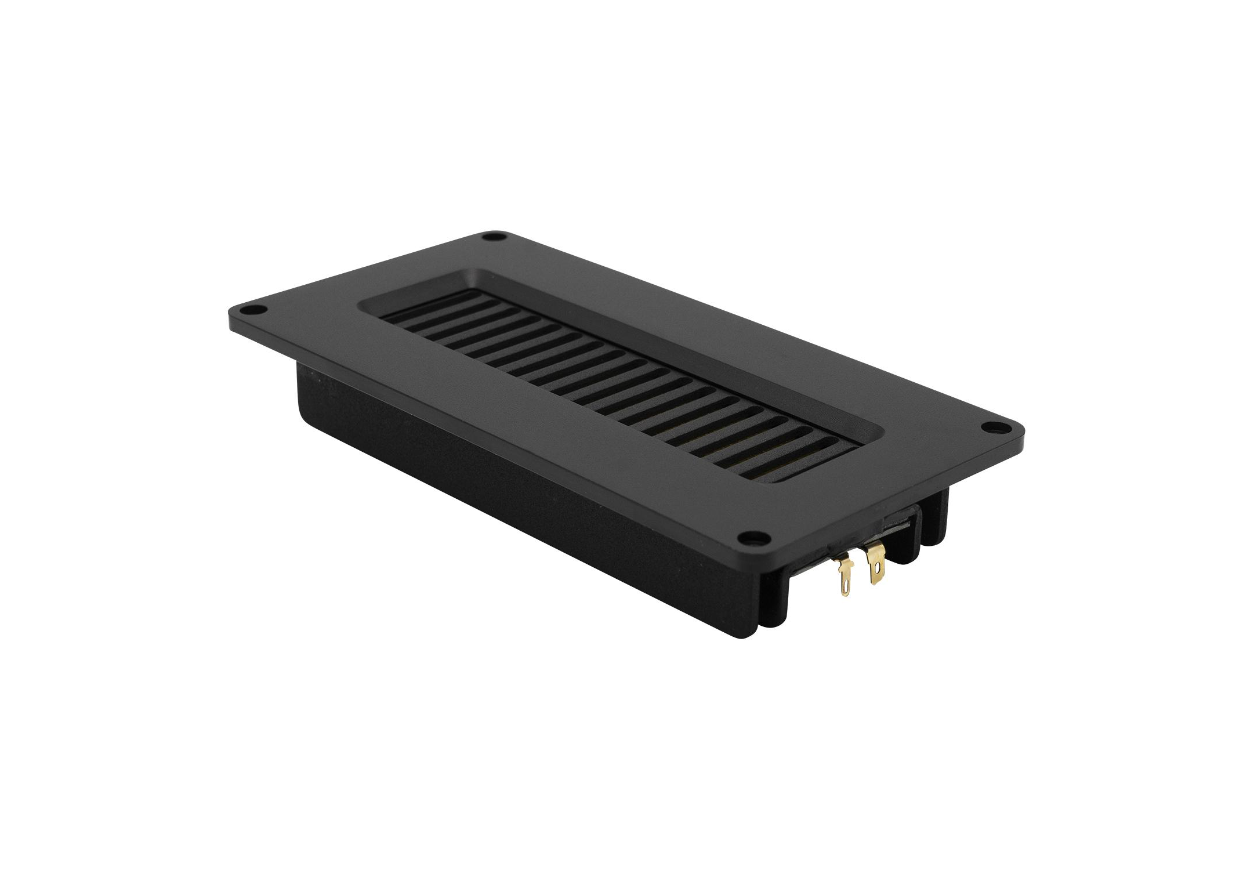

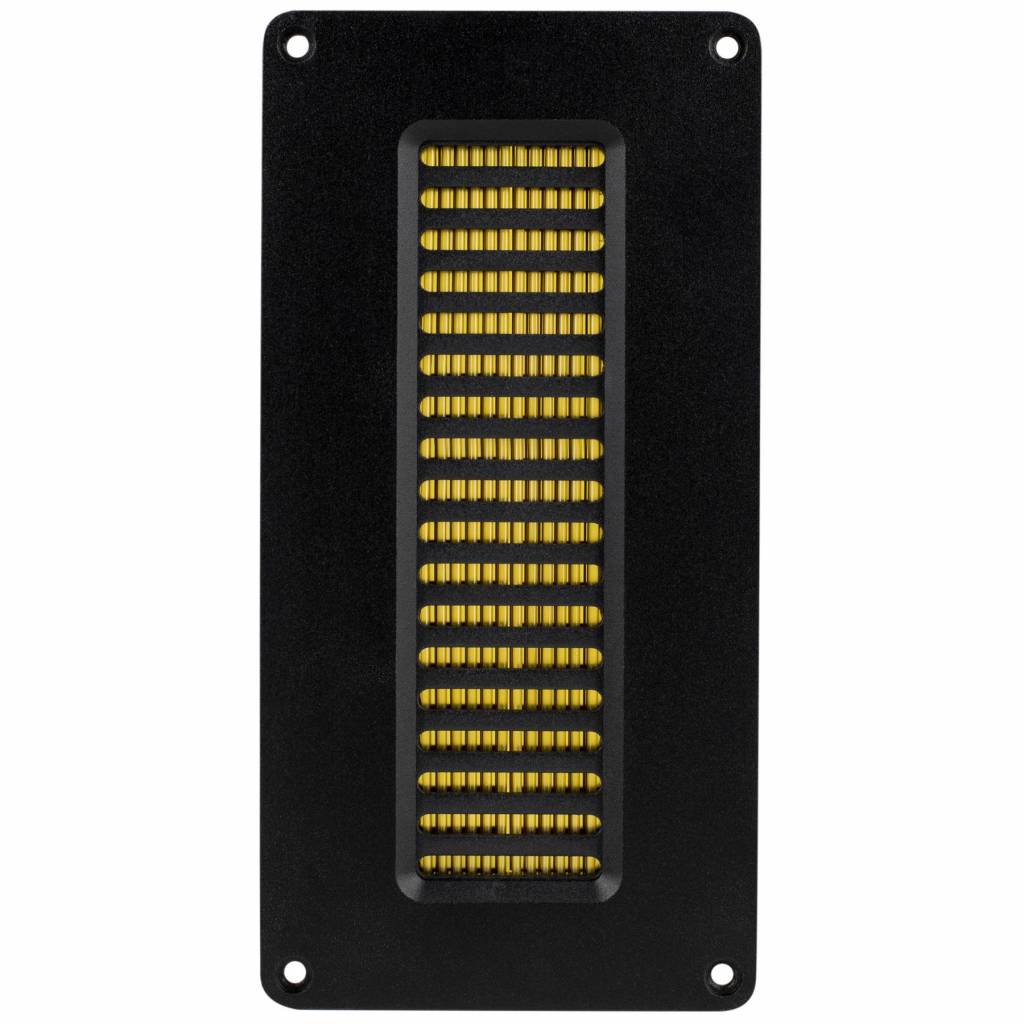

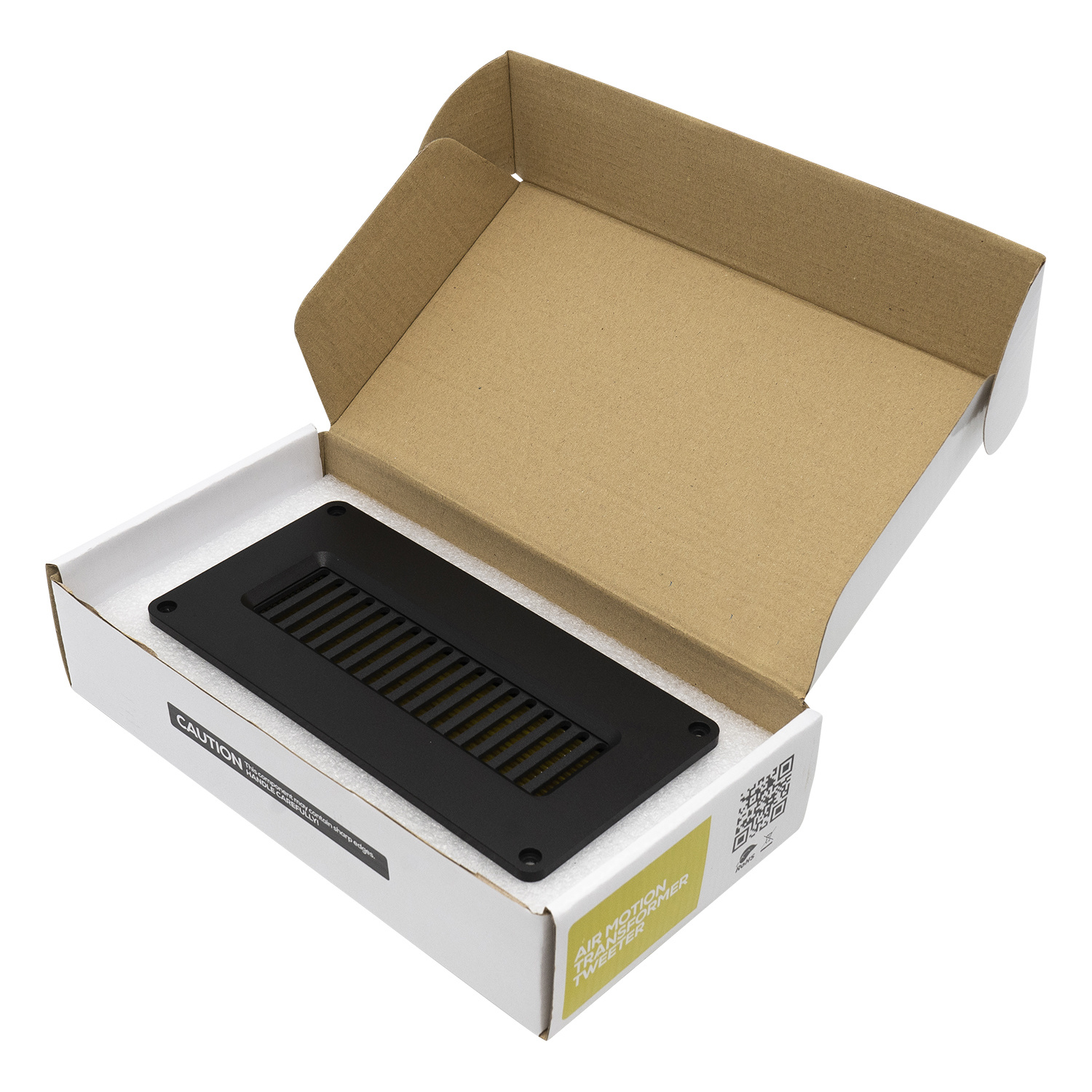

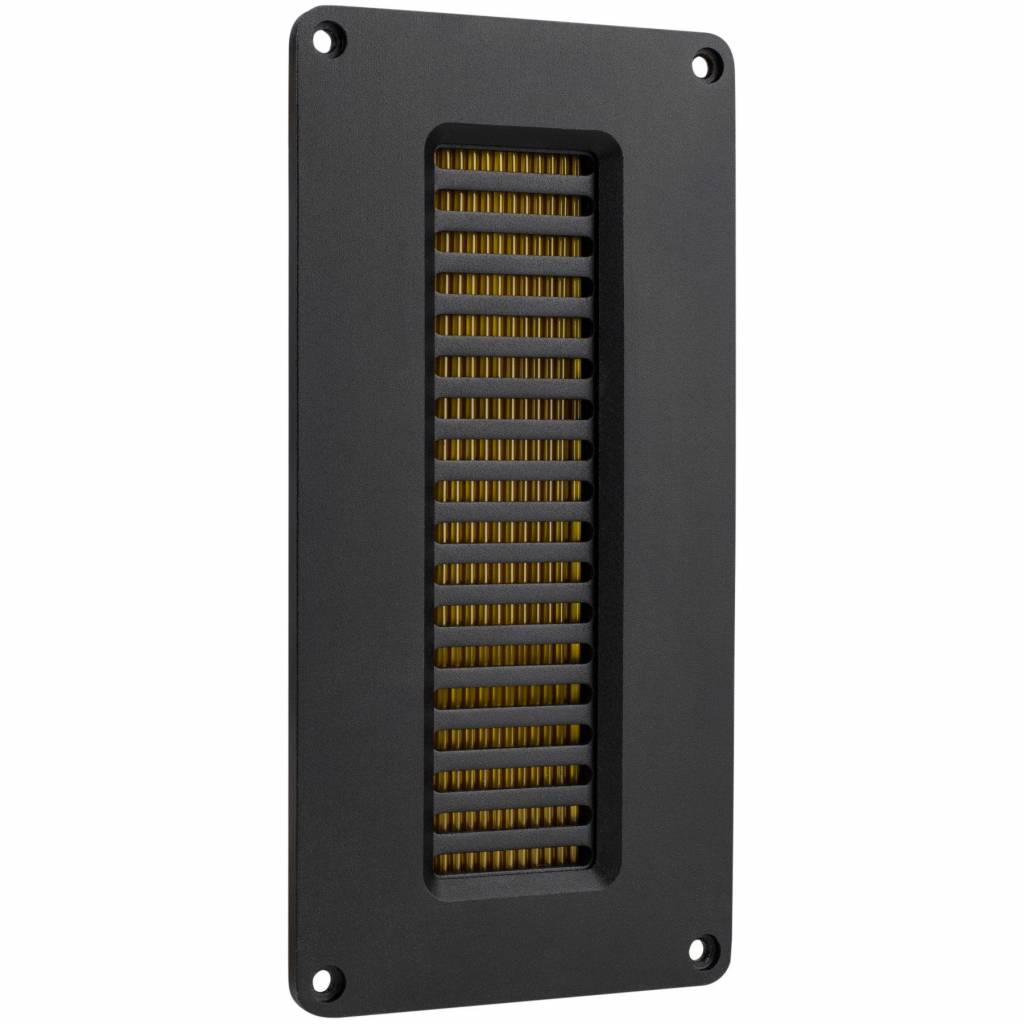

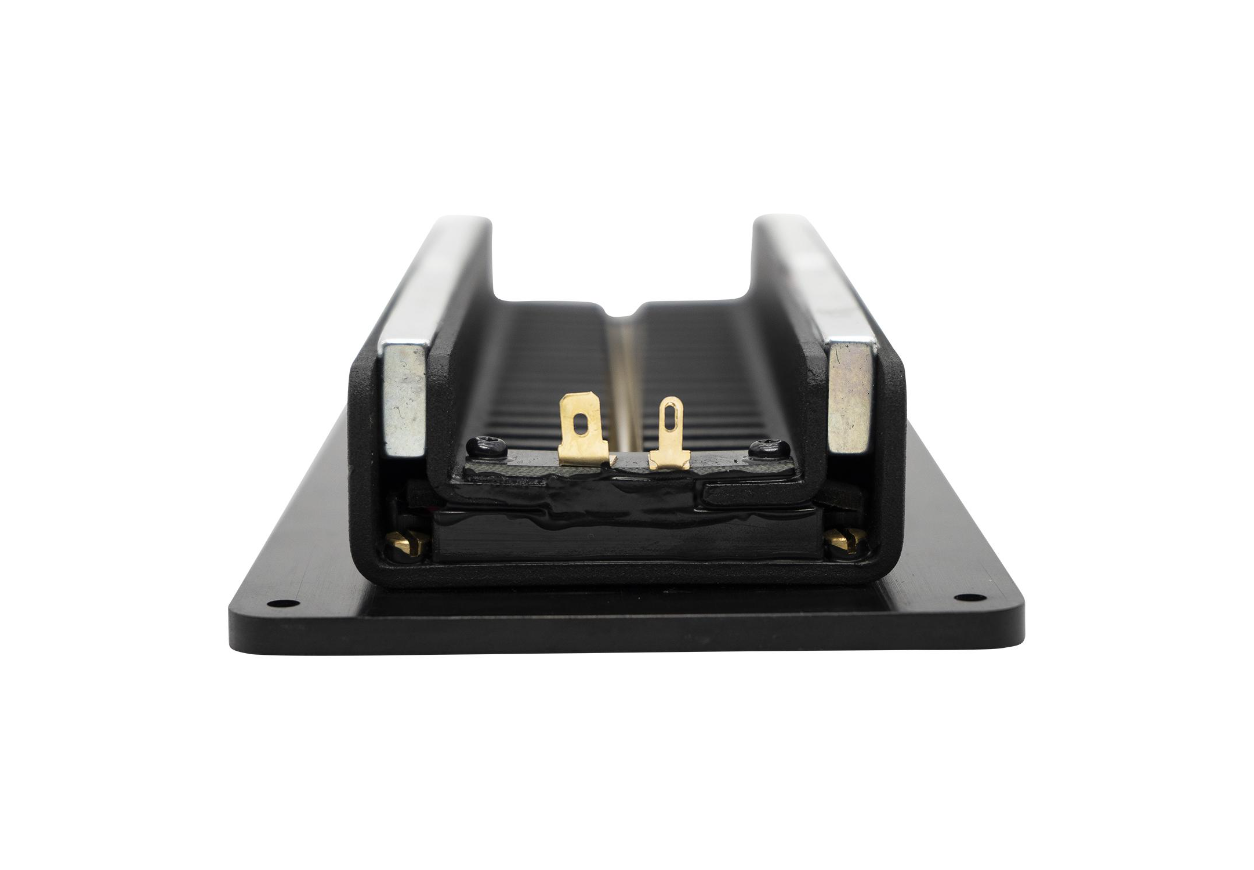

Dayton Audio AMTPRO-4 Air Motion Transformer Tweeter 4 Ohm

Lieferzeit: 1-3 Werktage

  • Artikelnummer: AMTPRO-4
  • Vorrat: 2 Auf Lager

The Dayton Audio AMTPRO-4 Air Motion Transformer is designed for professional audio and demanding high-fidelity applications in which high SPL demands combine with the need for detailed reproduction and musical finesse.

€ 129,95 Inkl. MwSt.

  • Kaufen Sie 4 für je €123,45 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio AMTPRO-4 Air Motion Transformer Tweeter 4 Ohm

The Dayton Audio AMTPRO-4 Air Motion Transformer is designed for professional audio and demanding high-fidelity applications in which high SPL demands combine with the need for detailed reproduction and musical finesse.



Highlights

  • Folded Kapton ribbon diaphragm delivers clean, detailed, and highly dynamic output

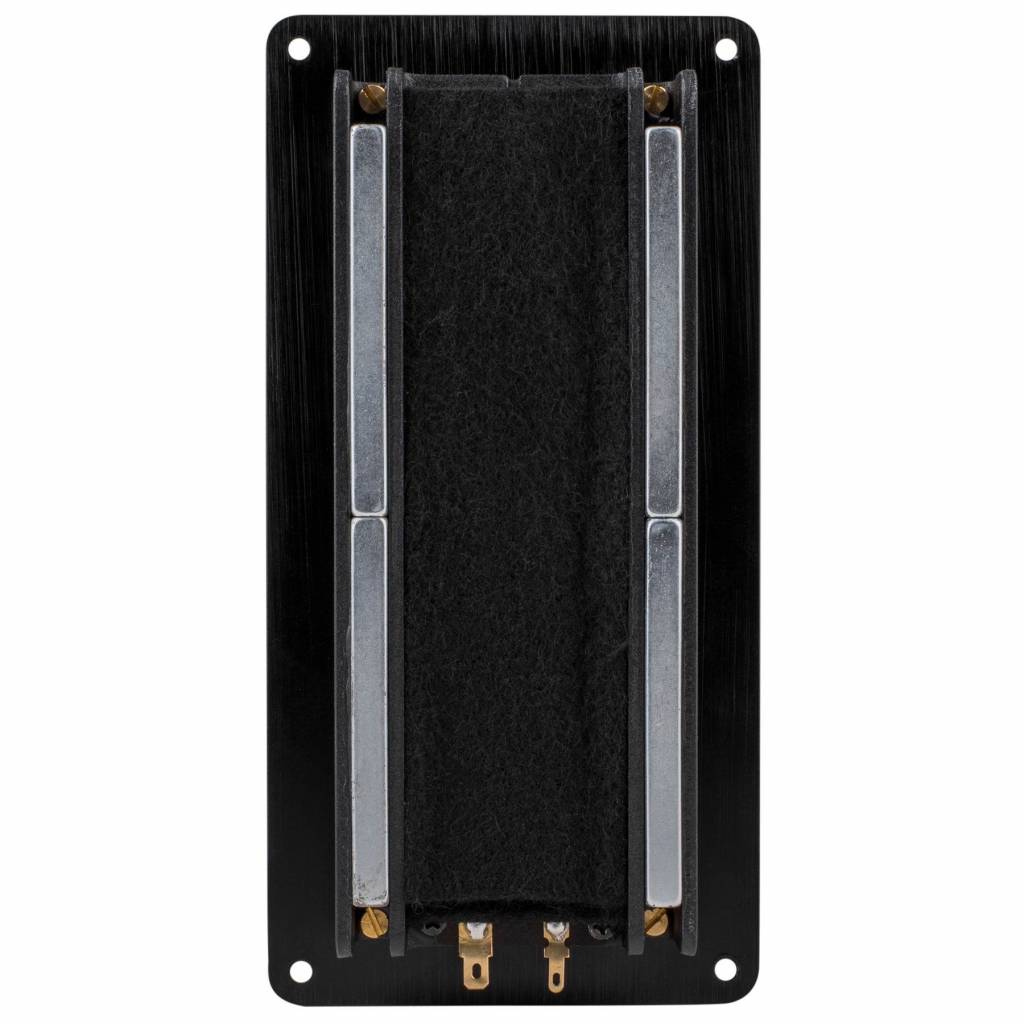

  • Open back design permits dipole or chamber loading
  • Pro-level output and ruggedness for PA boxes, studio monitors, or high-efficiency home playback



Product details

Dayton Audio AMTPRO-4 Air Motion Transformer Tweeter 4 Ohm

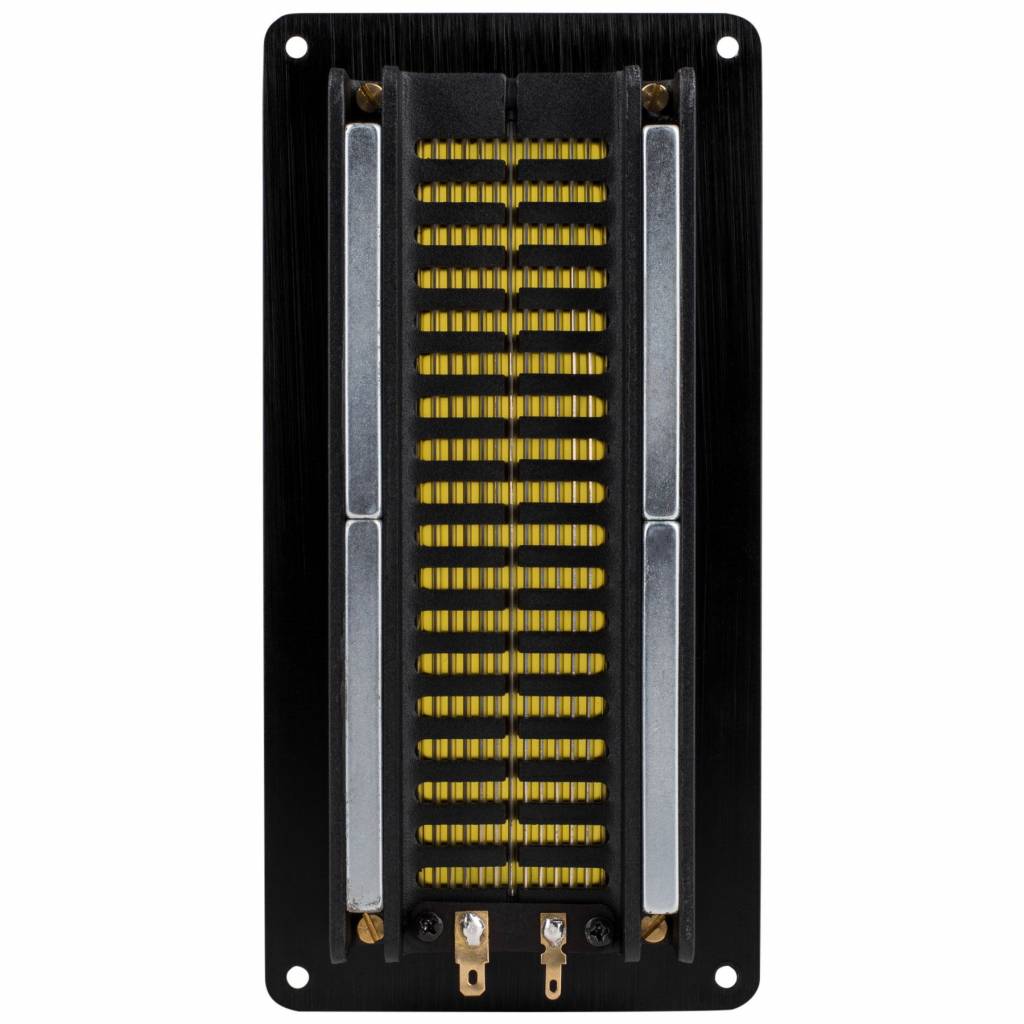

Dayton Audio's AMTPRO-4 model features an extremely large AMT diaphragm with an open-back design and powerful neodymium magnetic assembly. This combination produces high output and low distortion over a broad frequency range, while handling large amounts of amplifier power.



Perfect for use in PA loudspeakers, large-format studio monitors, custom cinema speakers, or extreme performance hi-fi loudspeakers, the AMTPRO-4 can easily be chamber-loaded or open-baffle loaded as required by a particular dipole application. Thanks to its ability to be crossed over as low as 800 Hz, the AMTPRO-4 driver is a uniquely effective solution for midrange reproduction as well as treble, and can even be used as a wide-bandwidth “mid-tweeter” driver.



Dayton Audio AMT (Air Motion Transformer) tweeters borrow technology from the original Heil Air Motion Transformer to provide ultra-clean, detailed, and dynamic treble output. The pleated ribbon diaphragm of an AMT provides a large acoustic radiating area condensed into a compact chassis, for extremely high SPL output, wide bandwidth, and improved power handling.



Eigenschaften

Spezifikationen für: AMTPRO-4 Air Motion Transformer Tweeter 4 Ohm

  • Tweeter Type Art des Drivers, wie zum Beispiel soft dome, piezo, ribbon, AMT oder bullet tweeter etc. Air Motion Transformer (AMT)
  • Tweeter Series Spezielle Tweeter Produktionsreihe des Herstellers. AMT Series
  • Cone / Dome Diameter Nominal Durchmesser des Domes/Cones, gemessen in Inch.
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 50 Watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt.
  • View all specifications
  • Impedance 4 ohms
  • Sensitivity 94 dB 1W/1m
  • Frequency Response 800 to 18,000 Hz
  • Resonant Frequency (Fs) 800 Hz
  • DC Resistance (Re) 3.96 ohms
  • Voice Coil Inductance (Le) 0.06 mH
  • Mechanical Q (Qms)
  • Electromagnetic Q (Qes)
  • Total Q (Qts) 4.12
  • Overall Outside Diameter 7.87" x 3.94"
  • Cutout Diameter 2.83"
  • Depth 1.42"
  • Angle
  • Mounting Type
  • Exit Diameter
  • Diaphragm Material
  • Recommended cut frequency

Documenten

Bewertungen

Erfahrungsberichte 4.75 / 5 Bewertungen: (8)

  • VT Durch Vincent an 10-03-2020 22:53

    5 / 5

    I have 2 Italian Opera - Mini speakers that are 20 years old and decided to give them a big update.

    I bought 2 Dayton Audio AMTPRO-4 tweeters and 2x FaitalPRO 5FE120, 4 ohm, 5 inch. I used the Dayton Audio Hi pass and lo pass Filters at 800Hz.

    As a sound engineer I can say, the combination works wonders!

    I can't recommend this combination enough!!!

  • EH Durch Etienne H. an 20-09-2019 12:20

    5 / 5

    Geweldige tweeter!

  • RD Durch Ronald D. an 23-02-2019 14:53

    4 / 5

    leuke dingen

  • AB Durch AJG B. an 26-05-2018 23:28

    4 / 5

    Zeer professionele amt, alleen de aansluitclips horen bij een dergelijk apparaat steviger te zijn. ten opzichte van Ess/Heil, Mundorf en Beyma is ie spotgoedkoop maar bijna net zo goed

  • GH Durch Günter H. an 02-01-2018 15:54

    5 / 5

    Very good tweeter, very open and natural sounding

  • PW Durch Petra W. an 09-12-2017 07:28

    5 / 5

    alles gut

  • HA Durch H.Rozema an 29-11-2017 09:45

    5 / 5

    Klinkt heerlijk transparant en beter dan verwacht. Horizontale spreiding is goed, Verticaal bundelt de tweeter door zijn hoogte wel in het tophoog. Dus op de juiste hoogte uitrichten is absoluut noodzakelijk om al het moois van deze verder geweldige tweeter te kunnen horen. Filter zelf 24 dB per octaaf actief bij 2000 herz. Ik overweeg per kant er nog 1 of 2 bij te kopen voor iets meer sweetspot bij de luisterplaats. Ga eerst nog experimenteren.

  • SJ Durch Søren J. an 01-11-2017 18:01

    5 / 5

    Great product at a good Price. Quick and safe delivery.
