Dayton Audio AMTPOD-4 Air Motion Transformer Automotive Tweeter Pair

Lieferzeit: 1-3 Werktage

  • Artikelnummer: AMTPOD-4
  • Vorrat: 6 Auf Lager

Dayton Audio's AMTPOD-4 makes it easy to add clear, detailed, natural-sounding highs to any car audio system. Air Motion Transformer technology enables these tiny component tweeters to achieve high output levels while sounding effortless, with better deta

€ 59,95 Inkl. MwSt.

  • Kaufen Sie 4 für je €56,95 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

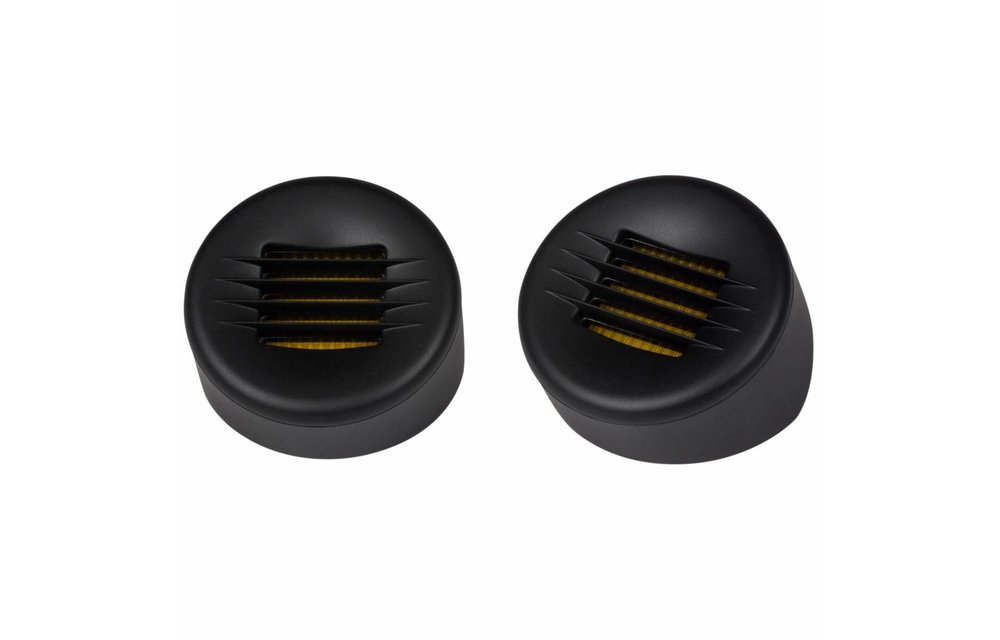

Dayton Audio AMTPOD-4 Air Motion Transformer Automotive Tweeter Pair

Dayton Audio's AMTPOD-4 makes it easy to add clear, detailed, natural-sounding highs to any car audio system. Air Motion Transformer technology enables these tiny component tweeters to achieve high output levels while sounding effortless, with better detail than most dome tweeters.



Highlights

  • Air Motion Technology, for detailed, non-fatiguing treble
  • Extended, open, dynamic high-frequency performance

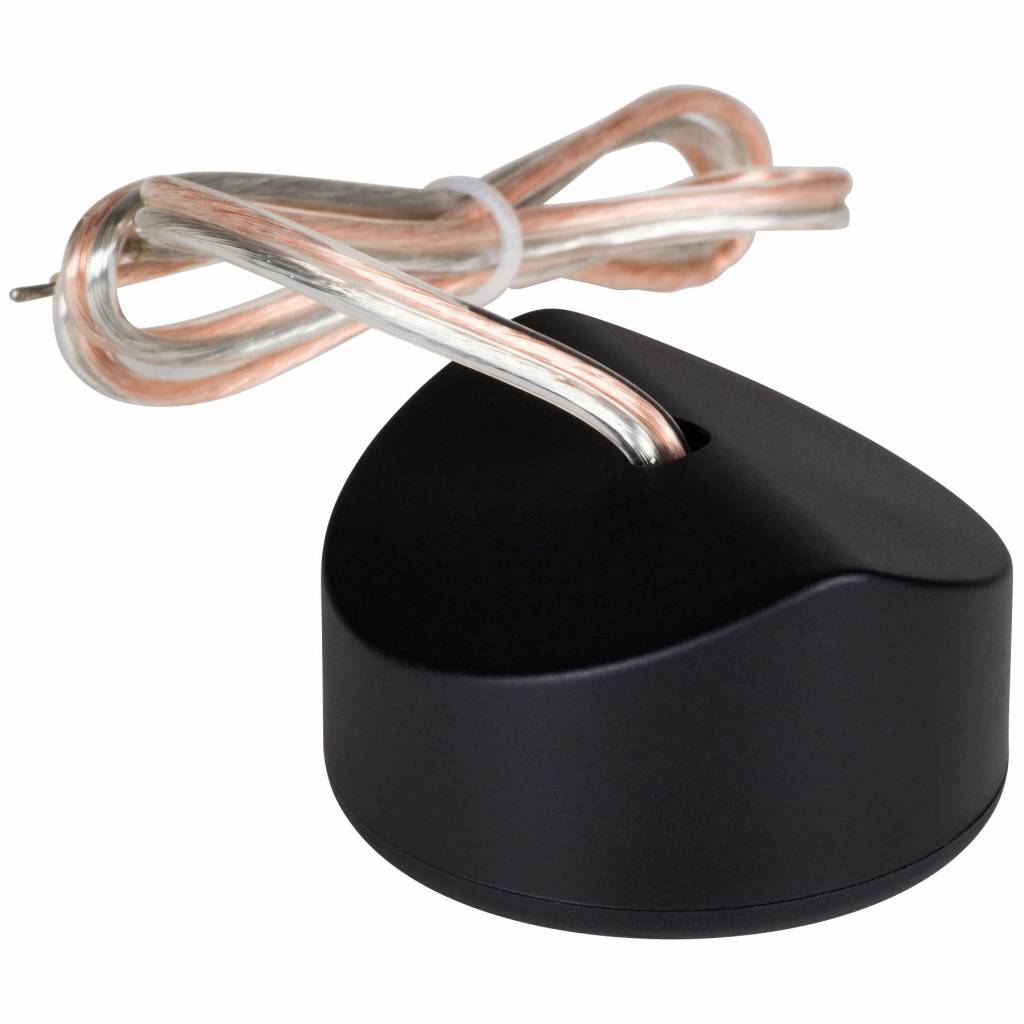

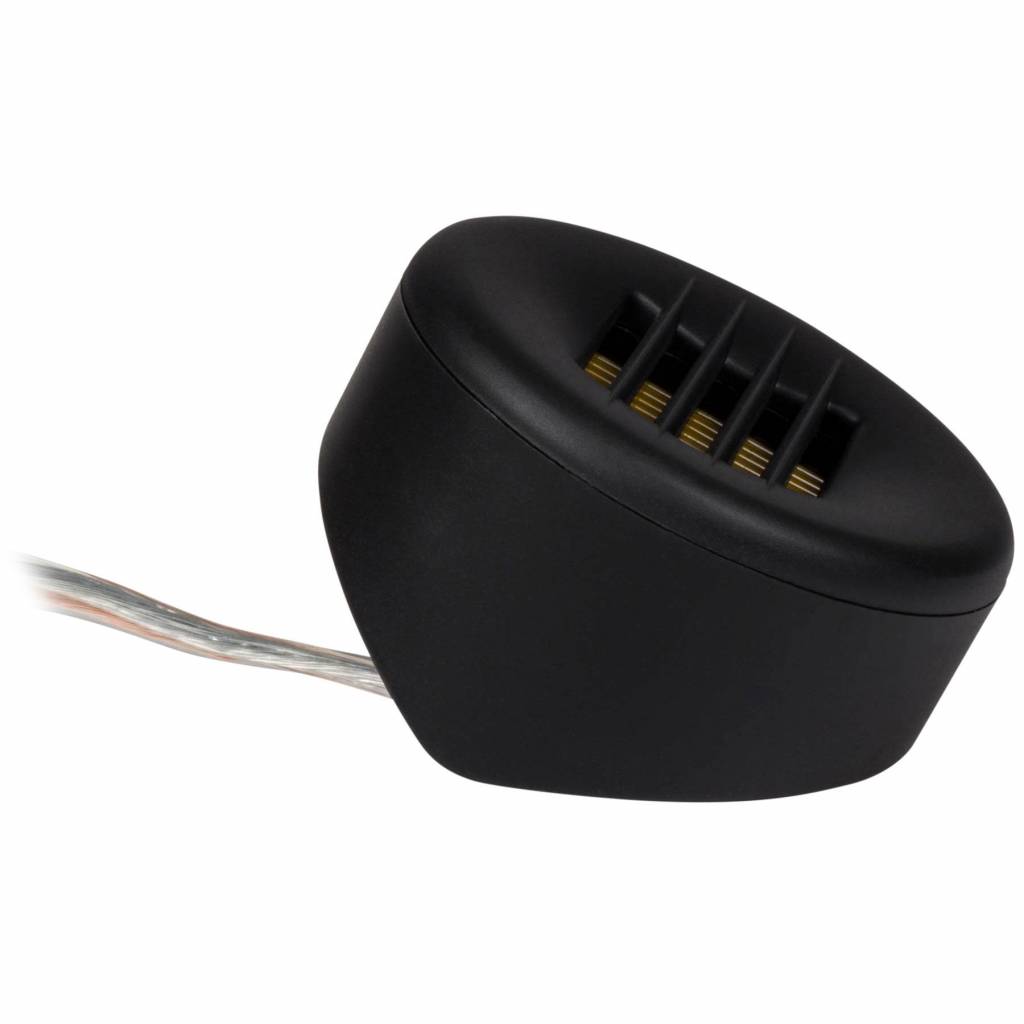

  • Angled enclosure can be placed anywhere in your vehicle

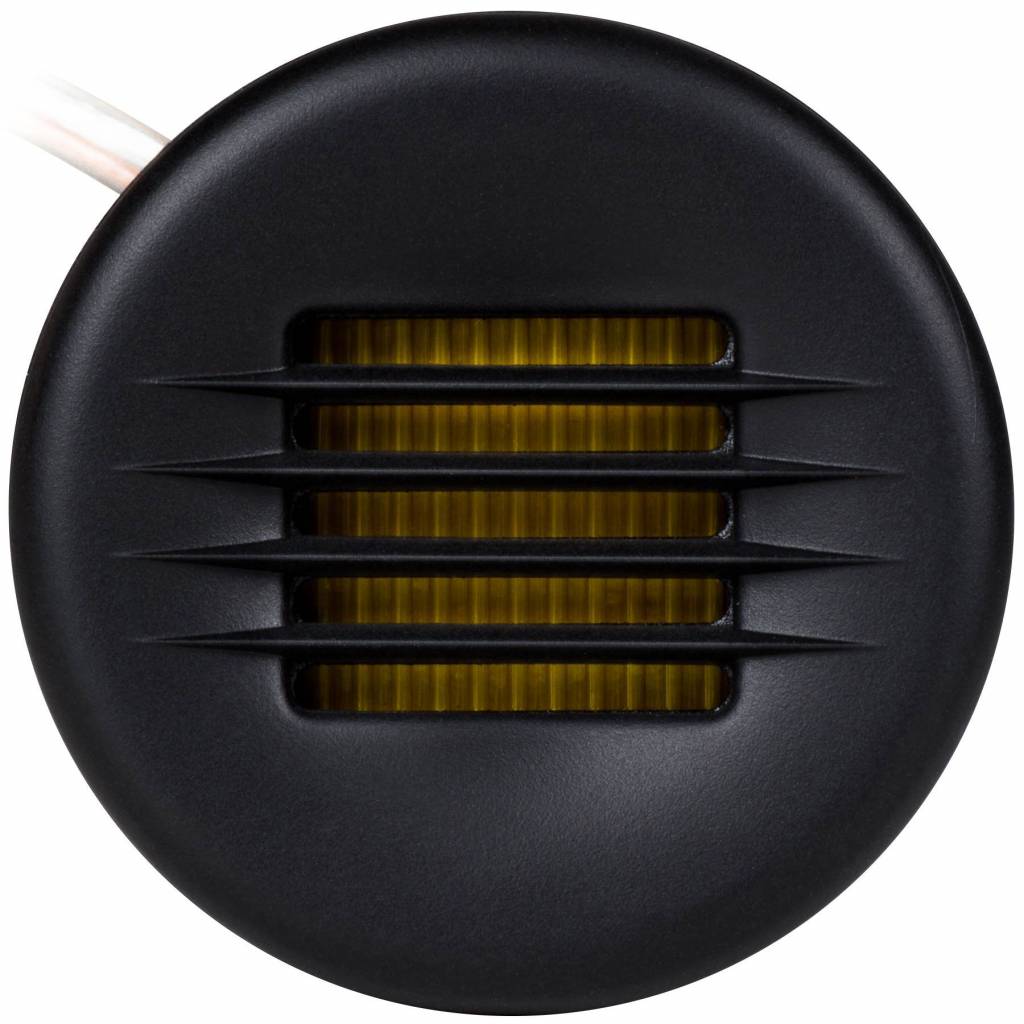

  • Pleated Kapton diaphragm with aluminum conductor for high power handling

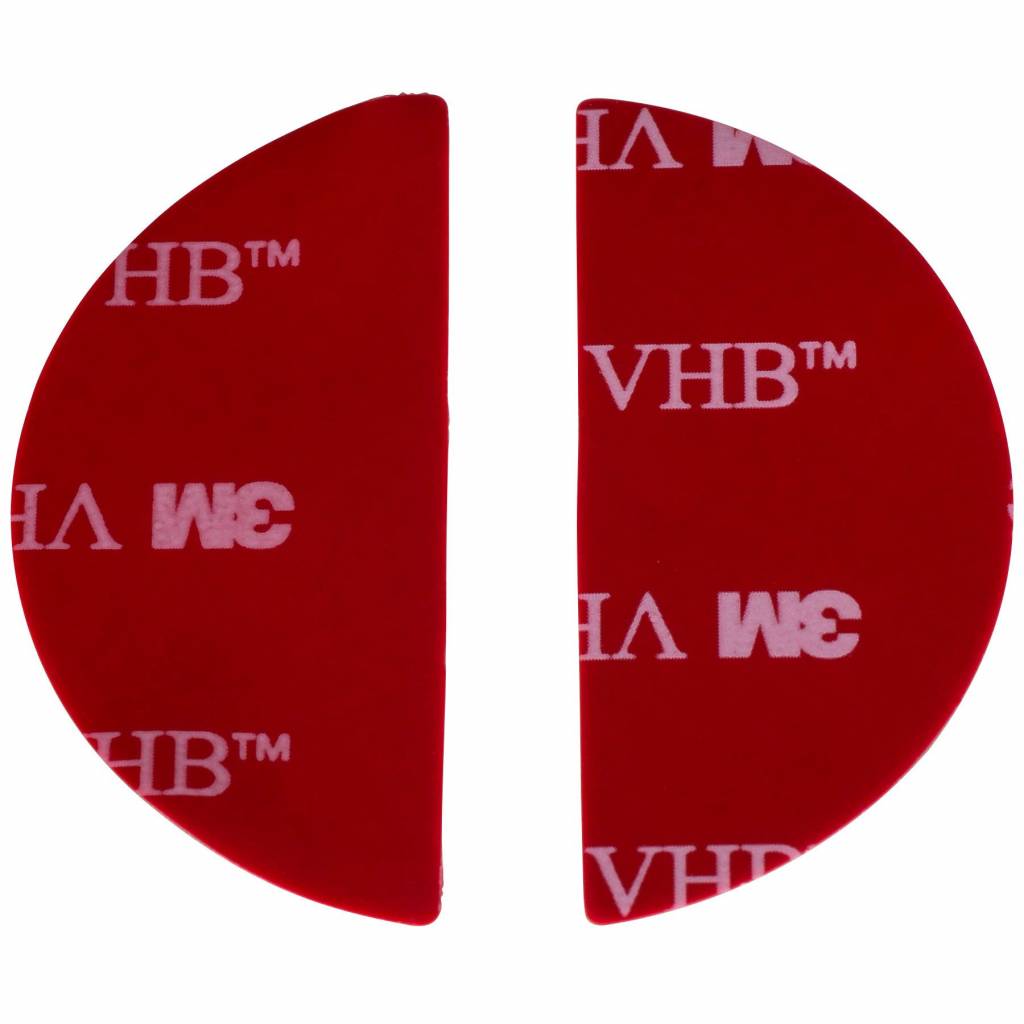

  • Easy installation with 3M VHB mounting tape and connecting leads



Product details

Dayton Audio AMTPOD-4 Air Motion Transformer Automotive Tweeter Pair



Get ready for AMT treble quality in your car! The Dayton Audio AMTPOD-4 is a high-technology Air Motion Transformer tweeter encased in a compact angled "pod" enclosure for easy mounting in your car. Try them on your dashboard and experience a wide, expansive soundstage with open and extended highs and incredible detail!

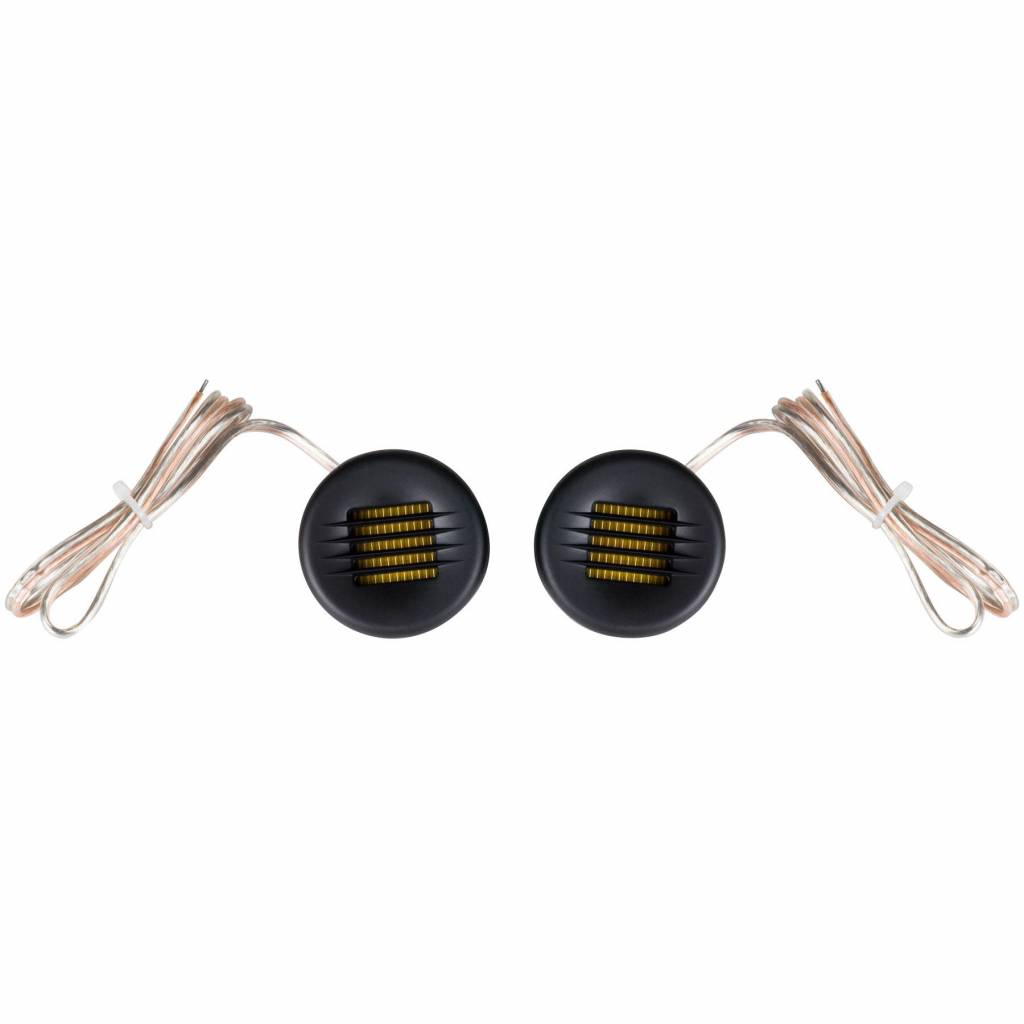

The angled housings can be positioned anywhere on your dash or A-pillar, then adhered using the included mounting tape. Simply connect the included lead wires to an appropriate high-pass crossover (4500 Hz or above), and you are ready to begin enjoying audiophile-quality treble performance. The AMTPOD-4 tweeters are sold as a pair, to complete your installation at a great price!



Note: The AMTPOD-4 does not include an internal crossover capacitor; this allows you to choose the quality of the capacitor use. We recommend a 6.8 uF non-polar capacitor in series with the positive connection of the AMTPOD-4 to provide an effective crossover point near 4500 Hz. Using this tweeter without a high-pass filter capacitor is not recommended and may result in damage.



Specifications: • Power Handling: 15 watts RMS/30 watts max • Impedance: 4 Ohms • Frequency Response: 4,500-25,000 Hz • SPL: 90 dB 2.83V/1m • Lead Length: 20" • Dimensions: Overall diameter: 1.65" Height: 0.86" Angle: 30 degrees.



Eigenschaften

Spezifikationen für: AMTPOD-4 Air Motion Transformer Automotive Tweeter Pair

  • Tweeter Type Art des Drivers, wie zum Beispiel soft dome, piezo, ribbon, AMT oder bullet tweeter etc. Air Motion Transformer (AMT)
  • Tweeter Series Spezielle Tweeter Produktionsreihe des Herstellers. AMT Series
  • Cone / Dome Diameter Nominal Durchmesser des Domes/Cones, gemessen in Inch.
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 15 Watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 30 watts
  • View all specifications
  • Impedance 4 Ohms
  • Sensitivity 90 dB 2.83V/1m
  • Frequency Response 4,500-25,000 Hz
  • Resonant Frequency (Fs)
  • DC Resistance (Re)
  • Voice Coil Inductance (Le)
  • Mechanical Q (Qms)
  • Electromagnetic Q (Qes)
  • Total Q (Qts)
  • Overall Outside Diameter 1.65"
  • Cutout Diameter
  • Depth 0.86"
  • Angle 30 degrees
  • Mounting Type
  • Exit Diameter
  • Diaphragm Material
  • Recommended cut frequency
