Dayton Audio AMT Mini-8 Air Motion Transformer Tweeter 8 Ohm

Lieferzeit: 1-3 Werktage

  • Artikelnummer: AMT Mini-8
  • Vorrat: 4 Auf Lager

Dayton Audio's AMT Mini-8 Air Motion Transformer tweeter adds clarity, transient speed, and musical finesse to almost any loudspeaker design. The AMT Mini-8's compact housing is easy to mount anywhere, and groundbreaking AMT technology enables high output

€ 31,45 Inkl. MwSt.

  • Kaufen Sie 4 für je €29,88 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio AMT Mini-8 Air Motion Transformer Tweeter 8 Ohm

Dayton Audio's AMT Mini-8 Air Motion Transformer tweeter adds clarity, transient speed, and musical finesse to almost any loudspeaker design. The AMT Mini-8's compact housing is easy to mount anywhere, and groundbreaking AMT technology enables high output from this tiny driver.



Highlights

  • Advanced Air Motion Transformer design squeezes air
  • Folded Kapton ribbon diaphragm delivers clean, detailed, and highly dynamic output
  • Miniature design can be mounted virtually anywhere
  • Powerful, lightweight neodymium magnet structure for low distortion and high efficiency
  • Sonically similar to the best metal ribbon and planar tweeters
  • Includes free 2.25" diameter faceplate for front mounting



Product details

Dayton Audio AMT Mini-8 Air Motion Transformer Tweeter 8 Ohm



The Dayton Audio AMT Mini-8 model features a round housing and compact AMT element, for wide dispersion that easily replaces dome tweeters in retrofit or new design applications. The AMT Mini-8 is small enough to be used in compact satellite speakers, or installed in the center of a mid-woofer to create a full-bandwidth coaxial driver, or implemented in other ways -- including line arrays. The sealed rear chamber design of the AMT Mini-8 eliminates the need for a separate internal chamber in the loudspeaker enclosure.



Dayton Audio AMT (Air Motion Transformer) tweeters use groundbreaking transducer technology from the original Heil Air Motion Transformer to provide ultra-clean, detailed, and dynamic treble output. The pleated ribbon diaphragm of an AMT provides a large acoustic radiating area condensed into a compact chassis, for extremely high output and improved power handling.

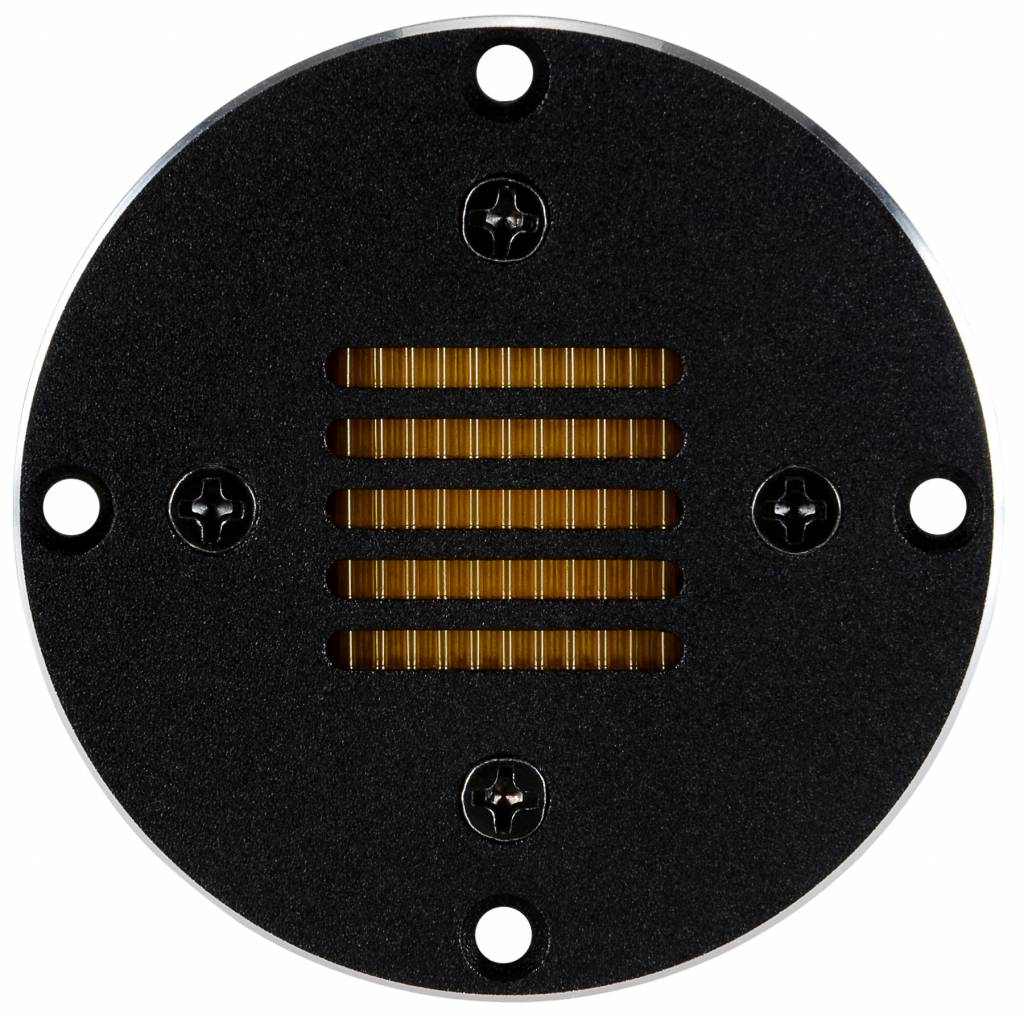

Note: This tweeter was designed for press-fit mounting, but now includes a 2.25" diameter faceplate for front baffle mounting.

Includes:

1 x Dayton Audio AMT Mini-8 Air Motion Transformer Tweeter 8 Ohm

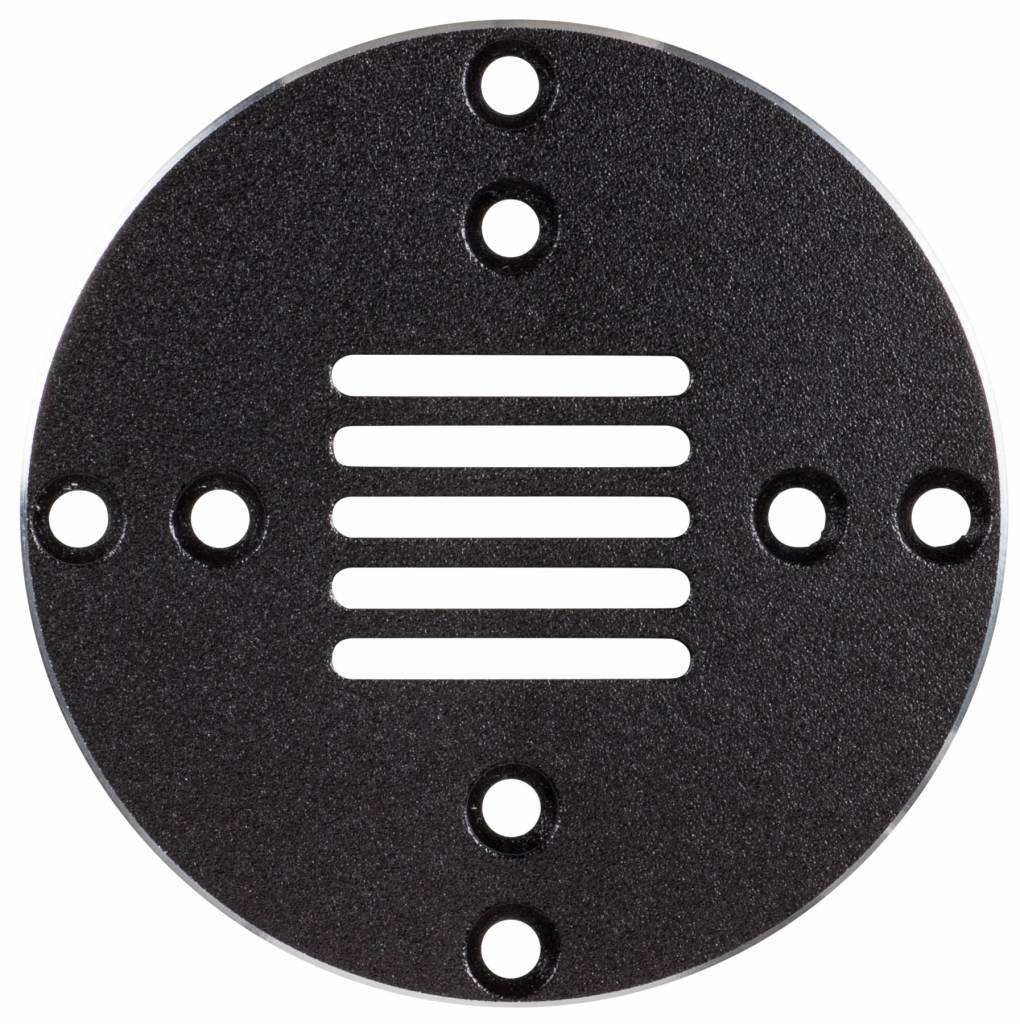

1 x 2.25" diameter faceplate

Eigenschaften

Spezifikationen für: AMT Mini-8 Air Motion Transformer Tweeter 8 Ohm

  • Tweeter Type Art des Drivers, wie zum Beispiel soft dome, piezo, ribbon, AMT oder bullet tweeter etc. Air Motion Transformer (AMT)
  • Tweeter Series Spezielle Tweeter Produktionsreihe des Herstellers. AMT Series
  • Cone / Dome Diameter Nominal Durchmesser des Domes/Cones, gemessen in Inch.
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 15 Watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt.
  • View all specifications
  • Impedance 8 ohms
  • Sensitivity 88 dB 1W/1m
  • Frequency Response 3,500 to 40,000 Hz
  • Resonant Frequency (Fs) 3,500 Hz
  • DC Resistance (Re) 7.92 ohms
  • Voice Coil Inductance (Le)
  • Mechanical Q (Qms) 1.86
  • Electromagnetic Q (Qes)
  • Total Q (Qts) 1.84
  • Overall Outside Diameter 2.25" (with faceplate)
  • Cutout Diameter 1.59"
  • Depth 0.91"
  • Angle
  • Mounting Type
  • Exit Diameter
  • Diaphragm Material
  • Recommended cut frequency

Documenten

Bewertungen

Erfahrungsberichte 4 / 5 Bewertungen: (3)

  • CH Durch Cyriel H. an 27-12-2019 11:02

    4 / 5

    Toegepast in Chiropter Audio model 105 Mk2. Ingezet vanaf 9 kHz. Heeft een heel mooi sprankelend geluid, verspreidt zich goed in de ruimte. Ongelooflijk dat dat uit zo'n kleine driver kan komen.

  • TH Durch Tom H. an 18-05-2018 09:49

    4 / 5

    Nice product! Very good frequency extension!

  • CW Durch Christian W. an 05-04-2018 14:31

    4 / 5

    No description was given
