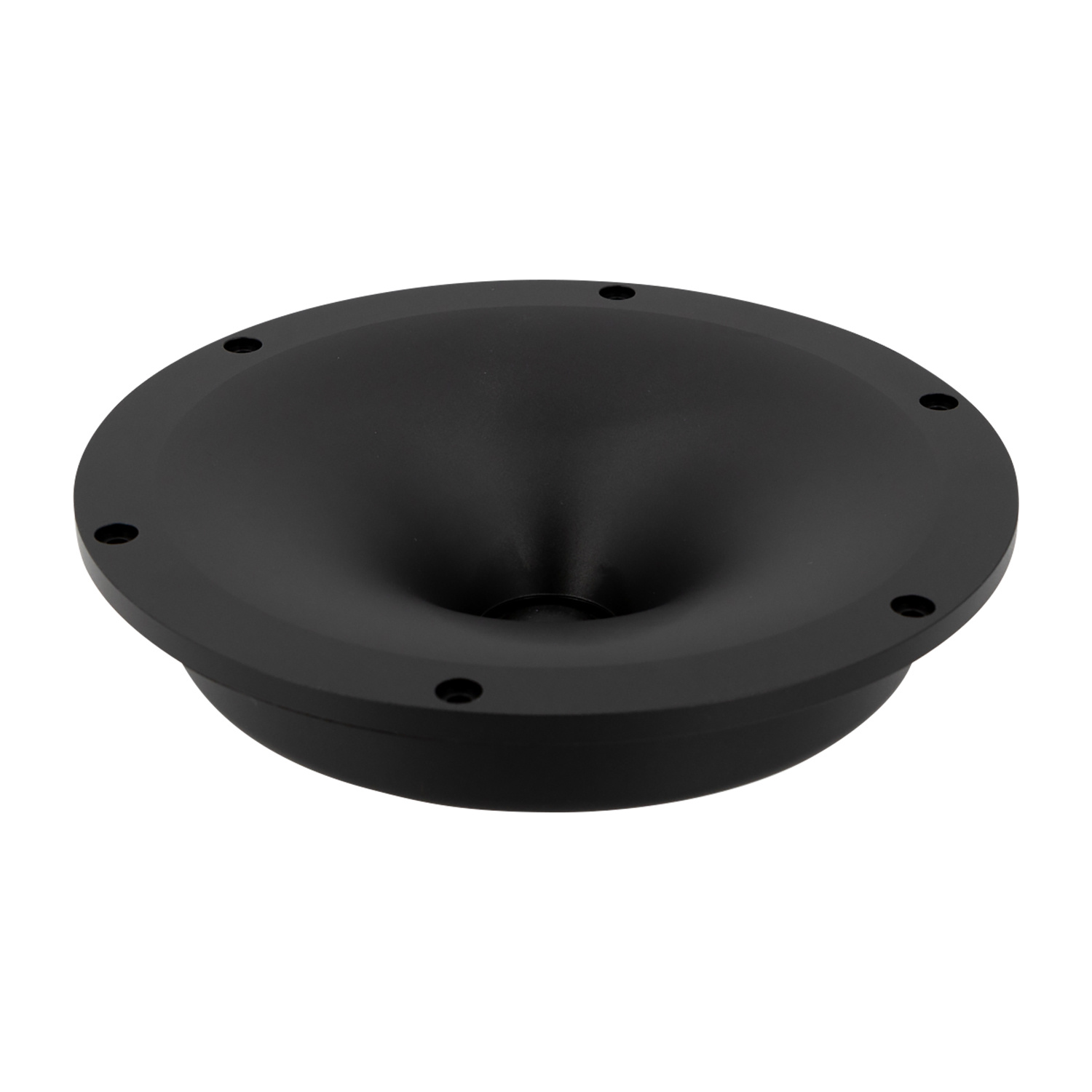

      LD25X-WG Dome Tweeter with Waveguide

      CSS LD25X-WG Dome Tweeter with Waveguide

      €329,95

      6 Auf Lager6 erwartet auf 31-10-2025

      Zum Warenkorb hinzufügen

      CSS LD25X-WG Dome Tweeter with Waveguide

      1 reviews
      5 von 5
      1 reviews
      5 Sterne
      100%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: CSS
      Zeige alle Kalotten-Hochtöner
      1" | 8 Ω
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      272,69 €329,95 € 6 Auf Lager6 erwartet auf 31-10-2025
      • -5% Bestelle 4 für nur 313,45 € je Stück
      +-
      Zum Warenkorb hinzufügen

      Buy now, pay later

      • Kostenloser Versand (DE & A)
      • Jetzt bestellt, am Montag versendet
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide
      LD25X-WG Dome Tweeter with Waveguide

      Produktbeschreibung CSS LD25X-WG Dome Tweeter

      The CSS LD25X-WG Dome Tweeter is a high-end audio component designed to deliver exceptional sound quality with reduced distortion and improved directivity. Utilizing the XBL^2 motor technology, this tweeter is engineered to provide a broader and flatter magnetic field, resulting in a linear and low-distortion performance even at higher volumes and lower frequencies.



      Highlights of the CSS LD25X-WG Dome Tweeter

      • XBL^2 motor technology for lower distortion
      • Custom 7" aluminum waveguide for better directivity and lower crossover points
      • Full copper cap over the inner pole piece to reduce inductance and distortion
      • Solid aluminum waveguide to prevent ringing during operation



      Product details CSS LD25X-WG Dome Tweeter

      CSS LD25X-WG Dome Tweeter

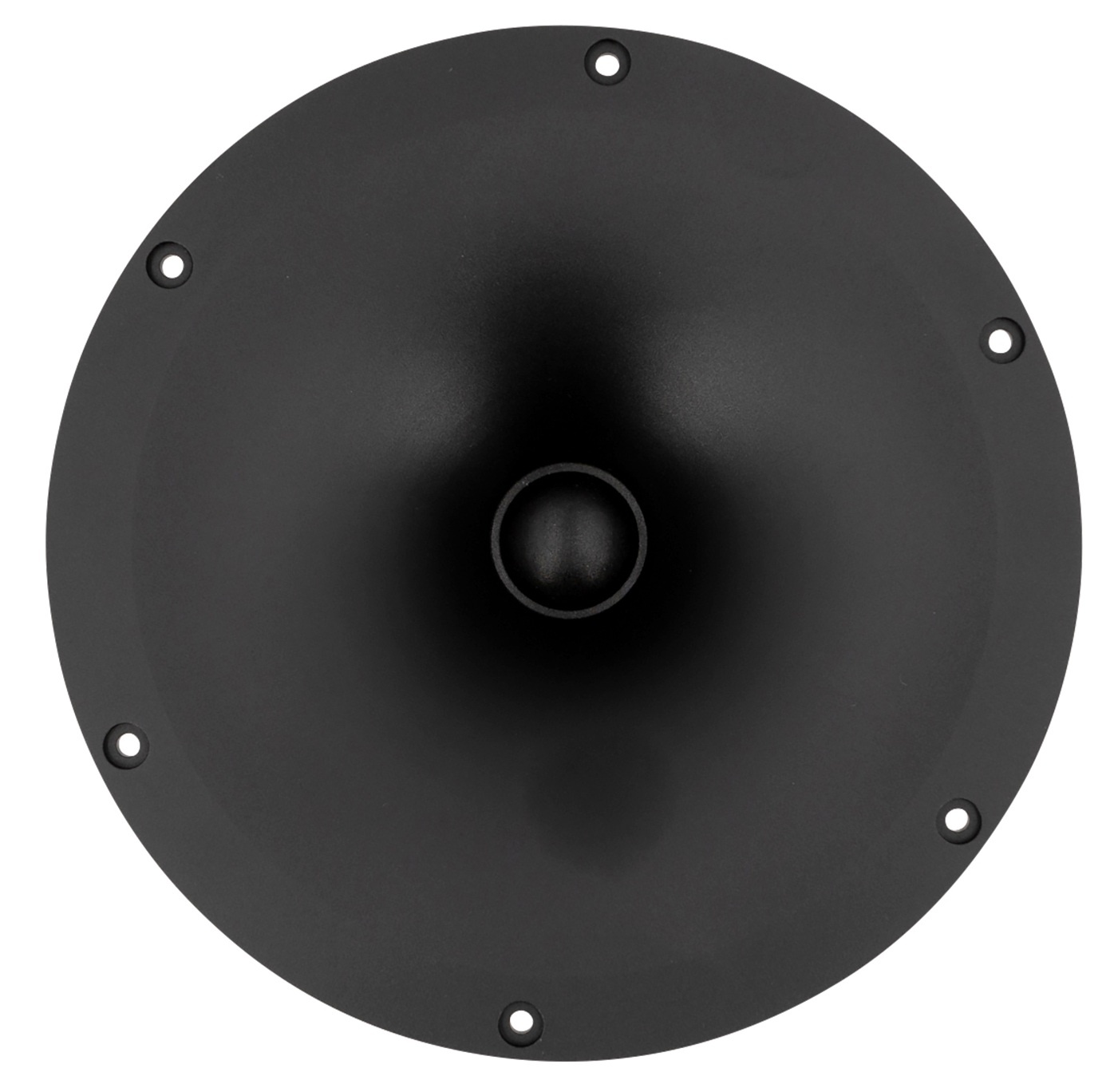

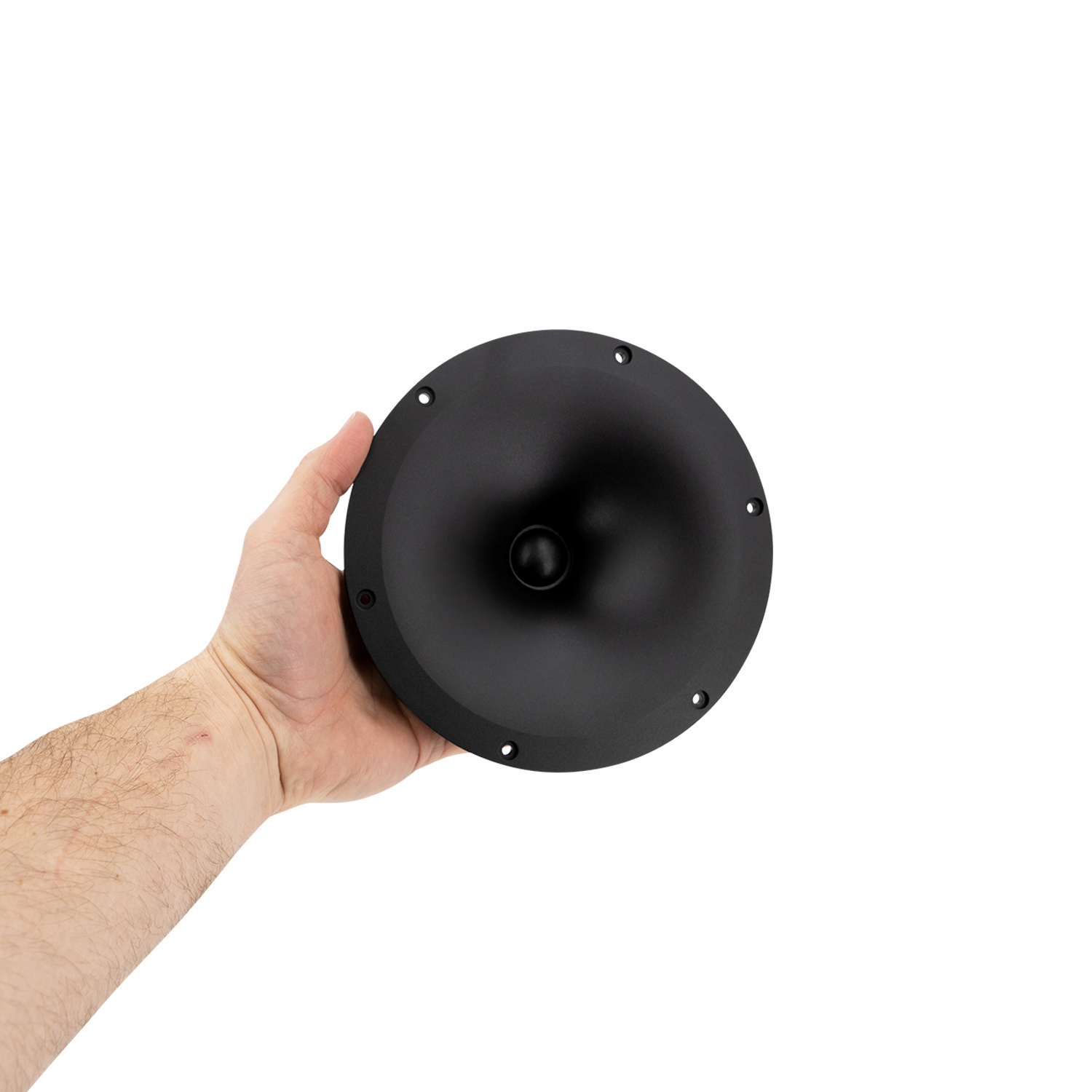

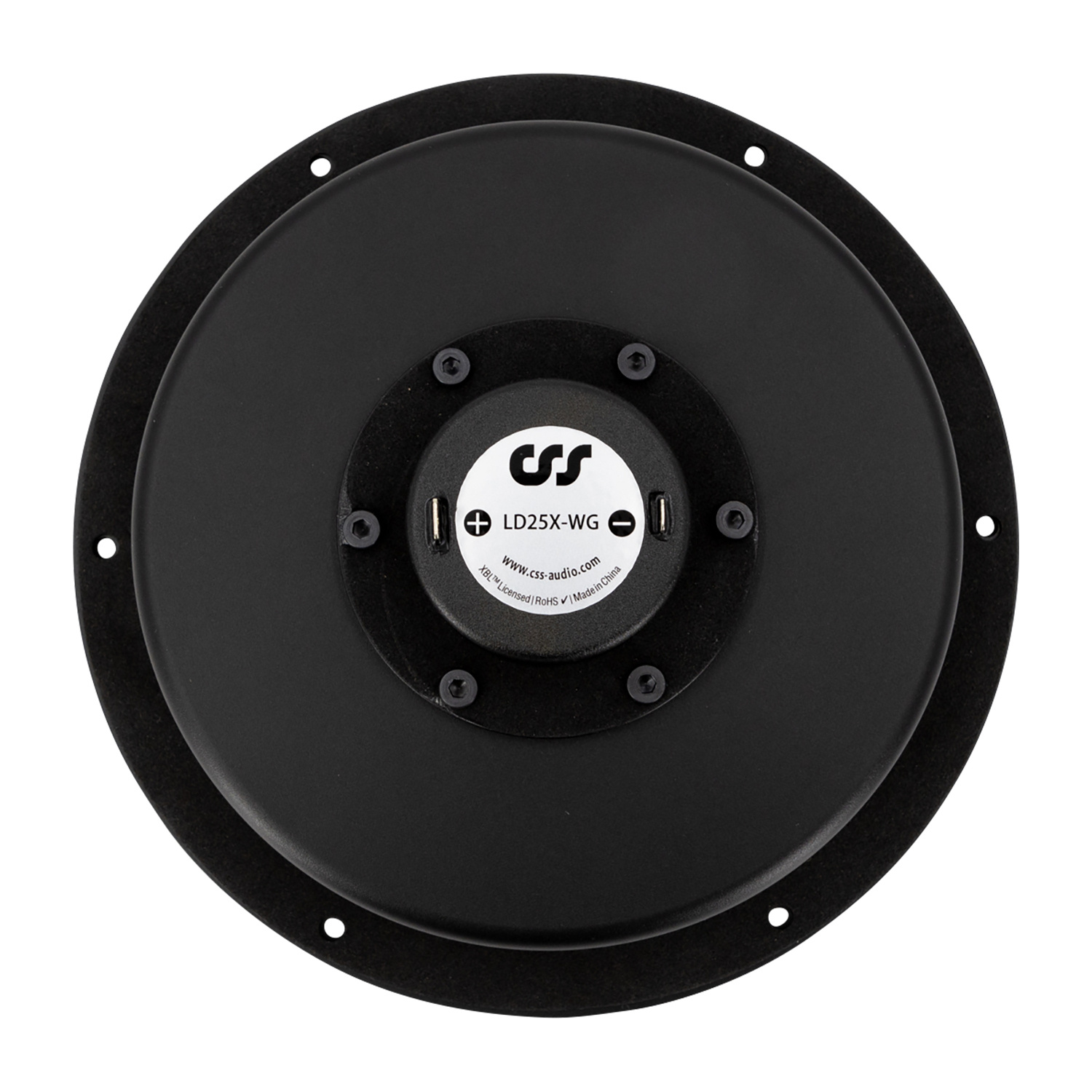

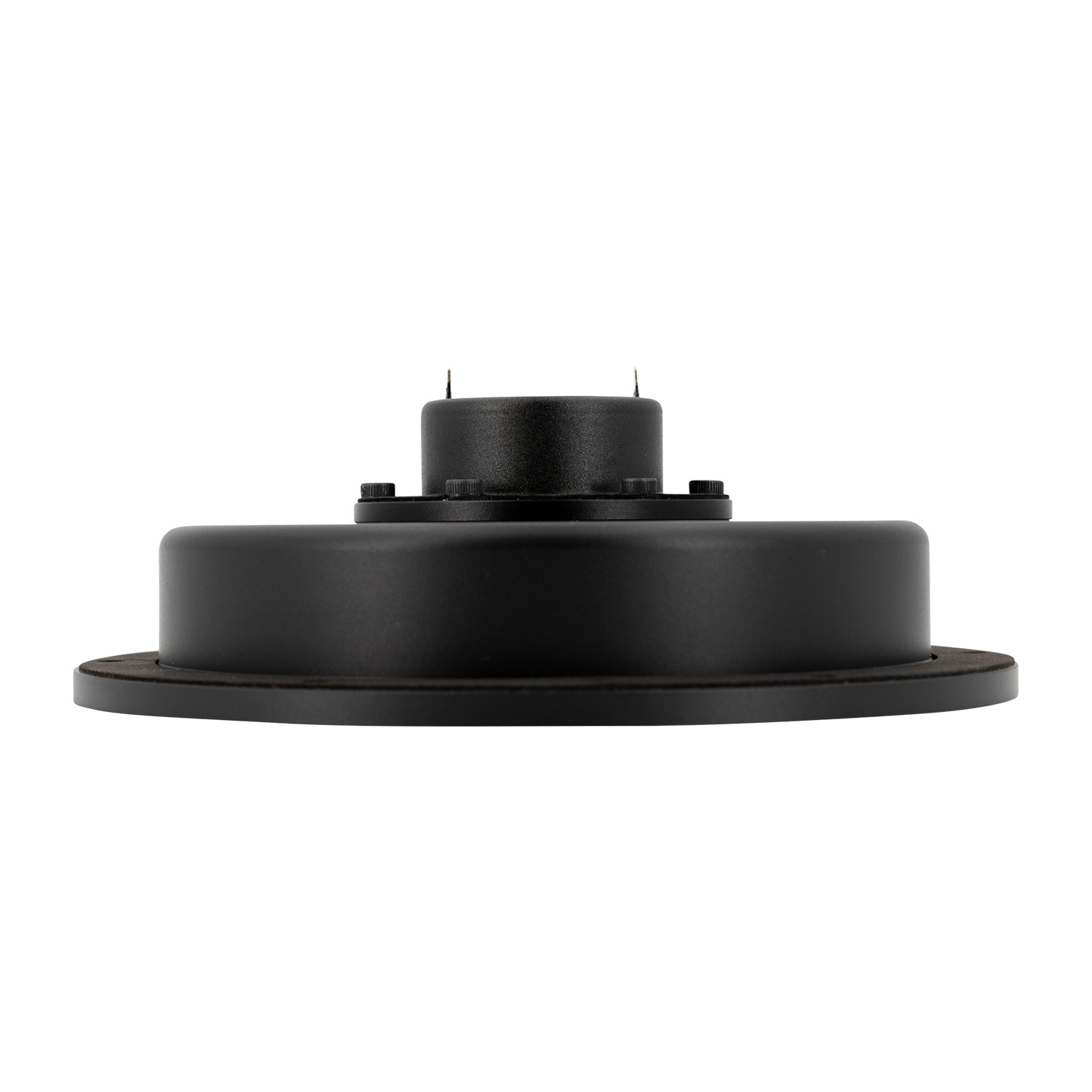

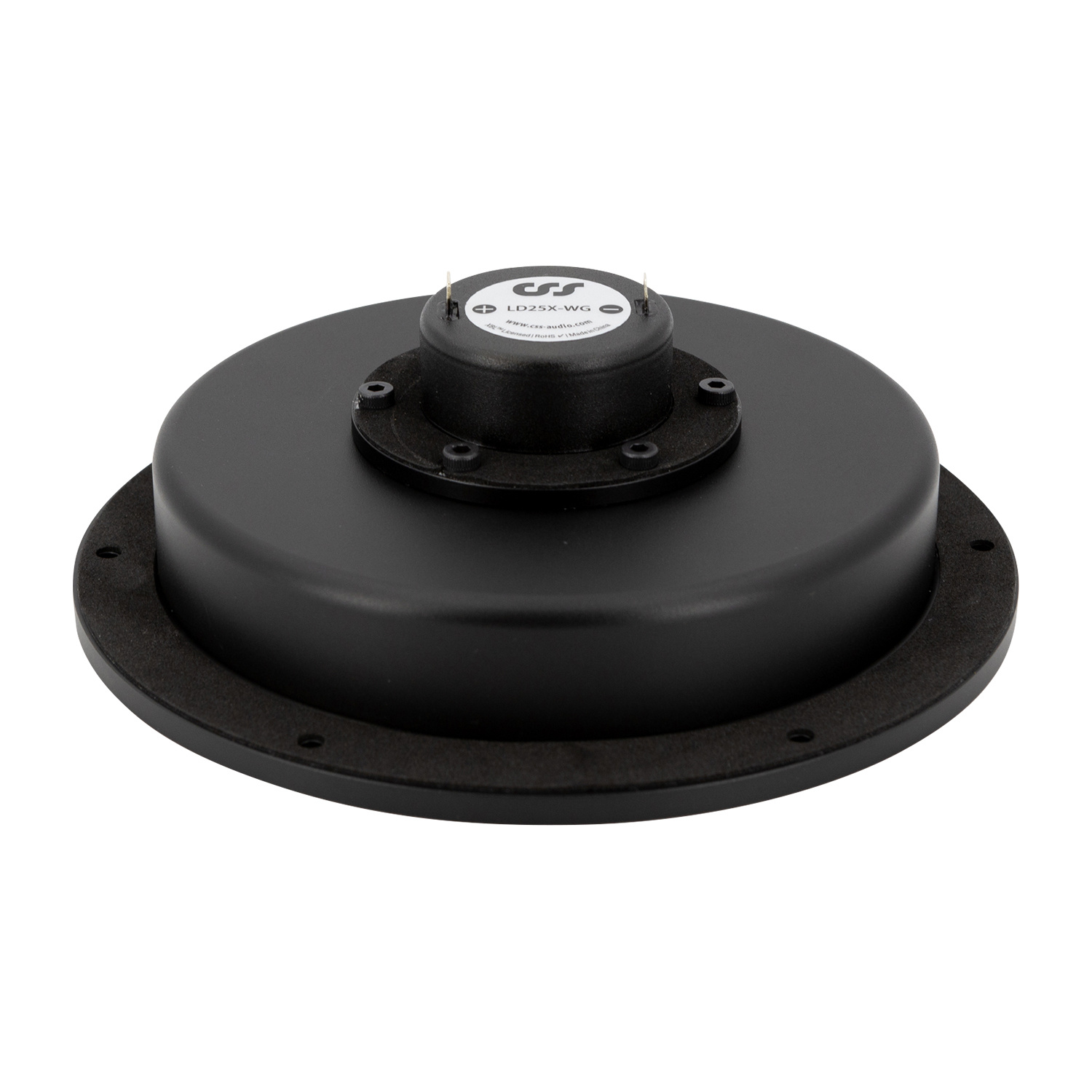

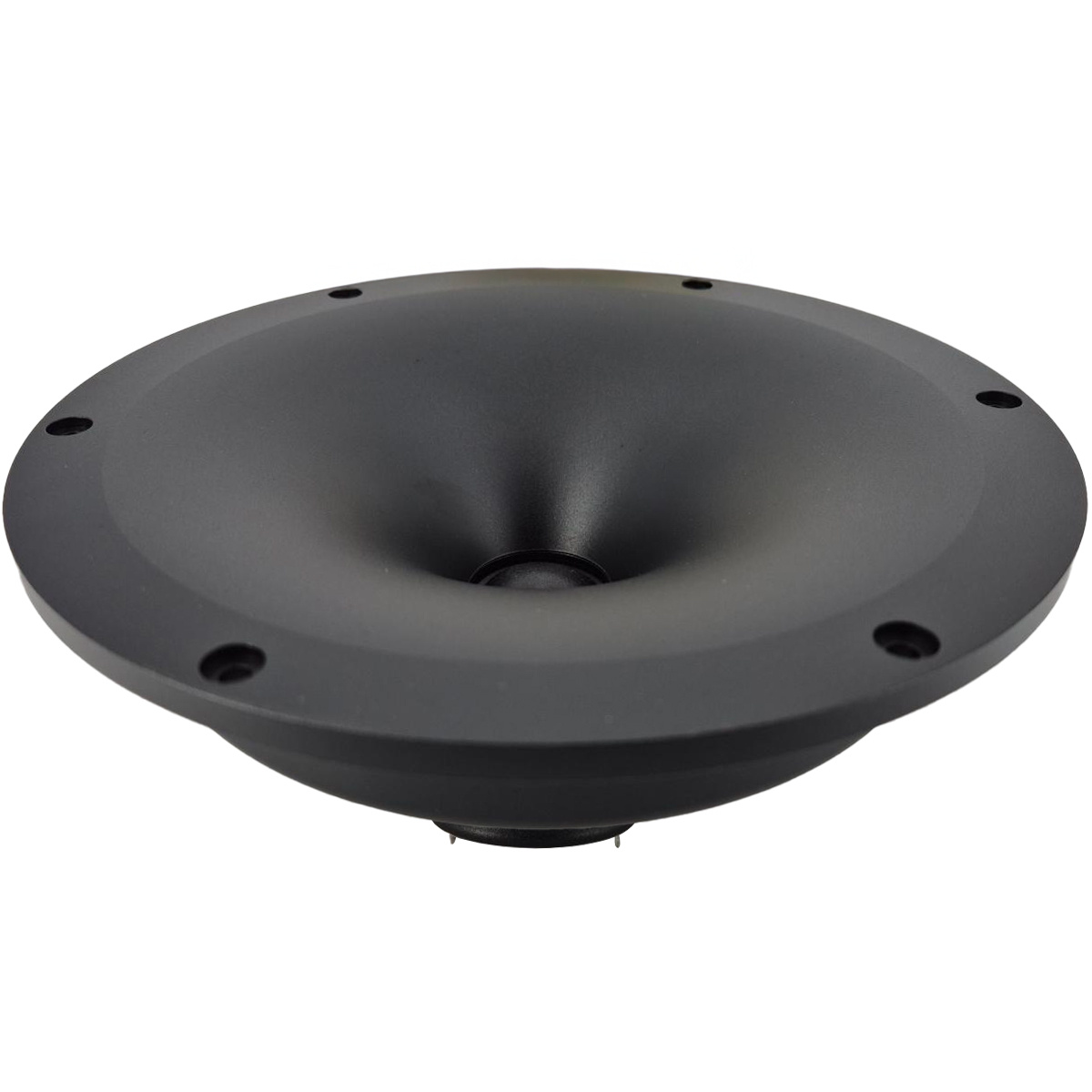

      The CSS LD25X-WG is a 25 mm dome tweeter featuring a custom 7" waveguide. This tweeter is designed to match the directivity of larger woofers, allowing for a lower crossover point. The XBL^2 motor technology, which uses a dual-gap structure, ensures the voice coil operates within a larger and stronger magnetic field, reducing inter-modulation distortion. This tweeter has an 8 Ohm impedance and a sensitivity of 89 dB at 2.83V/1m.



      The tweeter's silk dome diaphragm and copper-clad aluminum wire voice coil on a Kapton former contribute to its high performance. The cast aluminum faceplate and robust build quality enhance durability and acoustic performance. The LD25X-WG's controlled directivity and low distortion make it suitable for high-fidelity audio applications, ensuring precise and clear high-frequency reproduction.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      LD25X-WG
      EAN
      8785256861989
      Hochtönertyp
      dome tweeter
      Belastbarkeit (QMW)
      75 Watts
      Impedanz (Z)
      8 Ohm
      Empfindlichkeit (SPL bei 1m / 2,83V)
      89 dB
      Resonanzfrequenz (Fs)
      865 Hz
      Gleichstromwiderstand (Re)
      6.4 Ohm
      Voice Coil Inductance (Le)
      0.066 mH
      Mechanische Güte (Qms)
      4.21
      Electromagnetic Q (Qes)
      1.85
      Gesamtgüte (Qts)
      1.28
      Membranmaterial
      silk
