C-Note MT Bookshelf Speaker Kit Pair w/ Knock-Down Cabinets

Lieferzeit: 1-3 Werktage

  • Artikelnummer: C-Note Kit
  • Vorrat: 8 Auf Lager

How do you build great sounding speakers on a budget? Easy! The C-Note bookshelf speaker kit delivers accurate response, incredible imaging, and a surprising amount of bass -- for just a C-Note! Nearly everything is included to complete this speaker build

€ 169,95

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

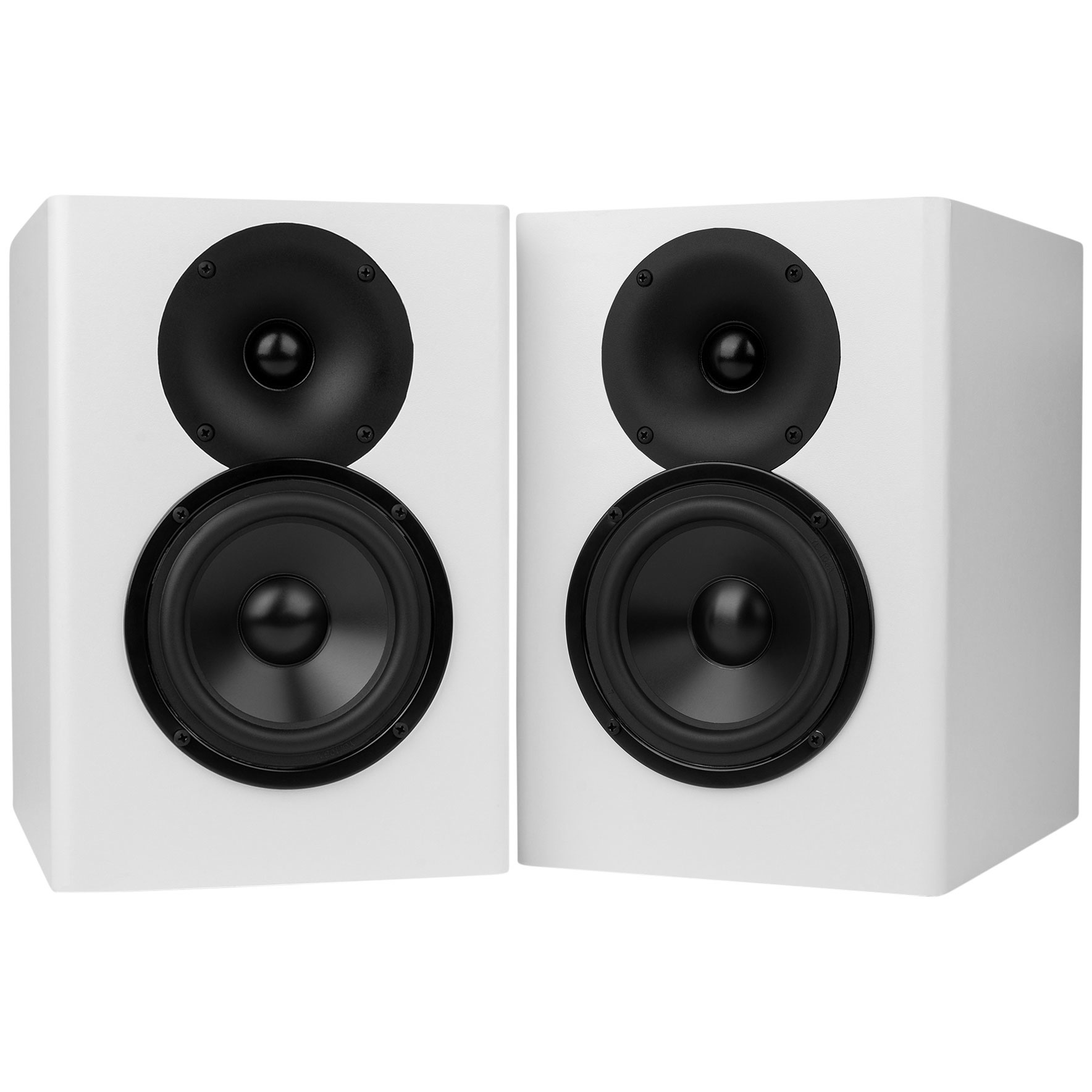

C-Note MT Bookshelf Speaker Kit Pair w/ Knock-Down Cabinets

How do you build great sounding speakers on a budget? Easy! The C-Note bookshelf speaker kit delivers accurate response, incredible imaging, and a surprising amount of bass -- for just a C-Note! Nearly everything is included to complete this speaker building project: a pair of knock-down cabinets, drivers, port tubes, and crossover components.



Hightlights

  • Accurately reproduces music as the artists intended it to be heard
  • Pinpoint imaging with a wide soundstage for an immersive listening experience
  • Simple instruction manual makes anybody a speaker builder instantly
  • Customize the C-Note to your personal tastes -- finishing options are limitless
  • CNC cut MDF enclosures are easy to assemble with minimal tools



Product Details

C-Note MT Bookshelf Speaker Kit Pair with Knock-Down Cabinets



The C-Note speaker kit delivers a lot more than the price and size suggests. We have done everything to keep costs down without sacrificing quality. This compact speaker pair provides extremely flat response with much more low end than you would expect from a speaker this small. In addition, the C-Note's controlled dispersion delivers pinpoint imaging with a surprisingly wide soundstage.



Dayton Audio's DSA135-8 5" Designer Series woofer is used for the midrange and low frequencies. With an aluminum cone and a powerful motor designed for low distortion, this woofer produces bass with authority while remaining smooth through the midrange frequencies. The high frequencies are handled by the ND25FW-4 1" soft dome tweeter , also from Dayton Audio. This waveguide-loaded tweeter controls high frequency dispersion for smooth off axis response and natural sound. Another advantage of the waveguide design is that it allows the voice coil to set further back from the baffle for an almost perfect time alignment with the woofer.

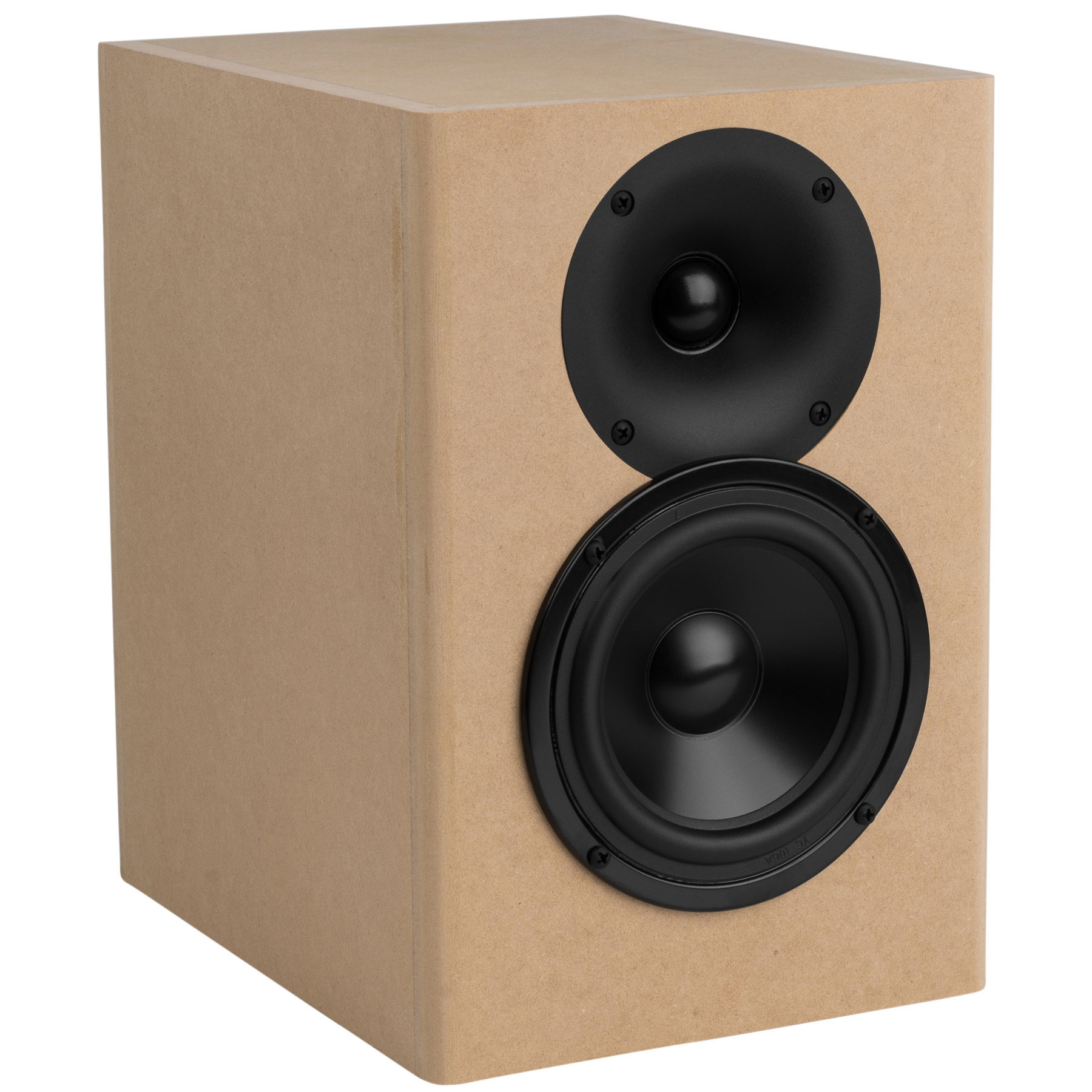

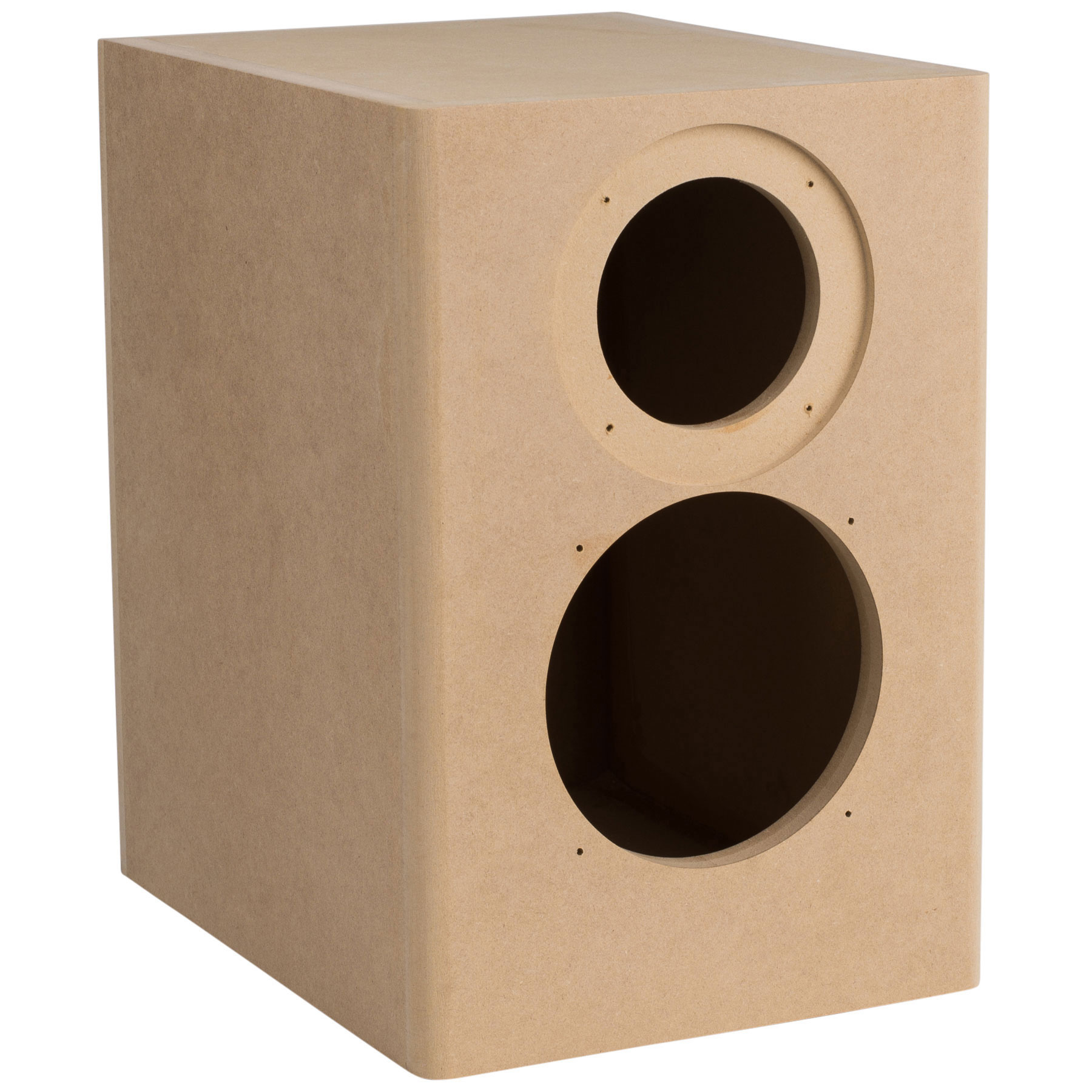

The solid MDF enclosure's 1/2" panels are all CNC milled to tight tolerances, ensuring easy assembly. The surface mounted woofer is easy to install, while the flush mounted tweeter provides a sleek appearance.



This kit includes nearly everything you need to build a pair of top-notch speakers in no time flat, including: a knock-down enclosure, drivers, and crossover components.



This kit includes parts to build a pair of speakers.

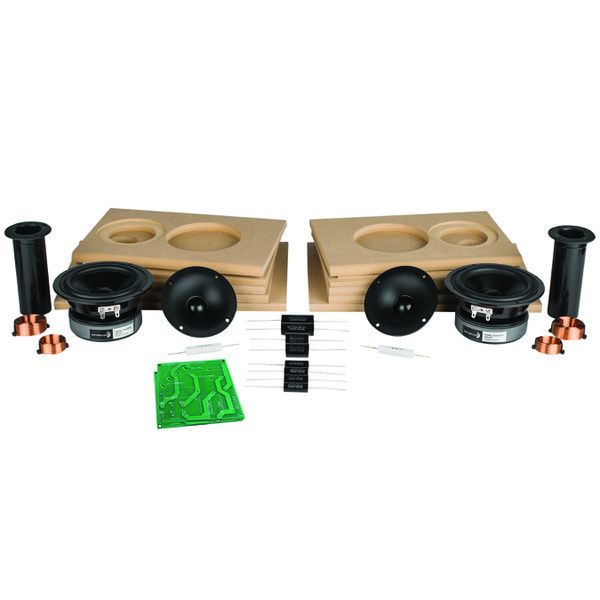

Included Components:

Qty

Part Number

Description

2

DSA135-8

Dayton Audio DSA135-8 5" Designer Series Aluminum Cone Woofer

2

ND25FW-4

Dayton Audio ND25FW-4 1" Soft Dome Neodymium Tweeter with Waveguide 4 Ohm

2

DMPC-5.1

Dayton Audio DMPC-5.1 5.1uF 250V Polypropylene Capacitor

4

DMPC-2.0

Dayton Audio DMPC-2.0 2.0uF 250V Polypropylene Capacitor

2

DMPC-6.8

Dayton Audio DMPC-6.8 6.8uF 250V Polypropylene Capacitor

2

DNR-6.0

Dayton Audio DNR-6.0 6 Ohm 10W Precision Audio Grade Resistor

2

AC20-25

Dayton Audio 0.25mH 20 AWG Air Core Inductor Crossover Coil

2

AC201-4

Dayton Audio 1.4mH 20 AWG Air Core Inductor Crossover Coil

2

260-388

Speaker Cabinet Port Tube 1-3/8" ID Adjustable

1

C-Note Cabinets

C-Note Bookshelf Speaker Kit Knock-Down Enclosure Pair

Note: Screws, binding posts, and speaker wire are not included.



Specifications
• Power handling: 60 watts RMS/120 watts max
• Frequency response: ±3 dB from 43-20,000 Hz (±2 dB from 60-16,000 Hz)
• Impedance: 8 ohms
• Sensitivity: 85 dB 1W/1m
• Dimensions: 11" H x 7.5" W x 9.5" D
