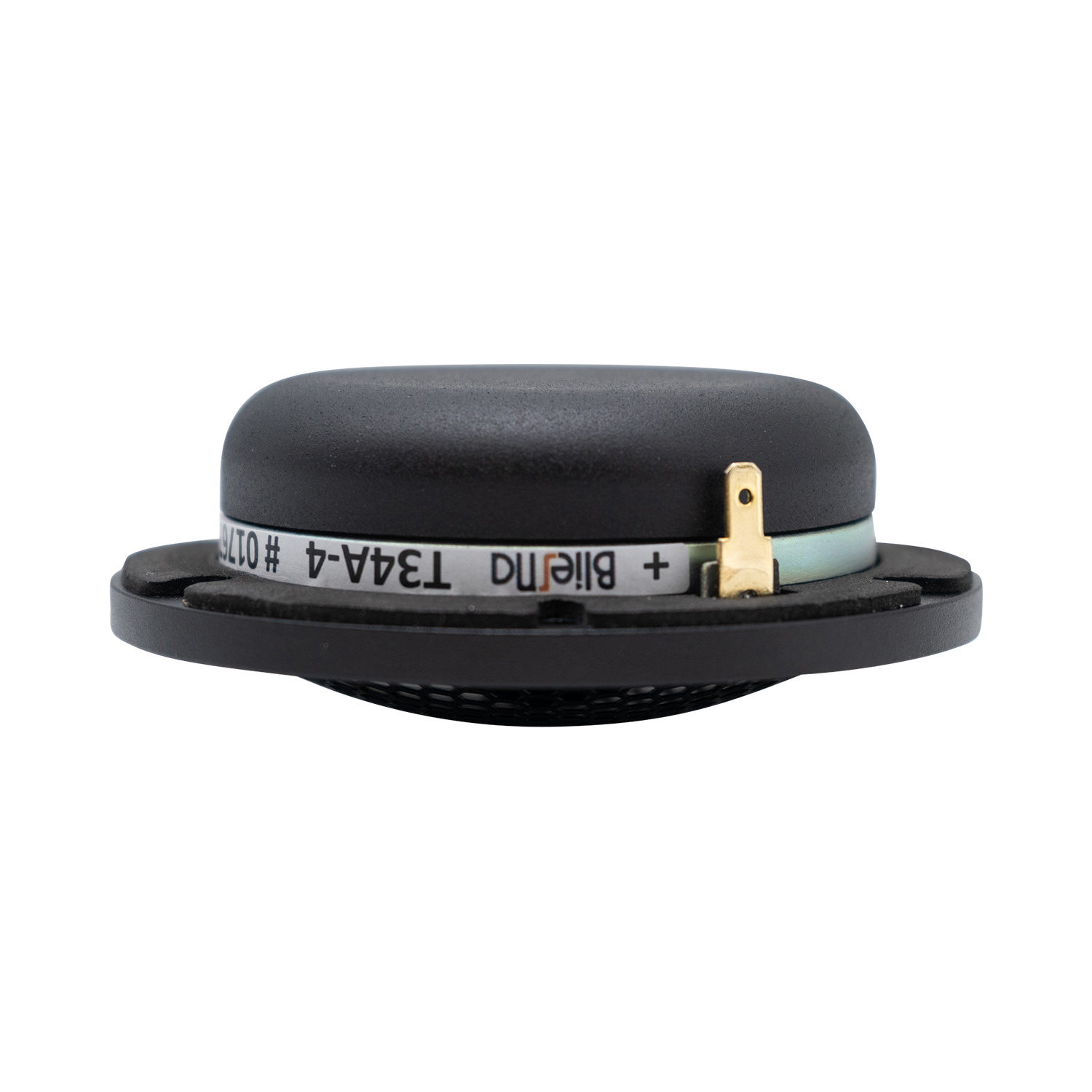

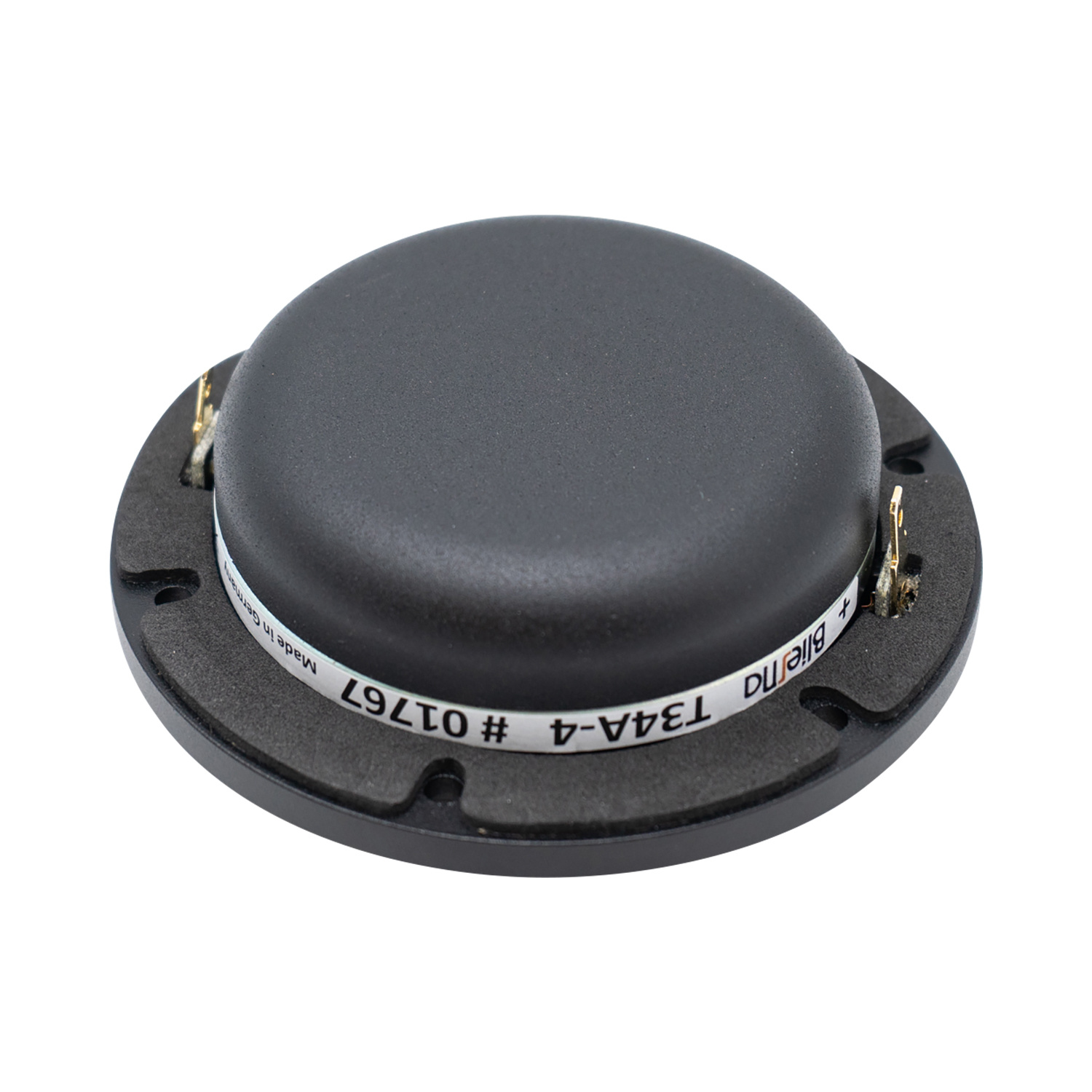

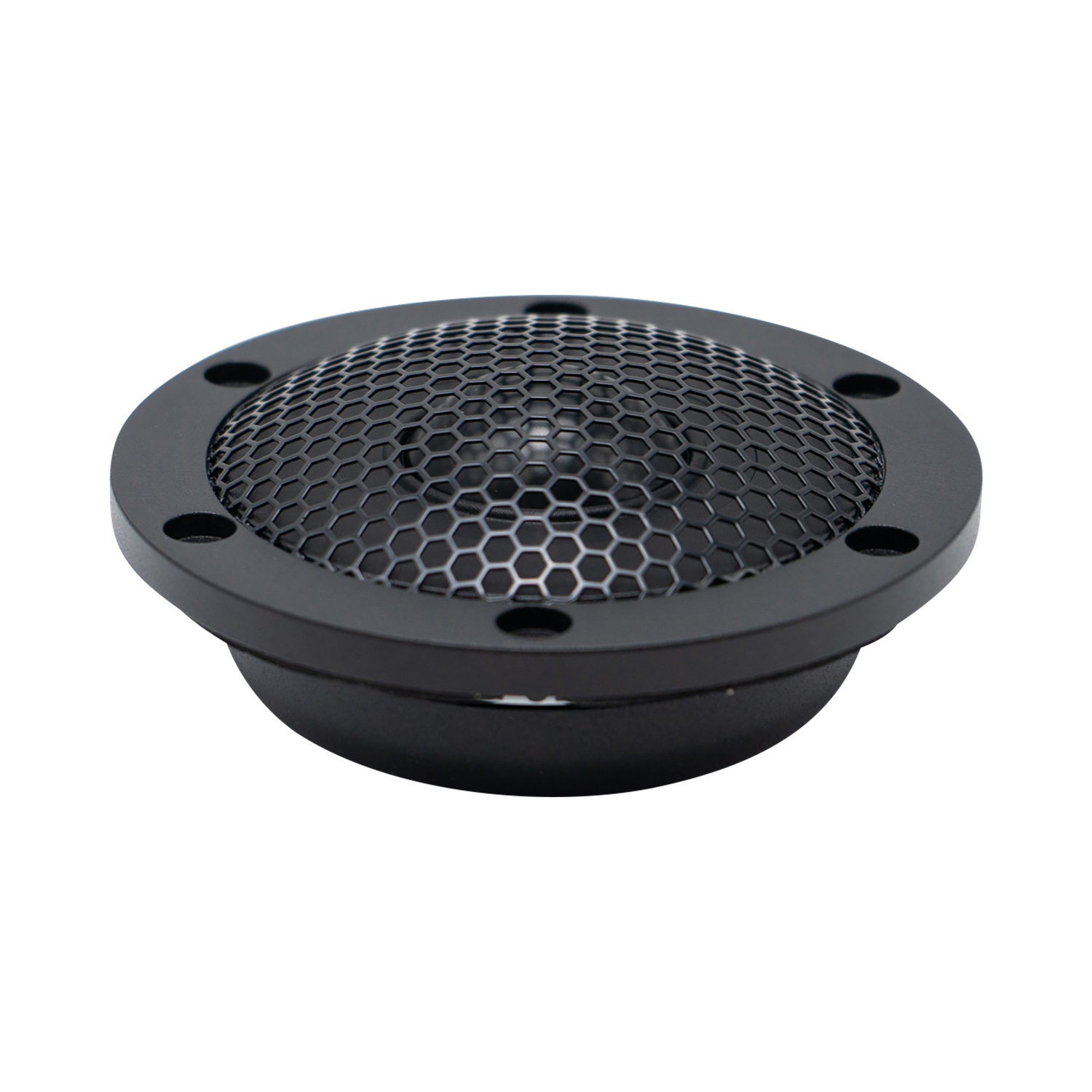

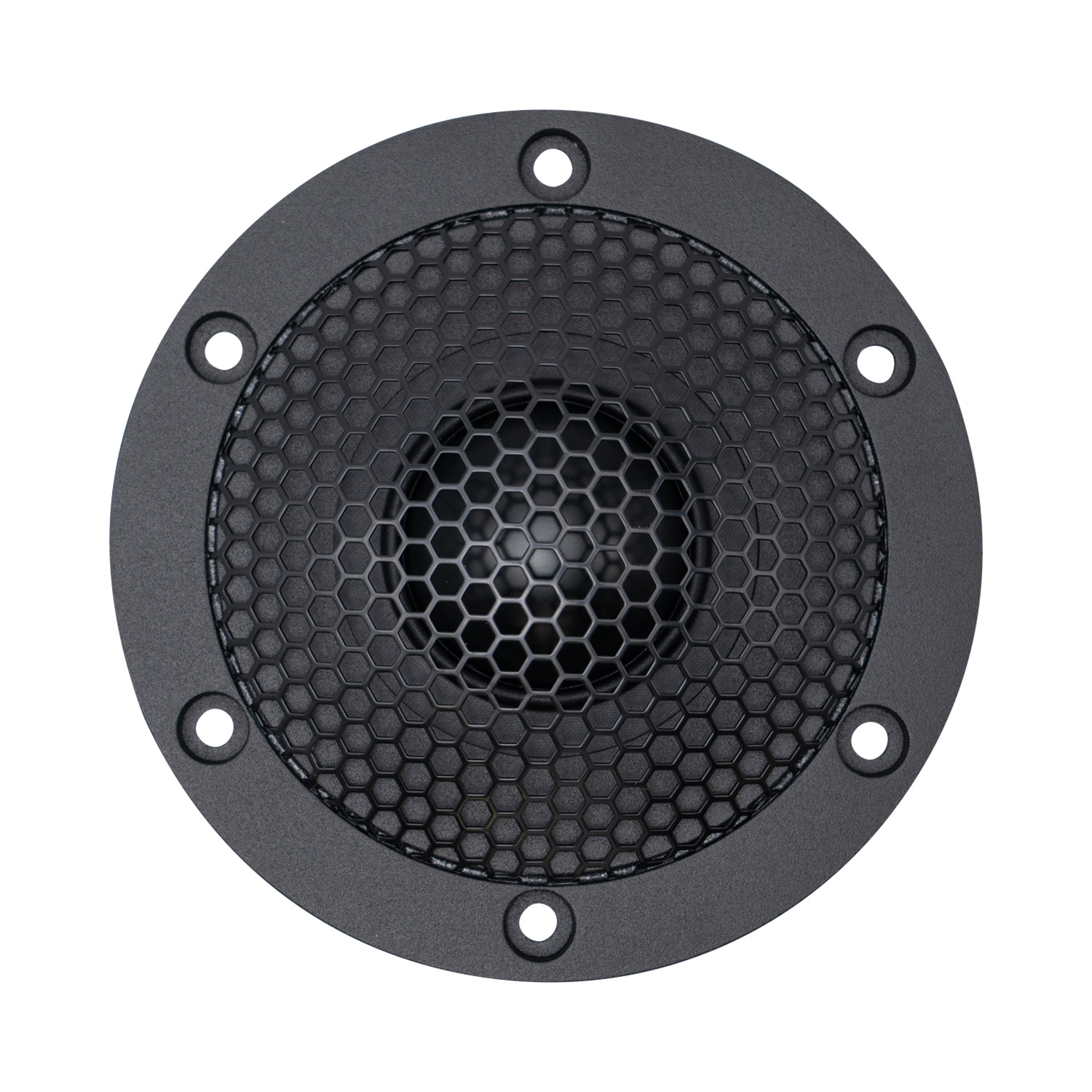

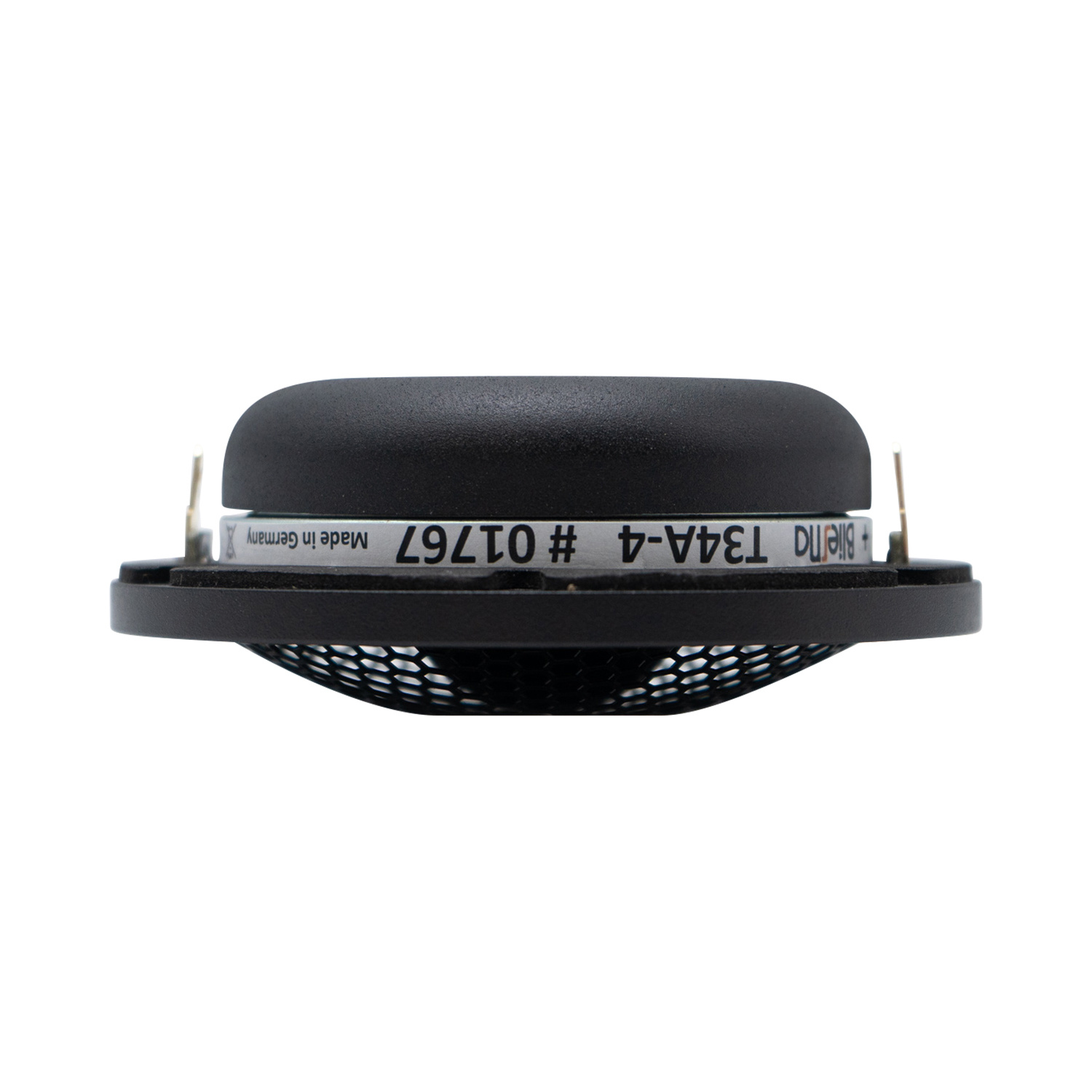

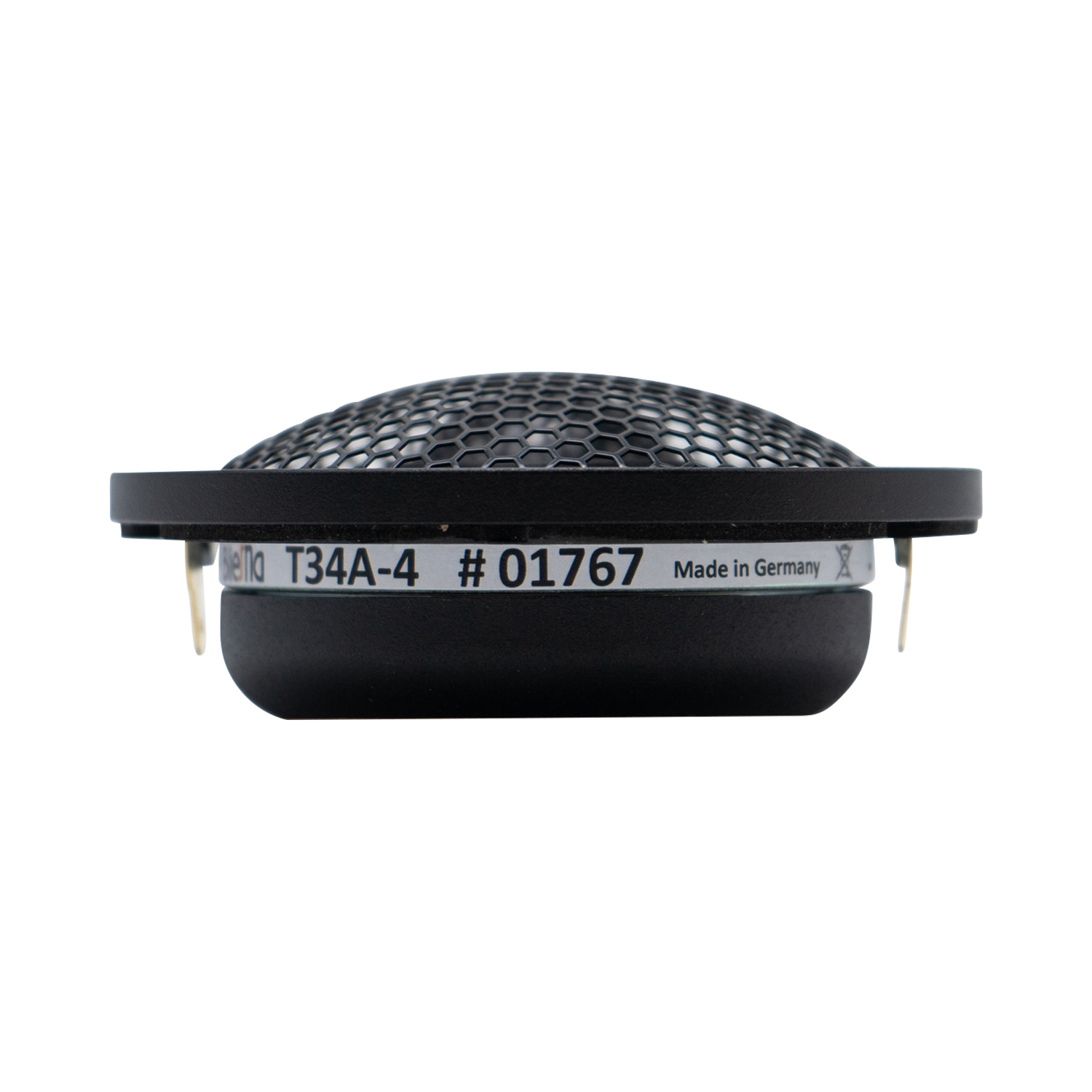

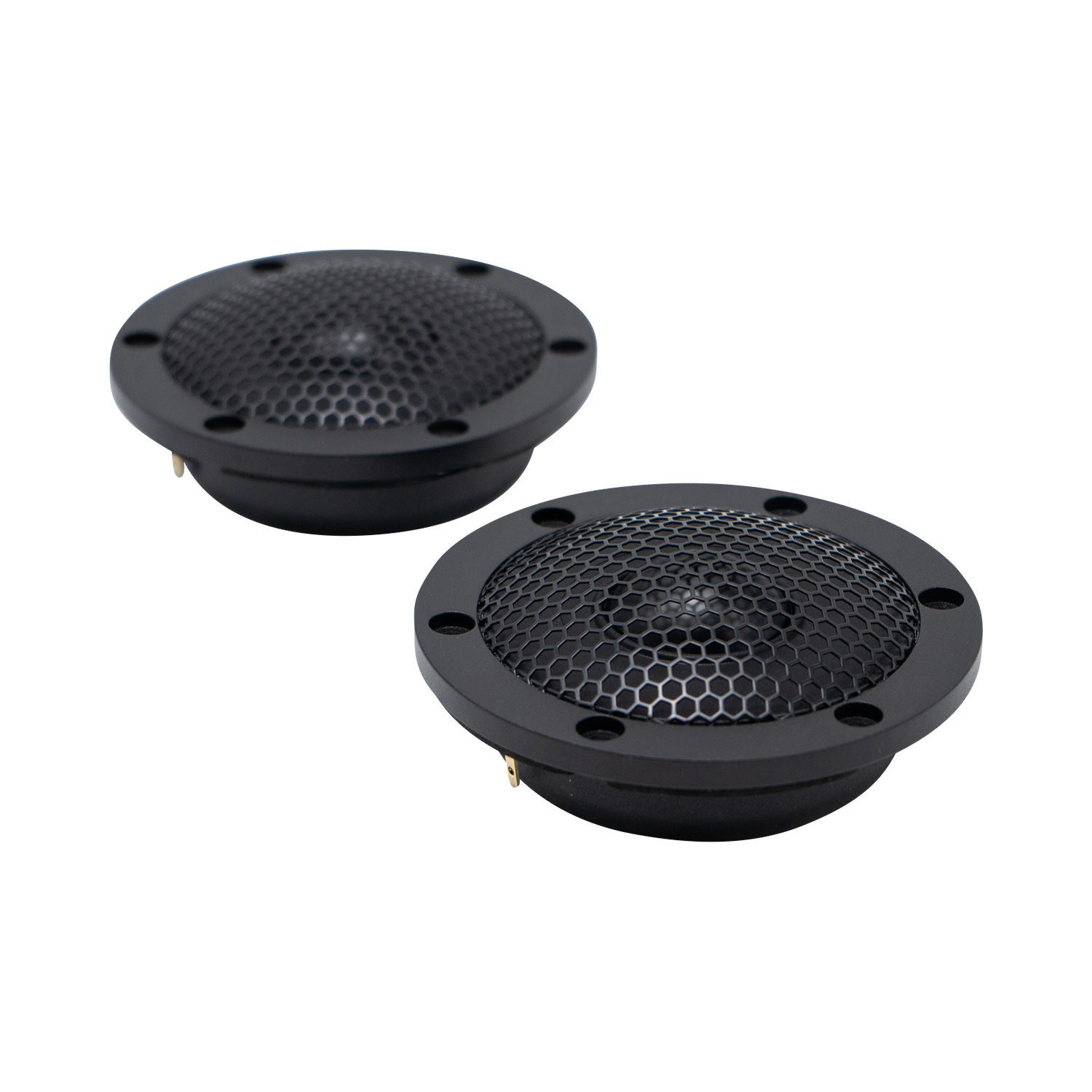

BlieSMa T34A-4 Aluminium-Magnesium Dome Tweeter Matched Pair

Lieferzeit: 1-3 Werktage

  • Artikelnummer: T34A-4
  • Vorrat: 2 Auf Lager

The Bliesma T34A-4 1-1/2" Aluminium-Magnesium tweeter belongs to the absolute best of this market. The extremely lineair frequency response and its amazing wide dispersion is unmatched by any other tweeter. The large surface area combined with a Peak to P

€ 599,95 Inkl. MwSt.

  • Kaufen Sie 4 für je €569,95 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

BlieSMa T34A-4 Aluminium-Magnesium Dome Tweeter Matched Pair

The Bliesma T34A-4 1-1/2" Aluminium-Magnesium tweeter belongs to the absolute best of this market. The extremely lineair frequency response and its amazing wide dispersion is unmatched by any other tweeter. The large surface area combined with a Peak to Peak excursion of 3mm gives this tweeter the ability to be safely used down to 1300Hz!



Highlights

  • 34 mm aluminium-magnesium alloy dome with variable thickness for 27 kHz first breakup mode
  • Extremely low moving mass for better transient response and higher efficiency
  • Fully saturated neodymium motor with copper sleeve for low non linear and modulation distortion
  • 3 mm linear excursion (P-P) and large vent channel for undistorted low frequency operation
  • Narrow surround for less "soft dome" coloration
  • Flush mounted surround and rear mounted magnet system for flat frequency response and wide off-axis response
  • No ferrofluid for improved dynamics
  • Underhung voice coil wound on titanium former
  • Flexible and lightweight lead wires made in Denmark
  • Thick aluminium powder coated flange
  • Aluminium rear chamber with natural wool damping
  • Extremely wide recommended frequency range 1.3 kHz-35 kHz



Product details

Bliesma T34A-4 1-1/2" Aluminium-Magnesium tweeter



The Bliesma T34A-4 tweeter was designed to be something new and extraordinary. It delivers all you want of a large dome, but still has the features that we desire from a small dome.. The engineer of this tweeter knew exactly what he was doing and used the Aluminium-magnesium dome to its full potential. Which resulted in a very lineair frequency plot and a wide dispersion This tweeter also features an amazing low-end extension! The large surface area plus big excursion makes it possible to cross the tweeter as low as 1300Hz!



This not only opens up a lot of options when you are deciding what woofer you are going to match with this tweeter, it also makes creating a crossover that much easier, as you have almost complete freedom over where to place the crossover.It’s extremely high sensitivity helps reducing Power compression and creating a high-sensivity speaker.



Specifications: Maximum Linear Excursion (Xmax): 1.5 mm • Surface Area of Cone (Sd): 10.5 cm2 • Diaphragm Mass Inc. Airload (Mms): 0.28 g

Eigenschaften

Spezifikationen für: T34A-4 Aluminium-Magnesium Dome Tweeter Matched Pair

  • Tweeter Type Art des Drivers, wie zum Beispiel soft dome, piezo, ribbon, AMT oder bullet tweeter etc. Corundum Dome
  • Tweeter Series Spezielle Tweeter Produktionsreihe des Herstellers.
  • Cone / Dome Diameter Nominal Durchmesser des Domes/Cones, gemessen in Inch. 1-1/4"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 80 Watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt.
  • View all specifications
  • Impedance 4 ohms
  • Sensitivity 96 dB 1W/1m
  • Frequency Response 1,300 to 30,000 Hz
  • Resonant Frequency (Fs) 790 Hz
  • DC Resistance (Re) 3.3  ohms
  • Voice Coil Inductance (Le) 0.008 mH
  • Mechanical Q (Qms) 2.1
  • Electromagnetic Q (Qes) 0.42
  • Total Q (Qts) 0.35
  • Overall Outside Diameter
  • Cutout Diameter
  • Depth
  • Angle
  • Mounting Type
  • Exit Diameter
  • Diaphragm Material
  • Recommended cut frequency
