Produktbeschreibung Beyma FD-250 2-way Crossover Pair

The Beyma FD 250 is a robust 2-way passive crossover network tailored for high-power loudspeaker systems. Designed to manage more than 500 WRMS, it offers flexible configuration for impedance matching and high-frequency attenuation, making it ideal for system designers and DIY audio builders aiming for tailored acoustic performance.

Highlights of the Beyma FD 250

2-way passive crossover with 12 dB/octave slopes
Handles over 500 WRMS for demanding audio setups
Selectable 4 or 8 ohm load for the low-frequency section
Four user-selectable high-frequency attenuation levels up to 7.5 dB

Product details Beyma FD 250

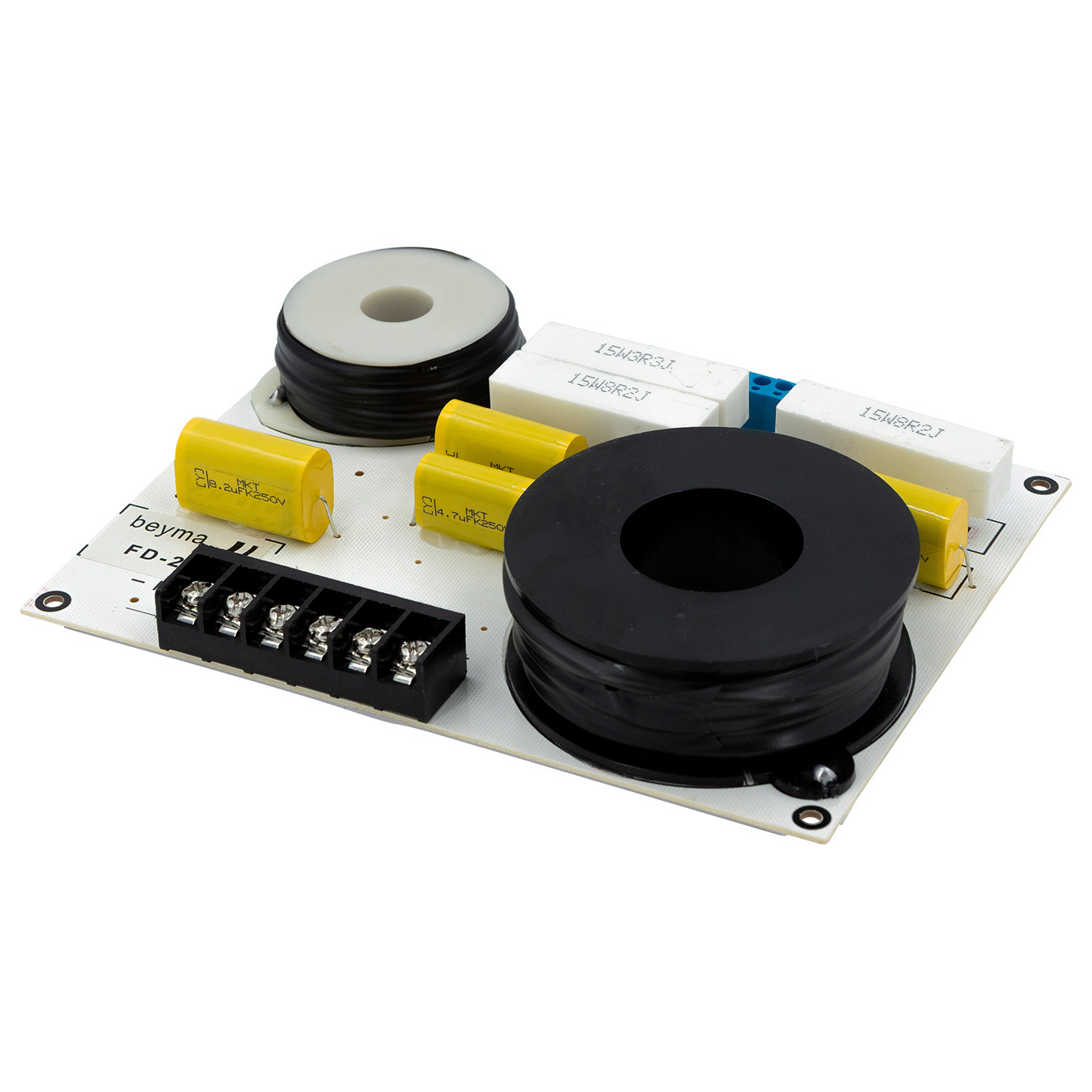

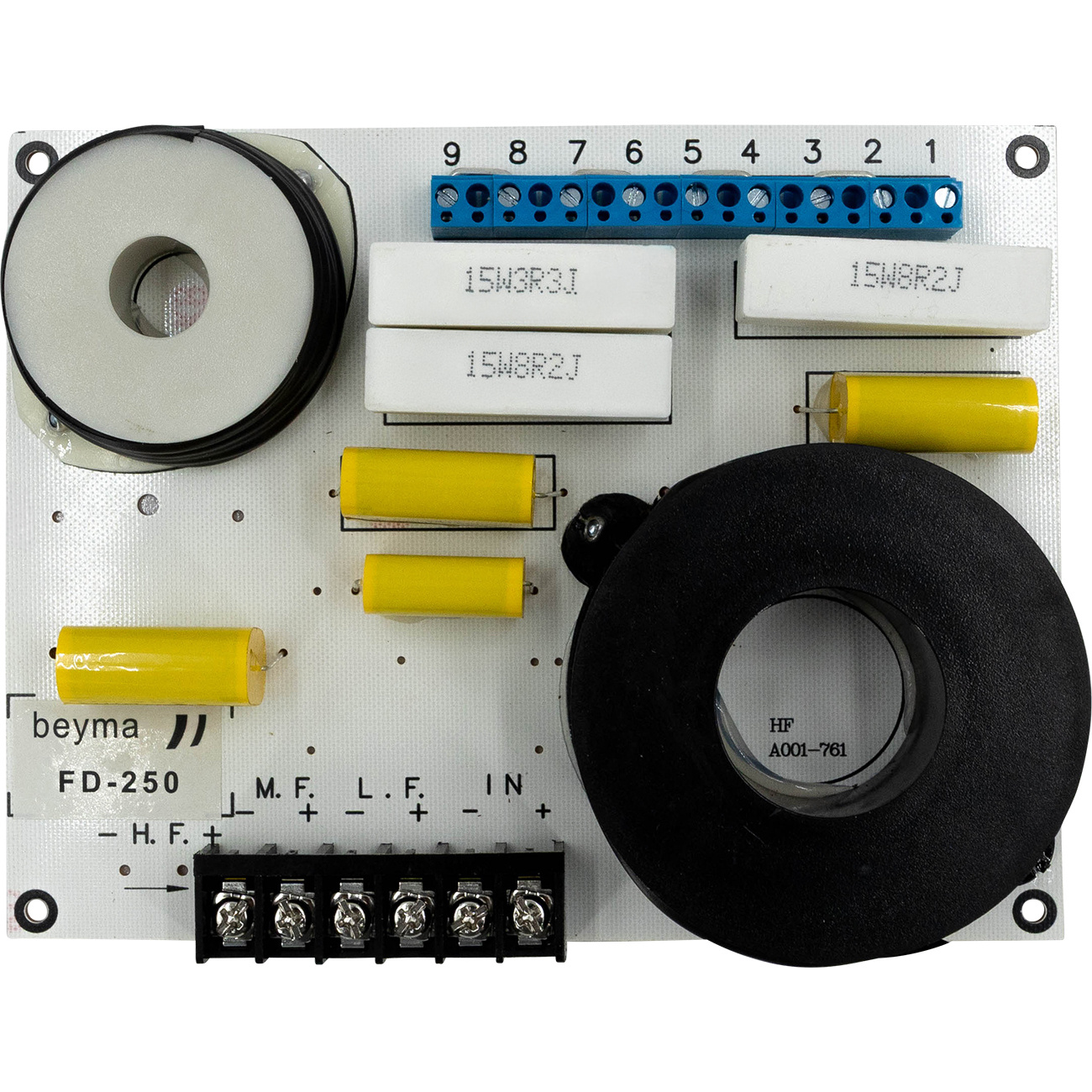

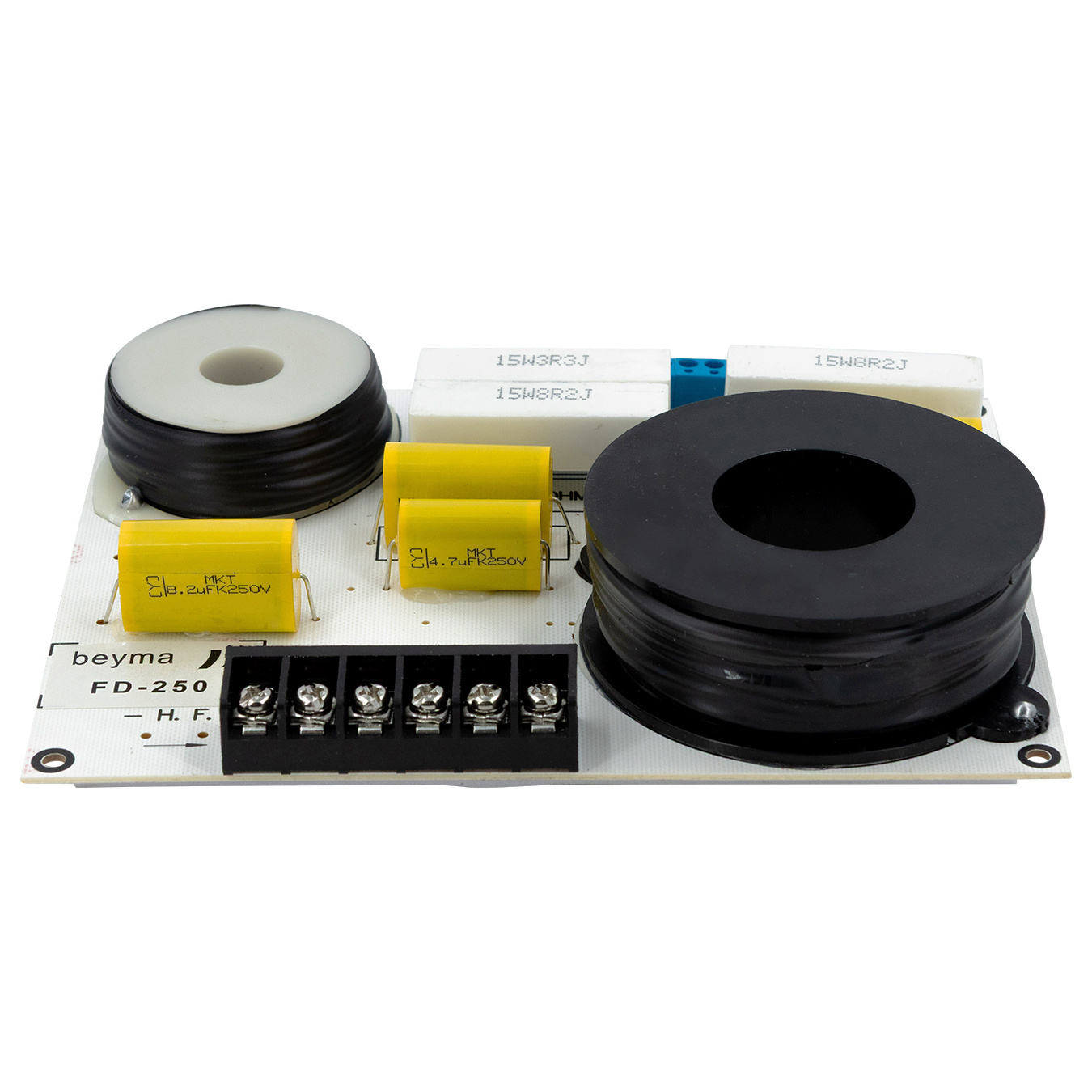

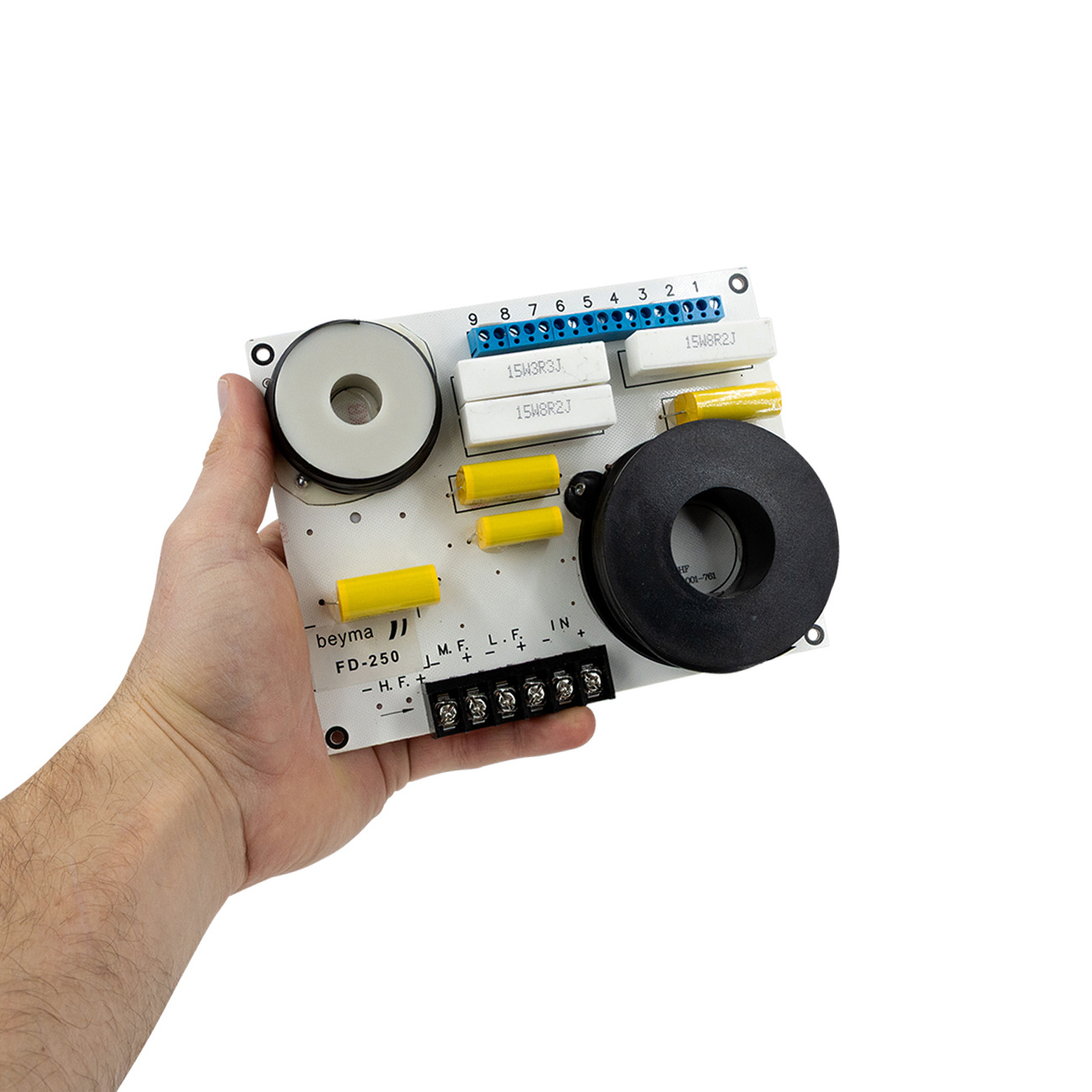

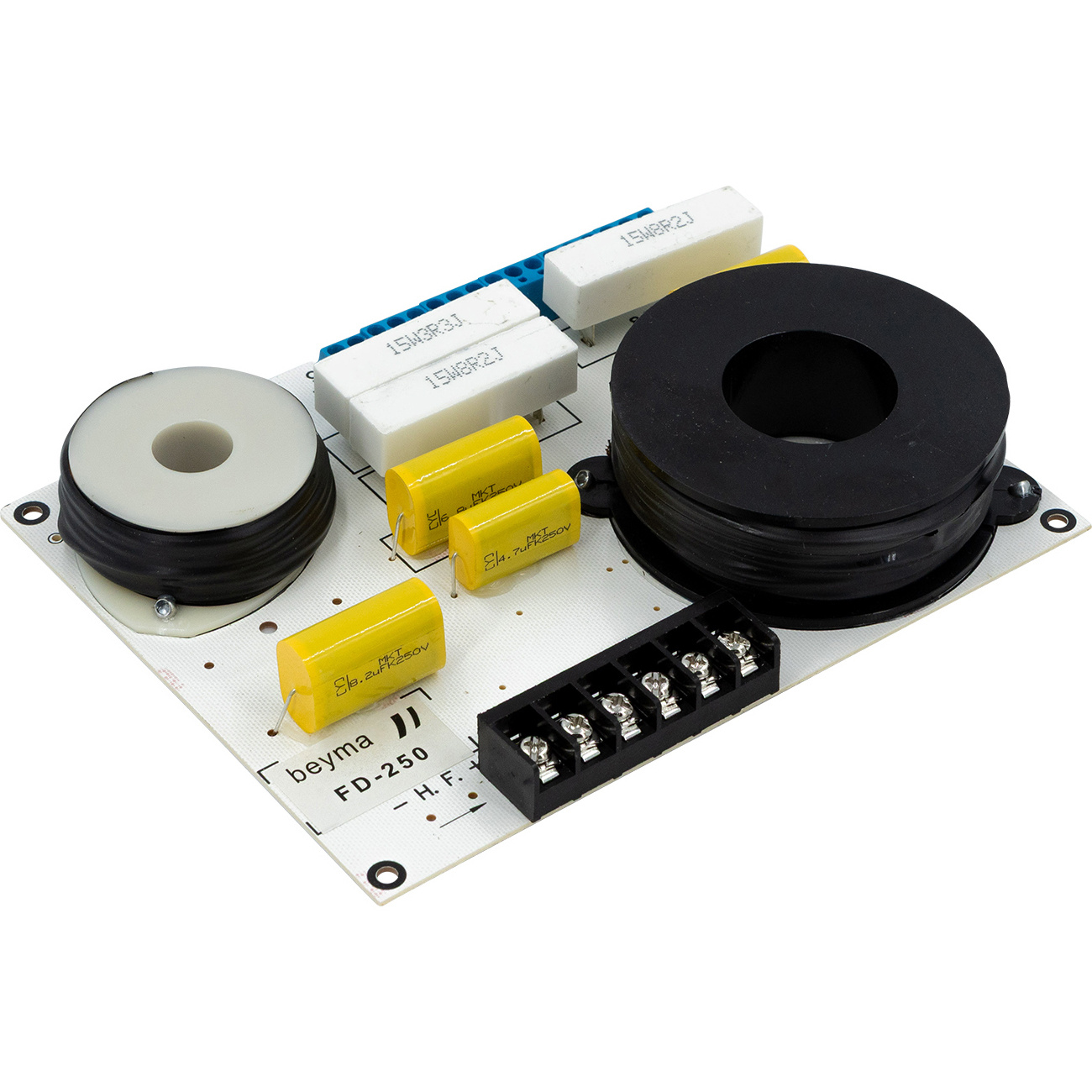

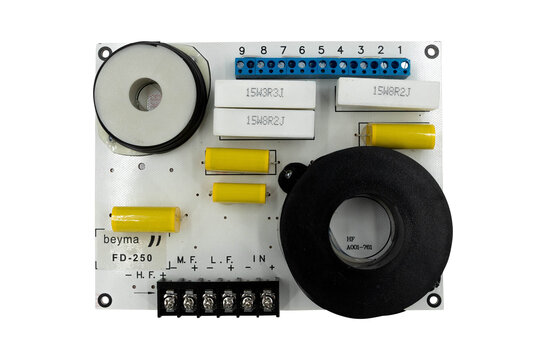

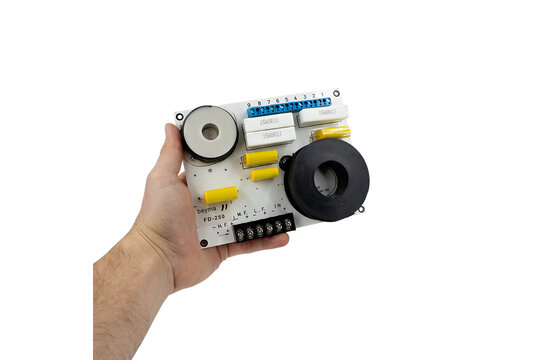

Beyma FD 250 Passive Crossover Network

The Beyma FD 250 is engineered to deliver accurate frequency division and tonal balance in 2-way loudspeaker systems. It employs 12 dB/octave crossover slopes and supports more than 500 WRMS of power, ensuring compatibility with high-output drivers and professional-grade sound reinforcement applications. This passive filter offers configurable impedance settings for the low-frequency section, allowing for either 4 or 8 ohm loads through terminal bridging. The high-frequency output can be fine-tuned using four different attenuation options: 3 dB, 6 dB, or 7.5 dB, or left unattenuated. These options help equalize the output to match the woofer's sensitivity, delivering a flatter, more balanced response. The crossover is supplied preconfigured for an 8-ohm LF load with no attenuation or equalization on the high-frequency side. As with all passive networks, proper installation according to the instructions is critical to avoid potential damage to drivers or amplifier equipment.
