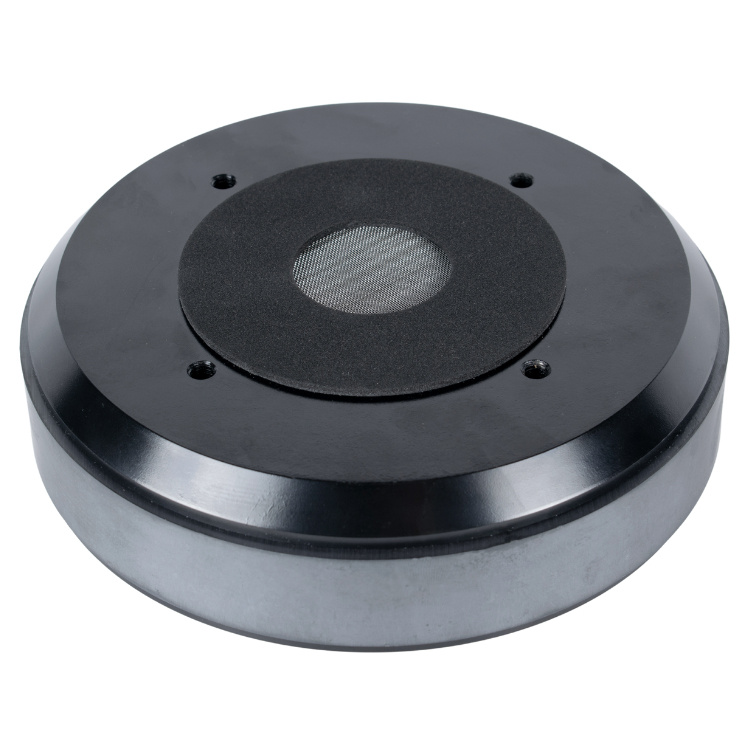

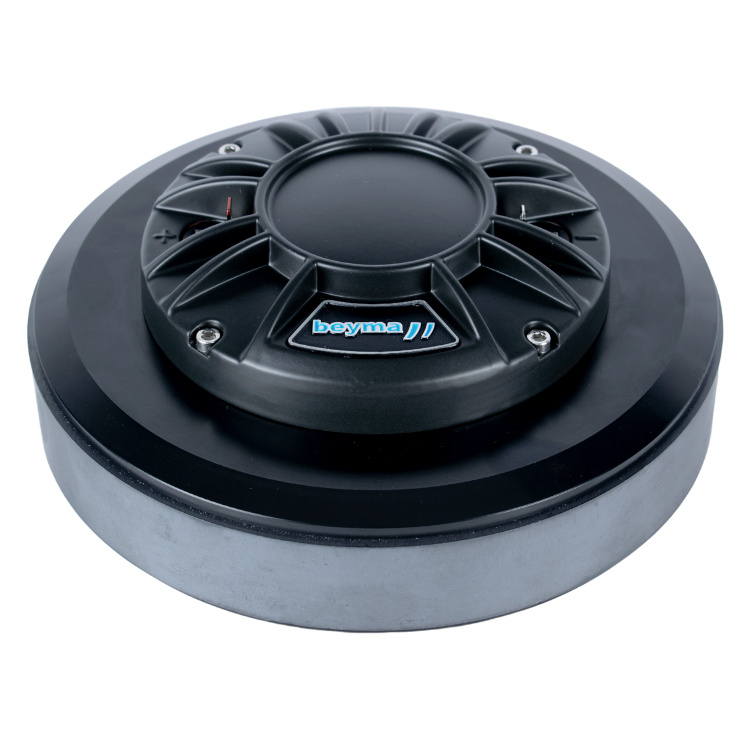

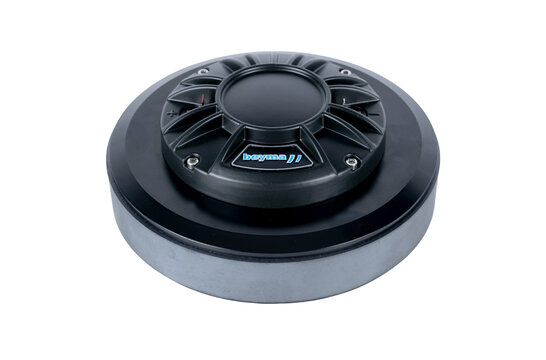

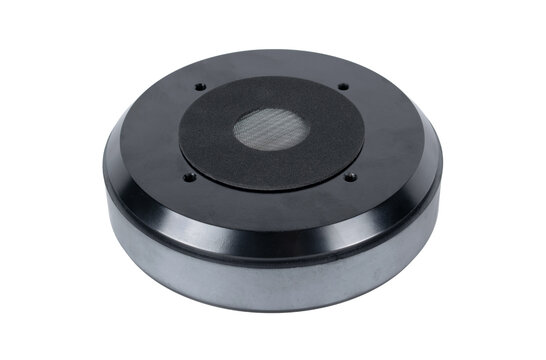

Name: Beyma CD-314Fe/Ti Kompressionstreiber
Brand: Beyma
SKU: CD-314Fe/Ti
Price: 219.95 EUR
Availability: BackOrder

1.4" | 8 Ω

181,78 €219,95 € Nicht auf Lager4 erwartet auf 02-01-2026

Backorder

Kostenloser Versand (DE & A)
Bald wieder auf Lager
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung Beyma CD-314Fe/Ti Kompressionstreiber

The Beyma CD-314Fe is a premium 1.4" exit compression driver designed to deliver powerful, clear, and precise high-frequency performance in demanding professional audio environments. Engineered with a 3-inch copper-clad aluminum voice coil and advanced thermal management, this driver combines power and efficiency in a compact form factor.

Highlights of the Beyma CD-314Fe

1.4” throat exit with large 3” copper-clad aluminum voice coil on a Nomex former
Handles up to 260 W program power above 1.2 kHz with high 109 dB sensitivity
FEM-optimized titanium diaphragm for extended response and minimized resonances
Features Deplocex® thermal technology and a ceramic magnetic circuit for low compression losses and durability

Product details Beyma CD-314Fe

Beyma CD-314Fe Compression Driver

The Beyma CD-314Fe is a next-generation high-output compression driver built for professional audio systems requiring clarity and reliability at high sound pressure levels. With a 1.4-inch throat and a large 3-inch voice coil wound in copper-clad aluminum on a Nomex former, it offers exceptional thermal performance and power handling. This model delivers 260 W of program power above 1.2 kHz and features a sensitivity of 109 dB (1W/1m), ensuring excellent projection and detail. The titanium dome and surround, optimized through finite element modeling (FEM), offer a linear and extended frequency response from 0.6 to 20 kHz while reducing unwanted resonances. It incorporates a copper shorting cap to minimize harmonic distortion and provide a more linear impedance response. The CD-314Fe is designed around a FEM-optimized ceramic magnetic circuit, providing a balanced combination of weight, magnetic strength, and durability. Its proprietary metal alloy phase plug enhances acoustic performance, and the rugged aluminum cover protects internal components. Physically, the unit measures 165 mm in diameter and 69.6 mm in depth, with mounting via four M6 threaded holes spaced 90º apart on a 101.6 mm circle. At 5.4 kg, it is heavier than neodymium-based alternatives but offers robust performance ideal for touring systems, large-format arrays, or high-end installations demanding both power and fidelity.
