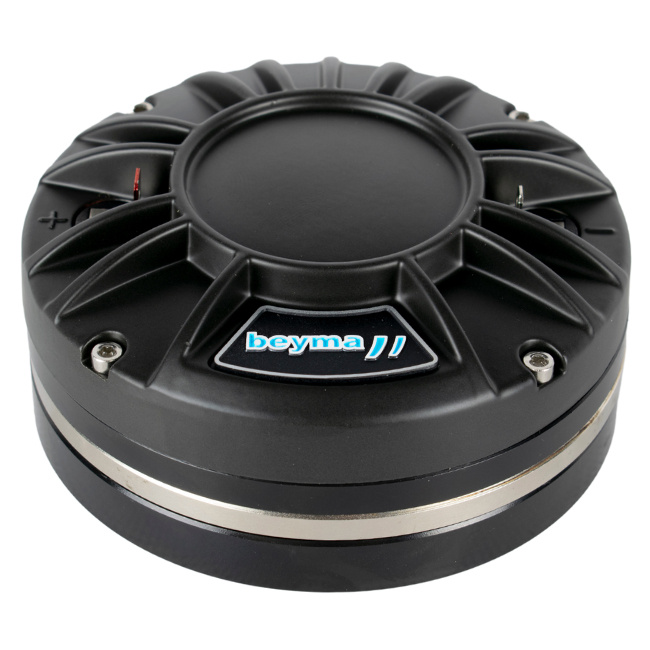

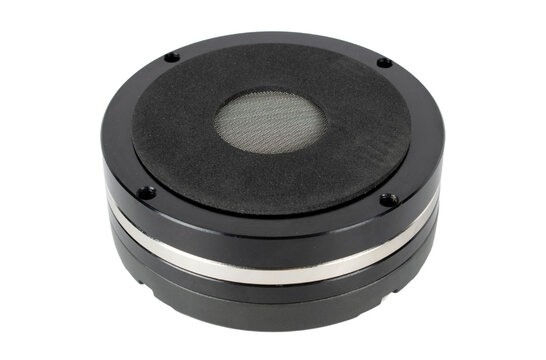

      CD-2514Nd/PT Kompressionstreiber

      Beyma CD-2514Nd/PT Kompressionstreiber

      €219,95

      4 Auf Lager

      Zum Warenkorb hinzufügen

      Beyma CD-2514Nd/PT Kompressionstreiber

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Beyma
      Zeige alle Neue Produkte
      1.4" | 8 Ω
      CD-2514Nd/PT Kompressionstreiber
      CD-2514Nd/PT Kompressionstreiber
      CD-2514Nd/PT Kompressionstreiber
      CD-2514Nd/PT Kompressionstreiber
      181,78 €219,95 € 4 Auf Lager
      • -5% Bestelle 4 für nur 208,95 € je Stück
      +-
      Zum Warenkorb hinzufügen

      Buy now, pay later

      • Kostenloser Versand (DE & A)
      • Vor 16:00 Uhr bestellt, heute versandt
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      CD-2514Nd/PT Kompressionstreiber
      CD-2514Nd/PT Kompressionstreiber
      CD-2514Nd/PT Kompressionstreiber
      CD-2514Nd/PT Kompressionstreiber

      Produktbeschreibung Beyma CD-2514Nd/PT Kompressionstreiber

      The Beyma CD-2514Nd-PT is a high-performance 1.4" exit compression driver engineered for professional audio applications where clarity, power, and efficiency are critical. Designed with Beyma’s patented Deplocex® thermal technology, this driver offers outstanding power handling and thermal dissipation capabilities, making it ideal for demanding sound reinforcement setups.



      Highlights of the Beyma CD-2514Nd-PT

      • 1.4” throat exit with advanced 2.5” copper-clad aluminum voice coil on a Nomex former
      • Handles up to 200W program power above 1.2 kHz with 109 dB sensitivity
      • Features Deplocex® technology for enhanced heat dissipation and reduced power compression
      • FEM-optimized neodymium magnet and metal alloy phase plug for superior linearity and low distortion



      Product details Beyma CD-2514Nd-PT

      Beyma CD-2514Nd-PT Compression Driver



      The Beyma CD-2514Nd-PT is a next-generation compression driver built for precision and performance in professional audio systems. Featuring a 1.4-inch throat diameter and a large 2.5-inch copper-clad aluminum voice coil, it is engineered for high output and low distortion. The driver incorporates Beyma’s proprietary Deplocex® patent-pending technology, which significantly enhances thermal dissipation, ensuring consistent performance during prolonged high-power operation. Its acoustic design includes an exclusive advanced polyester dome and surround, optimized using finite element modeling (FEM) for a smooth and extended frequency response from 0.6 to 20 kHz. A copper shorting cap helps reduce harmonic distortion, while the FEM-optimized neodymium magnetic structure ensures high efficiency and linear response. The driver delivers a remarkable 109 dB sensitivity (1W/1m) and supports up to 200 W of program power when used above 1.2 kHz with an appropriate crossover filter (minimum 12 dB/oct). Physically, the CD-2514Nd-PT has a compact profile with a 109 mm overall diameter and 54.7 mm depth, and it mounts using four M6 threaded holes spaced 90º apart on a 101.6 mm diameter circle. Weighing just 1.8 kg, this robust yet lightweight driver is suitable for high-end PA systems, line arrays, and custom loudspeaker designs where performance and reliability are paramount.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      CD-2514Nd/PT
      EAN
      8435469051508
      Hochtönertyp
      Compression Driver
      Cone / Dome Diameter
      2.5"
      Belastbarkeit (QMW)
      200 Watts
      Impedanz (Z)
      8 Ω
      Empfindlichkeit (SPL bei 1m / 2,83V)
      109 dB
      Frequenzgang
      600 - 20.000 Hz
      Gleichstromwiderstand (Re)
      4.4 Ω
      Außendurchmesser
      109 mm
      Tiefe
      54.7 mm
      Bestätigungstyp
      Screws 4 x 6 mm

      Mehr anzeigen
