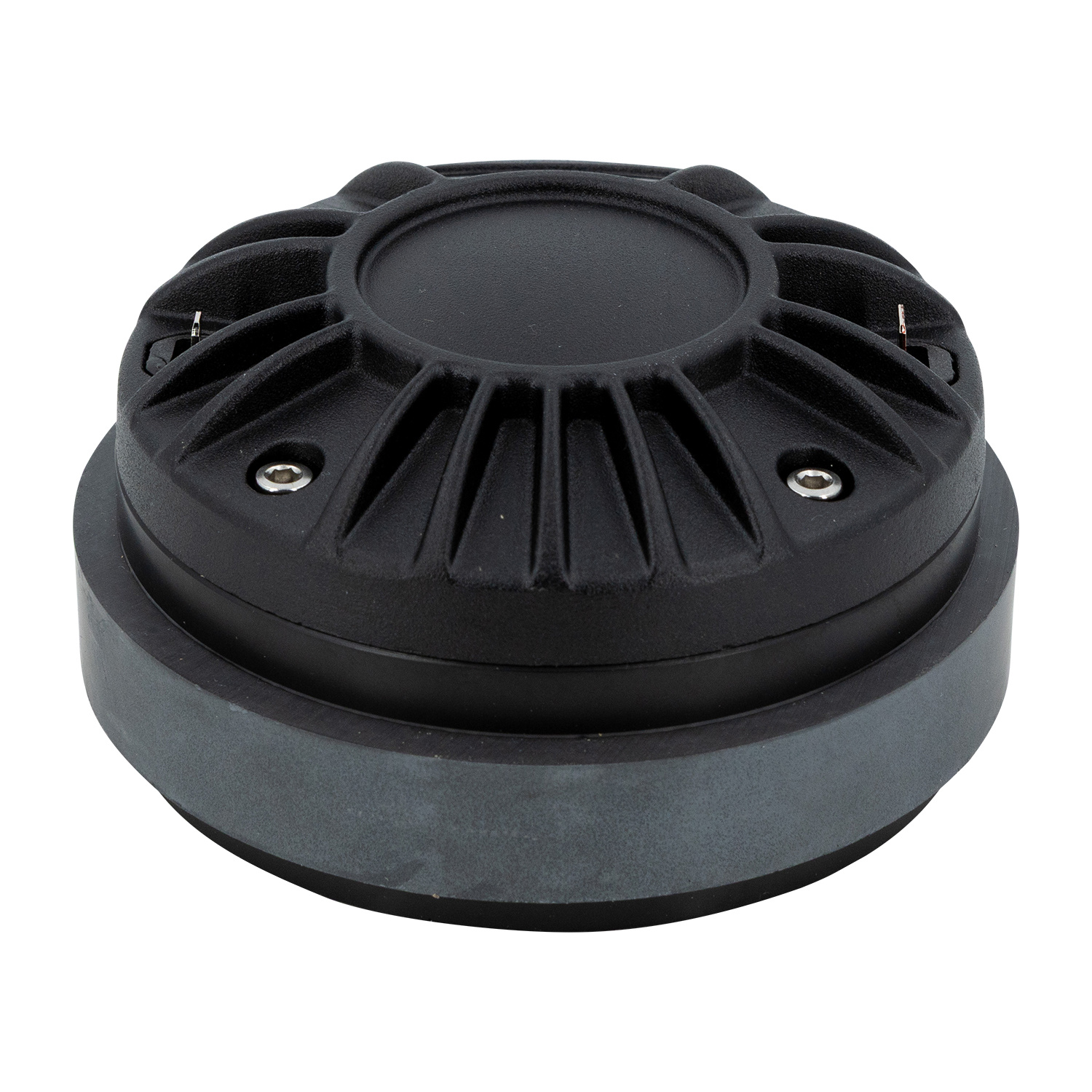

Name: Beyma CD-11Fe Kompressionstreiber
Brand: Beyma
SKU: CD-11Fe
Price: 99.95 EUR
Availability: InStock

1" | 8 Ω

82,60 €99,95 € 2 Auf Lager4 erwartet auf 02-01-2026

Wir versenden nach
Vor 16:00 Uhr bestellt, heute versandt
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung Beyma CD-11Fe Kompressionstreiber

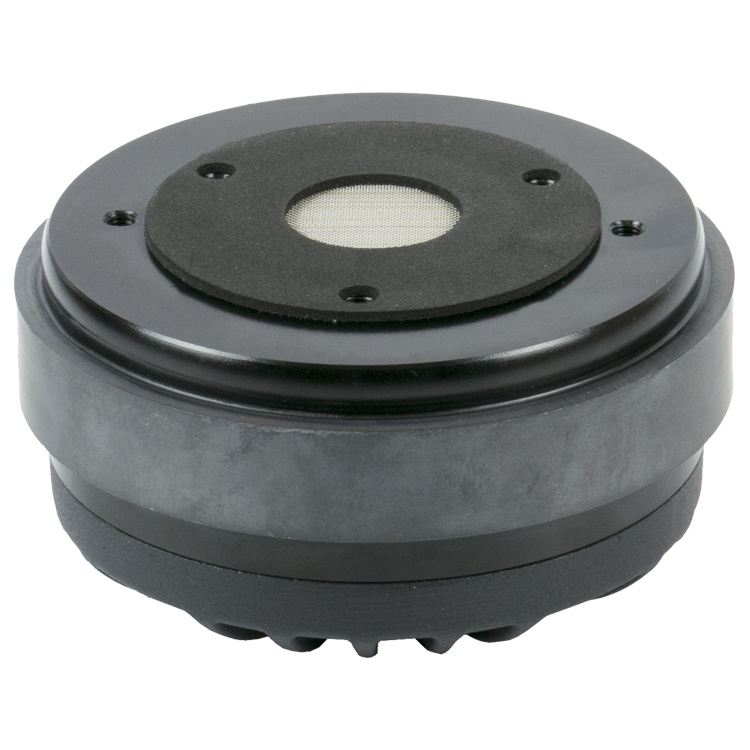

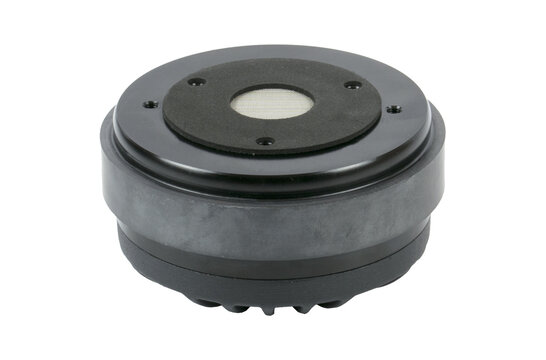

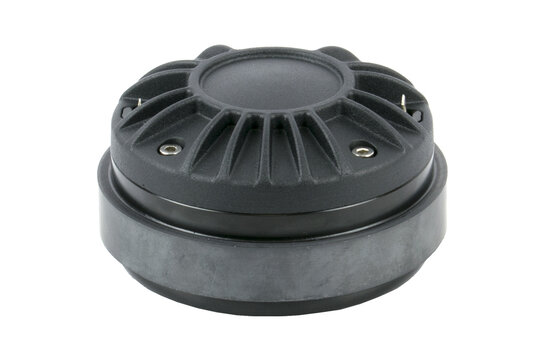

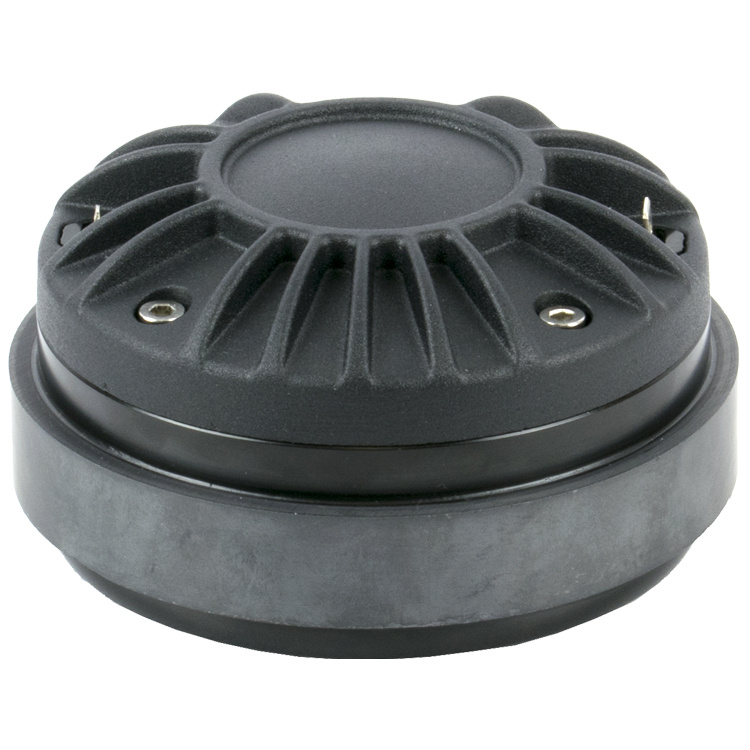

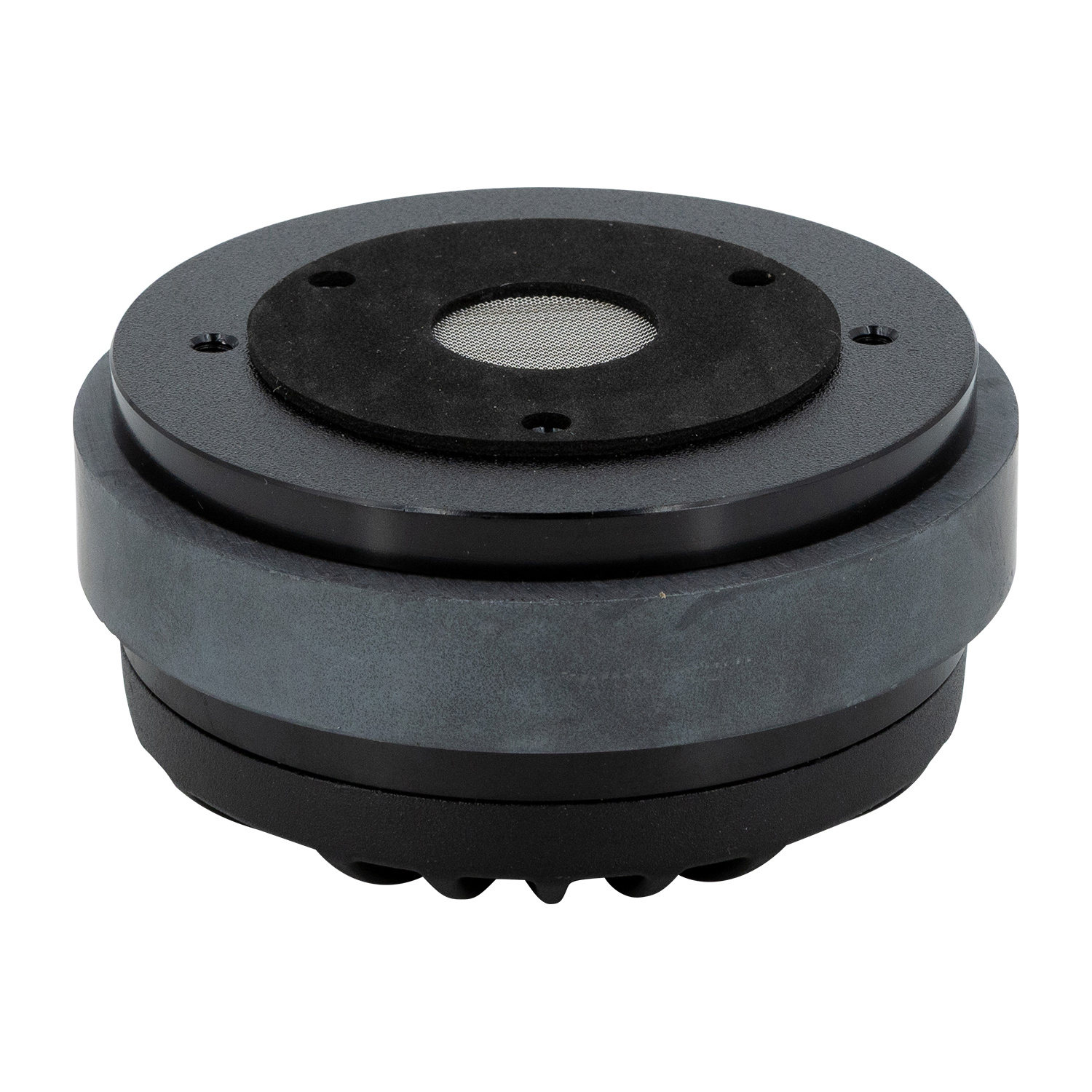

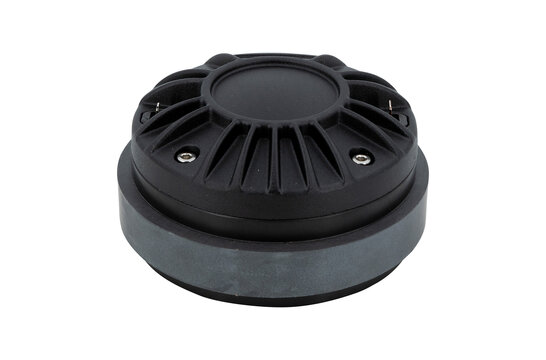

The Beyma CD-11Fe is a robust 1” exit compression driver engineered for accurate high-frequency reproduction and natural tonal balance. With a DUO double-layer aluminum voice coil and PM4 polymer diaphragm, it’s ideal for portable and installed sound systems requiring clarity, efficiency, and reliability.

Highlights of the Beyma CD-11Fe

1” throat with 1.75” DUO double-layer in/out aluminum voice coil
Delivers 140 W program power above 1.5 kHz with 109 dB sensitivity
PM4 polymer diaphragm offers smooth and natural sound reproduction
FEA-optimized ferrite magnet system ensures consistent and efficient performance

Product details Beyma CD-11Fe

Beyma CD-11Fe Compression Driver

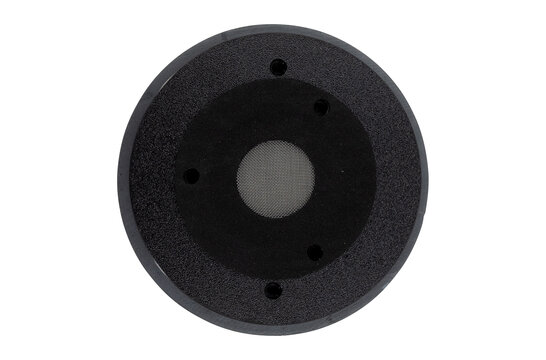

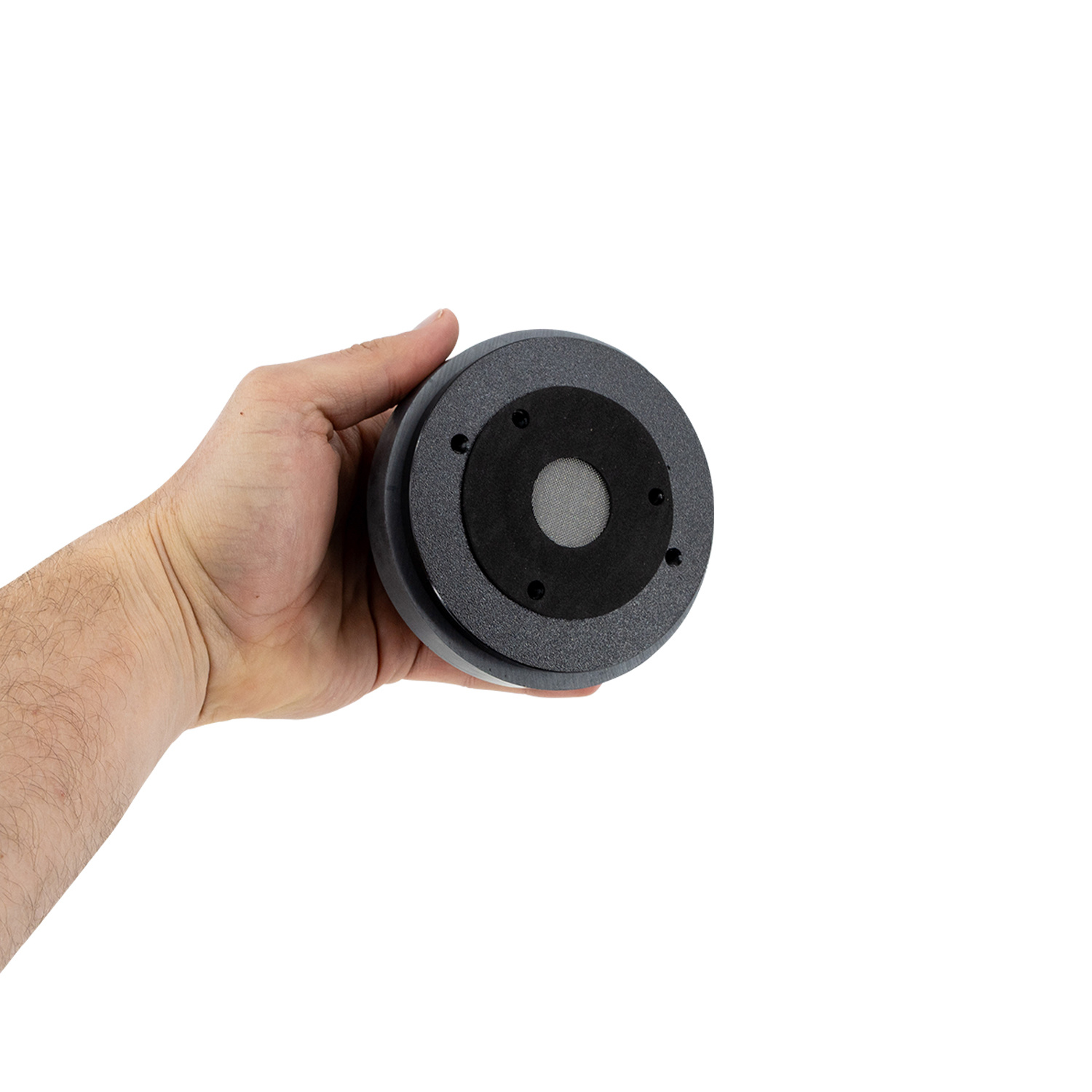

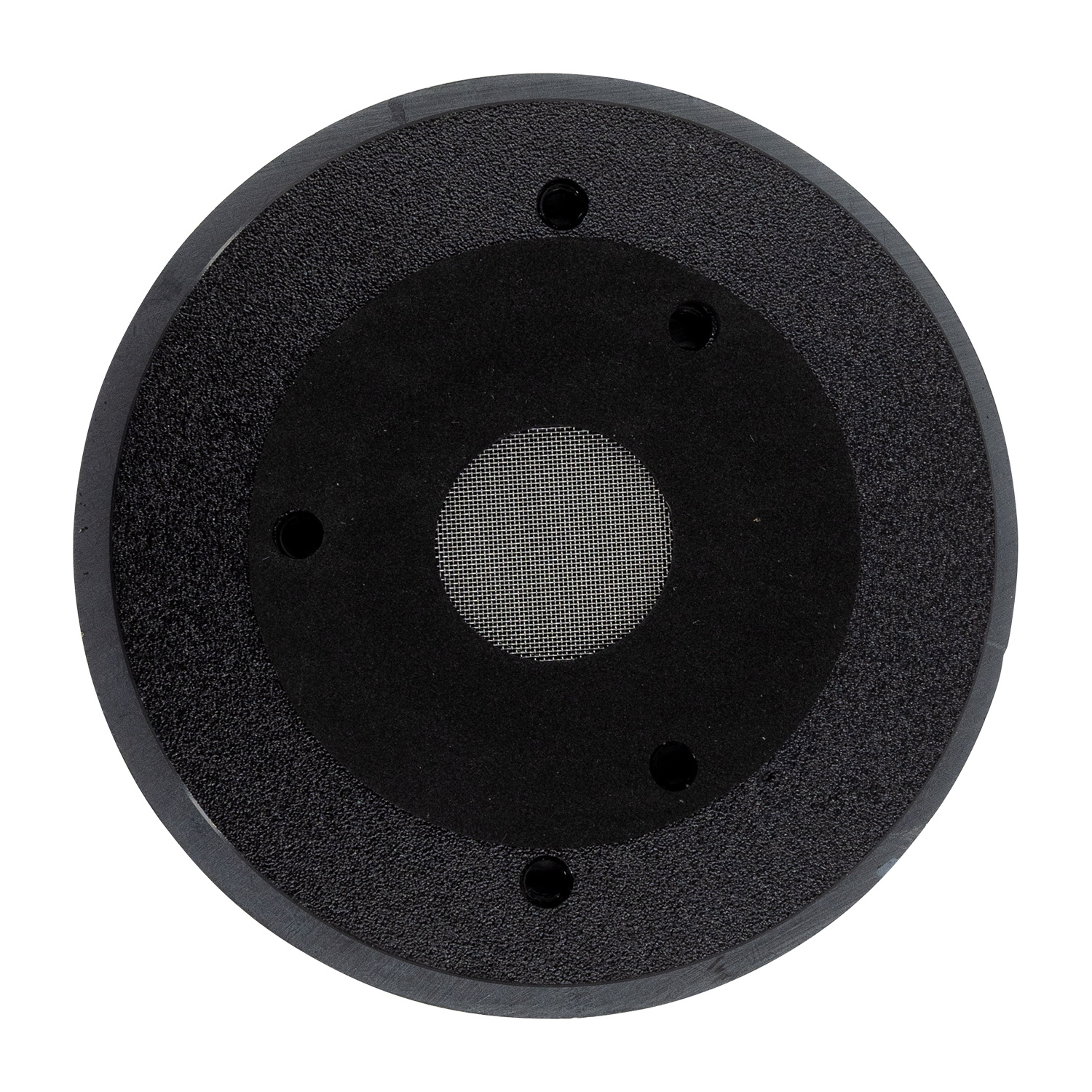

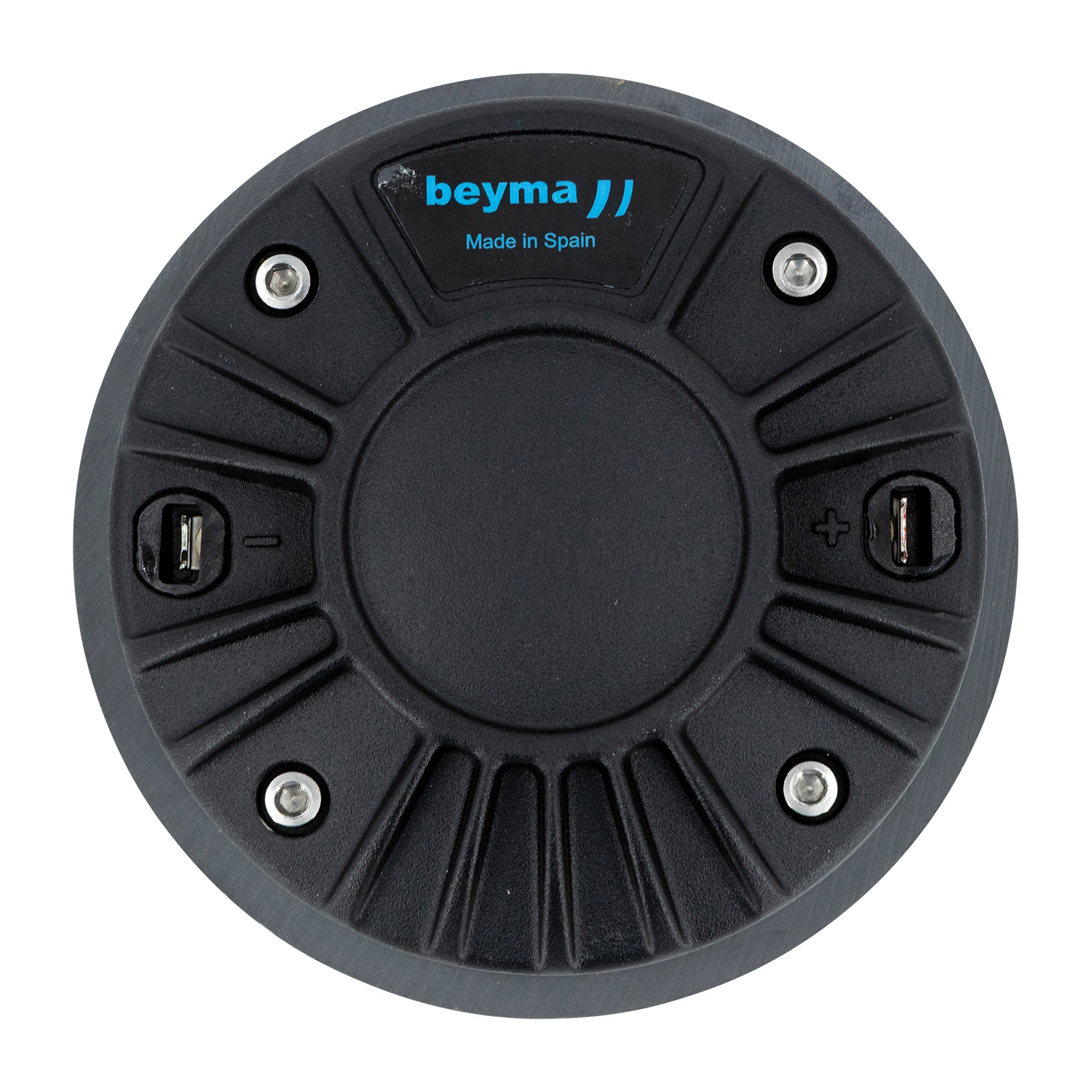

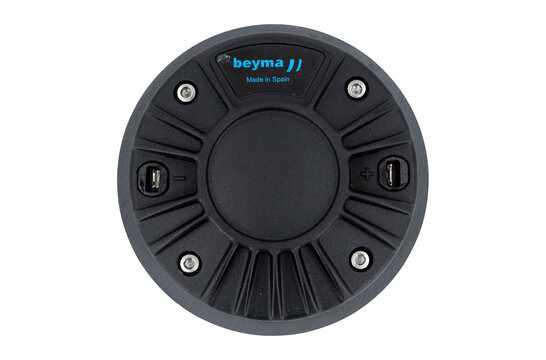

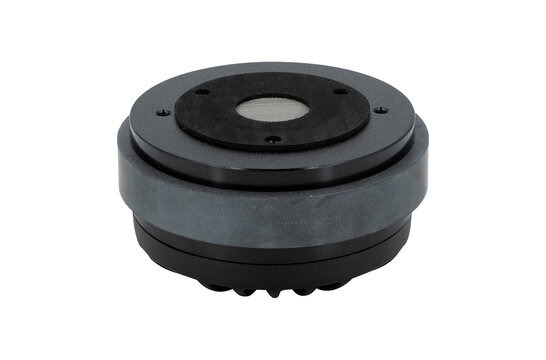

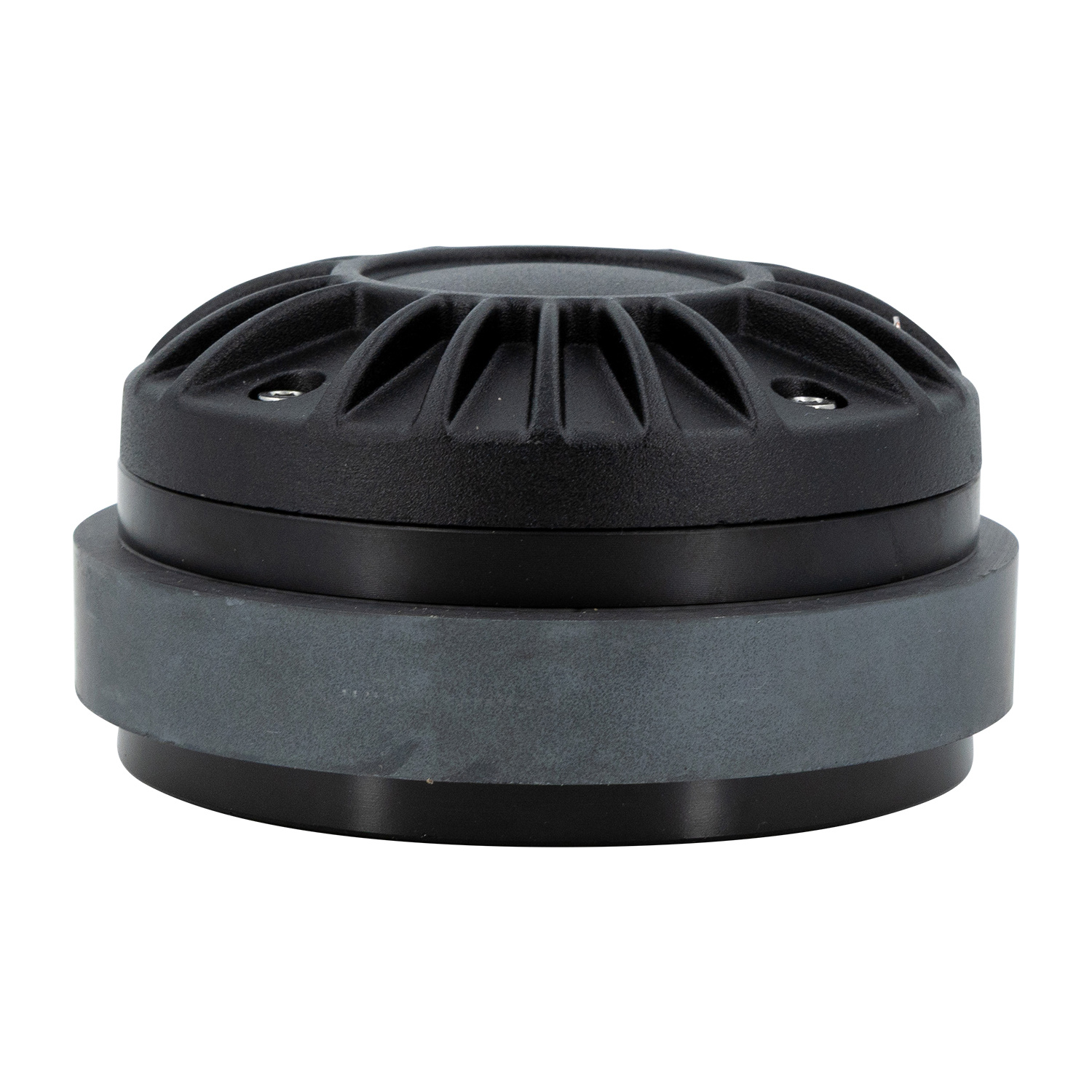

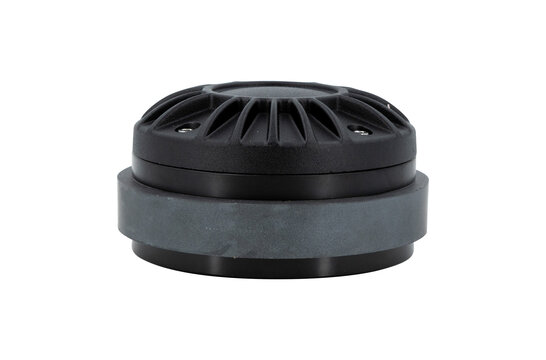

The Beyma CD-11Fe is a high-performance 1” compression driver designed for precise high-frequency reproduction in professional audio systems. Featuring a 1.75” DUO double-layer aluminum voice coil wound in/out for improved heat dissipation and mechanical integrity, it delivers consistent output even under demanding conditions. With a program power handling of 140 W (above 1.5 kHz) and sensitivity of 109 dB (1W/1m), this driver ensures high efficiency and clarity in both touring and fixed installations. Its PM4 polymer diaphragm is optimized for smooth, natural sound, extending frequency response from 0.7 kHz to 19 kHz while reducing distortion and breakup modes. A ferrite magnet motor structure, finely tuned using finite element analysis (FEA), provides a flux density of 1.5 T and a Bl factor of 6.6 N/A. These parameters contribute to improved linearity, low distortion, and stable performance across the driver’s working range. The CD-11Fe is compact, with a 110 mm diameter and 59 mm depth, and mounts via three M5 threaded holes spaced 120º apart (on a 57 mm circle) or two M5 holes 180º apart (on a 76.2 mm circle). At just 1.8 kg, it’s a versatile and durable solution for applications where fidelity and output matter.
